Insulation Material 100mm Fireproof Calcium Silicate Board/Board/Sheet
-
$3.96 / 100 - 299 pieces
$2.60 / 300 - 399 pieces
$1.20 / >=400 pieces - 100 pieces
- Laizhou Yanfa Thermal Insulation Materials Co., Ltd.
- Shandong, China
- Mr
Product Detail
| type: | Insulation Materials | Package preview: | |
| Warranty: | 5 years | payment terms: | L/C, Western Union, D/P, D/A, T/T |
| color: | white | Advantage: | manufacturer |
| Supply capacity: | Annual output 30,000 square meters | application: | Electrolytic aluminum industry, etc. |
| port: | Qingdao | Project solution capabilities: | Graphic design, 3D model design, overall project solutions, cross-category integration |
| product name: | Sodium silicate board | brand: | Yanfa |
| After-sales service: | Online technical support, on-site installation, free spare parts, returns and exchanges | brand: | Yanfa |
| pack: | Carton | feature: | Fireproof |
| Operating temperature: | 1100℃ | thickness: | 25mm-120mm |
| usage: | Electrolytic aluminum industry, etc. | design style: | industrial |
| Function: | Industrial insulation | Place of origin: | Shandong Province, China |

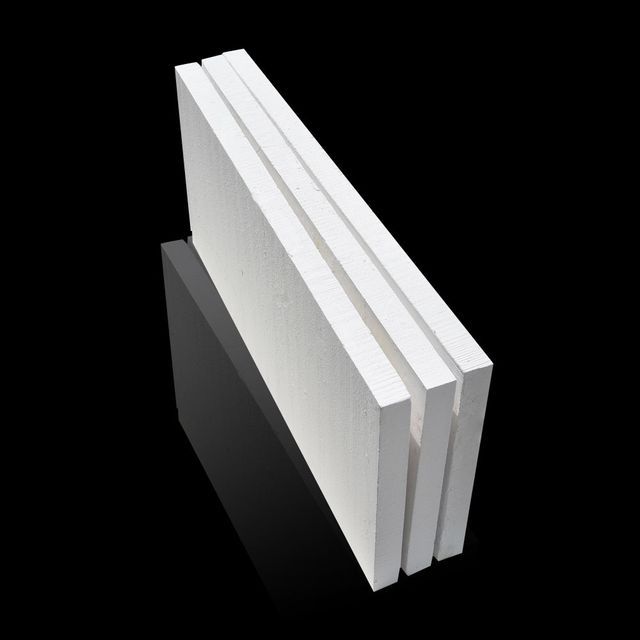

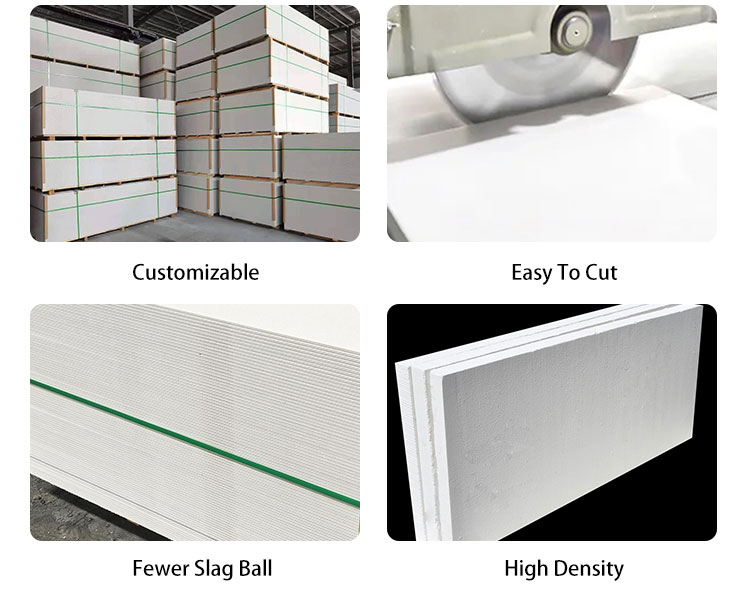

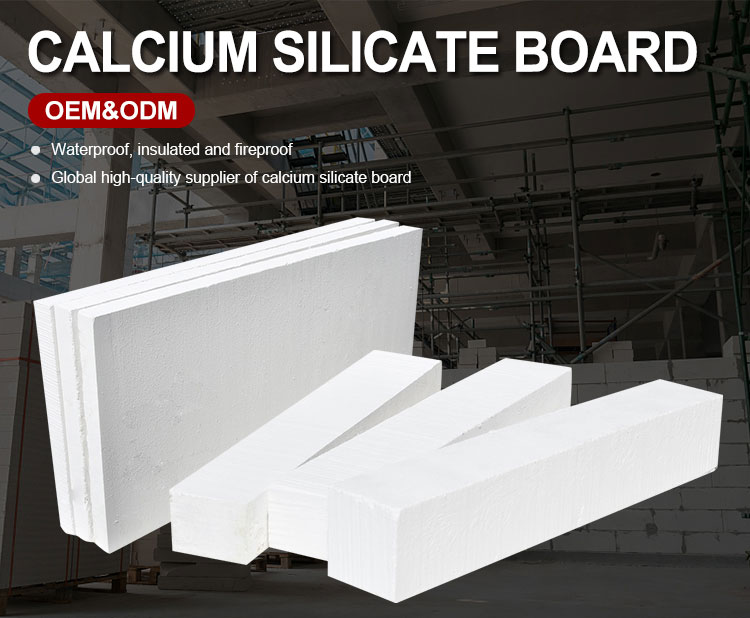

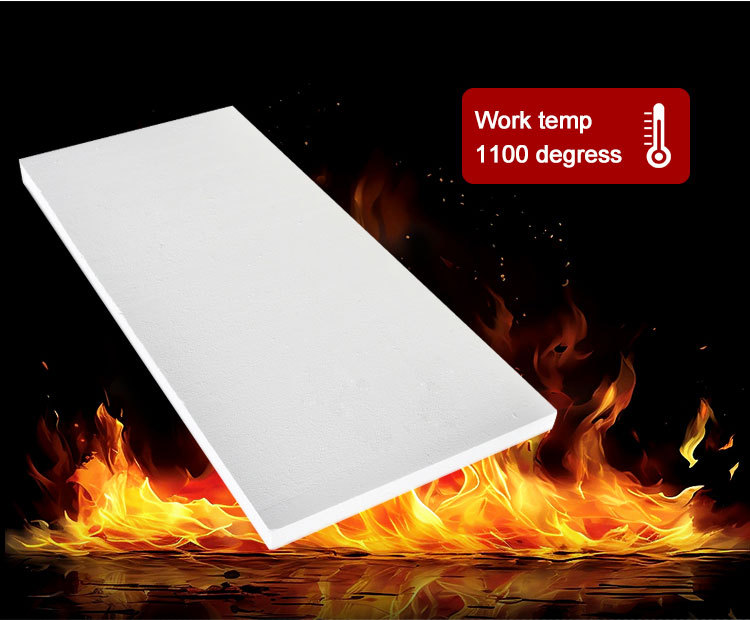

describeCalcium silicate board for thermal insulation Calcium silicate board is made of xonotlite and reinforced glass fiber. It has the characteristics of high temperature resistance of 1100℃, good thermal insulation performance, low bulk density, high strength and good durability. It can be widely used in industrial furnaces. Keep warm.featureIt has good durability and can withstand high temperatures within the limit of continuous thermal load. Low thermal conductivity, light weight and high strength. The highest among these rigid insulation products. The durability is better and the powder will not fall off after long-term use. Safe and hygienic to use. Does not contain asbestos, sulfur, chlorine and other toxic substances. Easy to process and cut
project | index | unit | ||
density | ≤1.10 | grams/cubic centimeter | ||
Thermal Conductivity | ≤0.25 | Watt/(meter·gram) | ||
water contains | ≤ 10 | % | ||
water movement | ≤0.25 | % | ||
non-flammable | GB 8624 A1, BS 476 Parts 4, 6 and 7 GB8624 1 buckle, BS476 parts 4, 6, 7 | / | ||
Flexural strength (drying) cross/parallel | ≥9.0/≥7.5 | MPa | ||
Note: If you need more technical specifications, please contact us. | ||||
Silica% | 47 ~ 48 | ||||||||
Calcium Oxide% | 44 ~ 45 | ||||||||
Loss on ignition% | 6～7 | ||||||||
Bulk densitykg/m3 | 230±10% | 250±10% | 270±10% | 300±10% | |||||
Bending strength MPa | ≥0.45 | ≥0.50 | ≥0.55 | ≥0.6 | |||||
Compressive strengthMPa | ≥0.8 | ≥0.9 | ≥1.0 | ≥1.1 | |||||
Watt/(m·K) | 200℃ | ≤0.085 | ≤0.095 | ≤0.098 | ≤0.102 | ||||
400℃ | ≤0.100 | ≤0.108 | ≤0.110 | ≤0.116 | |||||
600℃ | ≤0.152 | ≤0.156 | ≤0.158 | ≤0.164 | |||||
800℃ | ≤0.214 | ≤0.216 | ≤0.218 | ≤0.226 | |||||
Working temperature℃ | 1100 | ||||||||
Linear shrinkage% 1050℃*12h | ≤2 | ||||||||

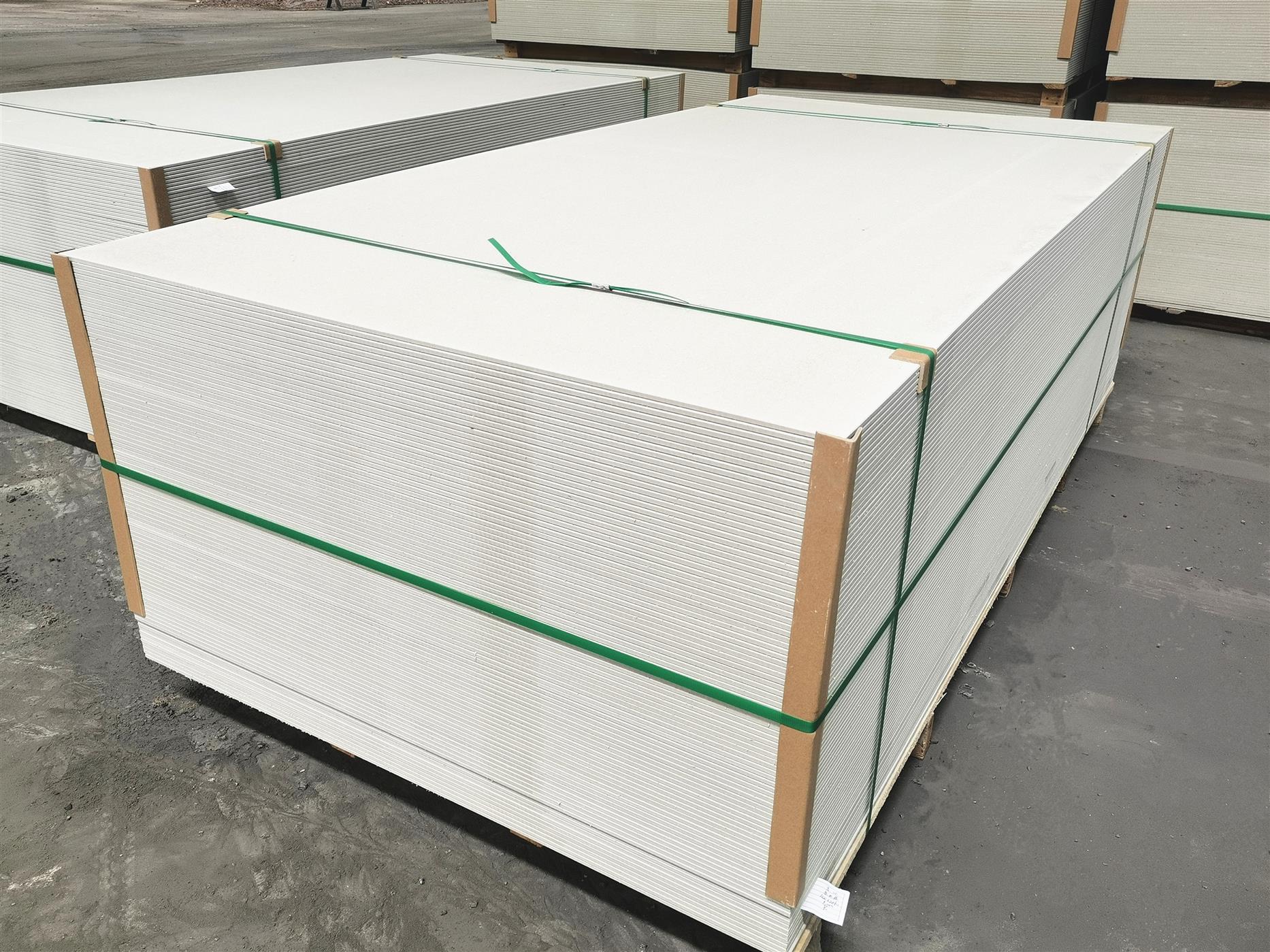

1. Small board: 300*300, 600*150, 600*300600*400, 600*600, 500*250500*500, thickness 25-120 mm
2. Large plate 1200*1200, 1200*600, 1000*1000, 1000*500, thickness 25 to 120
3. Thickness: 4.5, 5, 6, 8, 10, 12, 15, 18, 20, 25mm (3.5-30mm)
PS: (The thicker and thinner the board, the easier it is to be damaged during transportation)

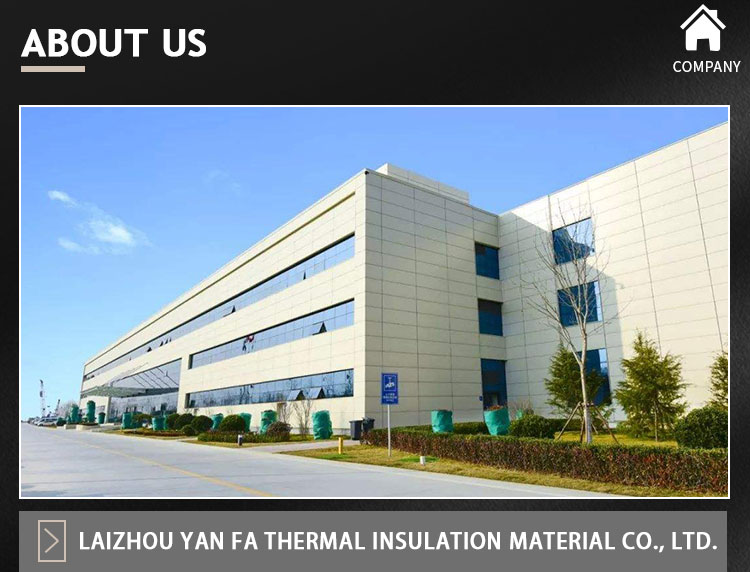

Laizhou Yanfa Insulation Materials Co., Ltd. is a company specializing in the production of 1050°C asbestos-free high-temperature calcium silicate insulation products, calcium silicate waterproofing boards and supporting materials, high-temperature rubber powder, calcium silicate insulation coatings, integrating design, manufacturing, marketing and technical services At present, the main products of Yanfa Insulation Materials Co., Ltd. are divided into dozens of series and hundreds of varieties. The customer base covers metallurgy, cement, glass, petrochemical, shipbuilding, electric power, non-ferrous metals, ceramics, building materials and other industries. Yanfa Insulation Co., Ltd. has been recognized by domestic and foreign customers with its professional pre-sales and after-sales services and first-class product quality. Yanfa Thermal Insulation Co., Ltd. is based on excellent product quality and backed by rich production experience.
Q1. Are you a manufacturer?A: Yes, of course, our factory is located in Laizhou, Shandong.
Q2. Can we visit your company?A: Of course, we welcome you to visit our factory at any time.
Q3. Do you accept OEM?A: Yes, our company supports OEM&ODM
Q4. What is the minimum order quantity for a trial order?A: There are no restrictions, we can provide the best suggestions and solutions based on your situation. Question 5. What are the payment terms? A: Usually wire transfer, but L/C, Western Union, etc. are also available to us. Question 6. How long is the delivery time? A: The delivery time usually depends on the order quantity, usually around 7-12 days (this is only for customization, our factory has a large inventory for you to choose from).
