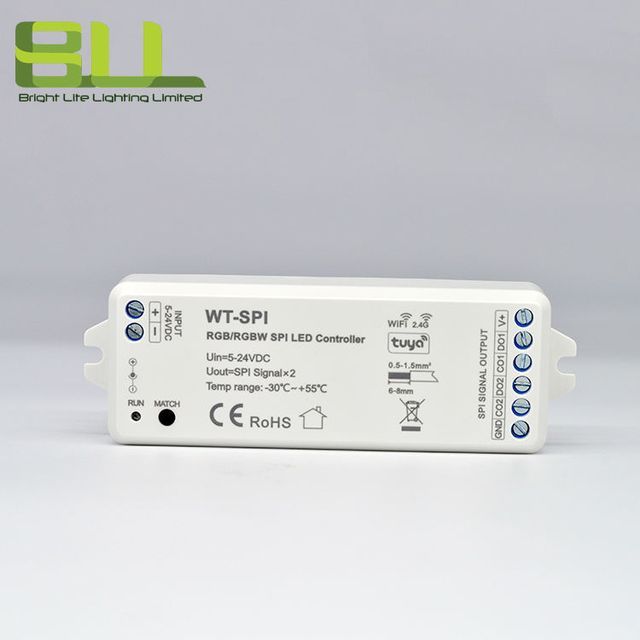

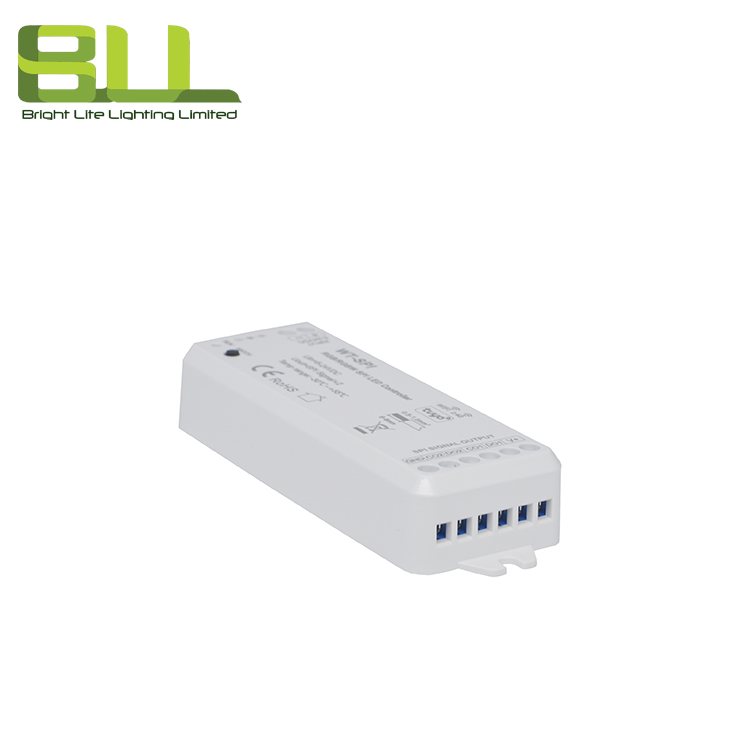

WT-SPI type LED RGB RGBW light strip remote control controller
-
$15.05 / 10 - 99 pieces
$10.02 / >=100 pieces - 10 pieces
- Shenzhen Bright Lite Lighting Limited
- Guangdong, China
- Mr Bruce Liang
Product Detail
| Voltage: | DC 5V-24V input | Input Current: | 8A |
| Operating temperature: | -30℃-55℃ | usage: | LED accessories |
| Supply capacity: | 1000 meters per week | Packaging details: | 8-24 pieces per box |
| Warranty period (years): | 5 years | model: | WT-SPI |
| port: | Yantian | Protection level: | IP20 |
| Material: | plastic | Product weight (kg): | 0.066 |
| payment terms: | Western Union, Wire Transfer, MoneyGram | brand: | - |
product description
Input voltage | 5-24V DC | Electromagnetic compatibility standards (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 | |||||
Input Current | 8A | Safety standards (LVD) | EN 62368-1:2020+A11:2020 | |||||

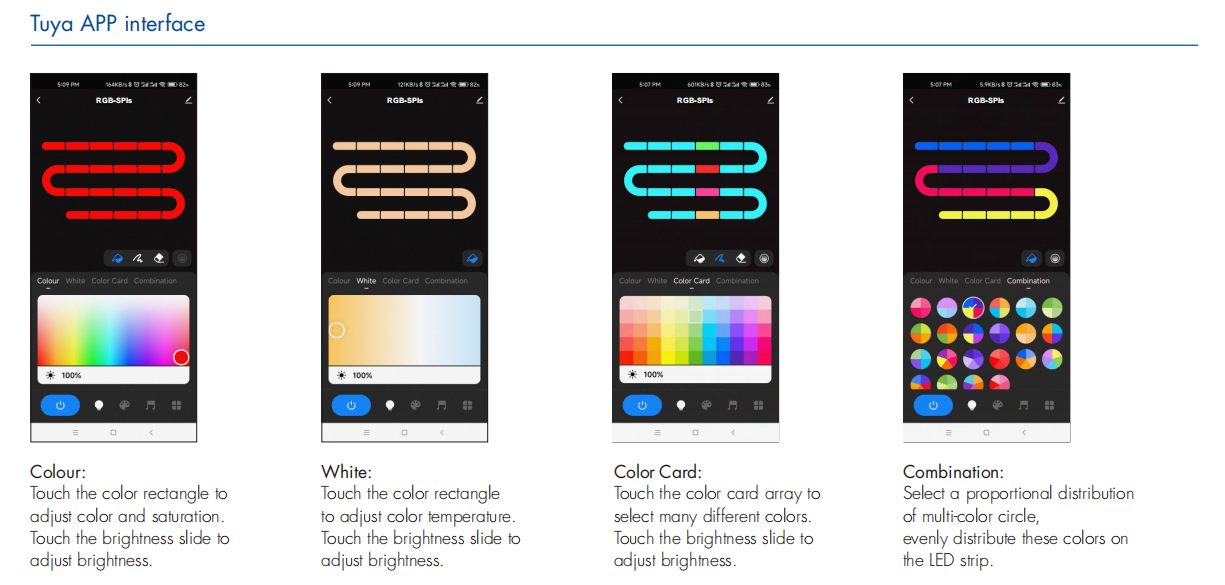

input signal | Tuya APP + RF 2.4GHz | Certification | CE, EMC, LVD | |||||
pixel | Max 1000 | Operating temperature | Tower: -30℃~+55℃ | |||||
Case temperature (maximum) | Temperature: +65℃ | Protection level | IP20 not waterproof | |||||

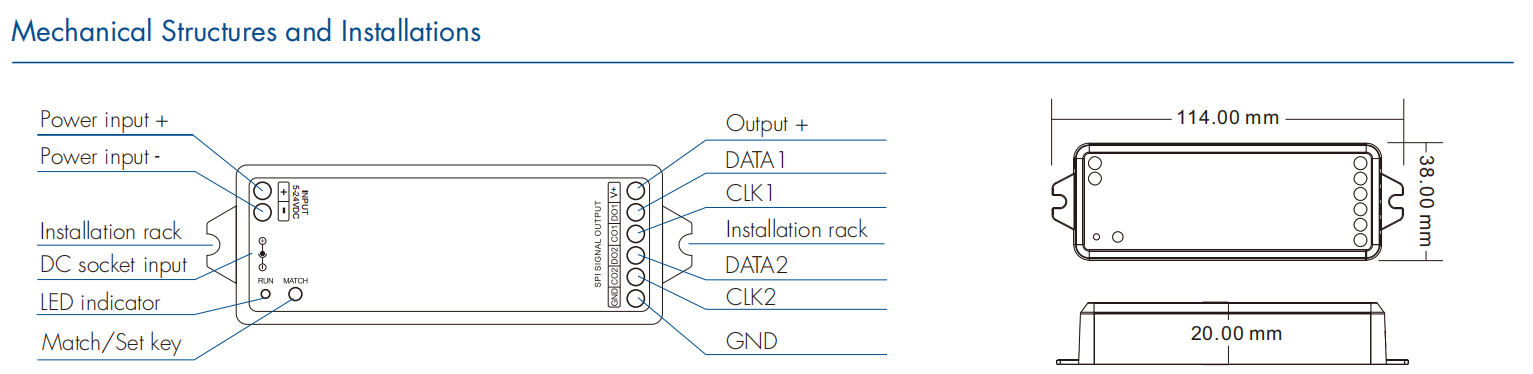

size | Length 120×width 43×height 27 mm | gross weight | 0.066kg | |||||
● Multi-pixel RGB/RGBW LED light strip controller with SPI signal output and Tuya APP cloud control. ● Voice control, supports Amazon ECHO, Google, Tmall Genie, and Xiaodu smart speakers. ● Compatible with 47 types of chip RGB or RGBW LED light strips, The chip type and R/G/B color sequence can be set through the APP. Compatible chips: TM1809 (default), TM1804, TM1812, UCS1903, UCS1909, UCS1912, SK6813, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, SM16703P, TM1803, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B (RGBW), SK6812(RGBW), WS2813(RGBW), WS2814(RGBW), UCS8904B(RGBW), LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, TM1914A, GS8206, GS8208, UCS2904, SM16804, SM16825, SM16714(RGBW), UCS2603, UCS5603, SM16714D. ● Segmented painting color mixing: full color Dlling, colored pencil segmented painting, The eraser segment light turns off. ● Rich dynamic effects: 44 default dynamic scenes and 10+ custom dynamic scenes, 16 changes. ●Various music rhythms: 6 local music rhythms and 3 APP music rhythms. ● Optional RF 2.4G RGB remote control. Please contact us for more details… | ||||||||
Aapplication:* Path and contour markings * DIY lighting for indoor use * Staircase and walkway lighting * Decorative lighting for festivals, events, shows and exhibitions * Widely used for auxiliary lighting in indoor, medical, landscape. * General lighting, task lighting, household appliances, architectural lighting * Architectural lighting, villas, restaurants, hotels, conference rooms, showrooms, shops, counters, etc. Bay lighting; sign lighting; bar top lighting; accent lighting; club lighting; TV backlighting;
Company Profile
Bright Lite Lighting Limited, established in 2013, is a professional manufacturer of LED light strips and LED neon lights, located in Shenzhen, China. Based on the market positioning of high quality and small and medium batches, we focus on a full range of LED light strips, such asSMD3528, SMD2835, SMD5050, SMD3014, SMD2216, digital WS2812b LED light strip, etc. Accessory services such as LED controllers, LED dimmers, power supplies, and LED connectors are also provided here.
Providing high-quality products has always been one of our strengths. In particular, we have ultra-high brightness 140-180lm/w LED strips, CRI>95 LED strips, 5 colors in 1 (RGB+WW+CW) LED strips, low SDCM, dual color temperature LED strips, 20 per roll meters of constant current LED light strips, waterproof LED neon light strips, etc.
Our factory also provides customized LED light strips. We welcome you, dear ones, to come here.
Our factory also provides customized LED light strips. We welcome you, dear ones, to come here.
Company photos
Factory photos
FAQ:
1.Q: Can I have a sample order?A: Yes, we welcome sample ordering to test and check quality. Mixed samples are also available.
2. Q: How about the delivery time?
A: Generally samples take 5-7 days (except some regular inventory), and mass production time takes
Order quantity exceeds 100 pieces.
3. Q: What is the minimum order quantity?
A: For regular ones, we have them in stock and there is no MOQ; for special ones, please contact our sales.
4. Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship goods via DHL, UPS, FedEx or TNT. Usually it takes 3-5 days to arrive. Air and sea shipping are also available.
5.Q: Is it okay to print my logo on PCB or packaging?
A: Yes, of course. We also support PCB, light color, packaging... customization.
6. Q: What is the service life and warranty of our strips?
A: Our adhesive strips have a long life of 50,000 hours and a 3-year warranty.
7.Q: Do you also provide a full set of accessories?
A: Yes, we can also provide adapters, dimmers, controllers, connectors, etc.
