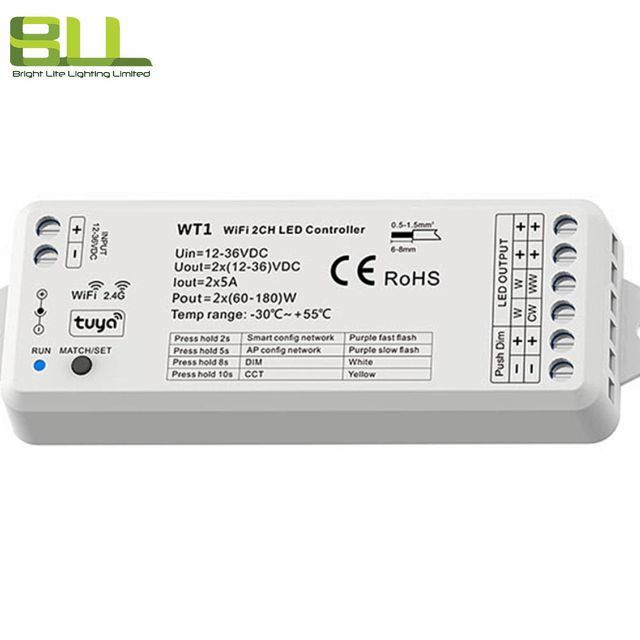

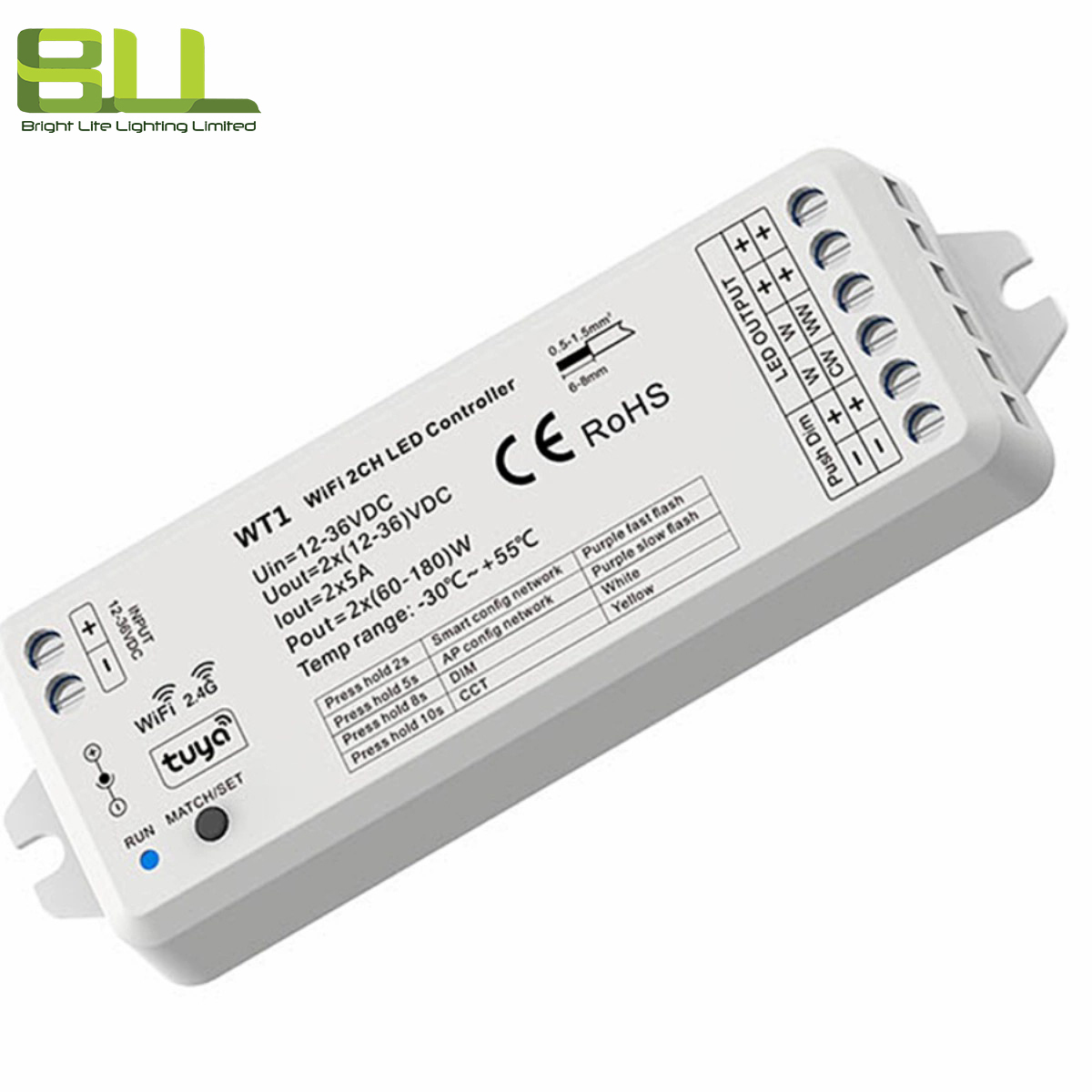

WT1 LED Tuya controller for single color CCT LED strips
-
$12.05 / 2 - 99 pieces
$9.95 / >=100 pieces - 2 pieces
- Shenzhen Bright Lite Lighting Limited
- Guangdong, China
- Mr Bruce Liang
Product Detail
| Packaging Details: | 8-24 pieces per box | Input Current: | 10.5A |
| model: | WT1 | Operating Temperature: | Working temperature: -30℃～+55℃ |
| Payment Terms: | Western Union, T/T, MoneyGram | Warranty (years): | 5 years |
| Supply Ability: | 500 pieces per month | Output voltage: | 2 x (12-36) VDC |
| Output power: | 2 x (60-180) wide | Output Type: | Constant voltage |
| Product weight (kg): | 0.055 | use: | LED Accessories |
| Material: | plastic | size: | Length 120 x Width 43 x Height 35mm |
| Brand Name: | - | Shell temperature (max): | Temperature: +85℃ |
| Input Voltage: | 12-36VDC | Output Current: | 2 channels, 5A/channel |
Product Introduction
Model:
WT1
Suitable for single color and dual color LED strips
WiFi & RF 2CH LED Controller
Model | WT1 | Output Current | 2 channels, 5A/channel | |||||
Control distance | 30 meters (barrier-free space) | Dimming Grayscale | 4096 (2^12) levels | |||||
Input signal | uya APP+RF 2.4GHz+dimming | Certification | CE, EMC, LVD | |||||
Dimming range | 0 -100% | Dimming curve | Logarithm | |||||
PWM Frequency | 1000Hz (default) | Certification | CE, EMC, LVD, red | |||||
size | Length 120 x Width 43 x Height 35mm | Gross Weight | 0.055 kg | |||||

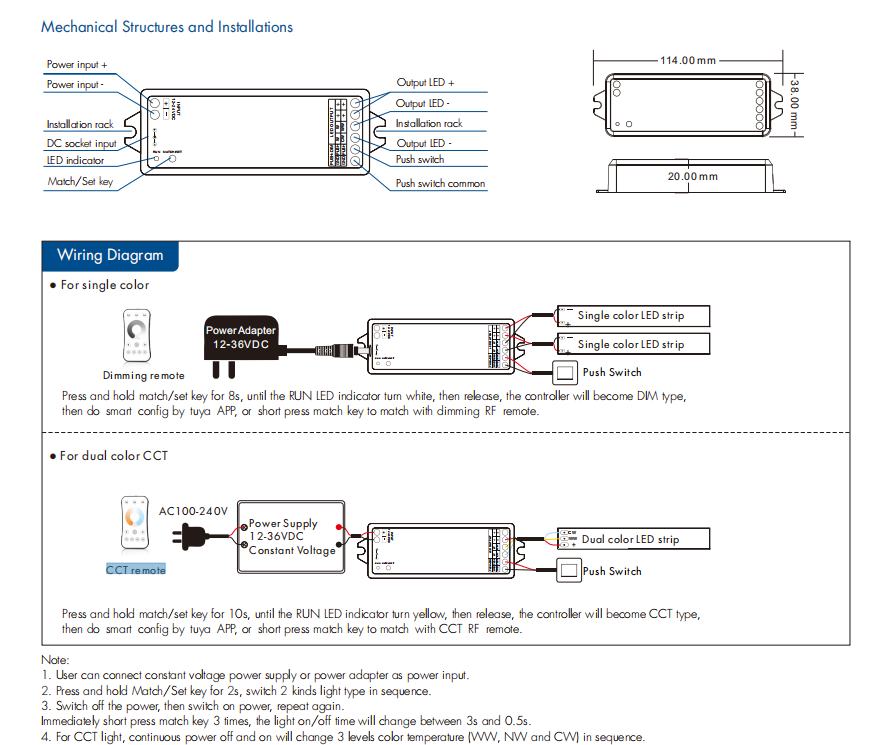

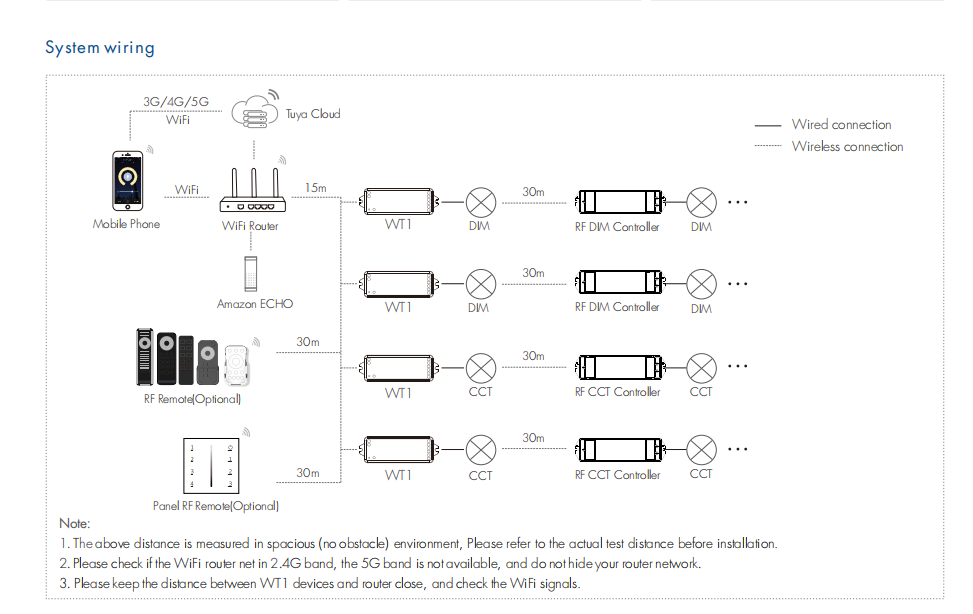

Tuya APP cloud control/voice control/dual channel/push-pull dimming/DC power socket input/wireless remote control ● Used to control single color or color temperature LED light strips. ● DC power socket input and 2-channel constant voltage output. ● Tuya APP cloud control, supports power on/off, color temperature and brightness adjustment, Delayed on/off lights, timer operation, scene editing functions. ● Voice control, support Amazon Alexa, Google Assistant, Tmall Genie and Xiaodu smart speakers. ● Optional RF 2.4G remote control. ● Users need to set the light type before connecting the Tuya APP to the network. Matches RF remote controls of the same lamp type. ● Each WT1 controller can also be used as a WiFi-RF converter, and then use the Tuya APP Synchronously control one or more RF LED controllers or RF LED dimming drivers. ● Connect external push button switch to realize on/off and 0-100% dimming functions. ● The light on/off fade time can be selected to be 3 seconds. Please contact us for more details... | ||||||||
oneapplication:* Path and outline markings* DIY lighting for indoor use* Stair and walkway lighting* Decorative lighting for festivals, events, performances and exhibitions* Widely used in auxiliary lighting for indoor, medical and landscape. * General lighting, task lighting, home appliances, architectural lighting* Architectural lighting, villas, restaurants, hotels, conference rooms, showrooms, shops, counters, etc. Recess lighting; Sign lighting; Bar lighting; Accent lighting; Club lighting; TV backlighting;
Company Introduction
Shenzhen Mingguang Lighting Co., Ltd. was established in 2013 and is a professional manufacturer of LED strip lights and LED neon lights located in Shenzhen, China. We focus on a full range of LED strip lights based on the market positioning of high quality and small and medium batches, such asSMD3528, SMD2835, SMD5050, SMD3014, SMD2216, digital WS2812b LED strips, etc. Accessories services such as LED controllers, LED dimmers, power supplies, LED connectors, etc. are also available here.
Providing high quality products is always one of our advantages. Especially we have super brightness 140-180lm/w led light strip, CRI>95 led light strip, 5 colors in 1 (RGB+WW+CW) led light strip, low SDCM, dual color temperature led light strip, 20 meters per roll constant current led light strip, waterproof led neon light strip and so on.
Our factory also provides customized LED light strips. We welcome your visit.
Our factory also provides customized LED light strips. We welcome your visit.
Company Photos
Factory Photos
FAQ:
1. Q: Can I have a sample order?A:Yes, we welcome sample order to test and check quality. Mixed samples are also available.
2. Q: How about the delivery time?
A: Generally, samples take 5-7 days (except for some regular customers who have stock), and mass production takes
The order quantity exceeds 100 pieces.
3. Q: What is the minimum order quantity?
A: For regular products, we have stock and no MOQ; for special products, please contact our sales.
4. Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship goods by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air transportation and sea transportation are also available.
5.Q: Can you print my logo on the PCB or packaging?
A: Yes, of course. We also support PCB, light color, package... customization.
6. Q: How long is the lifespan and warranty period of our strips?
A: Our light strips have a lifespan of up to 50,000 hours and a 3-year warranty.
7. Q: Do you also provide a full set of accessories?
A: Yes, we can also provide adapters, dimmers, controllers, connectors, etc.
