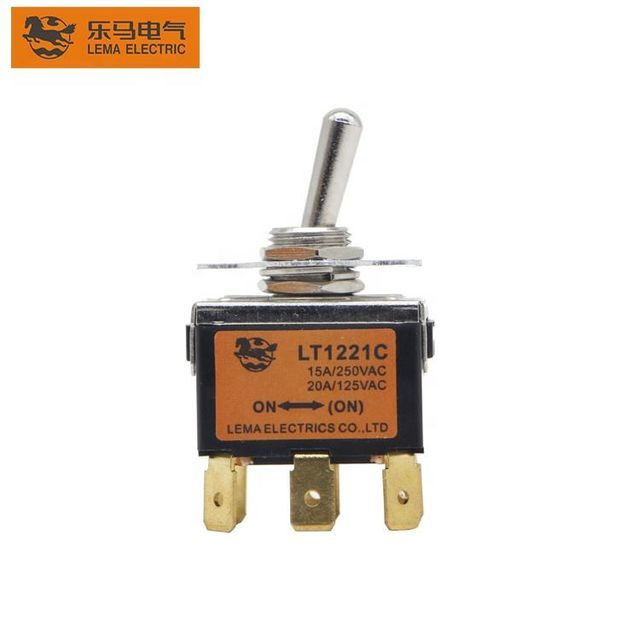

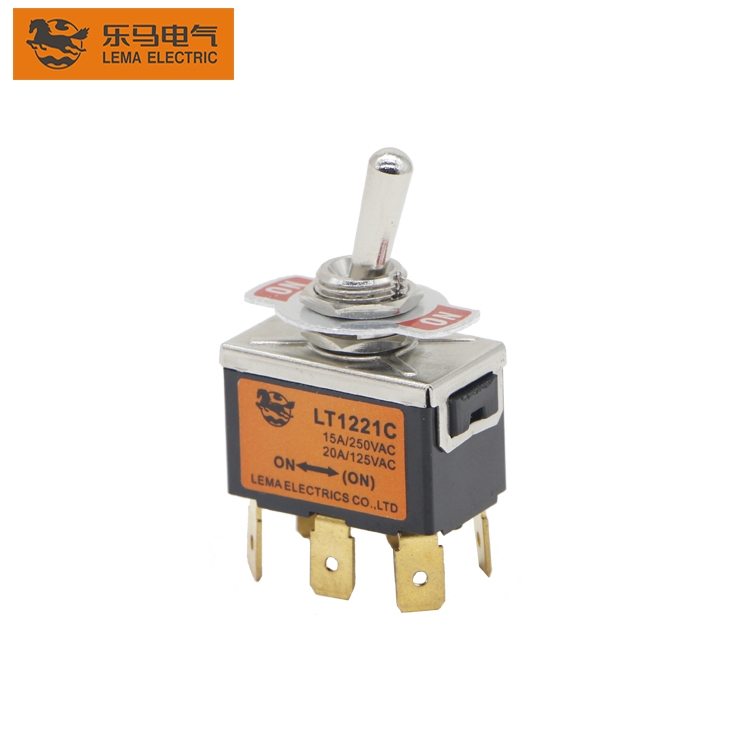

Wholesale LT1221C Bipolar ON-(ON) Auto Reset 15A 250VAC Momentary Toggle Switch
- $1.00 /piece
- 1 piece
- Zhejiang Lema Electrics Co., Ltd.
- Zhejiang, China
- Ms Darcy Zhang
Product Detail
| Operating force: | - | Packaging Details: | standard meal |
| Origin: | Zhejiang, China | application: | Electrical equipment, instrumentation, automation machinery |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal | Supply capacity: | 100000 pieces per week |
| Installation size: | 12.00 mm | model: | LT1221C |
| brand: | Lema | Number of poles: | 2 poles |
| Contact information: | open-(open) | Mechanical life: | 1,000,000 cycles minimum |
| color: | Black | Material: | bakelite |
| port: | Ningbo, Shanghai | maximum. current: | 15A |
| maximum. Voltage: | 125/250VAC | Whether smart: | No |
| Package: | carton | Certification: | -, CE |
| environment humidity: | Maximum 85%RH |

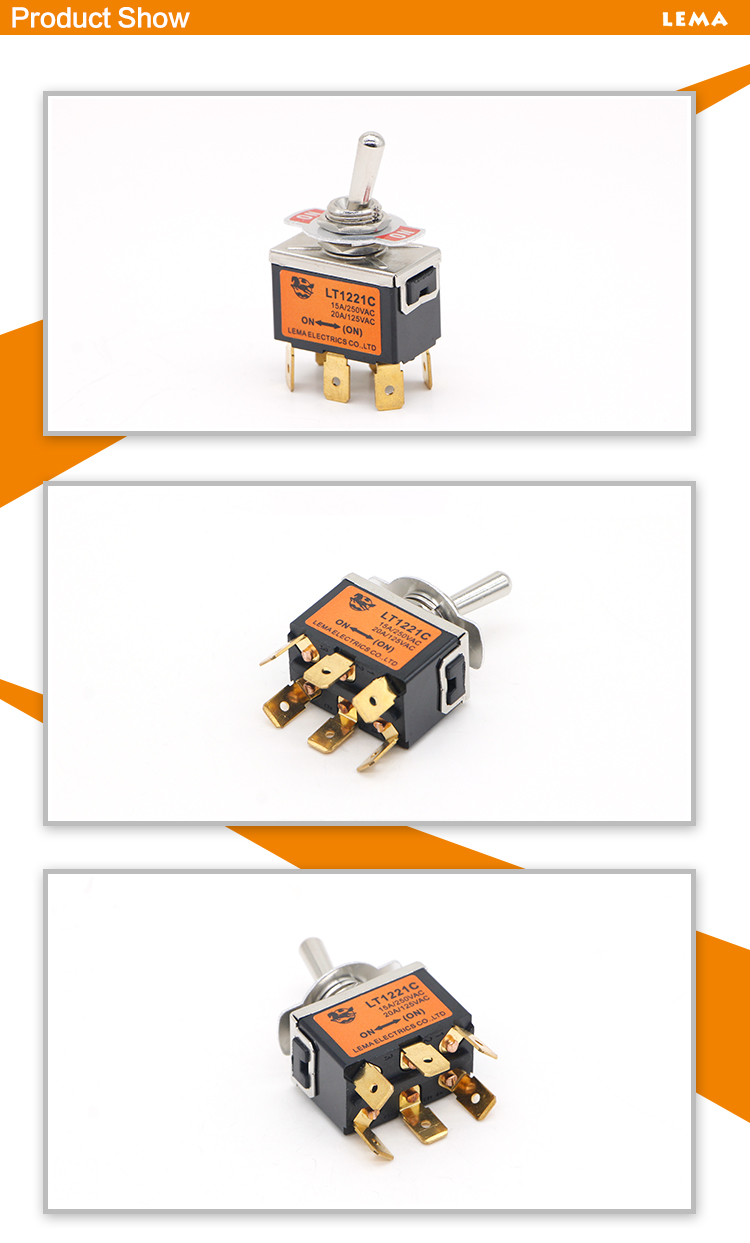

Product Description
High Quality LT210C Double Pole ON-OFF Switch Carling Toggle Switch
 |
||
 |
||
| brand | Lema | |
| Model | LT1221C | |
| Voltage: | 250/125 VAC | |
| Current: | 15A | |
| Mounting hole size | φ12mm | |
| Contact list: | switch | |
| pack: |
carton |
|
| size: | 33*20*58mm | |
| Material: | bakelite | |
| working frequency | 30 times/min | |
| Initial insulation resistance | 100MΩmin.(500VDC) | |
| initial contact resistance | Maximum 25MΩ | |
| Dielectric strength |
discontinuous between terminal |
1,000Vrms, 50/60Hz, for 1 minute |
| Between non-current carrying Metal parts and terminals |
2,000Vrms, 50/60Hz, for 1 minute | |
| between ground and terminal |
2,000Vrms, 50/60Hz, for 1 minute | |
| Vibration resistance | 10-55Hz, 1.5mm double amplitude | |
| Impact resistance | Durable: 1000m/s2(100G) max. Failure: 300m/s2Max(30G) |
|
