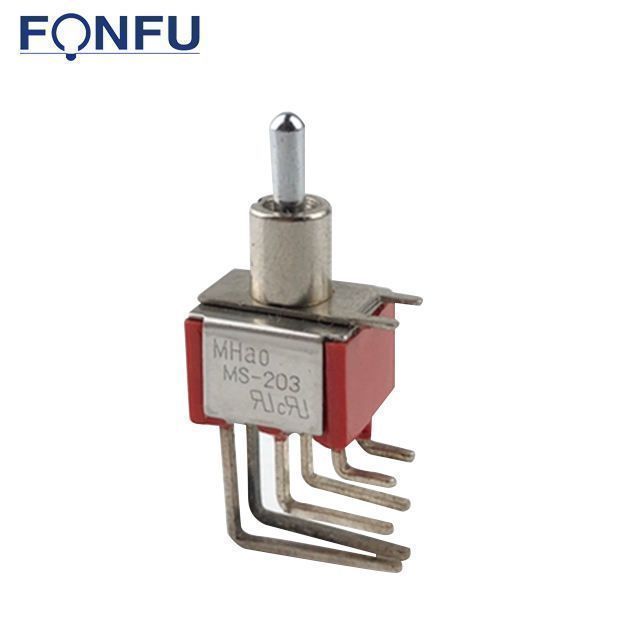

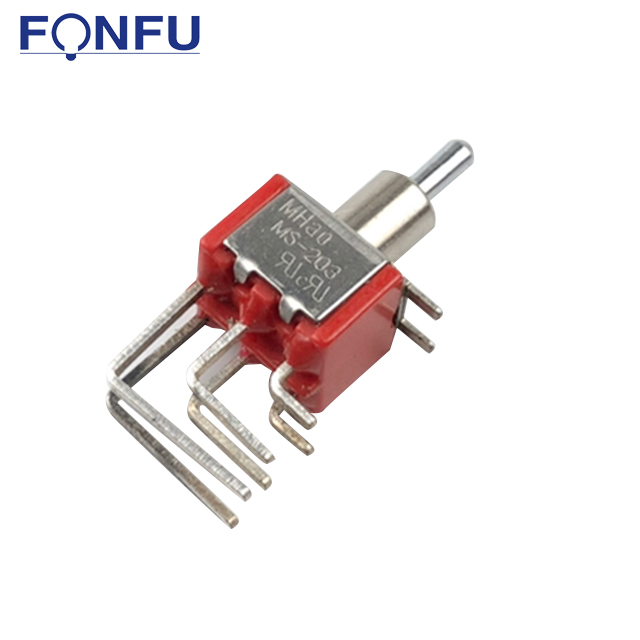

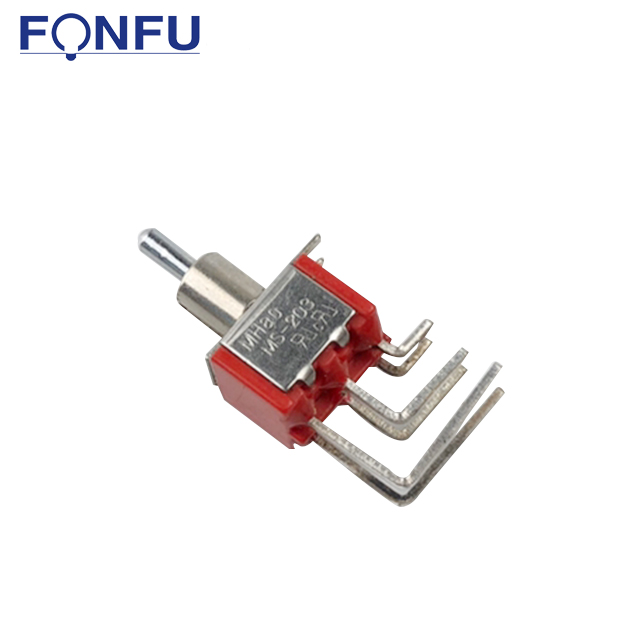

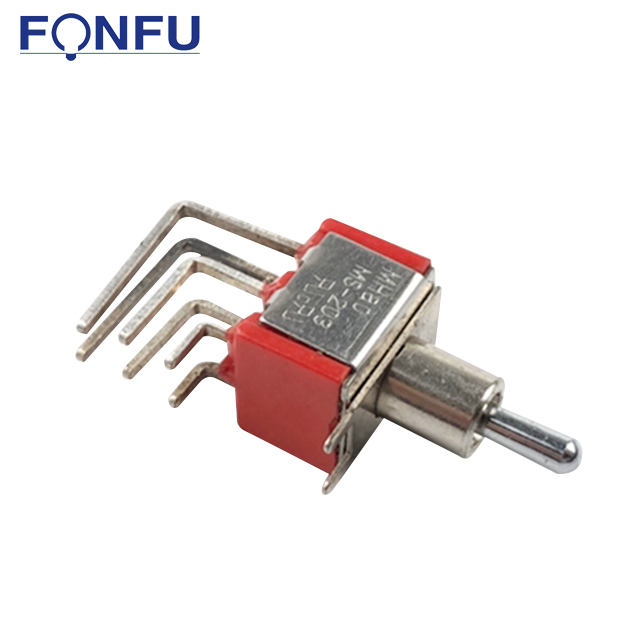

MS-203 6 Pin Right Angle Mini Switch 3 Position Toggle Switch
-
$0.50 / 1 - 99 pieces
$0.47 / 100 - 999 pieces
$0.42 / >=1000 pieces - 1 piece
- Shenzhen Fengfu Electronic Technology Co., Ltd.
- Guangdong, China
- Ms sun chen
Product Detail
| maximum. Voltage: | 250VAC | model: | MS-203 |
| Circuit Characteristics: | on-off-on | Sales unit: | single product |
| Operating temperature: | -25℃~+85℃ | brand: | Fengfu |
| Is it smart: | No | Rated current: | 2A |
| Mechanical life: | 50000 cycles | Certification: | no certification |
| Rated voltage: | 250VAC | terminal type: | PCB terminal |
| Origin: | Guangdong, China | color: | Red |
| maximum. current: | 5A | Single package size: | 3.5X1.6X1.2 cm |
| Gross weight per piece: | 0.006 kg |
Product Description
The toggle switch is a manual control switch, mainly used for on-off control of AC and DC power circuits, and can also be used in circuits of several thousand hertz to 1 megahertz. Small in size and easy to operate, it is a switch commonly used in electronic equipment.
switch function | switch on |
score | 2A 250VAC; 5A 125VAC |
Contact resistance | < 50MΩ |
Insulation resistance | 500VDC 1000MΩ min |
Dielectric strength | 1500VAC, 1 minute |
Operating temperature | -25℃~+85℃ |
Electrical life | 10000 cycles |
product display

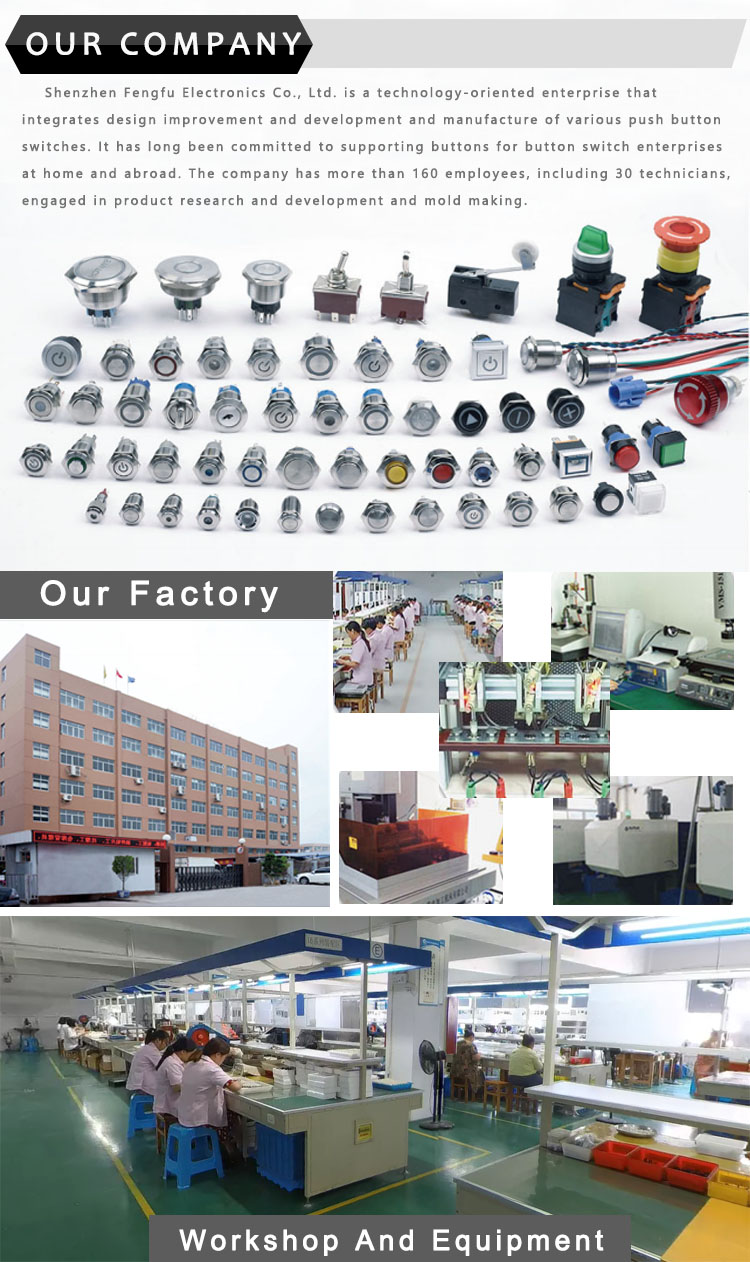

Our factory
application
