Hard Online Low Glass 3mm 4mm 5mm 6mm 8mm 10mm 12mm

Product Detail

maximum. size:6500*3300mmProject Solution Capabilities:others
Glass type:Hard in-line Low E glassuse:Windows, doors and curtain walls
Warranty:5 yearscolor:to clear
Packaging Details:plywood crateapplication:Supermarkets, workshops, schools, home offices, outdoors, living rooms, office buildings, storage rooms and wardrobes, gyms, shopping malls, entrances, apartments, hospitals, villas, hotels, halls
Material:float glasstechnology:Hard Coated Low E
Package preview:payment terms:L/C, T/T
port:Qingdaoshape:flat
feature:energy savingKey words:low-e glass
model:Single, double, triple silver platingOrigin:Shandong Province, China
usage:Industrial, Curtain Walls, Railings and Handrails, Ballistic Protection, Displaysbrand:Kanai
After-sales service:Return and exchange, on-site inspection, online technical support, on-site trainingSupply capacity:1,000,000 square meters per month
thickness:3mm 4mm 5mm 6mm 8mm 10mm 12mm,3-12mm
Company Profile
Shandong Jinjing Technology Co., Ltd. ("Jinjing" for short) is one of the listed companies specializing in the glass industry controlled by Jinjing Group, one of the largest glass manufacturers in China. The company has 11 float glass production lines with a daily output of more than 7,000 tons of high-quality float glass. Our main products are as follows: A. Low iron solar glass: 3mm, 3.2mm, 4mm B. 3-25mm low iron ultra clear glass or tempered C. 3mm to 25mm clear float glass or tempered D. 4mm to 12mm colored glass ( Bronze, European Grey, Golden Crystal Gray, Ocean Blue, etc.) D. Laminated Glass 6.38mm 8.38mm 10.38mm... E. Silver Mirror 2mm to 8mm F: Embossed glass with various patterns G: Reflective glass 4mm to 6mm H: Low -E Glass meets customers' needs for the best quality products and we supply our products according to their needs. We offer products in a variety of specifications and sizes. Our aim is to satisfy customers' requirements by providing quality products and good services at competitive prices. Jinjing Group Co., Ltd. Shandong Jinjing Technology Co., Ltd.
Product Description

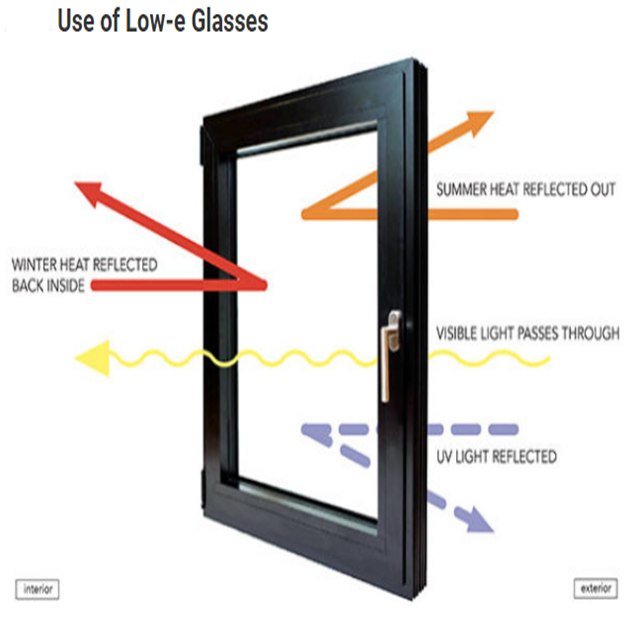

The most exciting buildings being built today are energy efficient, environmentally friendly and thoroughly green buildings. Insulating glass units with Low-E coating (commonly called IGU or IG units) have become the first choice for modern buildings. It is no longer just a shelter from wind and rain, but more importantly, it is a multi-function integrating heat preservation, energy saving, art, quietness and safety. Provide people with four seasons, energy saving, environmental protection, bright and comfortable living space. The energy-saving characteristics of Low-E insulating glass are mainly reflected in its heat insulation and heat preservation performance. The main measurement indicators are shading coefficient (SC) or solar heat gain coefficient (SHGC), thermal conductivity (U value).

technology

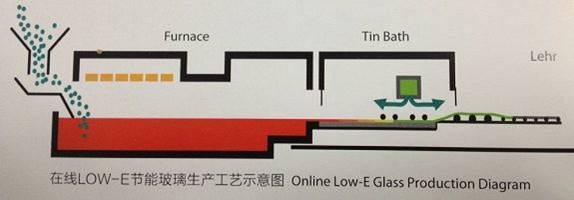

* Coating technology: online CVD method (chemical vapor deposition)
* Thickness: 3~12mm
* Maximum. Size: 6500*3300mm
Product parameters
Performance data for architectural glass. (hard Low-e on clear glass)
Thick
visible light
Sunlight
U value
(W/m2·K)


SHGC

shadow
coefficient
(mm)
Transmittance (%)
(380-780nm)
Reflectivity(%)
Transmittance (%)
Reflectivity(%)

winter

summer
external
in
4
83
9
11
72
12
3.7
2.8
0.75
0.86
5
83.5
10
11
71.5
12
3.7
2.9
0.74
0.85
6
82.5
10
11
70
10
3.7
2.8
0.71
0.82
8
82
10
11
69
9
3.7
2.9
0.73
0.84
10
81.5
9
10
66
8
3.7
2.8
0.71
0.81
12
80
9
10
64.1
8
3.7
2.8
0.69
0.80
