The best DVR module with motion detector and PIR sensor / CP50 /

  • $50.00 / 1 - 9 pieces
    $45.00 / 10 - 99 pieces
    $40.00 / 100 - 999 pieces
    $35.00 / >=1000 pieces
  • 1 piece
  • OUR HK ELECTRONICS Limited
  • Hong Kong S.A.R., China
  • Mr Dan May

Product Detail

model:CP50Package preview:
Borrow a camera:60 mmport:China
type:digital camerabrand:Processing
network:No3GP camera:Yes
payment terms:Western Union, T/T, MoneyGram, PayPal, BitcoinData storage options:micro SD card
Video resolution:352*288, 640*480special function:Motion detection, PCB, PIR detector, ultra-low power consumption
night vision:invisible infraredWarranty:No
Passive Infrared Detector:tinyCustomization support:Online technical support, customized logo, OEM, ODM, software reengineering
application:Indoor and outdoorPackaging Details:Anti-static bag
Video format:3gpFunction:Wide-angle, night vision, long-term video recording
Long-term record:150 hoursOrigin:Guangdong, China
Motion detection:YesSmallest lens:5*5mm
Supply capacity:10000 pieces per monthVideo compression format:H.265
Product Description
describe
A new generation of ultra-low power camera modules.

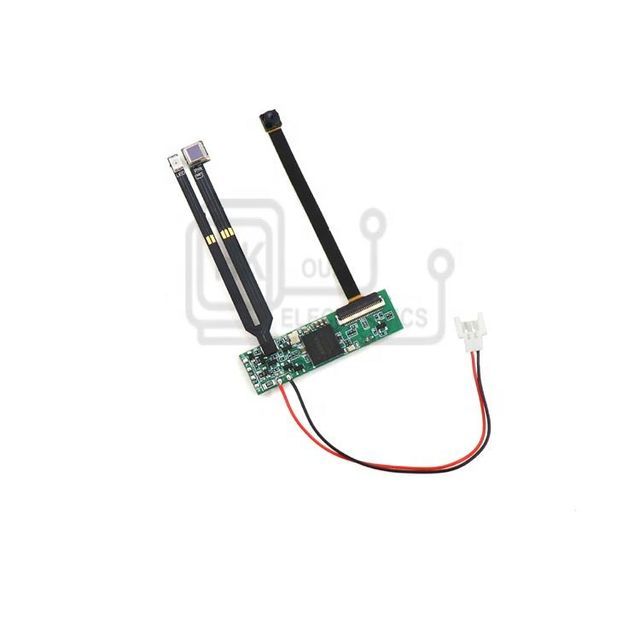

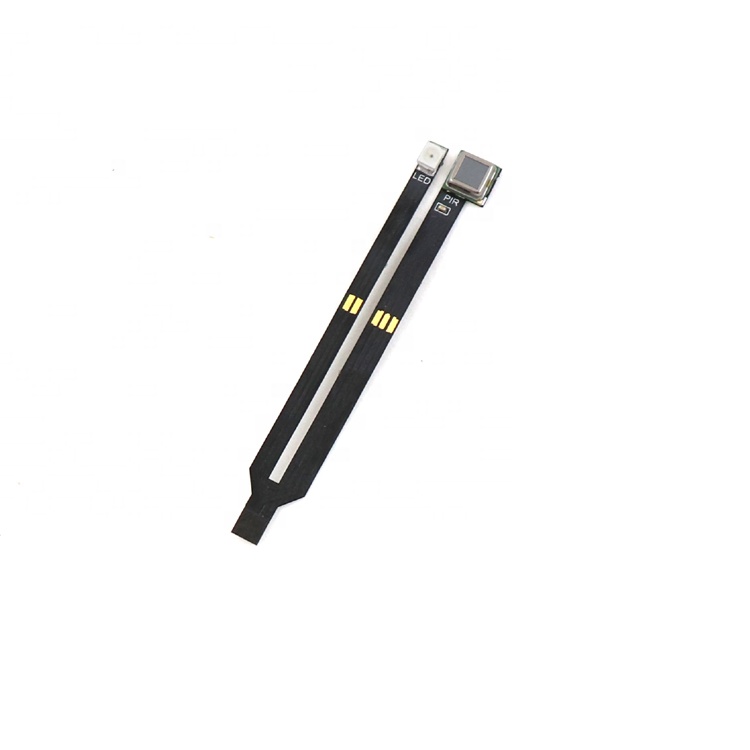

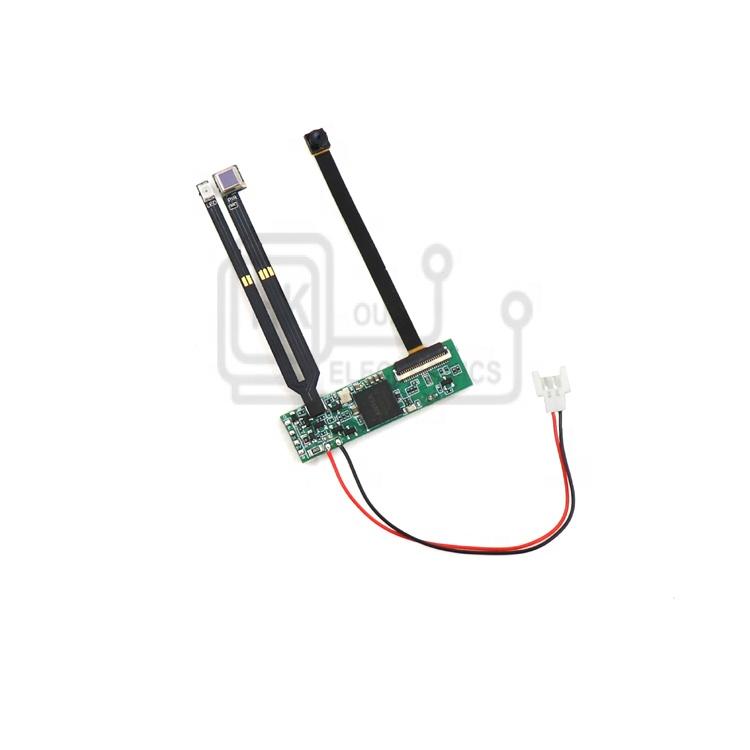

Ultra-compact camera measuring 5x5mm with 64mm long ribbon cable. The novelty here is that the module has a PIR sensor, i.e.
motion detector. When set to PIR motion detector mode, the camera will only record video when it detects motion, regardless of
Be it day or night. Even better, it also features invisible IR LEDs that illuminate objects
to 25 cm. That's not all, the PC software has a time-lapse feature, which means you can choose how long the camera works
- During the day or night, or during certain time periods. Time-lapse feature allows you to record only when you need
Select, and not last, to save battery power.

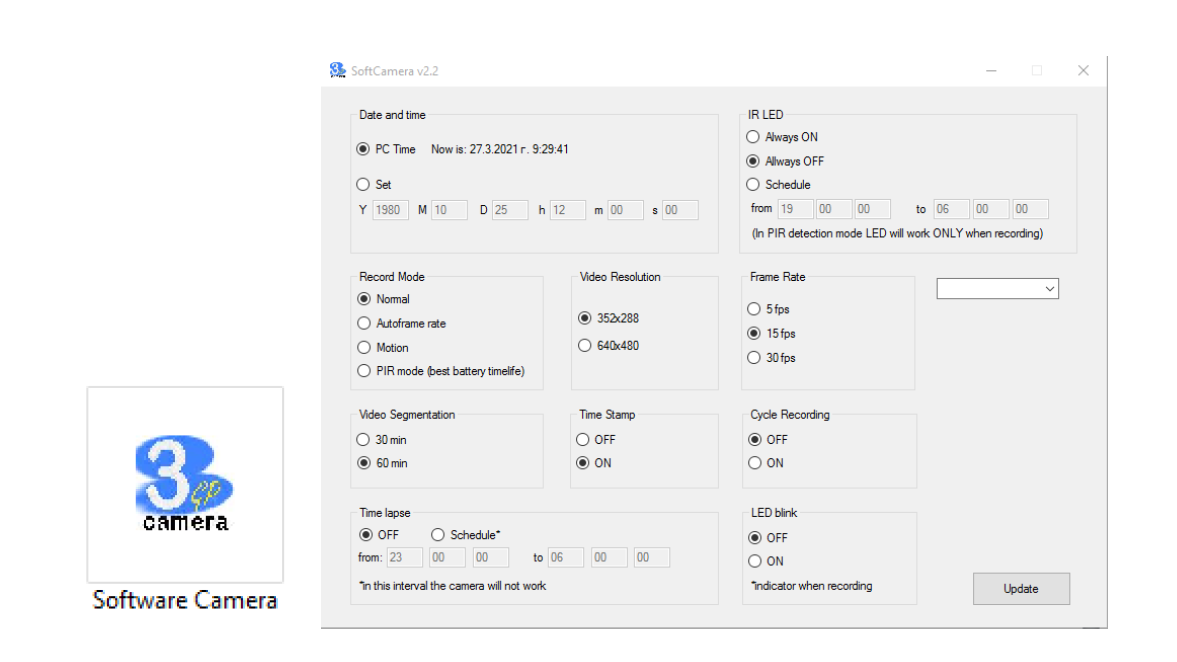

The free software that comes with the camera allows you to adjust several settings: date and time, working mode: normal, automatic,
Motion detector, PIR motion detector, option to select recorded FPS,
Recording resolution - 640х480 or 352х288 - time-lapse, night vision diodes and more.
In standby mode in PIR mode, the power consumption is very low, using a 1000 mA battery - about 10 days.
Great module with a lot of features at an affordable price.

Operating mode:

- video:
Press the button once and hold it down for 2 seconds, the yellow diode will light up and the red diode will start blinking - it shows
Select working mode - the camera is ready to work. During taping, the red diode will blink (if you
software)
To stop recording, press the button once and the yellow diode will light up.

- close:
Press and hold the button until the device turns off completely.

- download file:
Use computer USB or directly from Micro SD card.

- Timelapse:
At set intervals, the module will shut down, reducing power consumption and conserving battery power.

- PIR detector (PIR mode):
The module only records when motion is detected. Power consumption in this mode is very low, about 10 with a 1000 mA battery
sky.
* The PIR sensor is extremely sensitive, reduce sensitivity by covering part of the PIR sensor (allows you to adjust
to achieve the desired sensitivity)

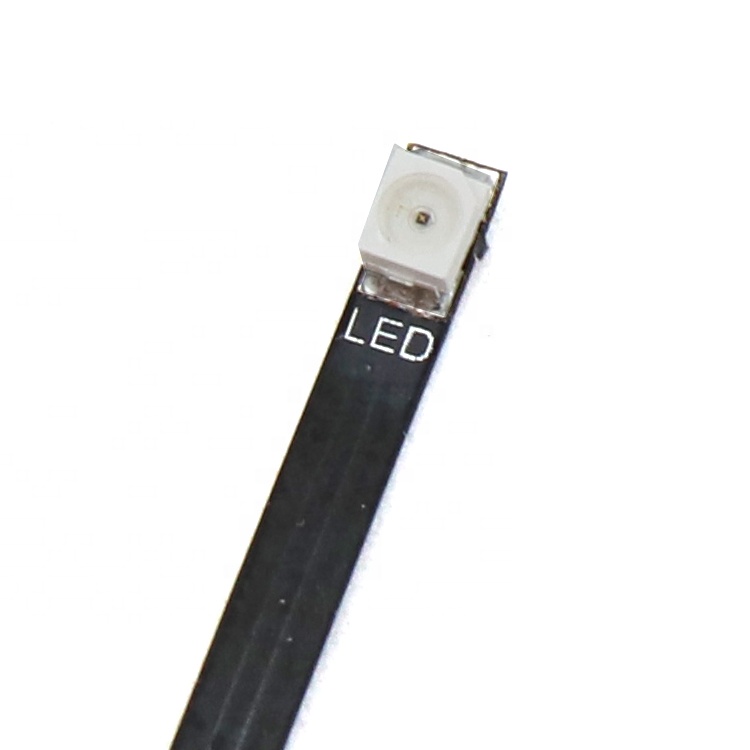

- Invisible Infrared Diode Lighting (IR LED):
The light emitted by the diodes is invisible to the human eye and is capable of illuminating objects as small as 15-25 cm. (according to
situation). The operation of the IR diode is controlled by the relevant operating mode selected in the software.



pack:
Mini PIR Detection DVR Camera CP50
Specification
best product on the market
Yes
super compact
Size: 4*12*45mm
ultra thin camera
Yes
ultra low power consumption
* Recording – 95 mA
* PIR mode – 5mA
* Standby – 2mA
Ultra sensitive PIR sensor (motion detector)
Yes
IR LED lights invisible to the human eye
Illuminates objects within 25 cm
Timelapse
Select working time interval
PC software for setting up the camera
Yes
Four working modes
* normal
* Automatic viewfinder
* Motion detector
* Motion detector with PIR sensor
video format
MPG-4
video resolution
640x480 or 352х288
frames per second
5—30 fps (adjustable)
Smallest camera:
5x5 mm
long ribbon cable
60 mm
Angel degree
Width 90
date and time
Yes
Recording memory:
1GB/hour (352х288 and 15 fps)
Operating Voltage
3.7V
Specification
Invisible Infrared Diode Illumination (IR LED):
The light emitted by the diodes is invisible to the human eye and can illuminate objects up to a distance of 15-25 cm.
(depending on conditions).
The operation of the IR diode is controlled by the relevant operating mode selected in the software.

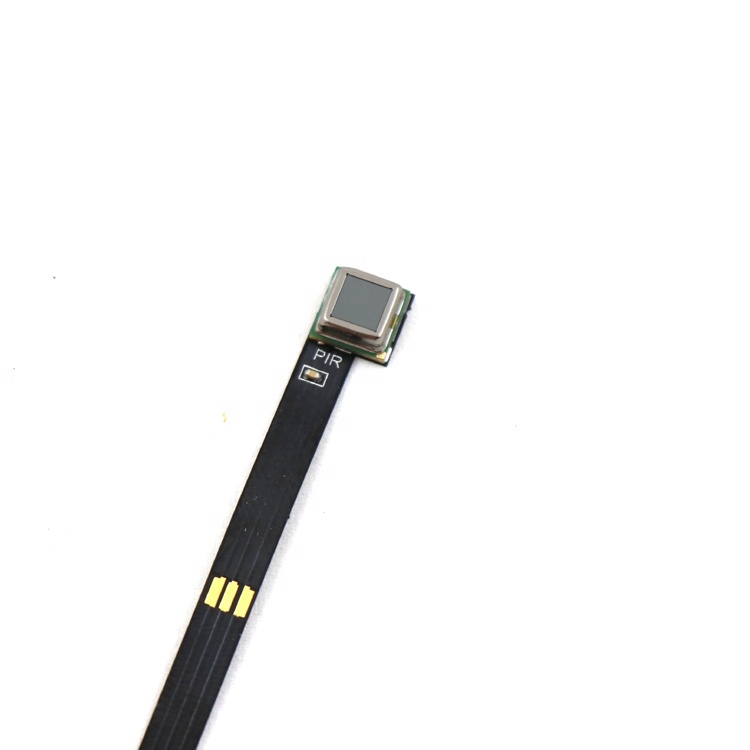

How to change the sensitivity of the sensor:
PIR sensors are extremely sensitive, reduce sensitivity by covering part of the PIR sensor (allows you to adjust to
required sensitivity)
example:
100% sensitivity – all 5x5 mm sensitivity areas visible
50% sensitivity – 5x2.5 mm sensitivity area visible
25% sensitivity – 2.5x2.5 mm sensitivity area visible
* More testing is required to obtain desired results.
Another option is to place a section of plastic in front of the sensor and punch holes.
If the hole is larger, the sensitivity will be higher, and if the hole is smaller, the sensitivity will be lower.
