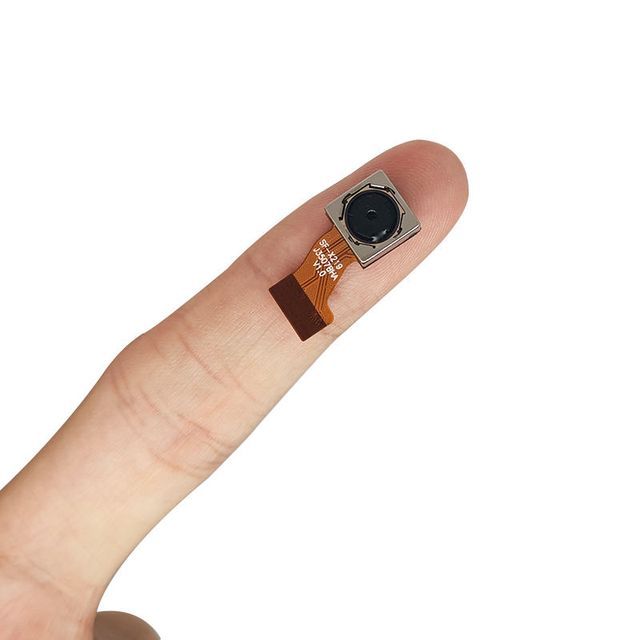

Factory Price Camera Module 8MP 4K Sensor Sony Cmos IMX219 MIPI Camera Module

Guangdong, China (Mainland)

sensor type:

IMX219

Pixels:

8MP

Focus range:

10cm-infinity

type:

Cmos camera module

auto focus

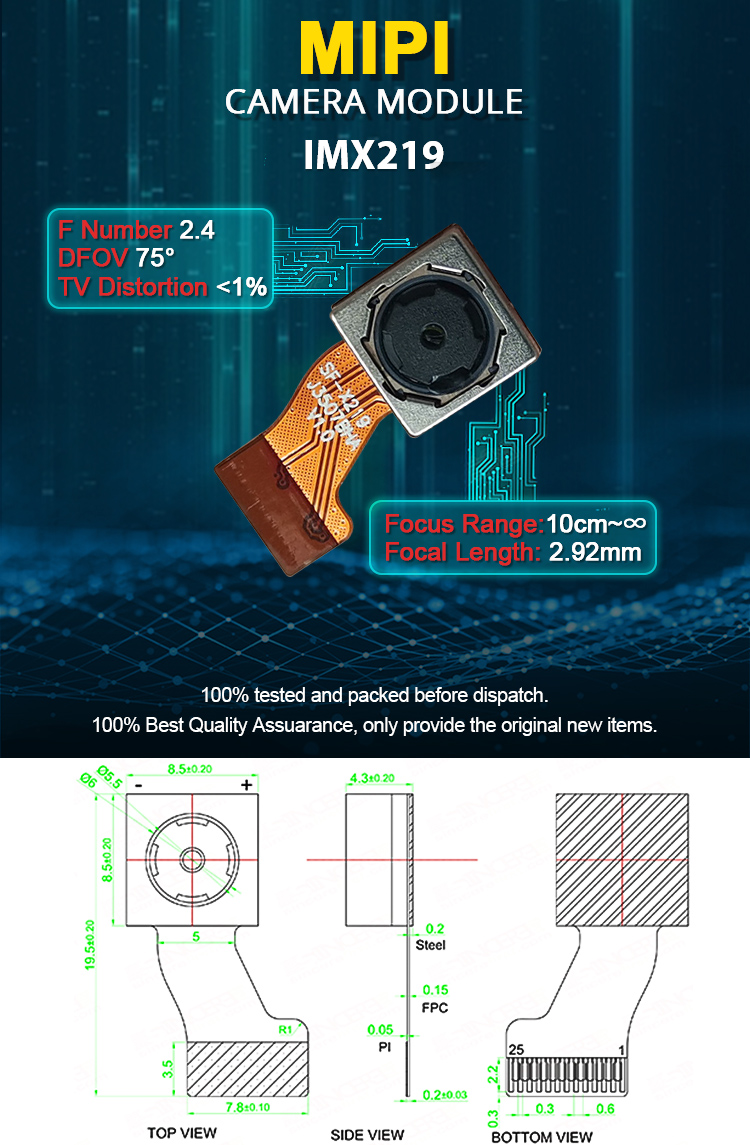

size:

8.5*8.5mm

Shape/Length/Les holder

customizable

Sensor model:

Compatible with sony, samsung, omnivision, hynix, Aptina Galaxy core(GC) Aptina Himax ST SuperPix Micro/SC SmartSens

Customization support:

Online technical support, customized logo, software engineering, OEM, ODM

describe

feature

The IMX219PQH5-C is a 4.60mm diagonal (Type 1/4.0) CMOS active pixel image sensor with a square pixel array and 8.08M effective pixels. The chip is powered by three power sources of analog 2.8 V, digital 1.2 V and IF 1.8 V with low power consumption. By using R, G,
and B Primary Color Pigment Mosaic filter. The chip has a variable electronic shutter
charge storage time.
Additionally, the product is designed for use with mobile phones and tablets. Sony does not guarantee the quality and reliability of the product when it is used for other applications. So don't use it for apps other than phones and tablets. If you have any questions, please consult your Sony sales representative.

◆Back-illuminated CMOS image sensor Exmor RTM
◆On-chip 2-wire serial communication circuit
◆CSI2 serial data output (4lane/2lane selection)
◆On-chip timing generator, H and V drive circuits
◆On-chip CDS/PGA
◆On-chip 10-bit A/D converter
◆On-chip automatic optical black (OB) clamping circuit
◆On-chip PLL (rectangular wave)
◆High sensitivity, low dark current, no smear
◆Excellent anti-smudge properties
◆Variable shutter function (1H unit)
◆On-chip R, G, B primary color pigment mosaic filter
◆Maximum. 30 frames per second in full pixel scan mode
◆Pixel rate: 280 MHz (full pixel mode)
◆720p/120 frames/second, 1080p (cropping)/30 frames/second
◆Data Rate: Max. 755 Mbps/channel
