Geosynthetic clay liner for landfill
-
$3.18 / 3 - 2999 square meters
$3.16 / 3000 - 5999 square meters
$3.14 / 6000 - 8999 square meters
$3.12 / >=9000 square meters - 3 square meters
- Taian Lin Yuan Engineering Materials Co., Ltd.
- Shandong, China
- Mr Tony Chen
Product Detail
| thickness: | 6 mm | Material: | Polypropylene non-woven geotextile |
| design style: | industrial | Single pack size: | 90X10X10 cm |
| MOQ: | 1 m2 | Material: | High Density Polyethylene Lining |
| Key words: | GCL | Project Solution Capabilities: | others |
| Package preview: | Material: | Polypropylene woven geotextile | |
| Origin: | Shandong Province, China | Gross weight per piece: | 5.000 kg |
| product name: | Geosynthetic Clay Liners | After-sales service: | Online technical support, on-site installation, on-site training, others |
| application: | landfill, landfill | width: | 5.8m (ordinary) |
| Warranty: | over 5 years | Sales unit: | single product |
| length: | 30m | Specification: | 4200 grams |
| model: | GCL 4200 |
Product Description

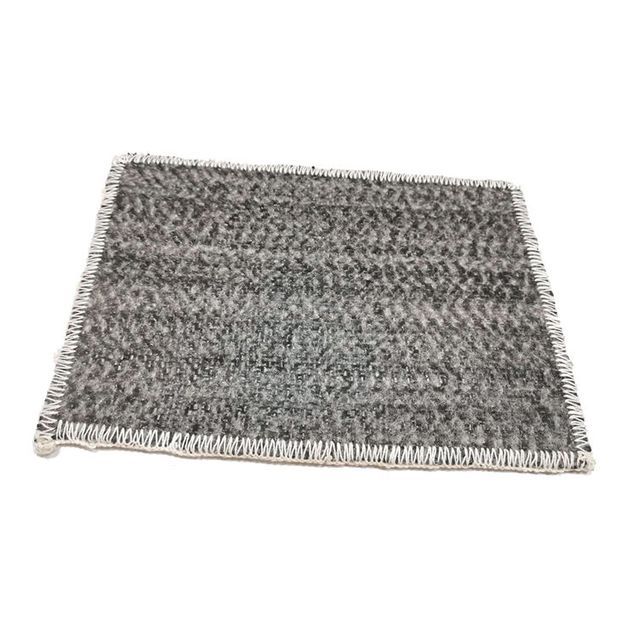

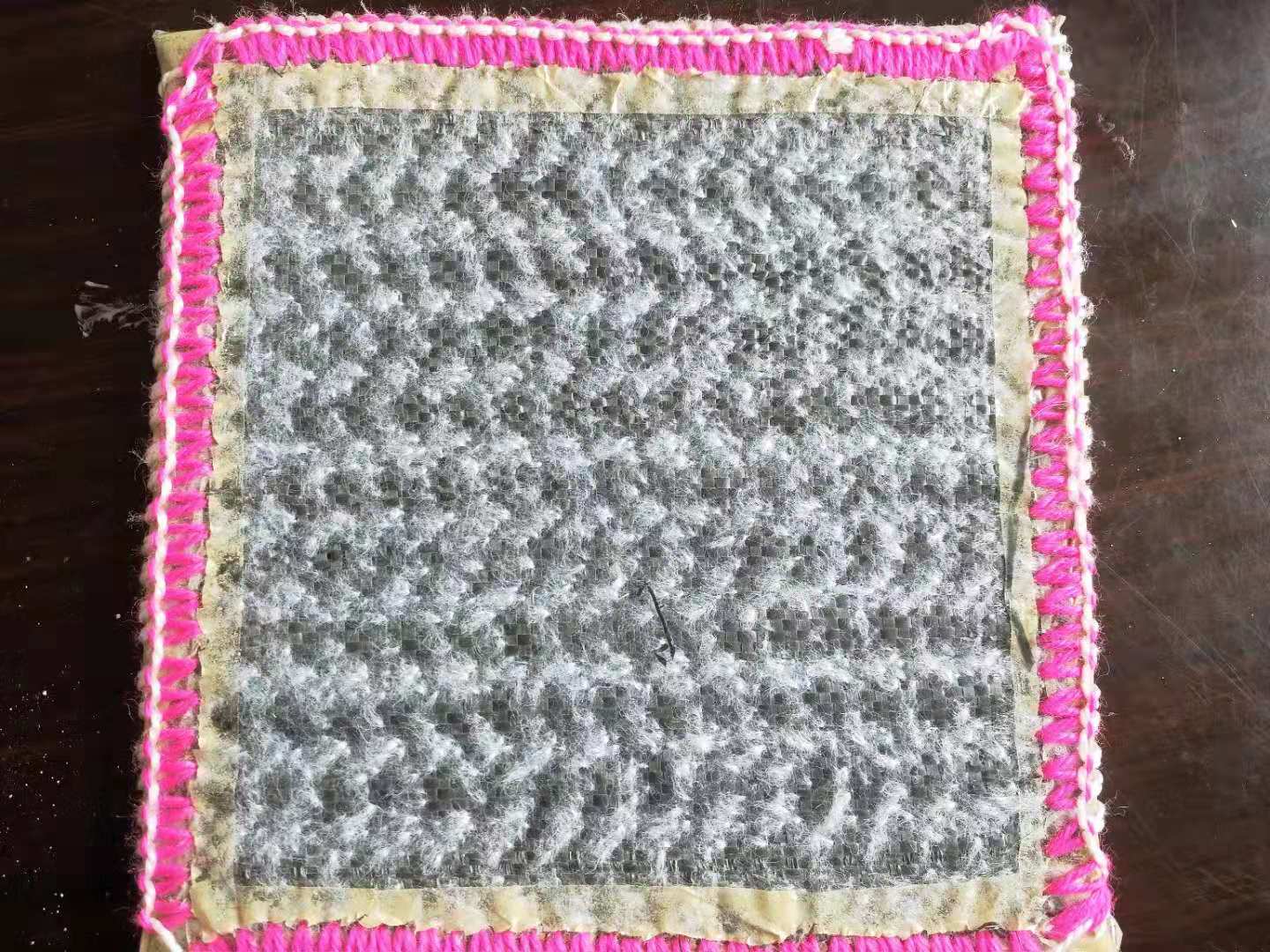

Lin YuanGeosynthetic Clay Liner (GCL) is a high performance needle punched environmentally friendly reinforced composite that combines two outer layers of durable geotextile with a uniform core of natural sodium bentonite to form a hydraulic barrier. Fibers from nonwoven geotextiles are needle punched through the bentonite layer and incorporated into other geotextiles (woven or nonwoven). When hydrated under a limiting load, bentonite expands to form a low permeability clay layer
Equivalent to hydraulic protection of several feet of compacted clay.
Equivalent to hydraulic protection of several feet of compacted clay.
thing | GCL-NP technical indicators | |
1 | GCL unit weight (g/m2) | Greater than 4000gsm and not less than the specified value |
2 | Expansion index (ml/2g) | ＞＝24 |
3 | Ethylene blue absorbance (g/100g) | >=30 |
4 | Tensile strength (N/100mm) | ＞＝600 |
5 | Maximum load elongation (%) | ＞=10 |
6 | Peel strength (N/100mm) | ＞＝40 |
7 | Permeability coefficient (m/s) | ＞＝5.0*10-11 |
8 | Hydrostatic resistance | 0.4MPA1h, no leakage |
0 | Bentonite Durability (ML/2G) | ＞＝20 |
