Best Selling Geosynthetic Clay Liner For Drainage Groundwater Reservoir Hardening
-
$3.00 / 1000 - 9999 square meters
$2.00 / 10000 - 39999 square meters
$1.00 / >=40000 square meters - 1000 square meters
- Dezhou Huaxiang New Material Technology Co., Ltd.
- Shandong, China
- Ms Selina Li
Product Detail
| model: | GCL-NP , GCL-OF , GCL-AH | feature: | Strong drainage capacity, can withstand long-term high load |
| Project solution ability: | Graphic design, 3D model design, overall project solution | brand: | floral |
| Packaging Details: | PP woven bags are tied with plastic straps for easy unloading | Supply capacity: | 1,000,000 square meters per month |
| After-sales service: | Online technical support, on-site installation, on-site training | color: | white, black |
| standard: | ASTM GRI-GM13-GM17/Chinese standard | Warranty: | over 5 years |
| thickness: | Geonet: 5-7.6mm / Geotextile: 150-300g/㎡ | length: | Normal 50m, according to your requirements |
| payment terms: | L/C, Western Union, D/P, D/A, T/T | port: | Tianjin or Qingdao |
| application: | Landfills, roadbeds and pavements, railways, office buildings | Origin: | Shandong China |
| Certification: | ISO9001/ISO14001/OHSAS18001 | width: | 2-4m or according to customer requirements |
| design style: | modern |
introduce

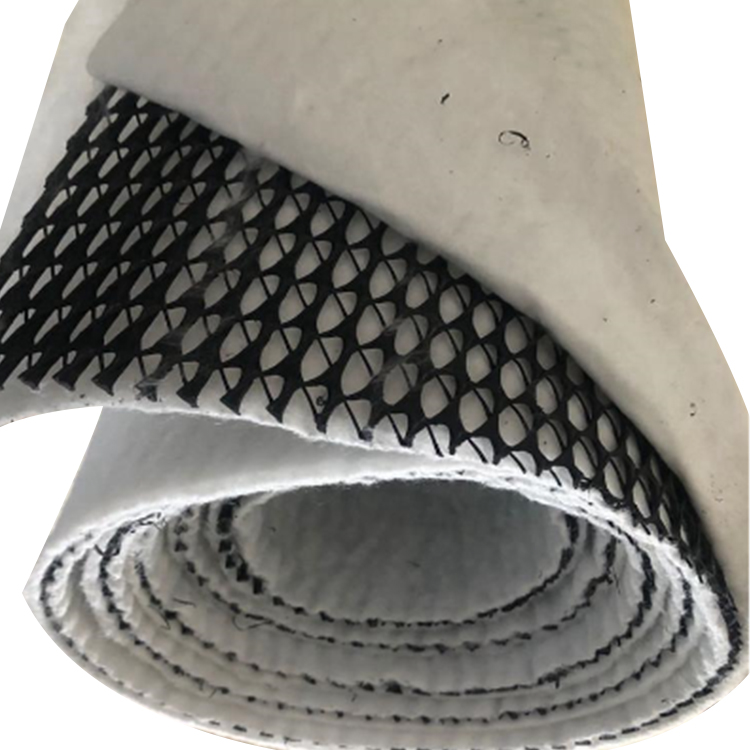

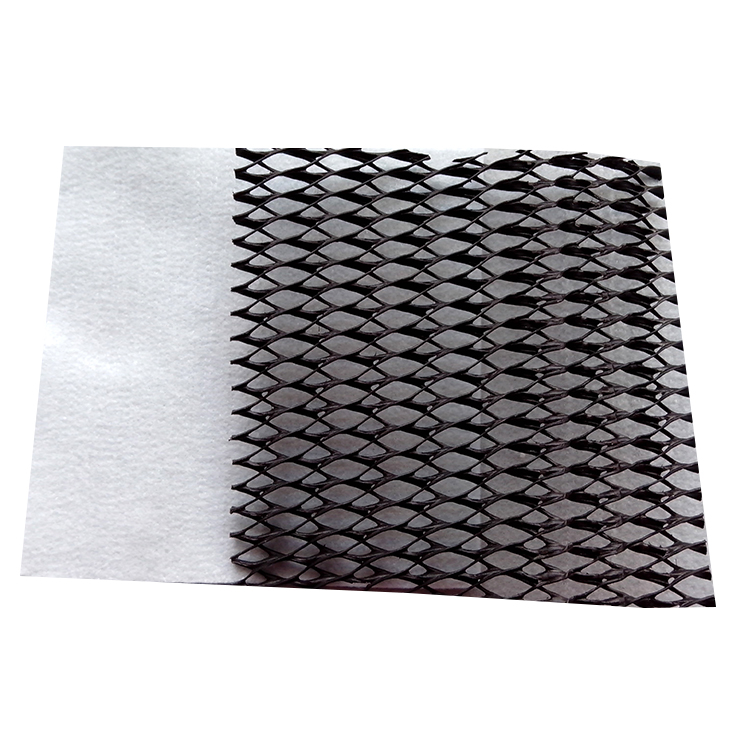

The three-dimensional composite drainage network is made of a unique three-dimensional geonet bonded on both sides of the geotextile. The combination of geotextile (reverse filter function) and geonet (drainage and protection function) provides a complete "reverse filter drainage protection" effect. The unique three-dimensional structure of the three-dimensional composite drainage mesh core can withstand high compressive loads and maintain a considerable thickness inside. Provides good water conductivity throughout use.
Specification
|
product name: |
HDPE three-dimensional geonet for drainage |
|
thickness: |
Geonet: 5-7.6mm / Geotextile: 150-300g/square meter |
|
length: |
Normal 50m, according to your requirements |
|
width: |
2-4m or according to customer requirements |
|
color: |
whiteorBlack |
|
Material: |
Virgin PET/PP staple fiber(Geotextile)+ Pure HDPE resin(Geonet) |
|
standard: |
ASTM GRI-GM13/M17/Chinese standard |
|

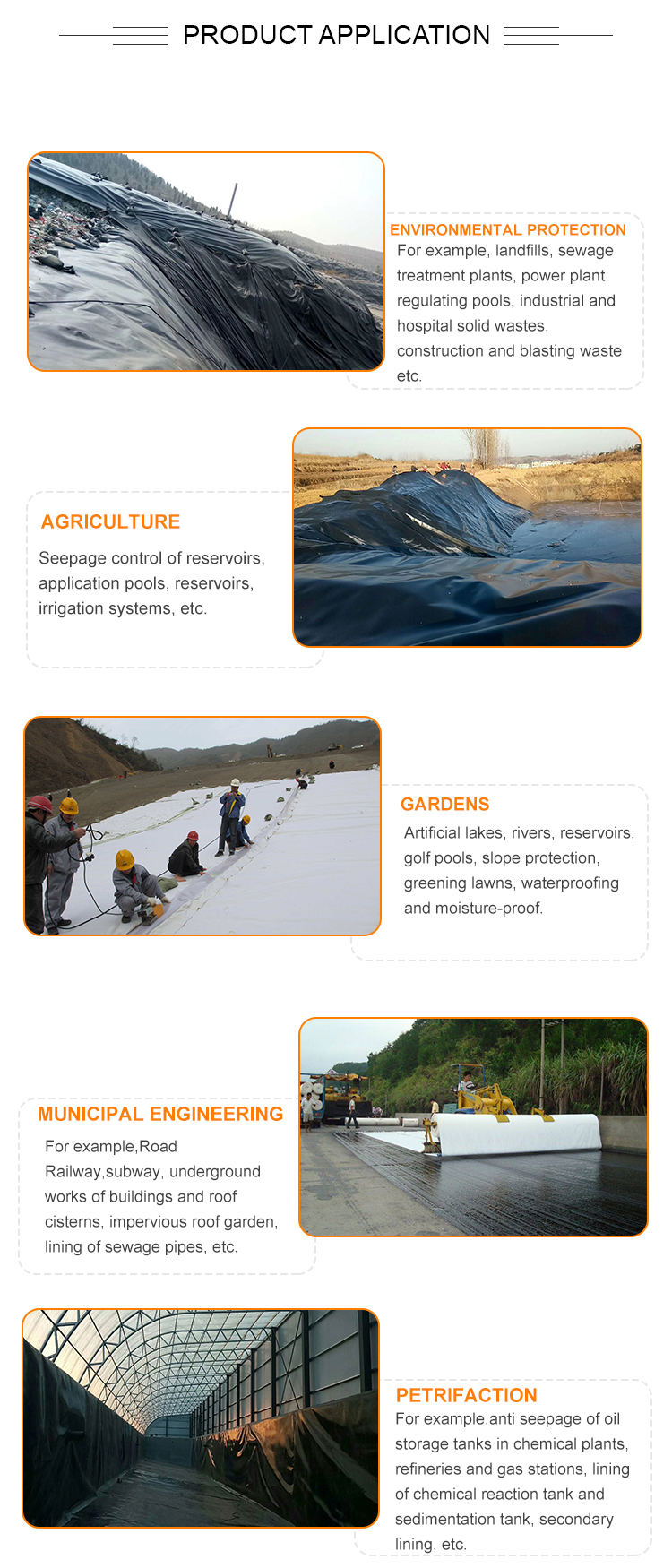

application |
Landfills, roadbeds and pavements, railways, tunnels, underground structures, gardens and playgrounds, etc. |
|
Package |
PP woven bags are tied with plastic straps for easy unloading |
feature
1. Strong drainage capacity, able to withstand long-term high load
2. The pit has high tensile strength and shear strength
3. Reduce the probability of geotextile being embedded
core, which can ensure the long-term stability of the water output rate
4. The three-dimensional composite drainage network is more bearable
Compression load greater than 2000kpa
5. Far greater than the resilience of ordinary drainage pipe networks

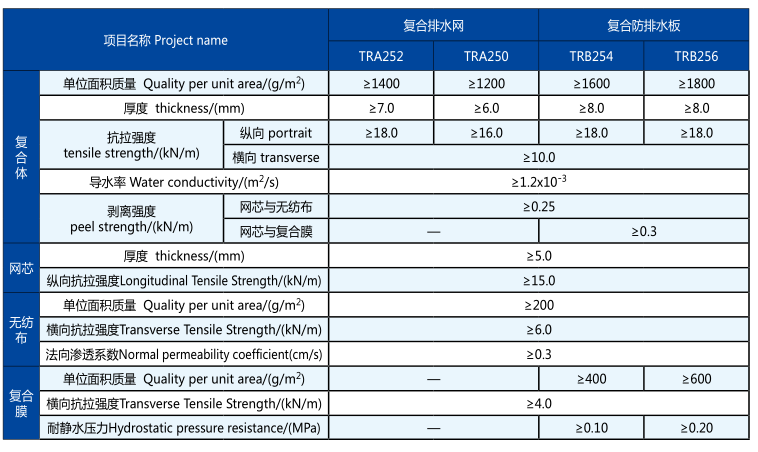

Technical Parameters
