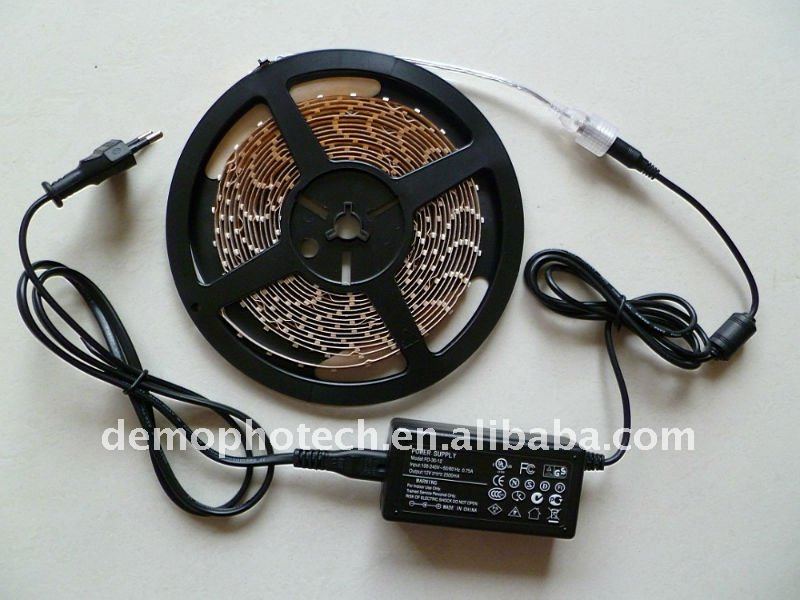

60LED/m IR 850nm DSI Screen Lighting LED Flexible Strip
- $19.00 /roll
- 1 roll
- Demo Photoelectric Technology (Wuxi) Co., Ltd.
- Jiangsu, China
- Mr Harold Wei
Product Detail
| Protection class: | IP33 | Origin: | Jiangsu, China |
| Luminous color: | Infrared 850nm | Light body material: | aluminum |
| Supply capacity: | 50000 meters per week | LED peak wavelength: | Infrared 850nm |
| Item Type: | infrared light | port: | Shanghai |
| light source: | to lead | Input voltage (V): | DC 12V |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | waterproof level: | Not waterproof |
| Lamp Power(W): | twenty four | LED Beam Angle: | 120 degrees |
| LED type: | SMD 3528 | Color temperature (correlated color temperature): | Infrared 850nm |
| Working life (hours): | 100000 | Certification: | CE, FCC, RoHS |
| PCB Dimensions: | Length 5000*W08mm | Input voltage: | DC 12V |
| LED forward current: | 20mA | Stripped power consumption: | 4.8W/m, 24W/roll |
| brand: | demo | Packaging Details: | Moisture-proof bag packaging in the shipping carton |
| LED Density: | 60 LEDs/m, 300 lights/5m |
The first choice for custom manufacturing of infrared light strips!
IR LED manufacturer with more than 10 years experience!
High quality long life infrared LED!
60LED/m infrared 850nm
DSI Screen Lighting LED Flexible Strip
Model: DM-3528IR850-60LED20-12F08-N
describe:
PCB Type | L5000*W8*H2, flexible |
LED type | SMD 3528 LED |
wavelength | Infrared 850nm |
Number of LEDs | 60LED/m, 300LED/5m strip |
energy consumption | 4.8W/m, 24W/5m LED strip |
Input voltage | DC 12V |
current | 20mA |
LED space | 17.8 mm |
Minimum cutting amount | 50mm, each cut 3 SMD |
life | 50,000 hours |
back tape | 3M double sided tape |
degree of protection | Not waterproof |
certified | CE and RoHS |
Acrylic multi-touch screen is easy to install

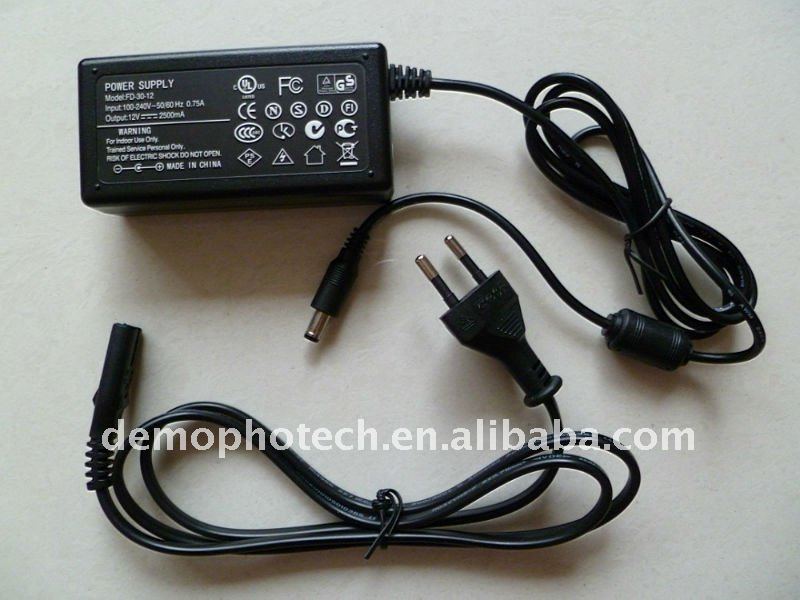

universal power supply

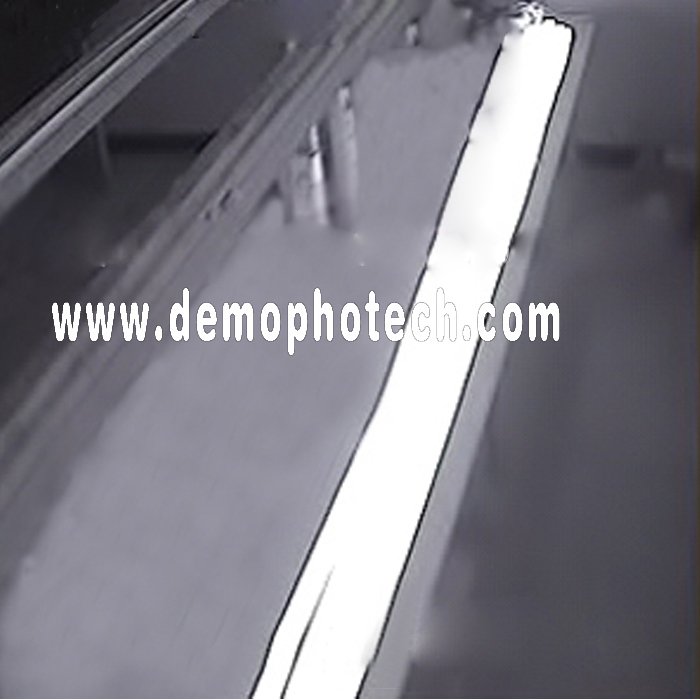

Image under CCTV

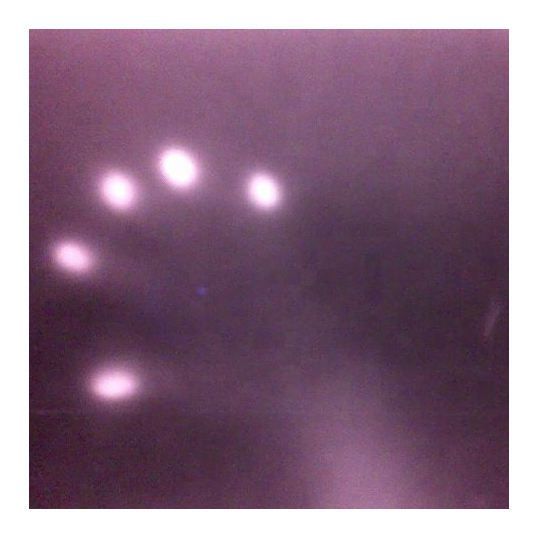

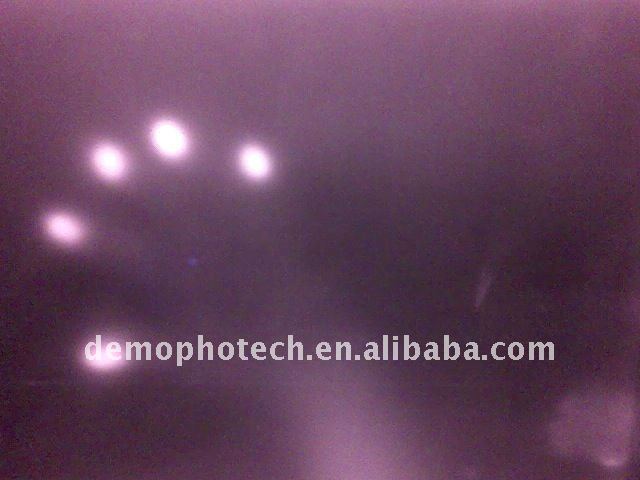

Multi-touch screen effect test
our service
1) Custom viewing angles are acceptable!8 degrees, 15 degrees, 30 degrees, 45 degrees, 60 degrees, 90 degrees, 120 degreesfor selection!
2) Customized LED shapes are available, round head shape, bullet head shape, flat head shape, rectangle, oval, concave shape, straw hat shape, etc.
3) A variety of LED sizes are available, 2mm/3mm/4mm/5mm/8mm/10mm
