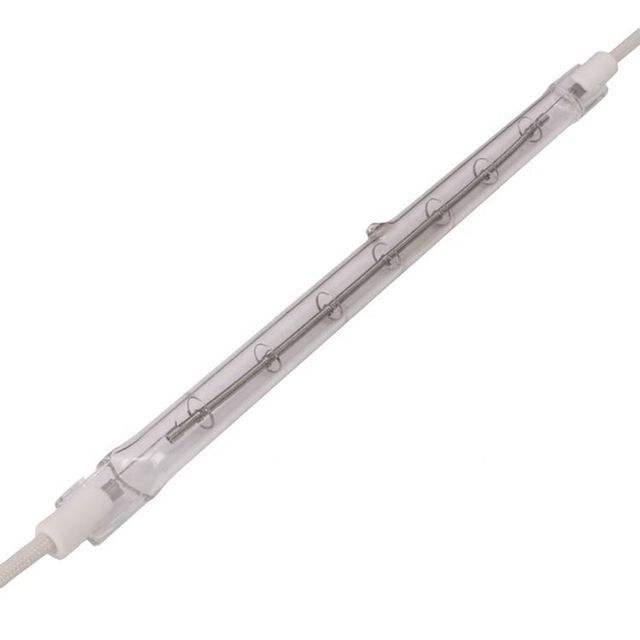

Tungsten Halogen Lamp 320mm 220V 1000W Infrared Tube Replacement IR
-
$8.00 / 20 - 99 pieces
$6.00 / 100 - 499 pieces
$5.00 / >=500 pieces - 20 pieces
- Lianyungang O-Yate Lighting Electrical Co., Ltd.
- Jiangsu, China
- Mr Hongjun Liu
Product Detail
| Luminous color: | yellow | business type: | manufacturer |
| Working hours (hours): | 5000 | Item Type: | Infrared light |
| Package preview: | volt: | 12-600V | |
| Supported dimmers: | Yes | patent: | 26 national patents |
| shape: | Tubular, Shaped | Origin: | Jiangsu, China |
| light source: | halogen bulb | filament: | Tungsten, carbon fiber |
| Lamp Luminous Efficiency (lm/w): | 50 | Lifespan (hours): | 5000 |
| Product weight (kg): | 0.25 | application: | Drying, heating, printing, heat preservation |
| wavelength: | 1.3-2.5um | Tube color: | Clear, White, Gold, Ruby, Frosted |
| Input voltage (V): | 220 | Certification: | CE, ROHS, REACH |
| port: | Shanghai, Ningbo | Light body material: | Quartz tube |
| Working life (hours): | 5000 | Warranty (year): | 5000 |
| payment terms: | wire transfer | Color temperature (CCT): | 1200 |
| Supply capacity: | 300000 pieces per month | brand: | house hall |
| Lighting Solutions Services: | Lighting and Circuit Design | watt: | 50-8000W |
| Packaging Details: | 1. 5pcs/roll package 2. Single white box 3. Color box 4. Wooden case |
infrared heating lamp
| filament | Tungsten, carbon fiber |
| Tube color | clear,white, gold, ruby |
| wavelength | 1.3-1.6µm, 2.5Micron |
| Voltage | 24-600V |
| strength | 50-4000W |
| color temperature | 2450K, 1800K, 1200K |
| Common diameter | 10mm, 12mm, 14mm, 18mm |
| life | 5000 hours |
feature
*high efficiency.
* Run economy.
*Switching time with fast response.
*Efficiently transfer and focus heat on the material.
application
Infrared heating lamps for heating
Especially suitable for patios, canopies, terraces, restaurants, bars, cafes, gardens, outdoor sports, stadiums, churches, workshops, factories, homes, farms, greenhouses.
Infrared Heat Lamps for PET Manufacturing
Reflector lamps focus infrared heat forward to where it is needed, reducing heat loss to the rear and increasing efficiency. The surface of the lamp is coated with a reflective coating, usually covering 180° of the quartz tube. Infrared heat is emitted forward through the quartz tube, or reflected from the back of the tube, and transmitted out the front. Infrared heat lamps or clear heat lamps with reflective coatings are available for various machines.
Infrared heating lamps for printing equipment
Infrared Heat Lamps for Drying Systems
Infrared heat lamps for industrial processing
1. Infrared heating for plastic processing
| Infrared Drying of Plastic Coatings | Infrared Stretch or Shrink Plastic |
| Infrared heating for plastic packaging | Infrared heating for PET bottle blowing |
2. Infrared heating in photovoltaic industry
| Infrared Heating for String Soldering |
IR preheating for sputtering processes |
3. Infrared heating in the printing industry
| Infrared curing ink on cloth | IR Drying of Inkjet CTP Plates |
| IR drying of printed products, e.g. for banner machines |
4. Infrared heating in food and chemical industry
| Infrared heating tableware disinfection | Infrared Heating Chicken and Vegetables |
| Natural Herbal Infrared Heating | Infrared heating for snow and ice removal |
5. Infrared heating in the glass industry
| Auto glass IR preheating | Infrared Drying of Glass Coatings |
| IR Heating for Manufacturing and Cutting Laminated Glass |
6. Infrared heating in the textile industry
| Infrared drying of textile coatings | IR Heating for Fabric Lamination |
7. Infrared heating in the electronics industry
| Coatings on Electronic Components | Aging of electronic components |
OYATE Infrared Heating Lamps
|
Short wave halogen lampInfrared light |
medium wave carbonInfrared light |
short -Moderatewave infrared lamp |

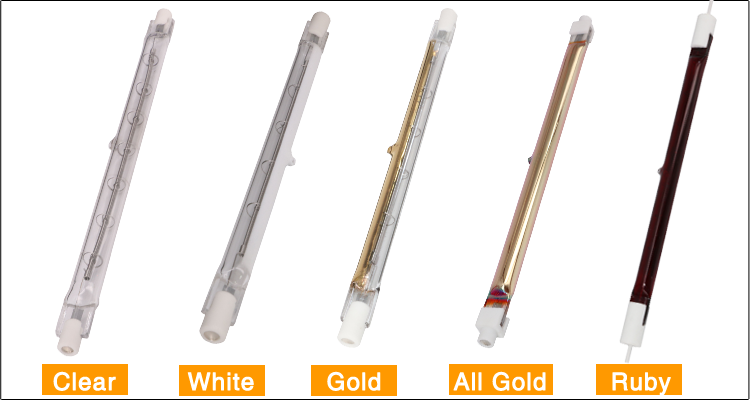

| Transparent Infrared Lamp | white infrared light | Gold Infrared Lamp | Ruby Infrared Lamp | Accessories |
| Double Tube Infrared Lamp | Jacketed IR Lamp | Shaped infrared lamp | application |

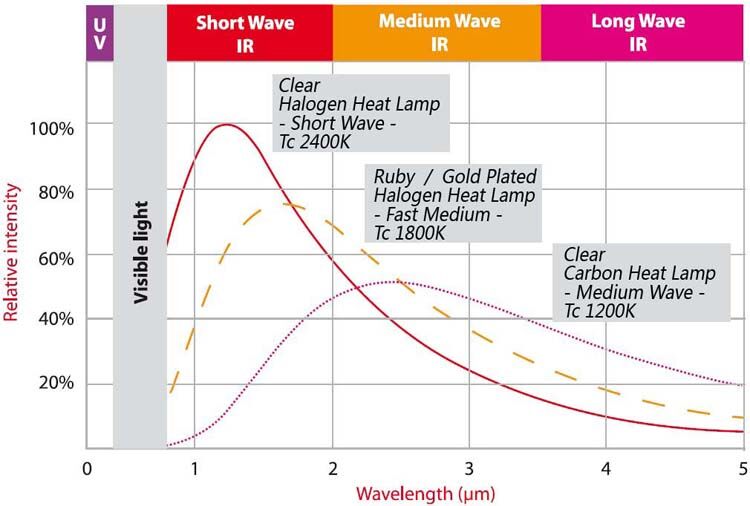

Infrared rays are divided into 3 segments according to wavelength measurement
* 1.3 μm short-wave infrared
* 1.6 μm short-medium wave infrared
* 2.5 μm medium wave infrared
Advantages of OYATE Heat Lamps
Carbon Fiber Heat Lamp
*High price imported carbon fiber filament.
*The finished silk is smooth and lint-free.
* Best power and longest life.
Quartz glass tube
* High quality high temperature resistant quartz glass.
*Completely transparent under infrared radiation.
*Double tube - higher heat under the same conditions.
reflective heat lamp
*Transmit and concentrate heat more efficiently on the material
*According to specific application and customer needs.
*We typically use gold, white and ruby reflectors on our heat lamps.
Ruby and All Gold Heat Lamps
*Reduces brightness of visible light.
* Reduce wavelength, increase heat.
white heat lamp
*Imported ceramic white plating material.
*The white reflective coating is stable and not easy to fall off.
gold heat lamp
*Imported gold-plated material, water-plated gold.
*Reflection heat utilization, stronger reflection efficiency.
*The reflective effect is better than that of white plating.
