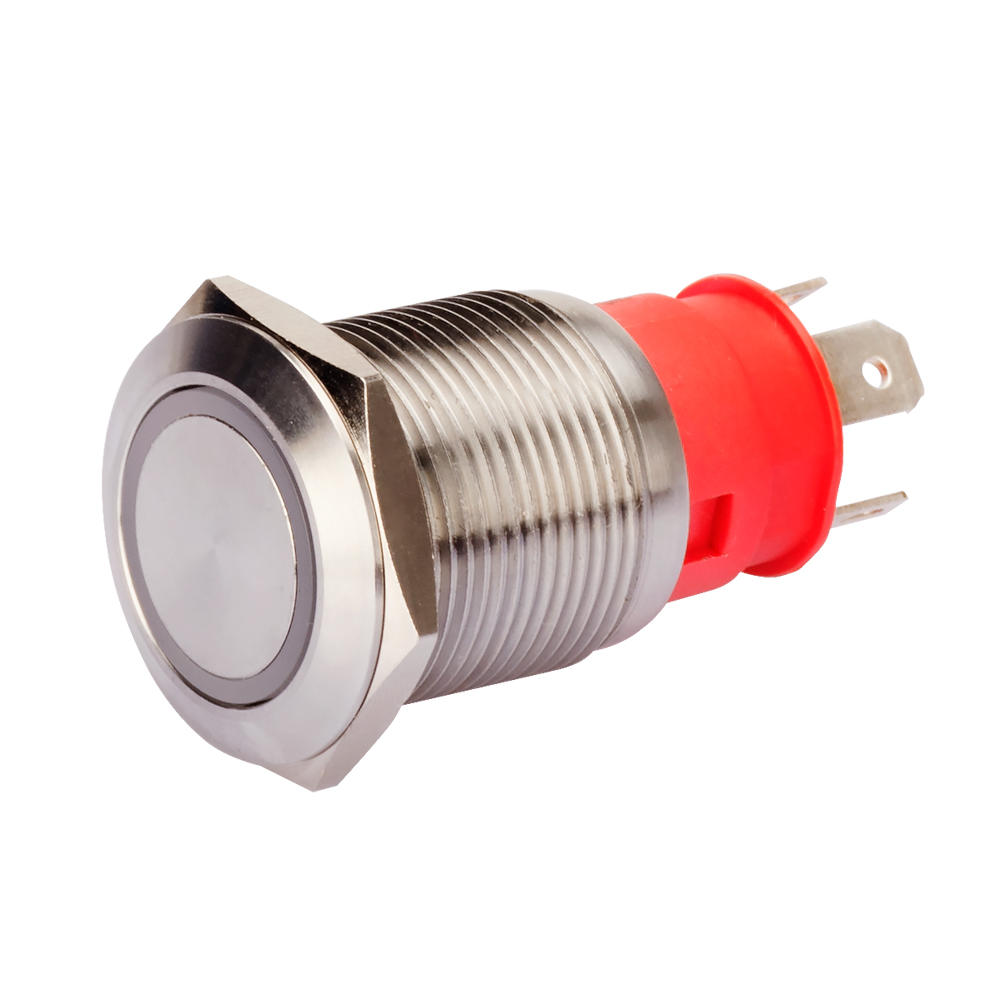

19mm 10A 15A 20A High Current Waterproof Stainless Steel Push Button Switch
-
$4.80 / 1 - 99 pieces
$4.70 / 100 - 999 pieces
$4.50 / >=1000 pieces - 1 piece
- Yueqing Yueshun Electric Co., Ltd.
- Zhejiang, China
- Ms Simple Chen
Product Detail
| Protection class: | IP67 level | Mounting holes: | 19mm |
| model: | LA19D-10EY/S | Launch type: | ring power symbol |
| application: | General purpose | Protection class: | IP67 level |
| Packaging Details: | carton | Package preview: | |
| Certification: | EU CE certification | Contact configuration: | 1NO |
| lead: | Yes | maximum. Voltage: | 250 VAC/DC |
| Lamp color: | White\Orange\Red\Blue\Green | maximum. current: | 10A 15A 20A |
| Shell material: | Stainless steel | payment terms: | wire transfer |
| product name: | High current push button switch | LED voltage: | 3V/6V/12V/24V/36V/110V/220V/Others |
| Head type: | flat | brand: | Yueshun |
| Origin: | Philosophy | Whether smart: | No |
Yueshun push button switch
-Professional custom manufacturerhigh qualityMetal buttons.
- All of our products have passed CE, CCC, ROHS and other certifications.
- Our buttons use 95% silver contacts for good contact performance.
quick description

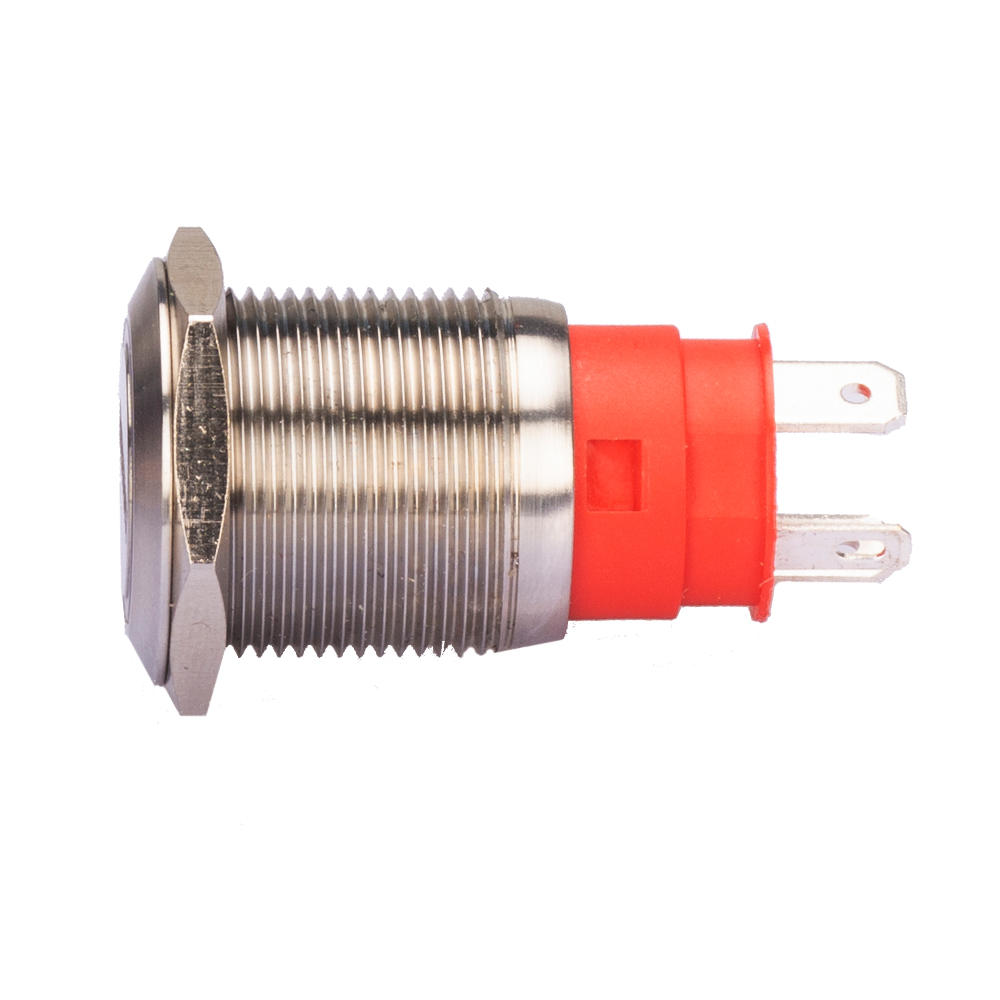

High Current Metal Pushbutton Switches
Mounting Dimensions: 19mm; Switch Rating: 10A / 15A / 20A, 250VAC/DC IP Rating: IP67 Function: Normally Open Material: Stainless Steel / Aluminum Oxide Operation Type: Momentary / Latching
Features | ||

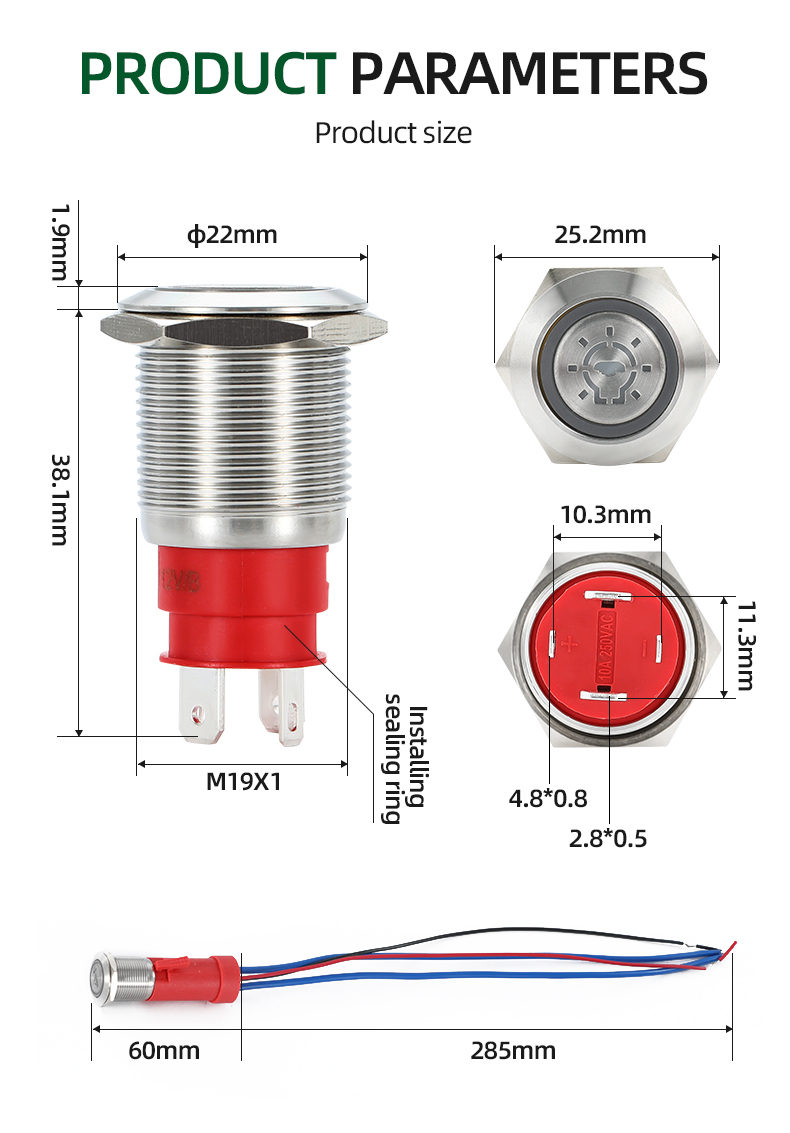

Installation diameter | 19mm | |
operation type | momentary or latching | |
switch combination | 1NO | |
head shape | Oblate | |

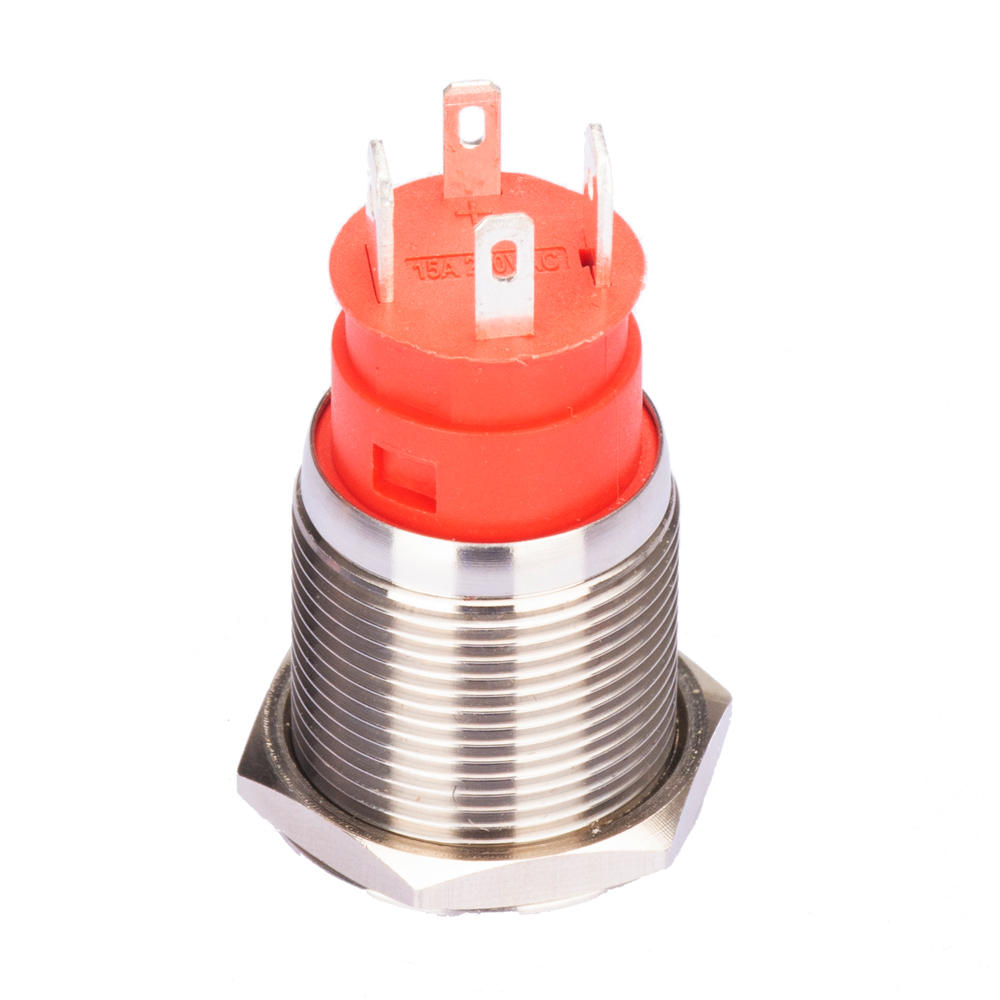

terminal type | 4-pin terminal | |
panel thickness | 1-10mm | |
Operating distance | about 2.5mm | |
product material | ||

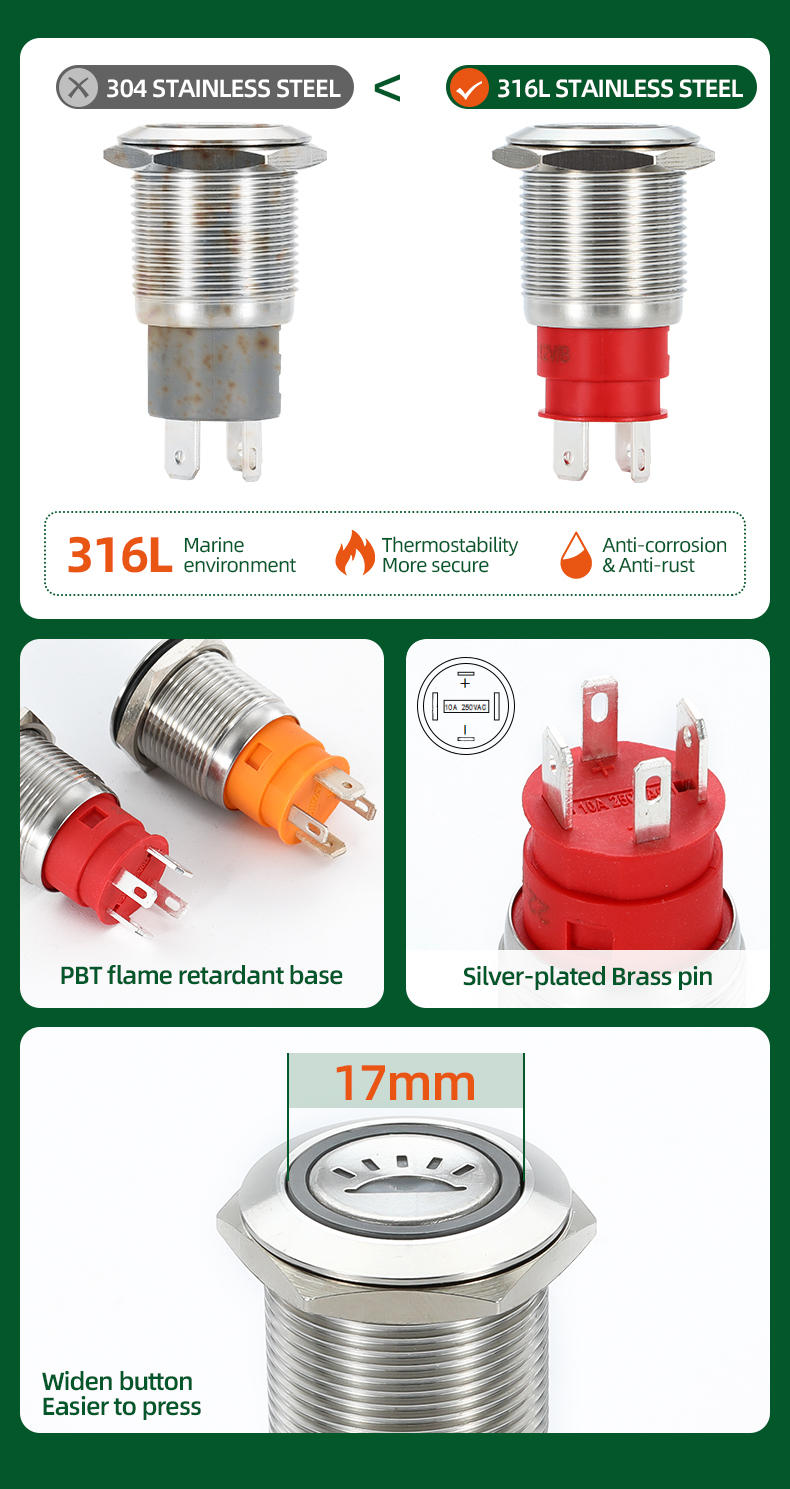

body material | 304 stainless steel/316 stainless steel/aluminum oxidation | |
Button material | 304 stainless steel/316 stainless steel/aluminum oxidation | |
Substrate | Polybutylene terephthalate | |
contact material | silver alloy | |
LED Specifications | ||

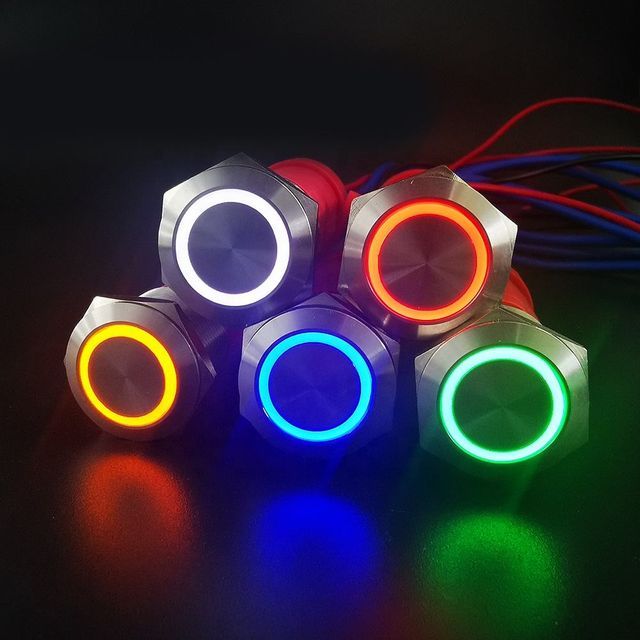

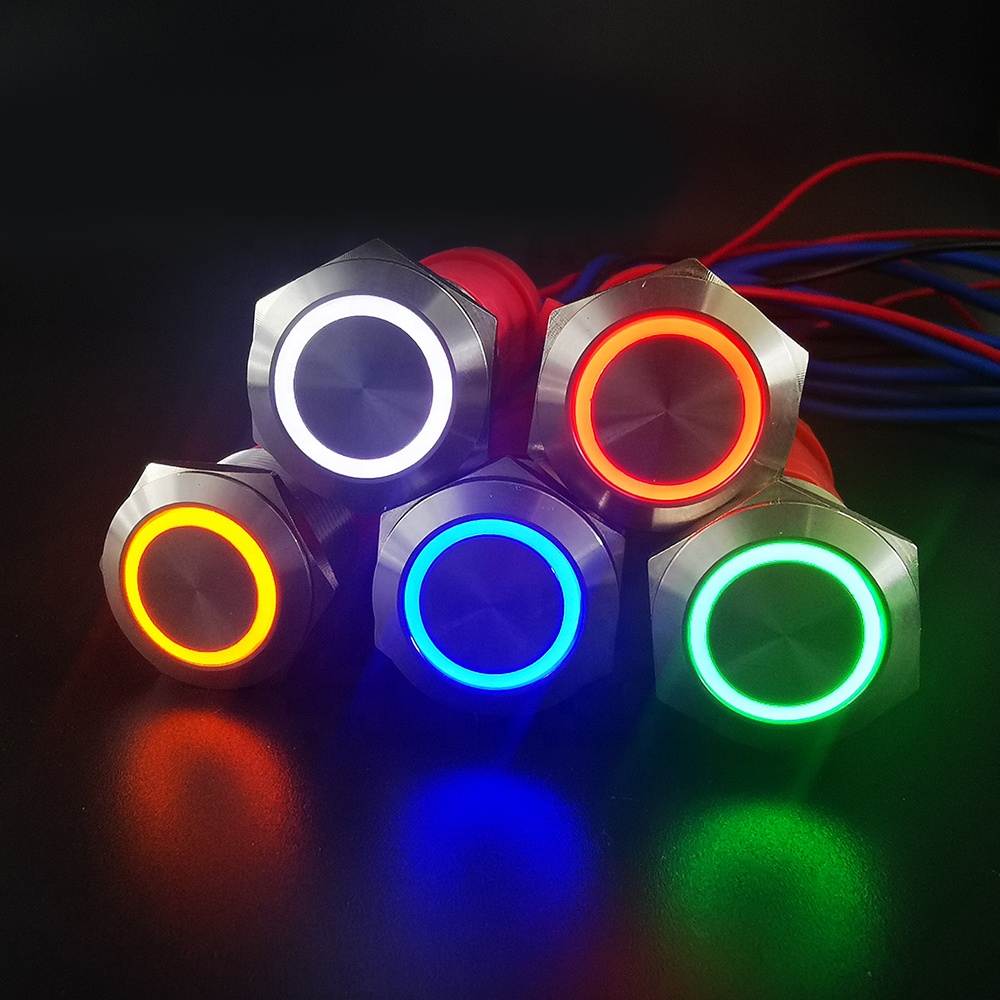

LED type | Ring LED | |
LED color | Red/green/yellow/blue/white/orange/purple/two-color/three-color | |
LED voltage | 3V/6V/12V/24V/36V/110V/220V | |
LED lifetime | over 40,000 hours | |
Electrical Specifications | ||
Maximum switch rating | 10A 15A 20A/250V AC DC | |
Contact resistance | ≤50mΩ | |
Insulation resistance | ≥10000mΩ | |
Dielectric strength | 2000VAC | |
Mechanical life | More than 1000,000 cycles | |
Electrical life | More than 100,000 cycles | |
Environmental indicators | ||

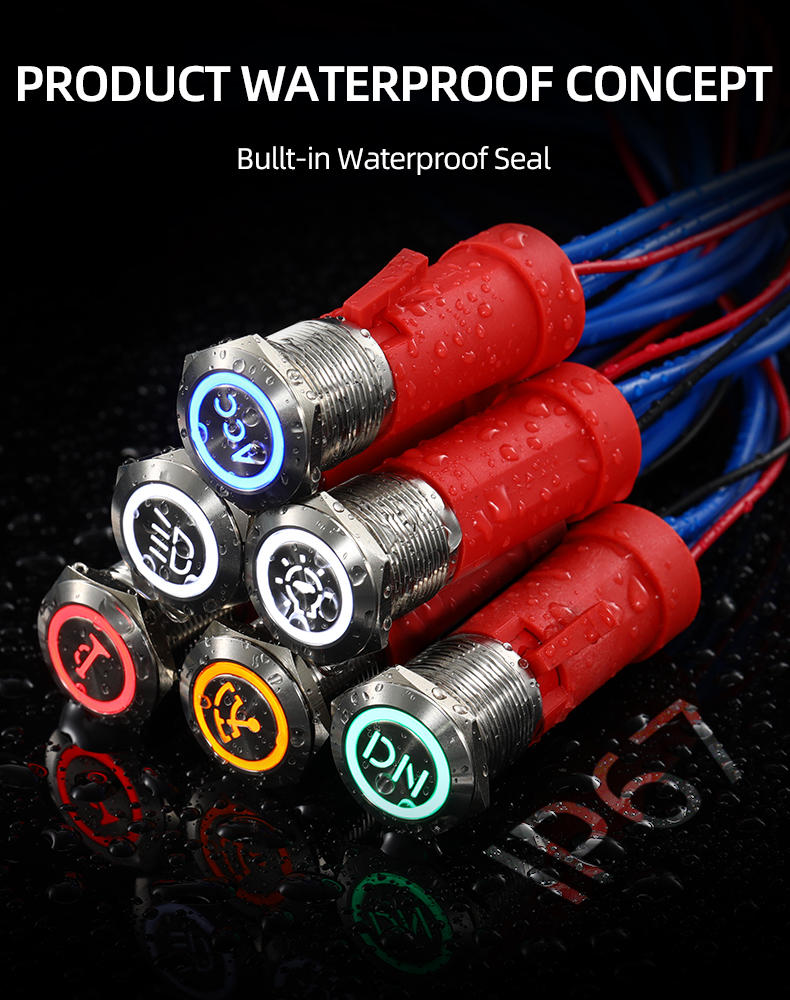

degree of intellectual property | Protection class 67 | |
Operating temperature | 20℃～+55℃ | |
operating pressure | About 3-5N | |
torque | 5-14 Nm | |

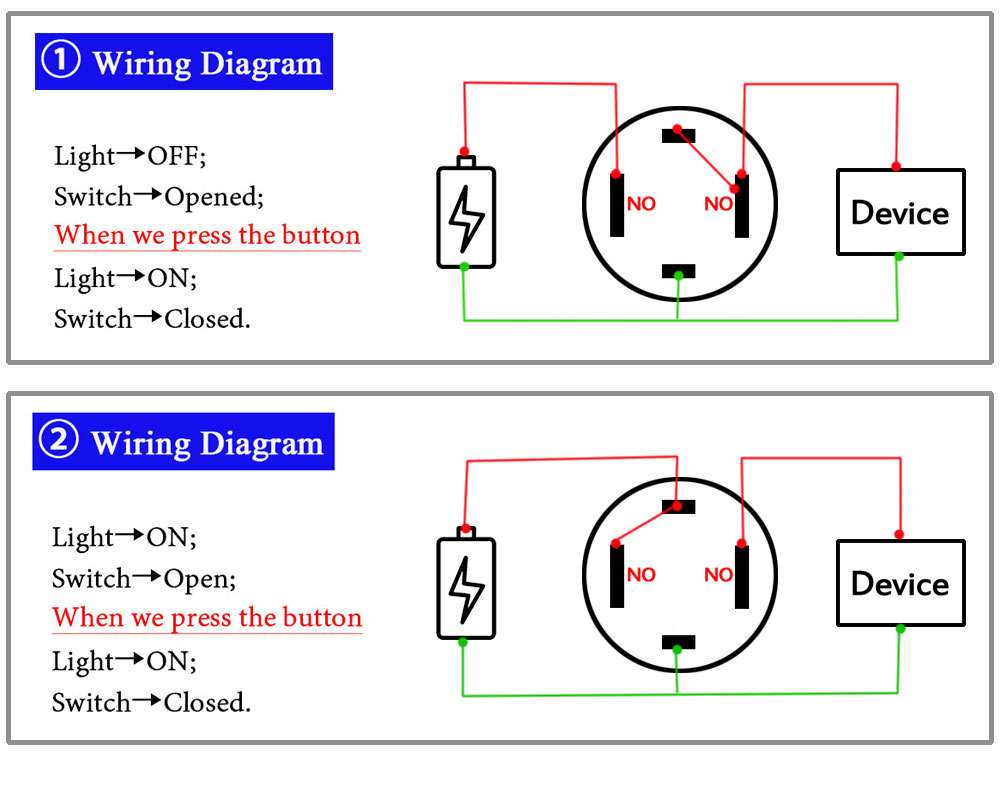

Wiring Reference
