bus crane PVC Electric compact Bus/Busbar

Product Detail

color:customized, customizedMaterial:aluminum or copper
Protection class:IP54brand:GWE, GWE
OEM:supplyport:Shanghai or Tianjin
size:According to configurationAdvantage:Heat dissipation fast
model:CCFXpayment terms:L/C, T/T
Origin:Gansu, ChinaSupply capacity:1 million sets per month
Warranty:1 yearusage:Power Industry
Packaging Details:wooden box/palletCertificate:ISO9001 CCC CE
Product Description

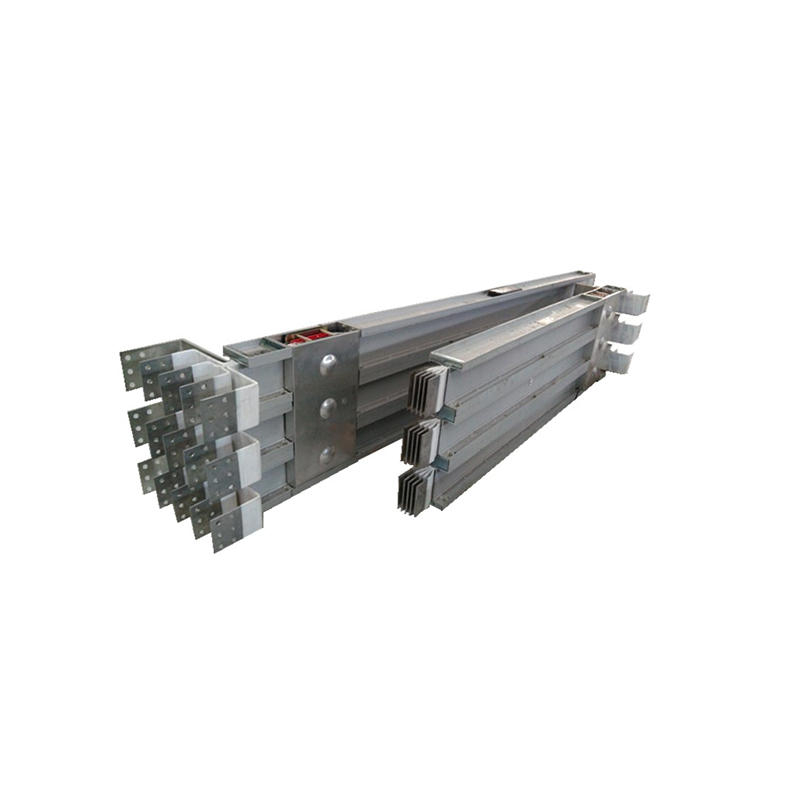

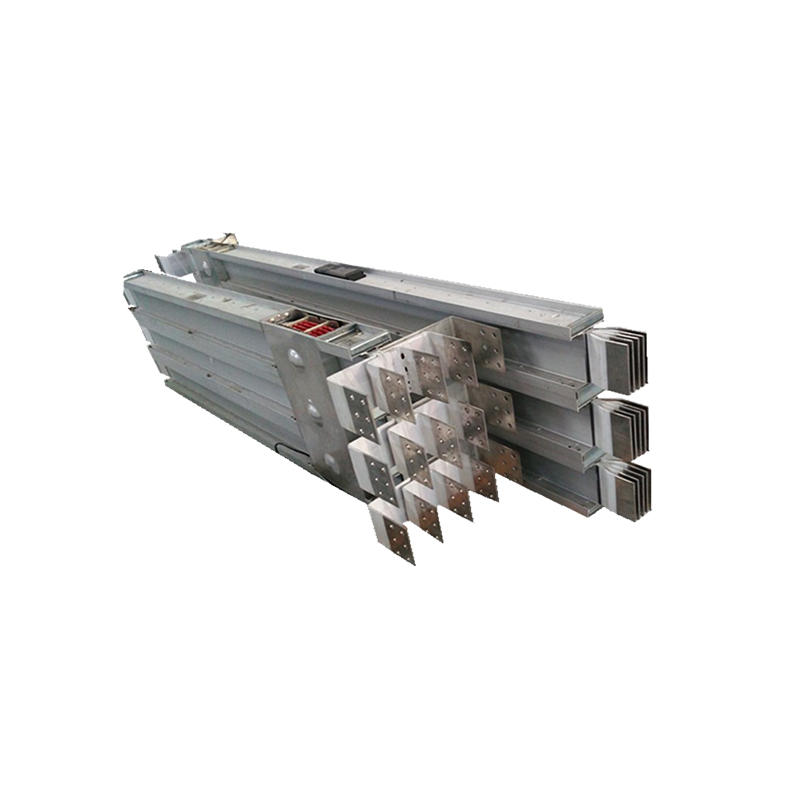

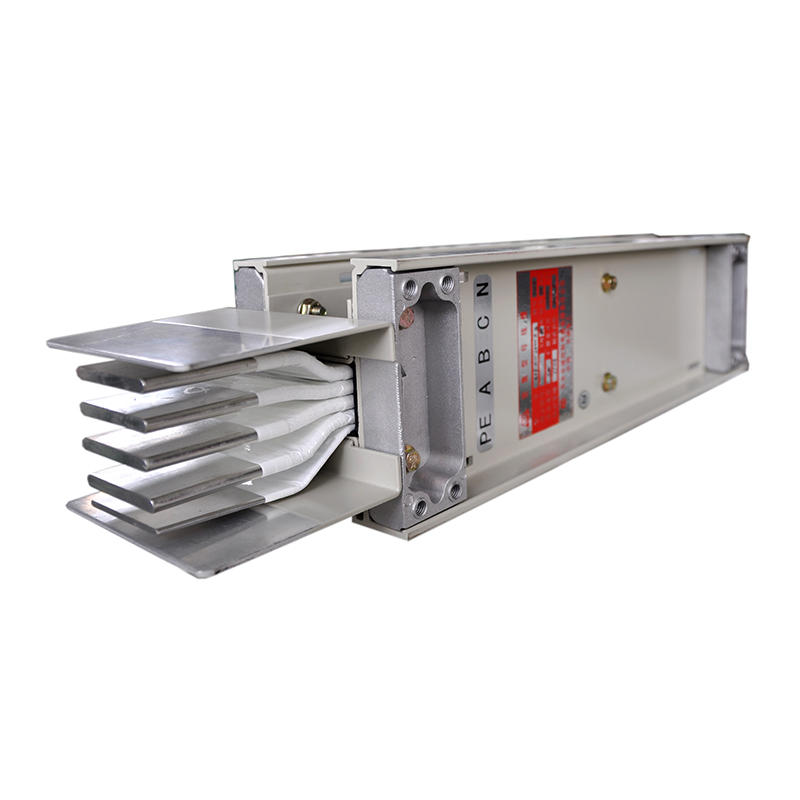

overview The insulation of CCFX series aluminum compact busway is wound by polyester film produced by American Durai, connected by external locking rivets, with high protection level, small size, fast heat dissipation, low loss and no chimney effect. There are three-phase three-wire system, three-phase four-wire system and three-phase five-wire system. Due to its small quality, light weight and good decorative appearance, it is mainly suitable for various large, medium and small building power transmission and distribution equipment in industrial and commercial enterprises.
main feature ⚫Small size, fast heat dissipation, low loss, no chimney effect ⚫Light weight, good decoration main technical data
thing
parameter
Rated voltage (V)
660
Maximum working voltage (V)
690
Rated frequency (Hz)
50(60)
Rated current (A)
400, 630, 800, 1000, 1250
1600, 1800, 2000, 2500
Rated short-time withstand current (kA /S)
30
50
Rated peak withstand current (kA)
63
105
Power factor (KA)
0.25
0.25
degree of protection
IP54
