Bus copper bar bus duct machine
- $142.85 /set
- 1 set
- Lanzhou Great Wall Electrical Power Equipment Co., Ltd.
- Gansu, China
- Ms Cherry Ma
Product Detail
Origin: | Tianshui, China, Gansu, China | size: | According to configuration |
Warranty: | 1 year | model: | ccx18 |
brand: | GWE, GWE | port: | Shanghai or Tianjin |
Supply capacity: | 5,000,000 sets per month | Processing: | accept |
color: | Customization, see picture/support customization | Packaging Details: | wooden box/pallet |
Material: | copper/aluminum | Supply capacity: | 5000,000 m/m per month |
Certificate: | ISO9001 CCC CE | payment terms: | L/C, T/T |
standard: | GB 7251.2-1997 |
Product Description
Product overview
overview

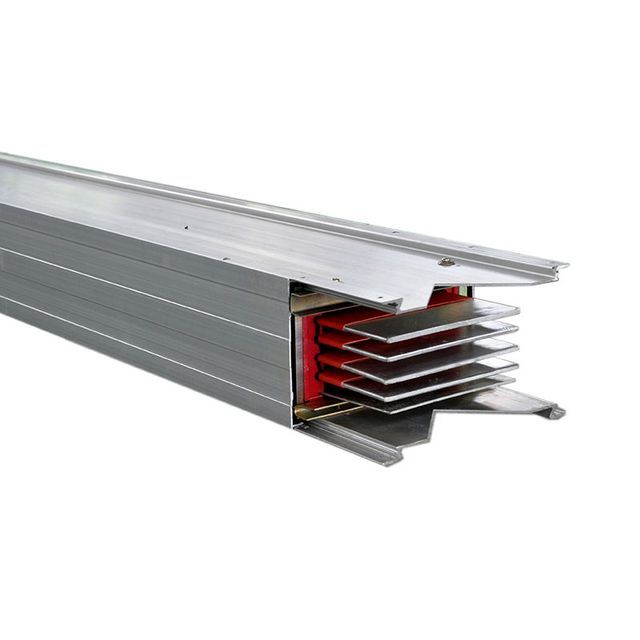

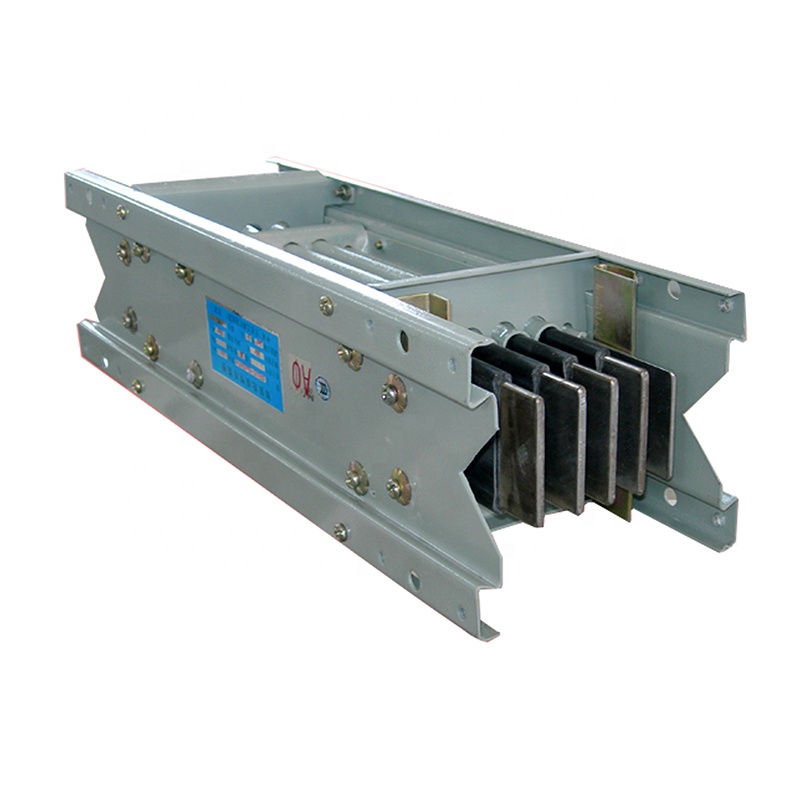

CCKX18 series busway is a high-strength fully enclosed reinforced insulation type. The product shell is made of galvanized steel coiled into a corrugated cover, and the busbar conductor is fixed with a corrugated cover, which can withstand the thermal stress and electric power caused by high short-circuit current. CCKX18 reinforced insulating aluminum alloy shell Busway and anti-corrosion busway have the characteristics of common and reliable structure, good appearance and light weight. Anti-corrosion busway is widely used in the ideal choice of power transmission and distribution equipment in harsh working conditions such as petroleum and chemical industry. Executive standard: GB 7251.2-1997, JB/T 9662-1999, GB 7251.2-1997, GB 14048.1-2000, GB/T 4942.2-1993 Main features: ⚫Busway conductors are made of copper, in line with GB5585.1 -5585.3 standards, Contains 99.9% copper. The surface of the conductor joint is tin-plated or silver-plated, with good contact, low heat generation, and safe and reliable use. ⚫The service life of the busway depends on reliable and high-quality insulating materials and processes. CCKX18 series adopts special rubber insulating tubes and epoxy fluidized powder for overall insulation (rubber insulating tubes have obtained national patents, patent number: ZL97239614.4). Two Both insulation methods are internationally advanced and belong to Class B insulation materials. The long-term working temperature can reach 130°C, the insulation breakdown strength is high, the impact resistance is flame retardant, and the aging resistance life exceeds 50 years. ⚫A unique connection method is adopted, and the connection of each functional unit adopts a plug-in movable connector (has obtained a national patent, patent number: ZL95207020.0). ⚫Double Side connecting method doubles the area of the contact surface and doubles the contact resistance, thereby reducing the temperature rise of the busbar. ⚫The unique butterfly washer and high-strength single bolt ensure the balance of force on the connection surface. ⚫Due to the non-porous connection between the kinematic joint and the functional unit, the stretching length of the system can be automatically compensated as the temperature changes. ⚫The busway can be pulled out from the adjacent busbar at no-load to isolate the faulty area and reduce the time and scope of power failure. ⚫The casing is designed as an effective grounding system, the grounding resistance value is much smaller than the standard, and a grounding busbar with 50% relative capacity is configured.main technical data
CCKX18 series busway is a high-strength fully enclosed reinforced insulation type. The product shell is made of galvanized steel coiled into a corrugated cover, and the busbar conductor is fixed with a corrugated cover, which can withstand the thermal stress and electric power caused by high short-circuit current. CCKX18 reinforced insulating aluminum alloy shell Busway and anti-corrosion busway have the characteristics of common and reliable structure, good appearance and light weight. Anti-corrosion busway is widely used in the ideal choice of power transmission and distribution equipment in harsh working conditions such as petroleum and chemical industry. Executive standard: GB 7251.2-1997, JB/T 9662-1999, GB 7251.2-1997, GB 14048.1-2000, GB/T 4942.2-1993 Main features: ⚫Busway conductors are made of copper, in line with GB5585.1 -5585.3 standards, Contains 99.9% copper. The surface of the conductor joint is tin-plated or silver-plated, with good contact, low heat generation, and safe and reliable use. ⚫The service life of the busway depends on reliable and high-quality insulating materials and processes. CCKX18 series adopts special rubber insulating tubes and epoxy fluidized powder for overall insulation (rubber insulating tubes have obtained national patents, patent number: ZL97239614.4). Two Both insulation methods are internationally advanced and belong to Class B insulation materials. The long-term working temperature can reach 130°C, the insulation breakdown strength is high, the impact resistance is flame retardant, and the aging resistance life exceeds 50 years. ⚫A unique connection method is adopted, and the connection of each functional unit adopts a plug-in movable connector (has obtained a national patent, patent number: ZL95207020.0). ⚫Double Side connecting method doubles the area of the contact surface and doubles the contact resistance, thereby reducing the temperature rise of the busbar. ⚫The unique butterfly washer and high-strength single bolt ensure the balance of force on the connection surface. ⚫Due to the non-porous connection between the kinematic joint and the functional unit, the stretching length of the system can be automatically compensated as the temperature changes. ⚫The busway can be pulled out from the adjacent busbar at no-load to isolate the faulty area and reduce the time and scope of power failure. ⚫The casing is designed as an effective grounding system, the grounding resistance value is much smaller than the standard, and a grounding busbar with 50% relative capacity is configured.main technical data
thing | parameter | ||||||
Power frequency (Hz) | 50(60) | ||||||
Rated insulation voltage (V) | AC660DC1000 | ||||||
Rated working voltage (V) | AC220/380/660DC800 | ||||||
Connection unit rated working voltage (V) | AC220/380 | ||||||
Rated current (A) | 100, 160 200, 250 | 400, 6300 800, 1000 | 1250, 1600 | 2000, 2500, 3150 4000, 5000 | |||
Rated short-time withstand current (kA/s) | 12 | 30 | 50 | 80 | |||
Rated peak withstand current (kA) | 25 | 63 | 105 | 176 | |||
Wiring system | Three-phase three-wire, three-phase four-wire Three-phase five-wire | ||||||
degree of protection | IP40 |
