40w Diameter 133mm Height 40mm Black Anodized Round LED Lamp Pin Fin Aluminum Cooler Radiator with Axial Fan
- $1.66 /piece
- 1 piece
- Shenzhen Like Hardware Electronics Co., Ltd.
- Guangdong, China
- Mr Rico Huang
Product Detail
| Origin: | Guangdong, China | Lighting Solutions Services: | Lighting and circuit design, automatic CAD layout, engineering installation |
| Body material: | aluminum | usage: | India |
| Package preview: | shape: | round | |
| Key Features: | machine work | Color Finish: | the color you want |
| Protection class: | IP67 level | thing: | Aluminum LED housing |
| Surface treatment: | Anodizing | brand: | like |
| type: | heat sink | Surface treatment: | Electroplating, anodizing |
| application: | Suitable for Citizen CLU048 COB | payment terms: | Letter of credit, wire transfer, Alipay |
| Warranty period (years): | 5 | port: | Shenzhen |
| product name: | 133mm Passive Radiator for Citizen CLU048 COB | Packaging Details: | We have packing: 1) inner blister tray; 2) outer carton packing. |
| Key words: | passive radiator | Material: | AL1070 |
| body color: | Black | strength: | 40 |
| Supply capacity: | 3000pcs per day Citizen CLU048 COB 120mm Passive Radiator | process: | cold forging |
hot product
Product Details

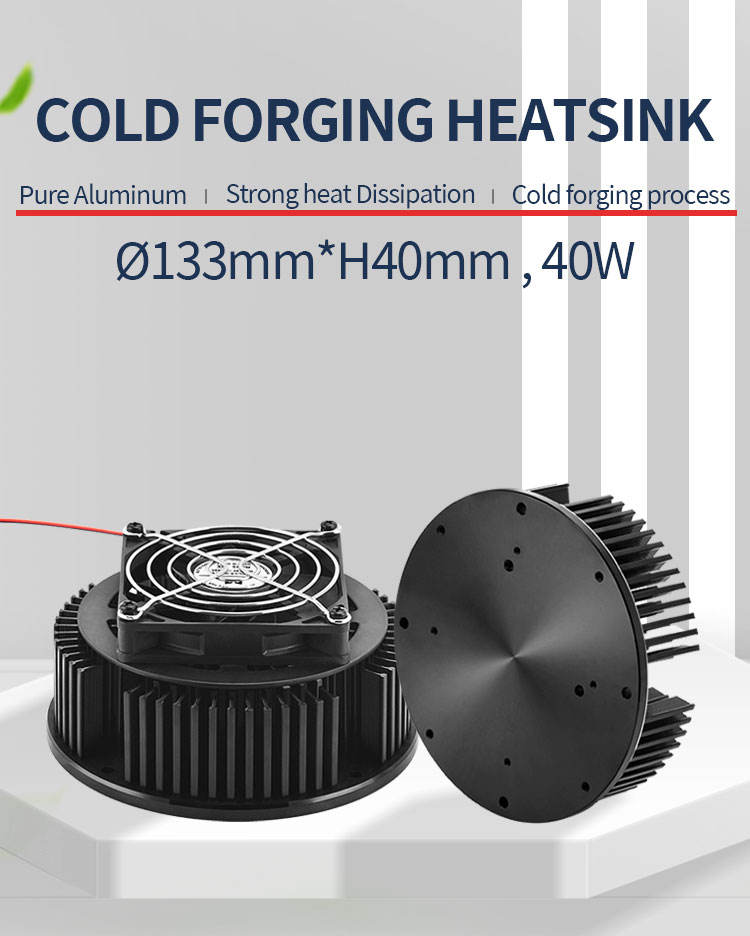

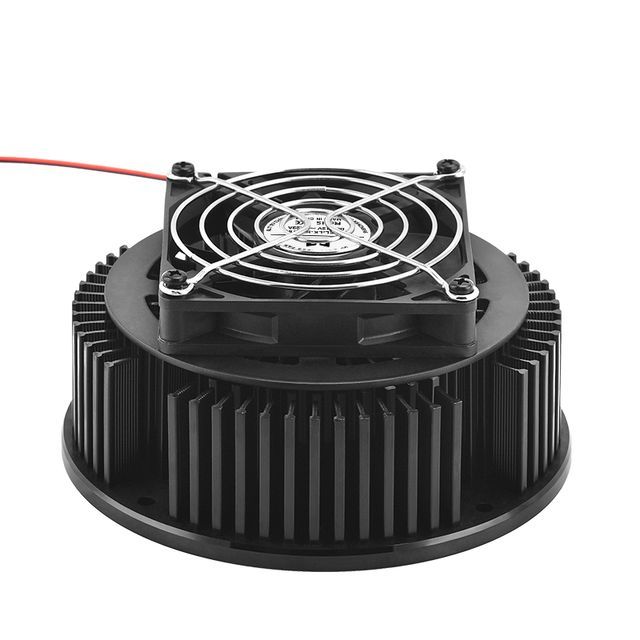

40w Diameter 133mm Height 40mm Black Anodized Round LED Lamp Pin Fin Aluminum Cooler Radiator with Axial Fan
feature:
• Rugged one-piece forged aluminum construction for maximum thermal conductivity.
• Pin-fin design maximizes surface area and provides all-around cooling, eliminating concerns about heatsink orientation (unlike linear extrusion).
• Precision machined flat base ensures consistent contact between heat sink, interface and LED substrate to maximize heat transfer.
• Standard 8mm base thickness to accommodate recommended mounting hole depth.
• Precision machined flat base ensures consistent contact between heat sink, interface and LED substrate to maximize heat transfer.
• Standard 8mm base thickness to accommodate recommended mounting hole depth.

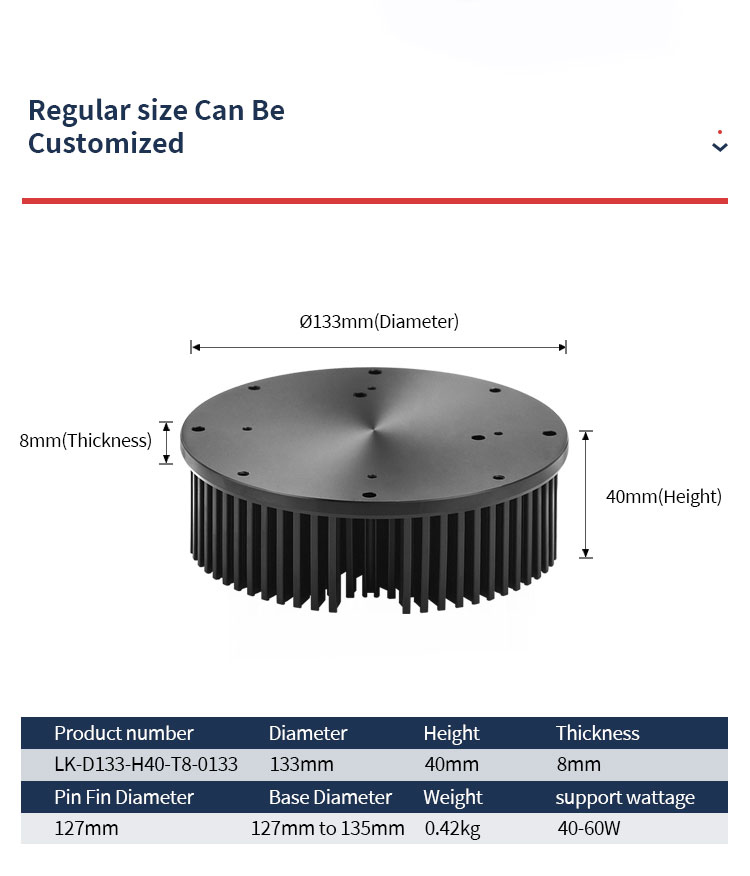

Specification
product number | LK-D133-H40-T8-0133 | ||||||
diameter | 133 mm (5.236 inches) | ||||||
high | 40 mm (1.754 inches) | ||||||
thickness | 8 mm (0.314 in) | ||||||
weighing | 0.42 kg | ||||||
strength | 40W | ||||||

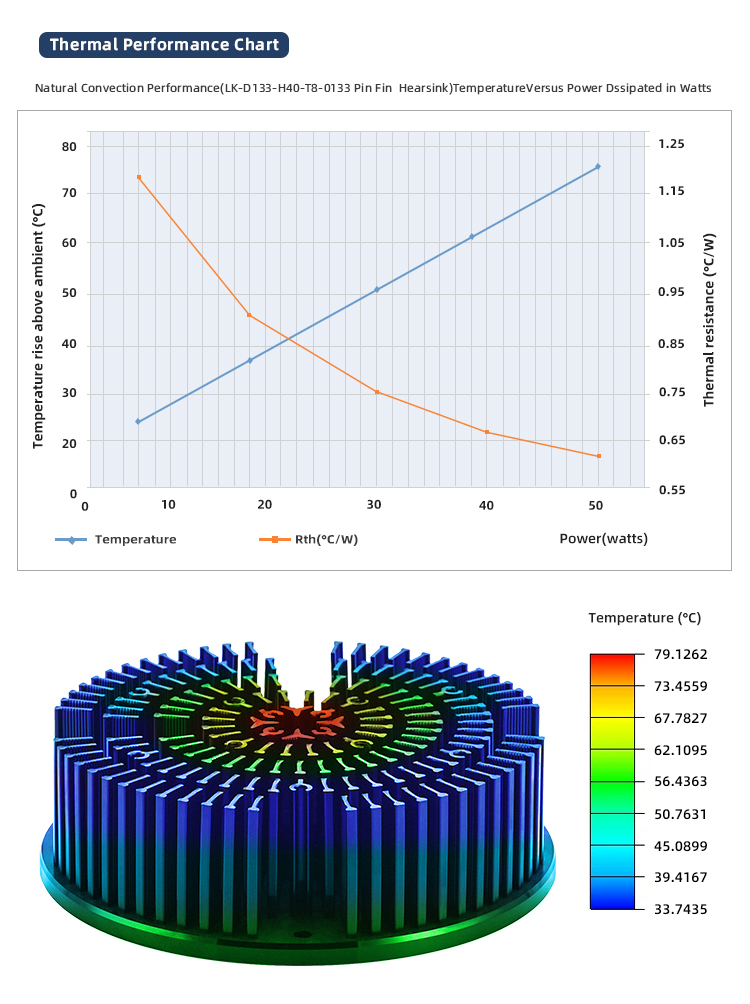

thermal resistance | 0.59℃/Watt | ||||||
Material | AL1070, AL1050 | ||||||
processing | Cold forging, CNC, drilling, threading | ||||||
Finish | anodizing, electrophoresis | ||||||
color | black, silver, any color, multi-color | ||||||
application | LED lights, track lights, high pole lights, industrial and mining lights | ||||||
detailed picture
Why choose cold forging process:
Radiators generally have three processing techniques: die-casting, extrusion and cold forging. Due to the different materials, the obtained heat dissipation coefficients are also different. Under the same size condition, the power supported by the cold forged heat sink is 2.35 times that of the die-casting profile, and 1.45 times that of the extruded profile.
That is, cold forged radiators are smaller and lighter when users want to get the same power. The risk of hoisting is also reduced. Shipping costs are also lower.

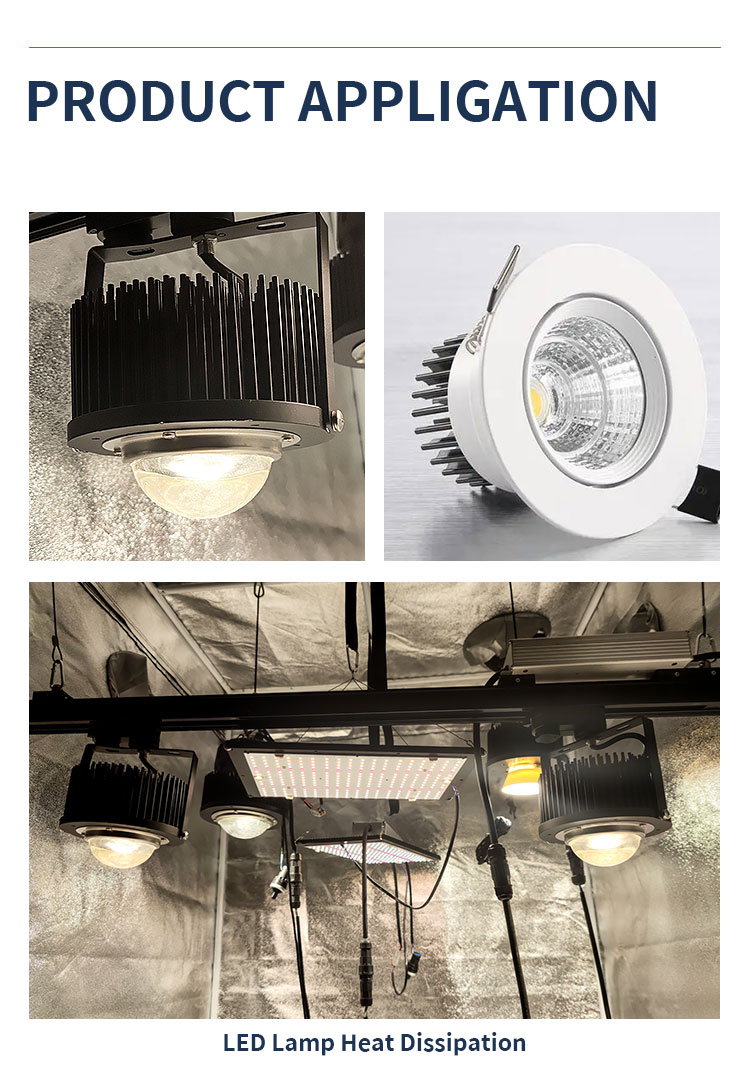

Application field
