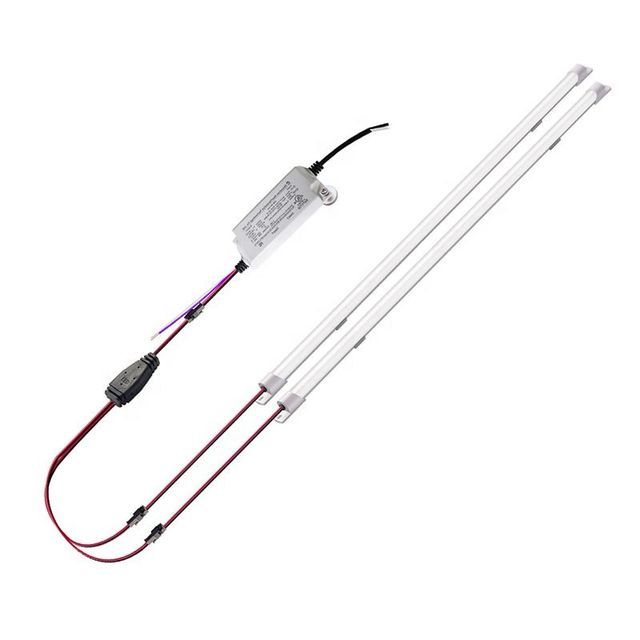

DLC 5.1 Quick Install Magnetic Suction Troffer Retrofit Light Belt Kit
-
$17.60 / 1 - 999 pieces
$17.00 / 1000 - 4999 pieces
$16.30 / 5000 - 9999 pieces
$15.50 / >=10000 pieces - 1 piece
- Ark Lighting (shenzhen) Co., Ltd.
- Guangdong, China
- Ms Cathy Yu
Product Detail
| Lifespan (hours): | 50000 | Working life (hours): | 50,000 |
| Key words: | High lighting efficiency | Lamp luminous flux (lm): | 130 lumens/watt |
| Material: | personal computer | Working temperature(℃): | -20~40 |
| Package preview: | Dimming: | 0-10V | |
| Protection class: | IP20 | Input voltage (V): | 100-277, 100-347 |
| Working hours (hours): | 50000 | size: | 1x2', 2x2', 3x2', 4x2', 1x4', 2x4', 3x4', 4x4' |
| color: | white | Warranty (year): | 5 years |
| Function: | Replaces traditional Troffer | Color rendering index (Ra>): | 80/90 |
| Origin: | Guangdong, China | power supply: | air conditioner |
| Packaging Details: | DLC 5.1 Quick Install Magnetic Suction Troffer Retrofit Light Belt Kit | payment terms: | L/C, Western Union, T/T, MoneyGram |
| Lighting Solutions Services: | Engineering installation | brand: | ark |
| Install: | Permanent magnets and mounting holes at both ends | application: | Office/school/shopping mall, etc., Office |
| Lamp Luminous Efficiency (lm/w): | 130 | thing: | DLC 5.1 Quick Install Magnetic Suction Troffer Retrofit Light Belt Kit |
| Color temperature (CCT): | 5000K (sunlight) | port: | Shenzhen |
| Color rendering index (Ra): | 80 | Beam angle: | 120 degrees |
| type: | Concealed tank retrofit kit | Certification: | UL DLC ETL NLC |
| Supported dimmers: | Yes | Supply capacity: | 10000 pieces per month |
| light source: | to lead |
Smart LED Panel Light
DLC 5.1 Quick Install Magnetic Suction Troffer Retrofit Light Belt Kit
Product Description

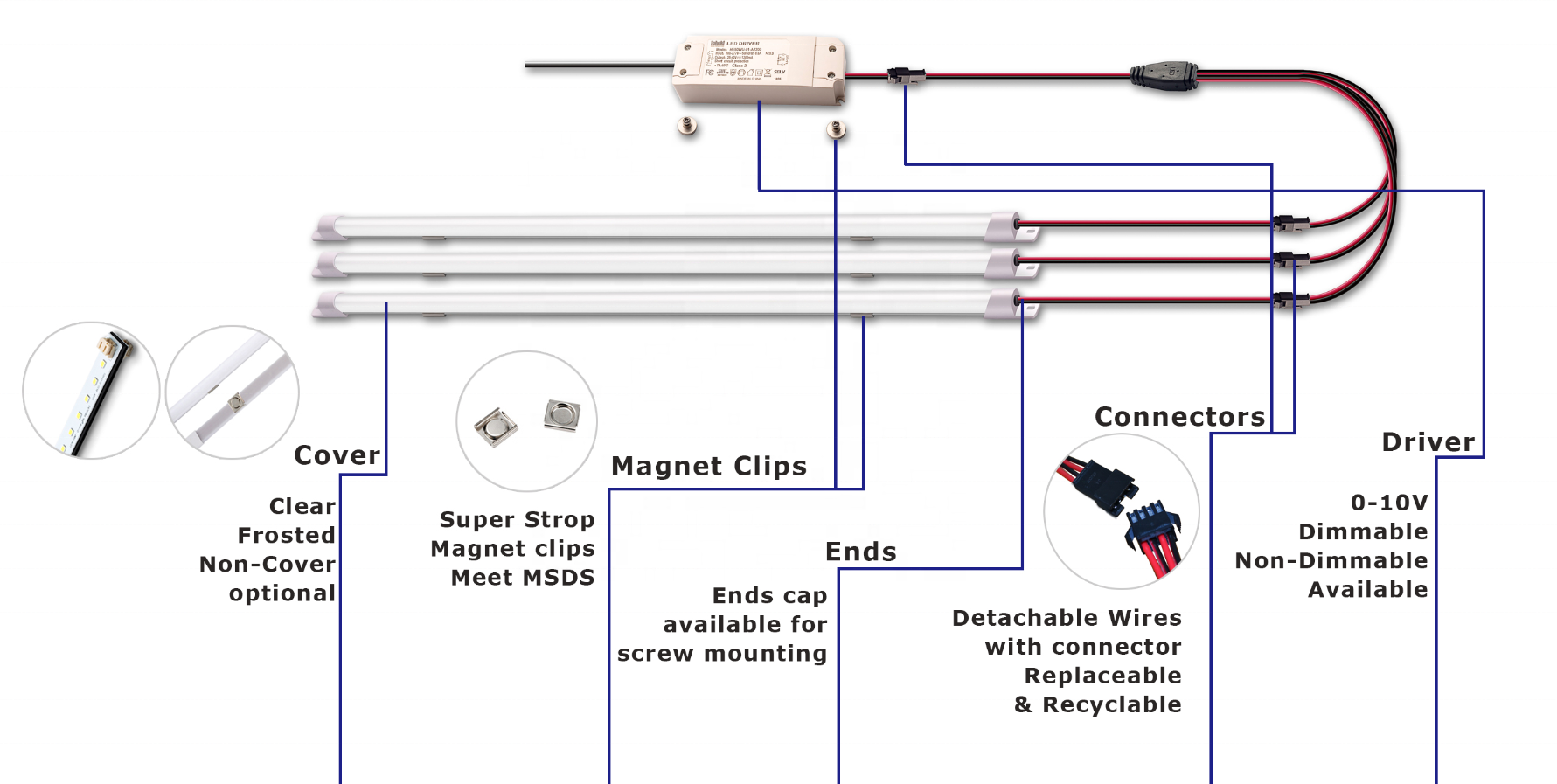

feature
- Input voltage is AC100-277V or AC 347
- 3000-6500K color temperature
- 150lm/w without cover or 140lm/w with cover
- External drives from 9w to 72w
- Choice of non-dimming or 0-10v dimming.

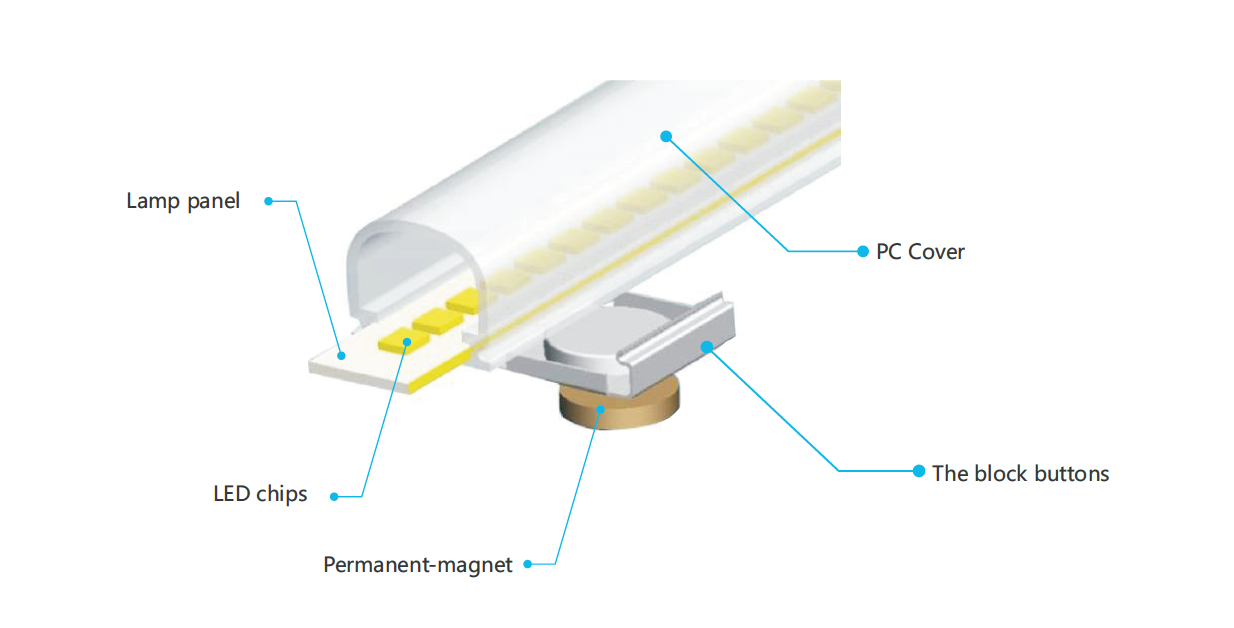

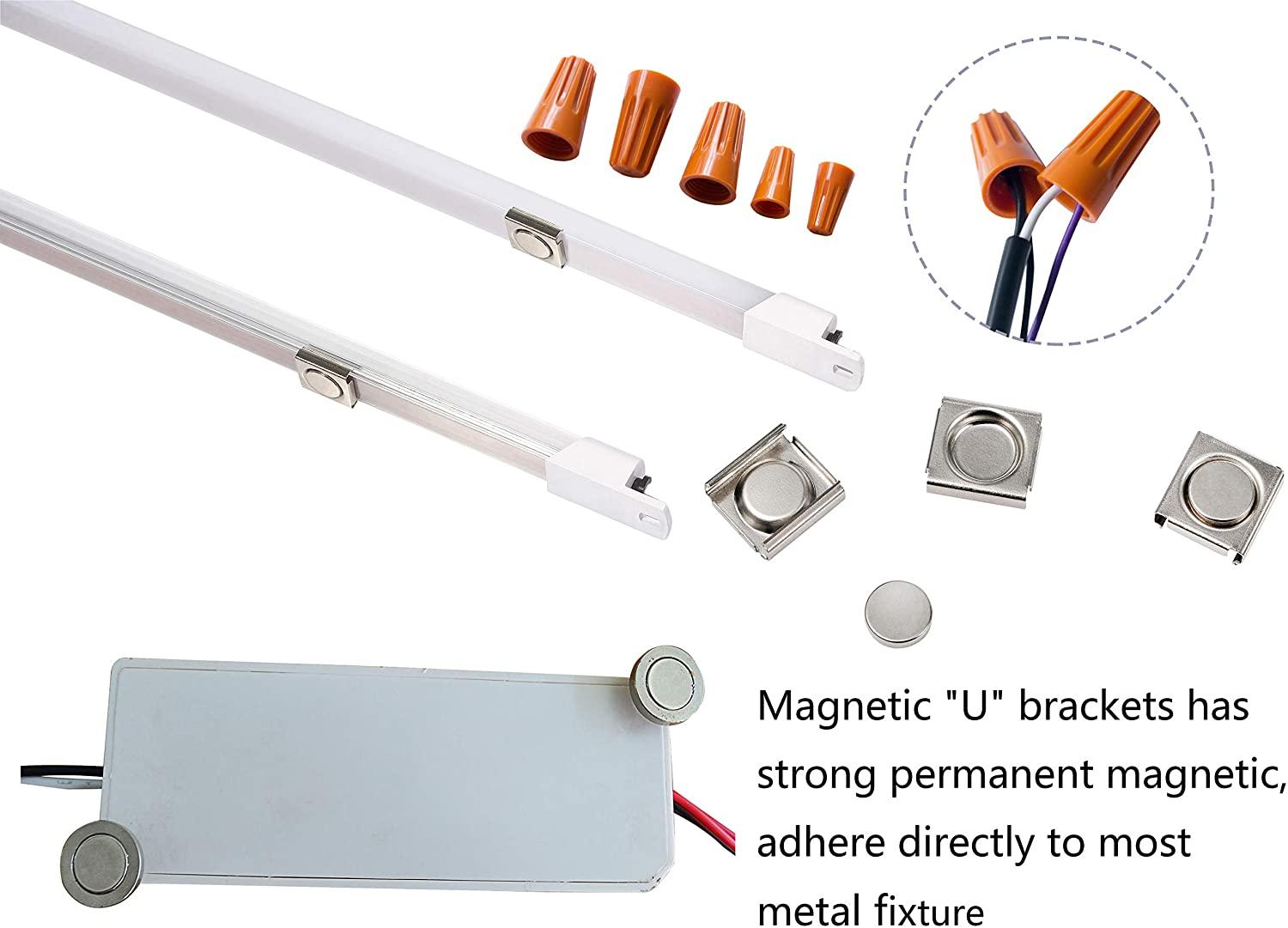

- Permanent magnets and mounting holes at both ends
- Small size, saving shipping cost.
- Quick connect via magnetic within 3 minutes.
- Five-year warranty

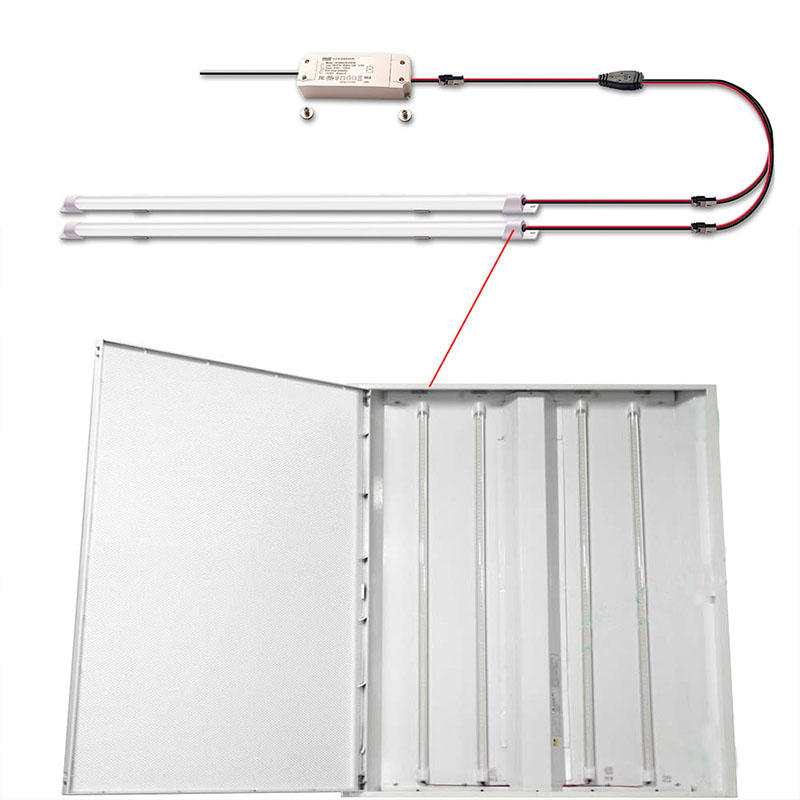

- Replacement fixtures in various sizes: 1x2', 2x2', 3x2', 4x2', 1x4', 2x4', 3x4', 4x4'.
- 3000-6500K color temperature
- 150lm/w without cover or 140lm/w with cover
- External drives from 9w to 72w
- Choice of non-dimming or 0-10v dimming.
- Permanent magnets and mounting holes at both ends
- Small size, saving shipping cost.
- Quick connect via magnetic within 3 minutes.
- Five-year warranty
- Replacement fixtures in various sizes: 1x2', 2x2', 3x2', 4x2', 1x4', 2x4', 3x4', 4x4'.
Product parameters
Model | size | strength | luminescent | Dimmable | Color rendering index | CCT | ||||||
Ark/DT/8YXXD106(15D) | 2 feet | 8W | 1200LM±10% | 0-10v dimming | 80+ | 3000K 4000K 5000K 6000K | ||||||
Ark/DT/16YXXD206(15D) | 2 feet | 16W | 2400 lumens ±10% | 0-10v dimming | ||||||||
Ark/DT/24YXXD306(15D) | 2 feet | 24W | 3600 lumens ±10% | 0-10v dimming | ||||||||
Ark/DT/32YXXD406(15D) | 2 feet | 32W | 4800 lumens ±10% | 0-10v dimming | ||||||||
Ark/DT/8YXXD106(15N) | 2 feet | 8W | 1200LM±10% | No | ||||||||
Ark/DT/16YXXD206(15N) | 2 feet | 16W | 2400 lumens ±10% | No | ||||||||
Ark/DT/24YXXD306(15N) | 2 feet | 24W | 3600 lumens ±10% | No | ||||||||
Ark/DT/32YXXD406(15N) | 2 feet | 32W | 3600 lumens ±10% | No | ||||||||
Model | size | strength | luminescent | Dimmable | Color rendering index | CCT | ||||||
Ark/DT/18YXXD112(15D) | 4 feet | 18W | 2700 lumens ±10% | 0-10v dimming | 80+ | 3000K 4000K 5000K 6000K | ||||||
Ark/DT/36YXXD212(15D) | 4 feet | 36W | 5400 lumens ±10% | 0-10v dimming | ||||||||
Ark/DT/54YXXD312(15D) | 4 feet | 54W | 8100 lumens ±10% | 0-10v dimming | ||||||||
Ark/DT/72YXXD412(15D) | 4 feet | 72W | 10800 lumens ±10% | 0-10v dimming | ||||||||
Ark/DT/18YXXD112(15N) | 4 feet | 18W | 2700 lumens ±10% | No | ||||||||
Ark/DT/36YXXD212(15N) | 4 feet | 36W | 5400 lumens ±10% | No | ||||||||
Ark/DT/54YXXD312(15N) | 4 feet | 54W | 8100 lumens ±10% | No | ||||||||
Ark/DT/72YXXD412(15N) | 4 feet | 72W | 10800 lumens ±10% | No | ||||||||

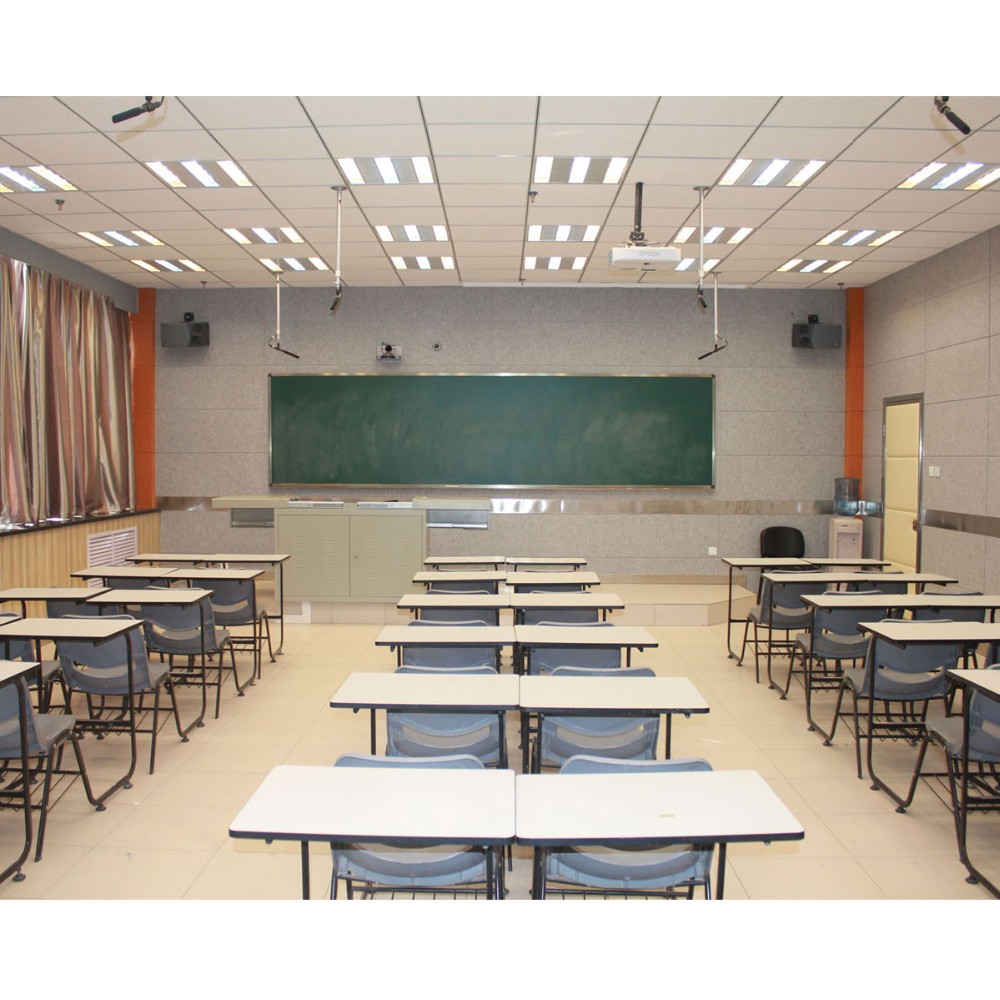

application
