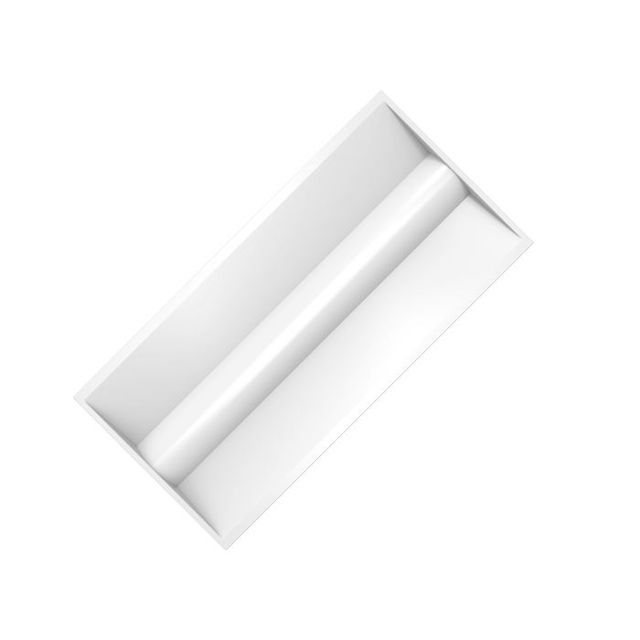

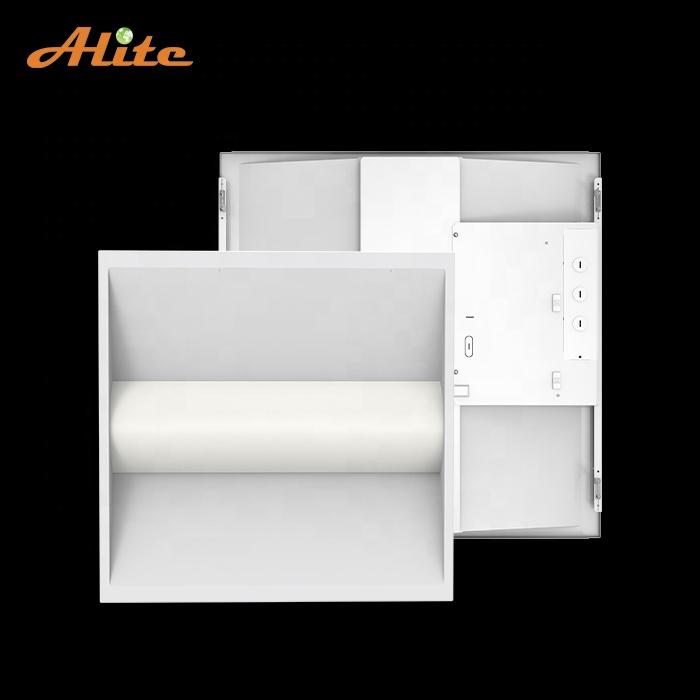

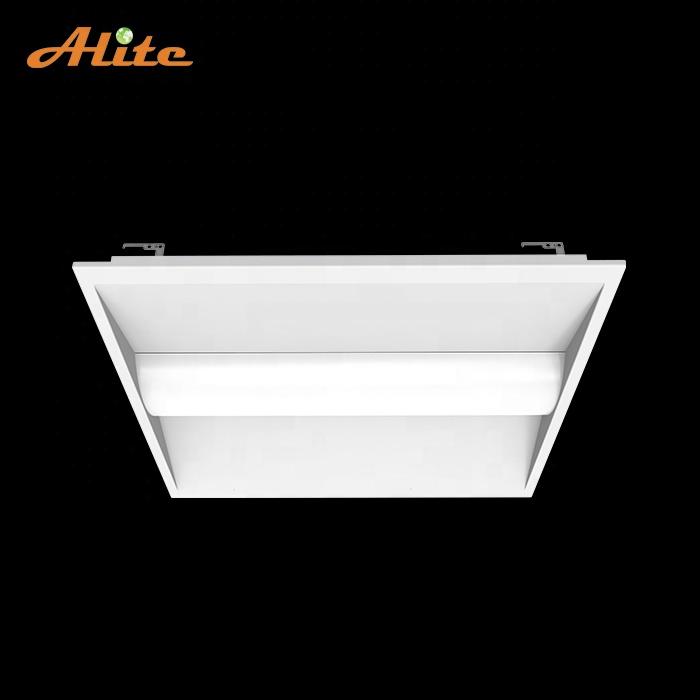

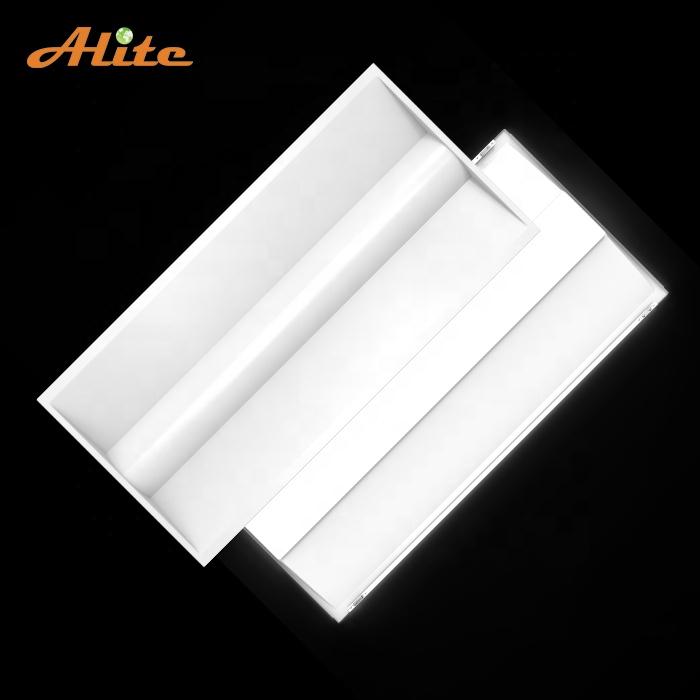

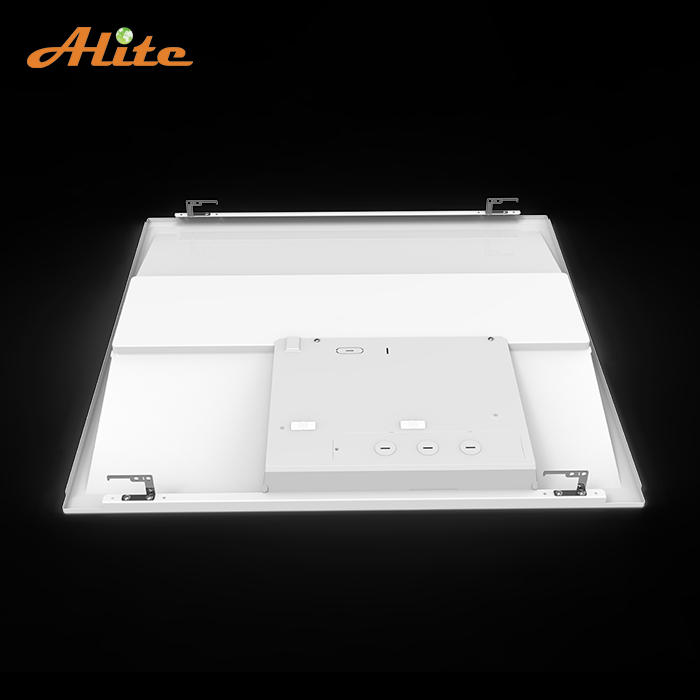

Alite Hot Sale Facade Up and Down Lighting Smd 30W 45W LED Panel Troffer Indoor Lighting
-
$17.23 / 1 - 299 pieces
$16.81 / >=300 pieces - 1 piece
- Alite Co., Ltd.
- Guangdong, China
- Ms sales team
Product Detail
| installation method: | Pendant, built-in, surface mount | Lifespan (hours): | 50000 |
| Adjustable color temperature: | 3500-4100-5000 | Color temperature (CCT): | 3000~5000k |
| Function: | Dimmable, CCT and power adjustable, sensor and emergency | power supply: | air conditioner |
| strength: | 20~50W | light source: | to lead |
| brand: | Alite | port: | Any port in Shenzhen |
| Origin: | Guangdong, China | Beam angle: | 180 degree |
| size: | 603x603mm, 603x1215mm | Color rendering index (Ra): | 80 |
| Packaging Details: | 2pcs/carton, blank brown carton without factory information (carton and label can be customized). | application: | Indoor areas such as offices and schools, Office School |
| Lighting Solutions Services: | Lighting and Circuit Design | Protection class: | IP44 |
| Working life (hours): | 50000 | Lamp Luminous Efficiency (lm/w): | 110/130 |
| Lamp luminous flux (lm): | 3960~6500 | Color rendering index (Ra>): | 80 |
| Power adjustable: | 20 - 25 - 30 - 36 - 40 - 50 | Certificate: | ETL, DLC |
| product name: | LED Troffer Magnetic Makeover | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal |
| color: | white | Working hours (hours): | 50000 |
| Supply capacity: | 60000 pieces per month | Supported dimmers: | Yes |
| Input voltage (V): | 120~277V/347V | Working temperature(℃): | -25-50 |
| Warranty (year): | 5 years | type: | led dark light |
| Package preview: |

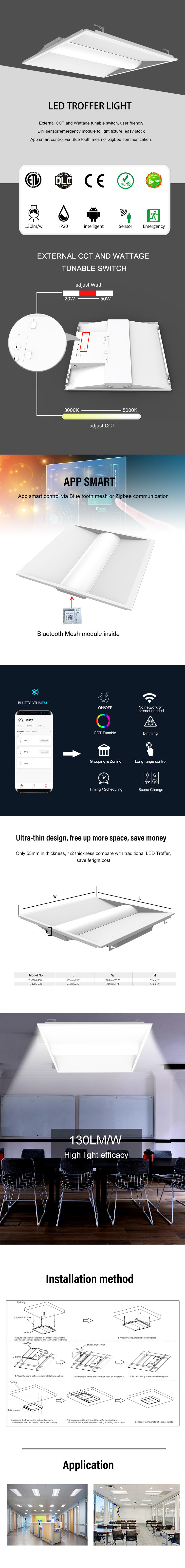

Product Description

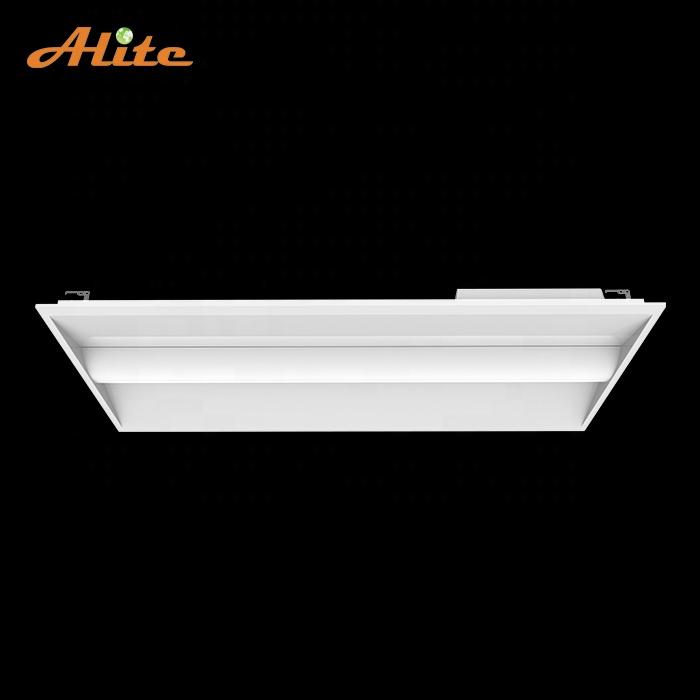

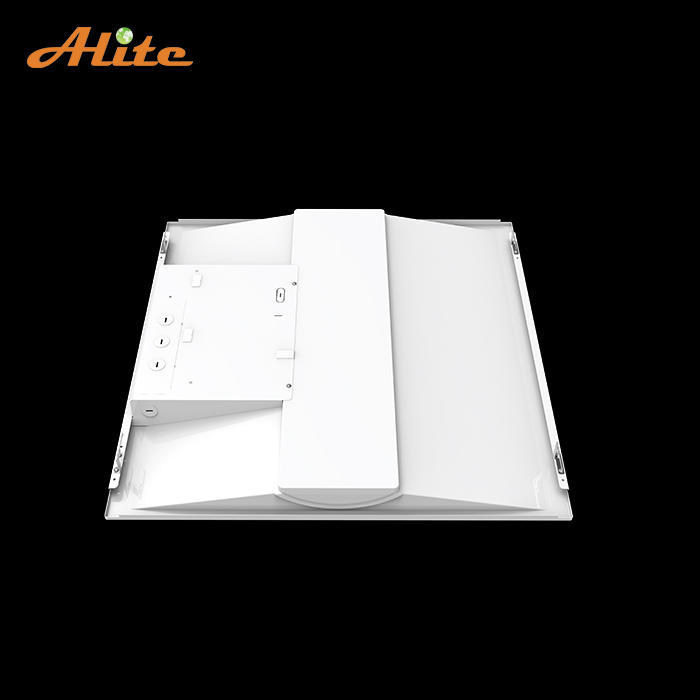

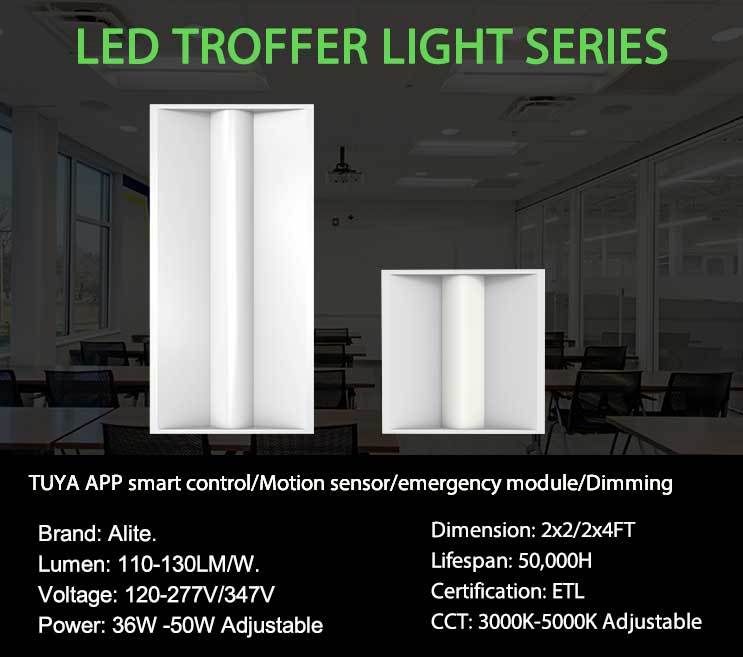

ETL 2X4 50w led light panel led troffer light flush mount ceiling light 130lm/w recessed
Specification
thing | value |
Color temperature (CCT) | 3000~5000k |
Lamp Luminous Efficiency(lm/w) | 110/130 |
Color rendering index (Ra) | 80 |
Support dimmer | Yes |
Lifespan (hours) | 50000 |
light source | to lead |
Input voltage (V) | 120~277V/347V |
Lamp luminous flux (lm) | 3960~6500 |
Working temperature (℃) | -25-50 |
Warranty period (years) | 5 years |
size | 603x603mm, 603x1215mm |
strength | 20~50W |
installation method | Pendant, built-in, surface mount |
Function | Dimmable, CCT and power adjustable, sensor and emergency |

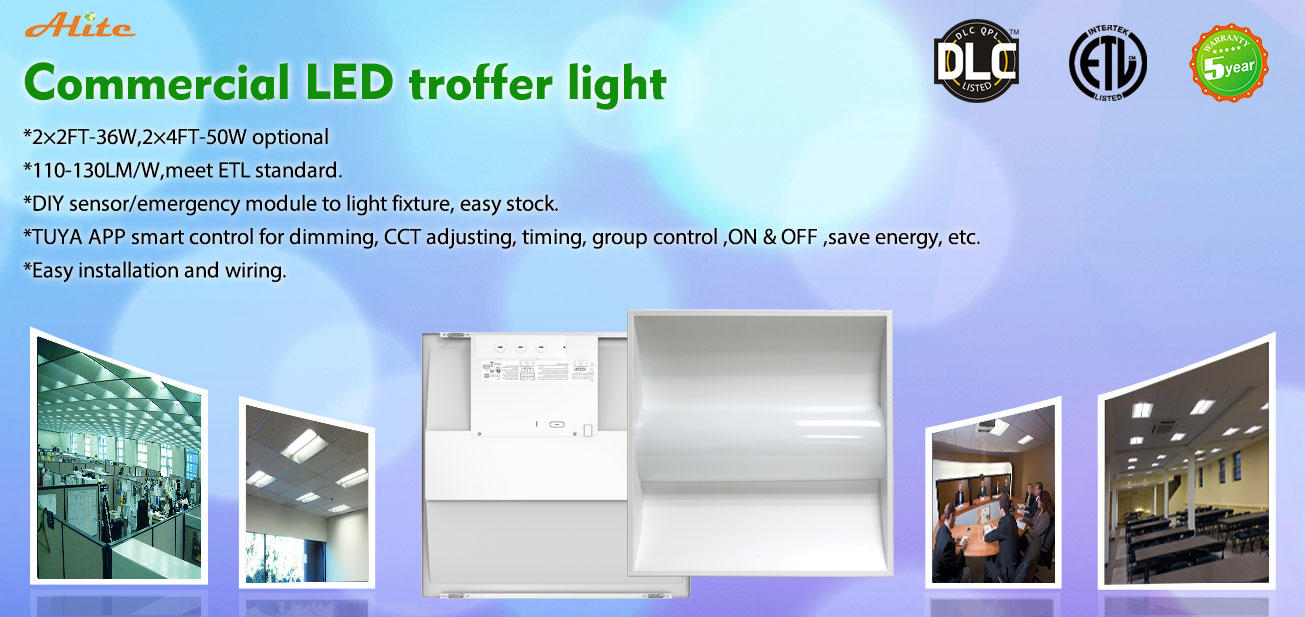

Commonly used functions are optional:Dimming, CCT and power can be adjusted when required with external slide switches, DIY sensors and emergency modules, external emergency battery backup is optional.
-Emergency situations
1. The full 10w backup power exceeds 90 minutes discharge time.
2. Lithium iron phosphate (LiFePO4) battery, high safety performance.
3. Height <24mm, also suitable for applications in compact rooms.

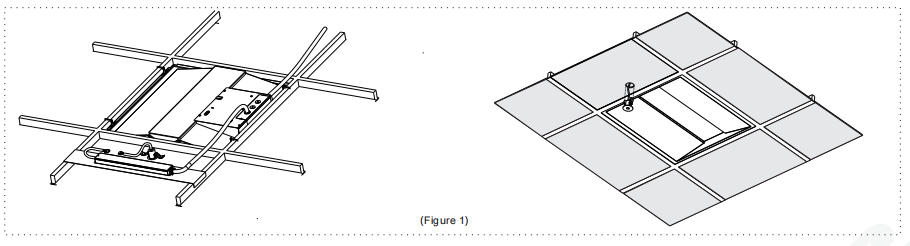

4. Remote control test, no need to test switch wiring, simple operation, saving wiring cost and maintenance cost. Refer to Figure 1
5. It is directly connected to the AC input terminal, which is convenient for wiring.
6. Good compatibility, suitable for all 0-10V dimmable LED products (<70w).
1. The full 10w backup power exceeds 90 minutes discharge time.
2. Lithium iron phosphate (LiFePO4) battery, high safety performance.
3. Height <24mm, also suitable for applications in compact rooms.
4. Remote control test, no need to test switch wiring, simple operation, saving wiring cost and maintenance cost. Refer to Figure 1
5. It is directly connected to the AC input terminal, which is convenient for wiring.
6. Good compatibility, suitable for all 0-10V dimmable LED products (<70w).
Additional features are optional

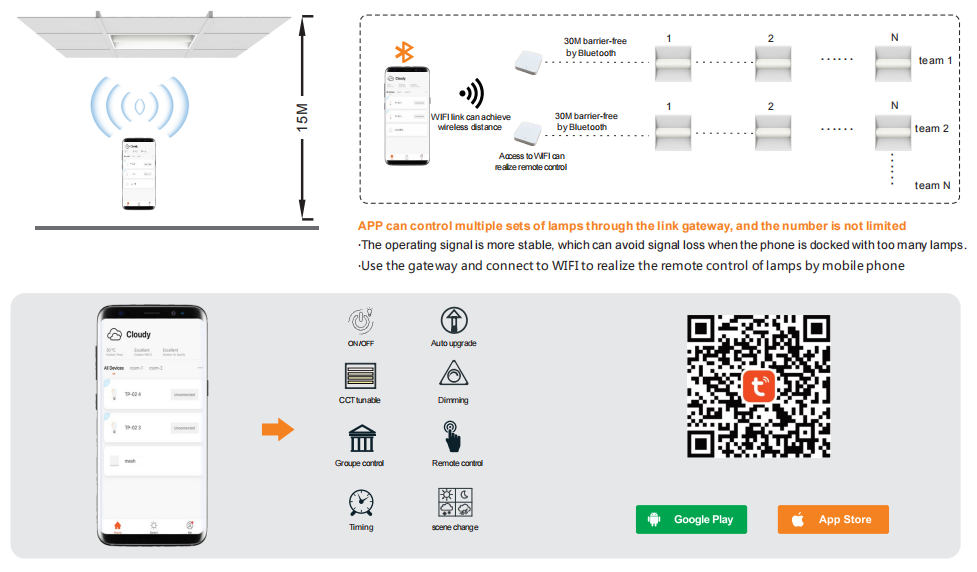

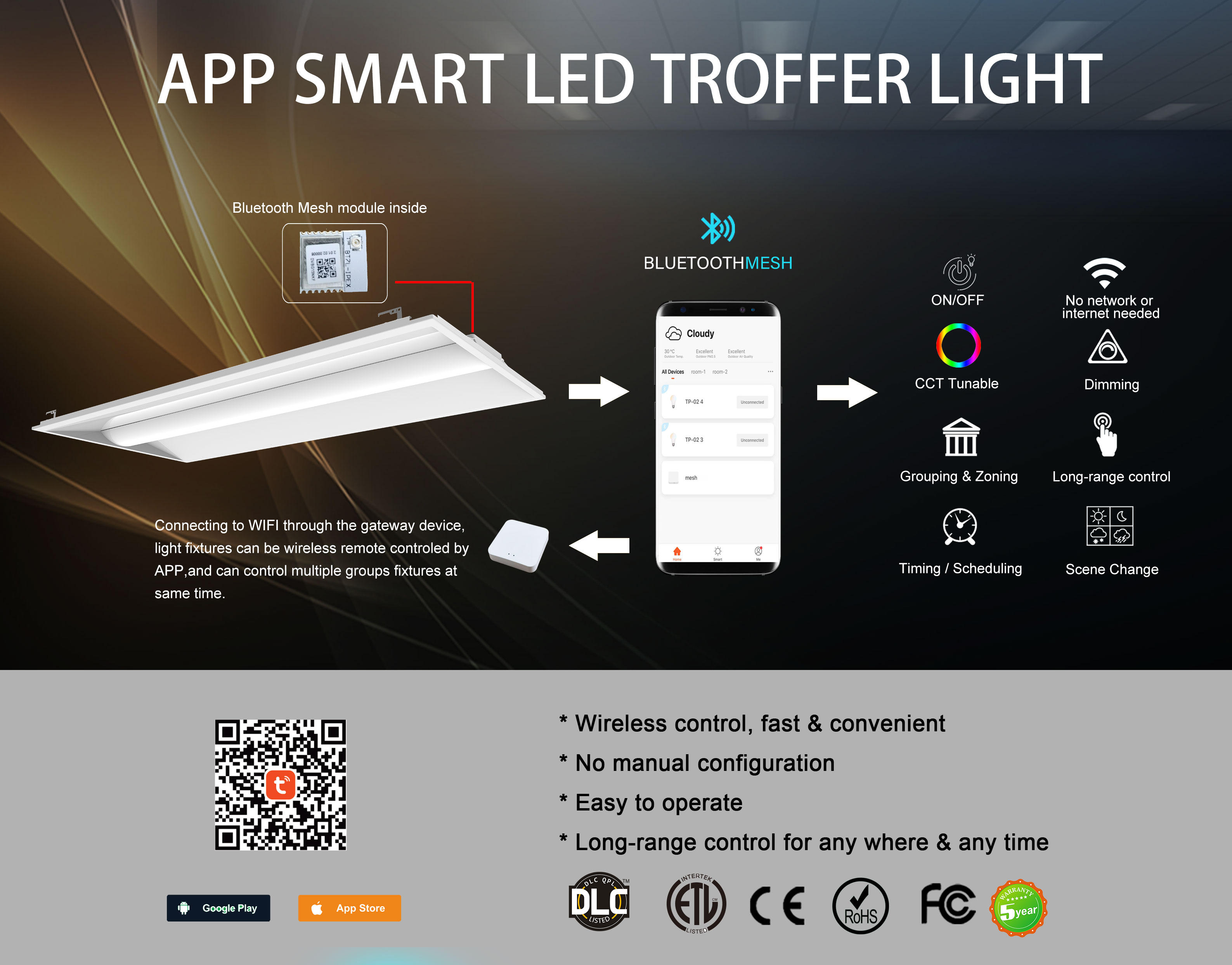

Smart APP control function: Through Bluetooth Mesh/Zigbee communication, manage lights through APP (Android and IOS), intelligently control dimming, CCT adjustment, timing, grouping, setting scenes, switches, etc.

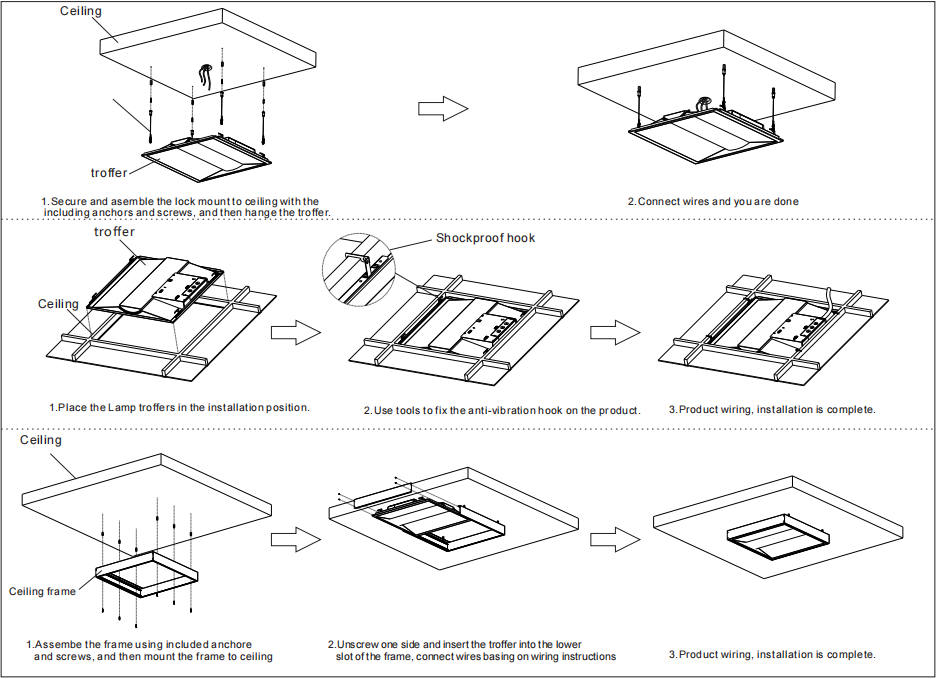

Installation Notes
- pause
— Built-in
- surface mount
