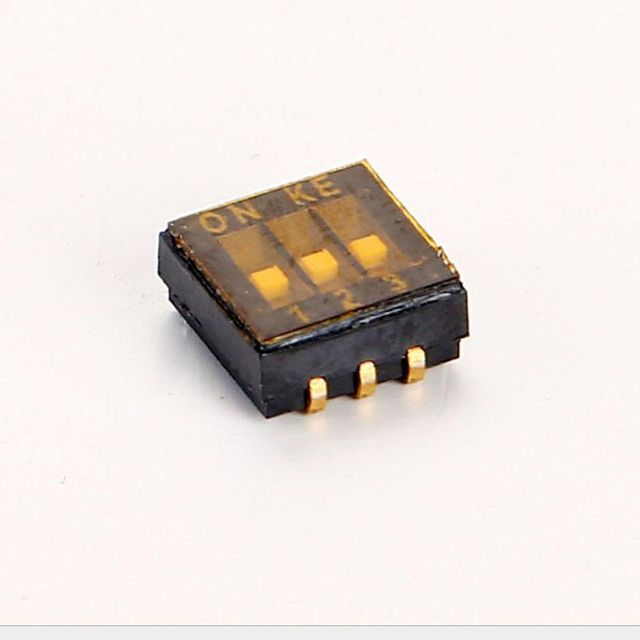

3 way dip switch 6 pin J Lead smd 1.27mm
- $0.01 / >=2000 pieces
- 2000 pieces

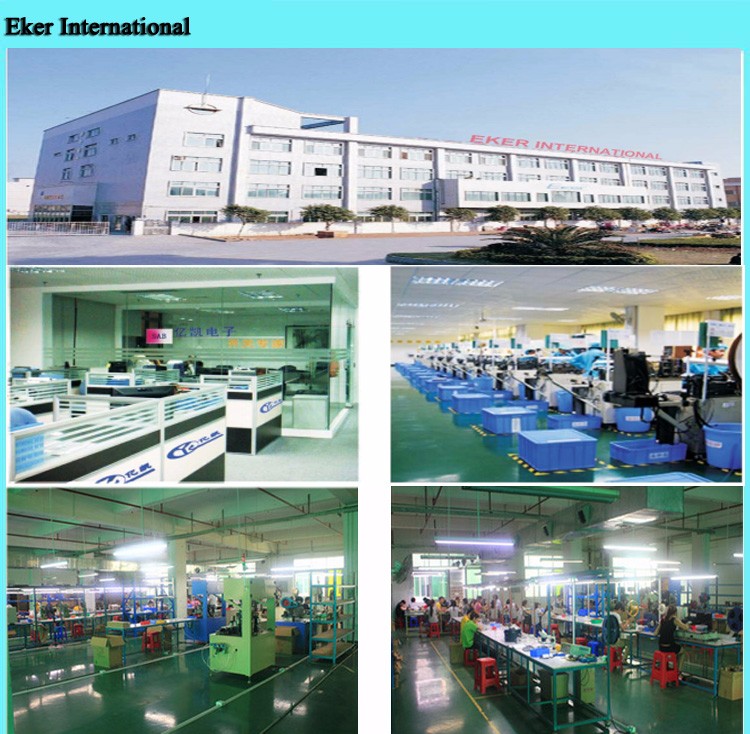

- Shenzhen Eker Electronic Co., Ltd.
- Guangdong, China
- Ms Strawberry J
Product Detail
| sample: | Provide free samples | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal |
| terminal: | J lead | asphalt: | 1.27mm |
| maximum. Voltage: | 50VDC | Certification: | SGS certification |
| score: | 25mA, 24V | Packaging Details: | 1).HDJ03TR switch inner packing: 2000pcs/reel 2).Ctn Vol:37cmx37cmx18cm 3).Qty/Ctn:10000pcs |
| Actuator: | Tape Seals and Debosses | color: | Black |
| maximum. current: | 100mA | model: | HDJ03TR 3 way 1.27mm DIP switch |
| Package preview: | Position: | 3 digits | |
| port: | Shenzhen | Origin: | Guangdong, China |
| inner packaging: | 2000pcs/roll | brand: | Eckel |
| circuit: | SPST | Supply capacity: | 2000000pcs per month 3 way 6 pin J lead smd 1.27mm half pitch dip switch |
3 way 6 pin J lead smd 1.27mm half pitch dip switch

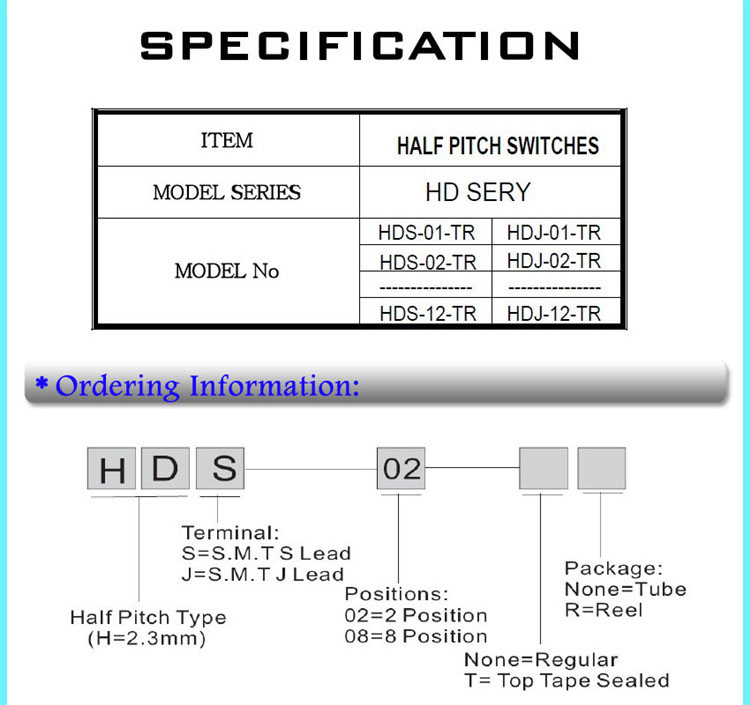

Specification
| 3 way 6 pin J lead smd 1.27mm half pitch dip switch |
|
| Mechanical | |
| 1). Operating force | Maximum 500gf |
| 2).Itinerary | 0.9mm |
| 3).Operating temperature | -30°C to 85°C |
| 4). Storage temperature | -40°C to 85°C |
| 5). Vacancies | 1.2.3.4.5.6.8.9.10.12 |
| electric | |
| 1). Electrical life | 2000 operating cycles |
| 2). Non-switching rating | 100mA, 50Vdc. |
| 3).Switch rating | 25mA, 24Vdc. |
| 4). Contact resistance | Max 50mOhms initial; 100mOhms max.after life test. |
| 5). Insulation resistance | 100MOhms, 500VDC |
| 6).Dielectric strength | 500VAC/1 minute |
| 7). Circuit | SPST |
3 way 6 pin J lead smd 1.27mm half pitch dip switch
- Half Pitch Low Profile DIP Switches aresurface mountCome inTape and reel packaging.
- These DIP switches are used in garage door openers, test and instrumentation, telecommunications,
- and controller application etc.

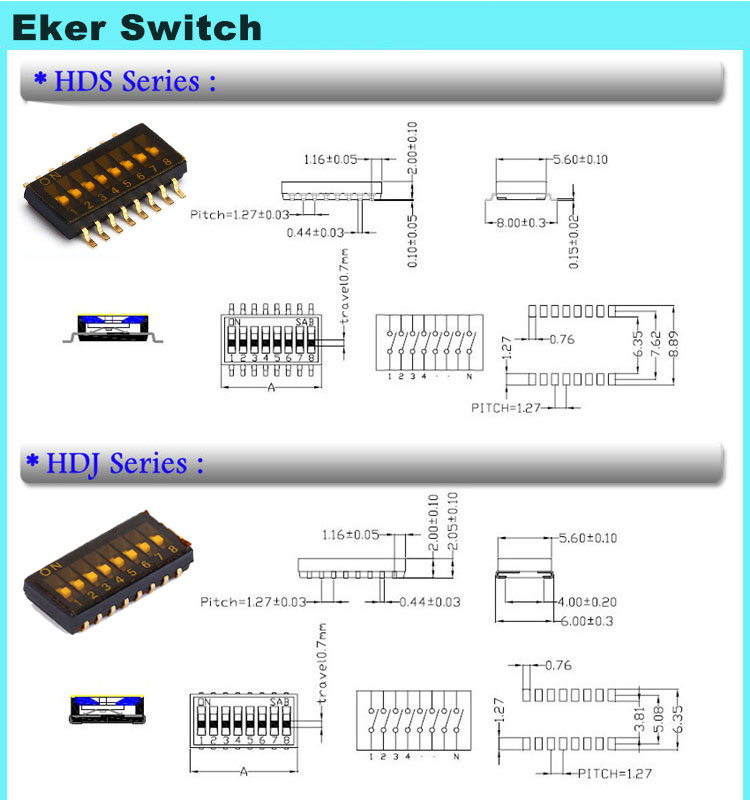

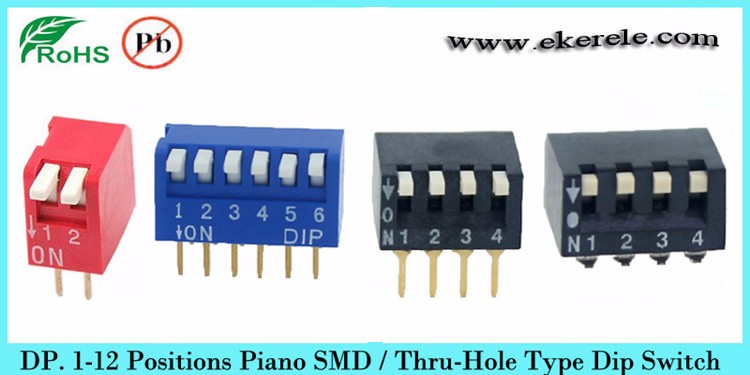

Half Pitch Surface Mount DIP Switches

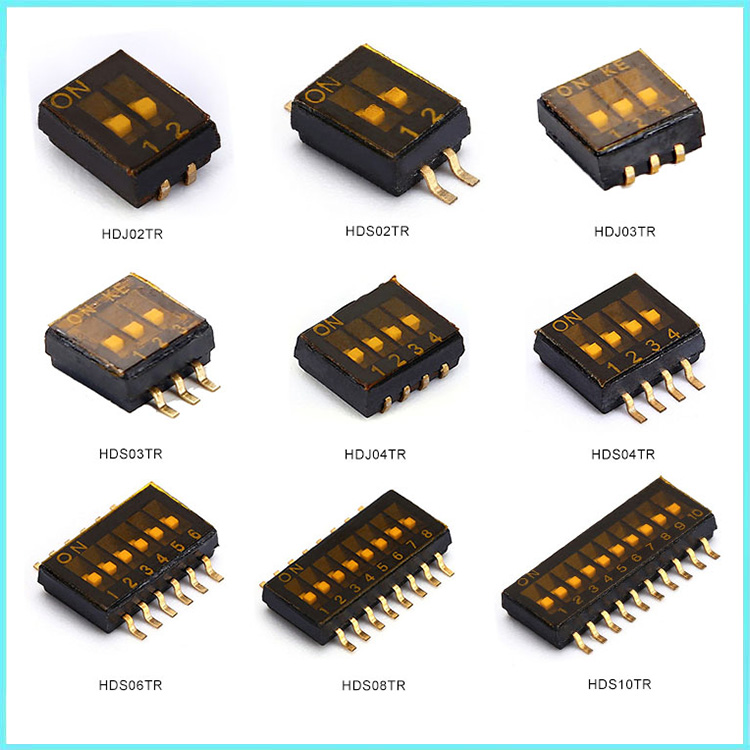

• From 1 to 12 positions
• Can be sealed with tape
• Tube or tape and reel packaging options
•available in small quantities
• Free sample testing
detailed image
