ULO Manufacturer supplier exporter DIP switch
- $0.01 / >=100 pieces
- 100 pieces
- Ulo Electronics Co., Ltd. (ningbo)
- Zhejiang, China
- Ms Eva Gao
Product Detail
| WeChat: | ulo-15()hotmail.com | Supply capacity: | 500000 pieces per day |
| maximum. Voltage: | Reference Data Sheet | fax: | 86-0574-63536880 |
| Certificate: | ISO9001/CE/ROHS/REACH/MSDS | Contact information: | 852973665 |
| website: | www.ulogroup.com | port: | Ningbo or Shanghai |
| brand: | Uroad Group | payment terms: | L/C, Western Union, T/T, Paypal |
| Trade Manager: | ulo123 | Telephone: | 86-0574-63813990 |
| Key words: | DIP switch | e-mail: | sale15()ulogroup.com |
| model: | ULO-MDS428A | Origin: | Zhejiang, China |
| maximum. current: | Reference Data Sheet | online telephone: | ulo-15 |
| Packaging Details: | Pack in strong bags/boxes/cartons to reduce damage during transportation. Tape and reel packaging, clamshell packaging, tray packaging, etc. are available. | Certification: | ISO9001/CE/ROHS/REACH |

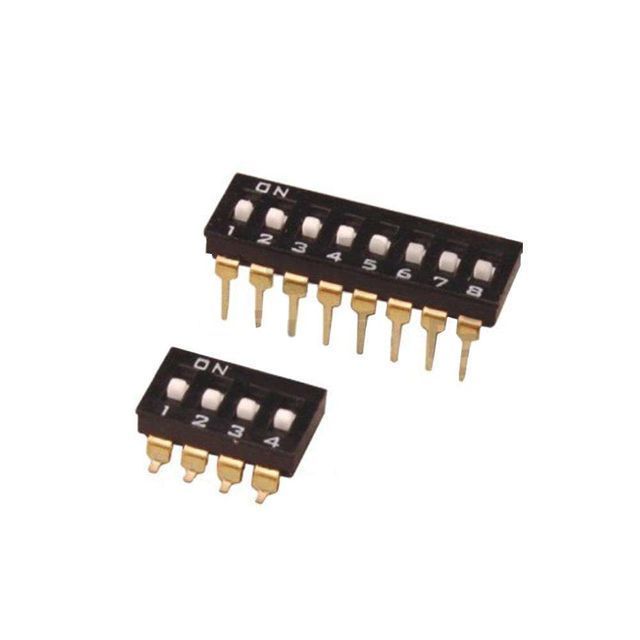

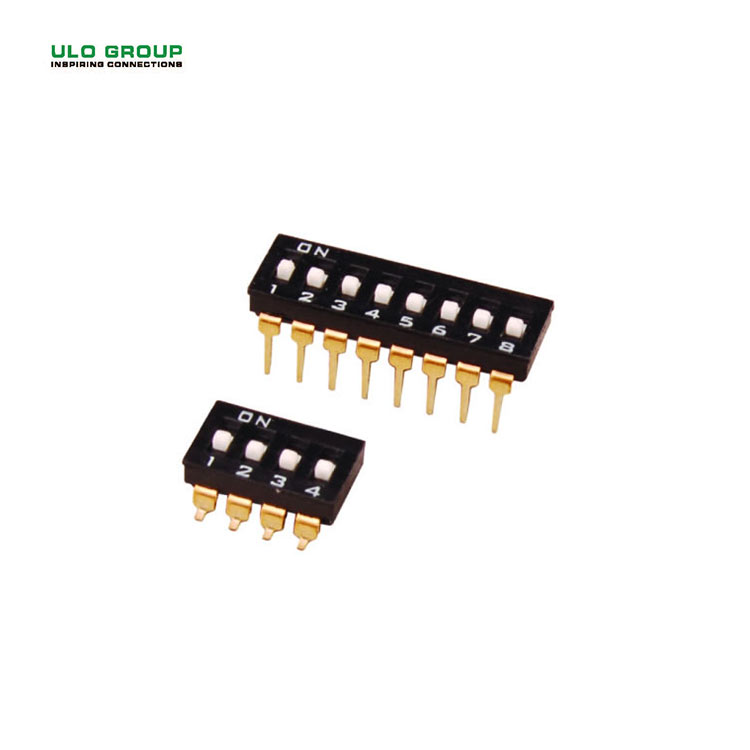

ULO Manufacturer Supplier Exporter DIP Switch
Product Description
ULO DIP switches include piano type and common type. The insulator is made of engineering plastic with excellent heat resistance and chemical resistance. Standard gold-plated contacts ensure reliability and longevity. The product can be used about 3000 times. This series is widely used in various products requiring manual programming, such as data processing, communication, remote control, anti-theft alarm system, etc. Products are designed in accordance with CE, ROHS, REACH standards.

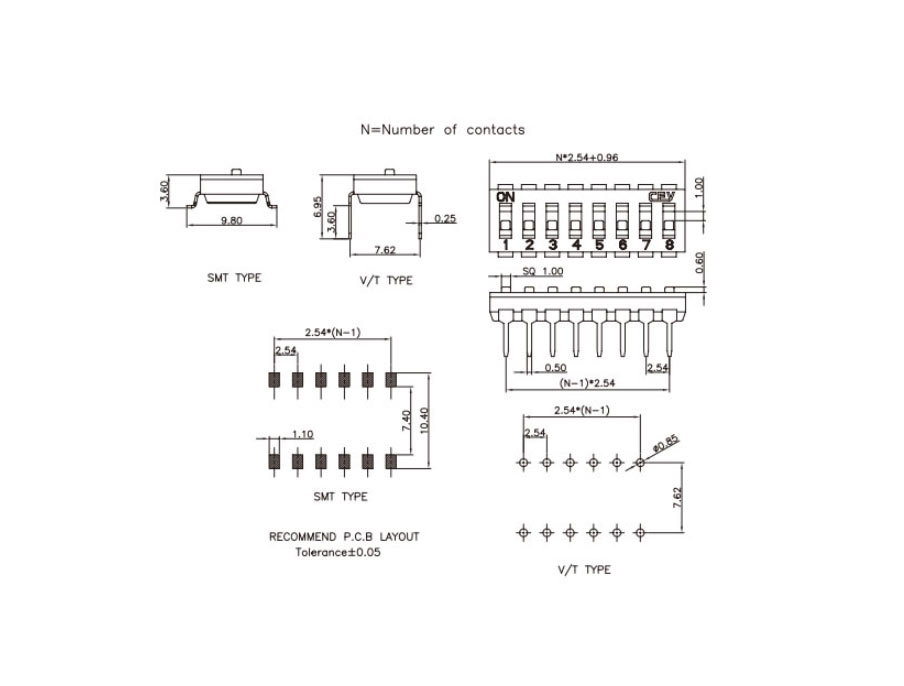

| Specification | |
| Operating force: | 800 g max |
| stroke: | 1.00mm |
| Operating temperature: | -25℃~+80℃ |
| Storage temperature: | -45℃~+90℃ |
| Electrical life: | 2000 operating cycles per switch |
| Non-Switching Ratings: | 100mA, 50VDC |
| Switch Rating: | 25mA, 24VDC |
| Contact resistance: | 50mΩ at initial; 100mΩ Max.After life test |
| Insulation resistance: | 100mΩ, 500VDC |
| Dielectric strength: | 500VAC/1 minute |
| circuit: | SPST |
| Material | |
| according to: | engineering plastic, black |
| cover: | engineering plastic, black |
| button: | engineering plastic, white |
| terminal: | alloy copper, gold plated |
advantage
1)Technical support - including pre-sales and post-sales, with excellent professionals from Dinkle, Anytek, etc.
2)OEM/ODM - Precise mold design and development is our core competence. We serve companies like Philips, Eby, Blockmaster, and more.
3)Automation - Introducing the latest assembly line automation machines to reduce costs and keep quality more consistent.
4)ERP - The ERP management system was introduced in 2013 to ensure that we bring faster response and better service to our customers.
5)One-stop solution - we manufacture terminal blocks, connectors and housings. In addition, we have a trading company as our another professional team that can help our customers outsource cost-effective electronic products in China.

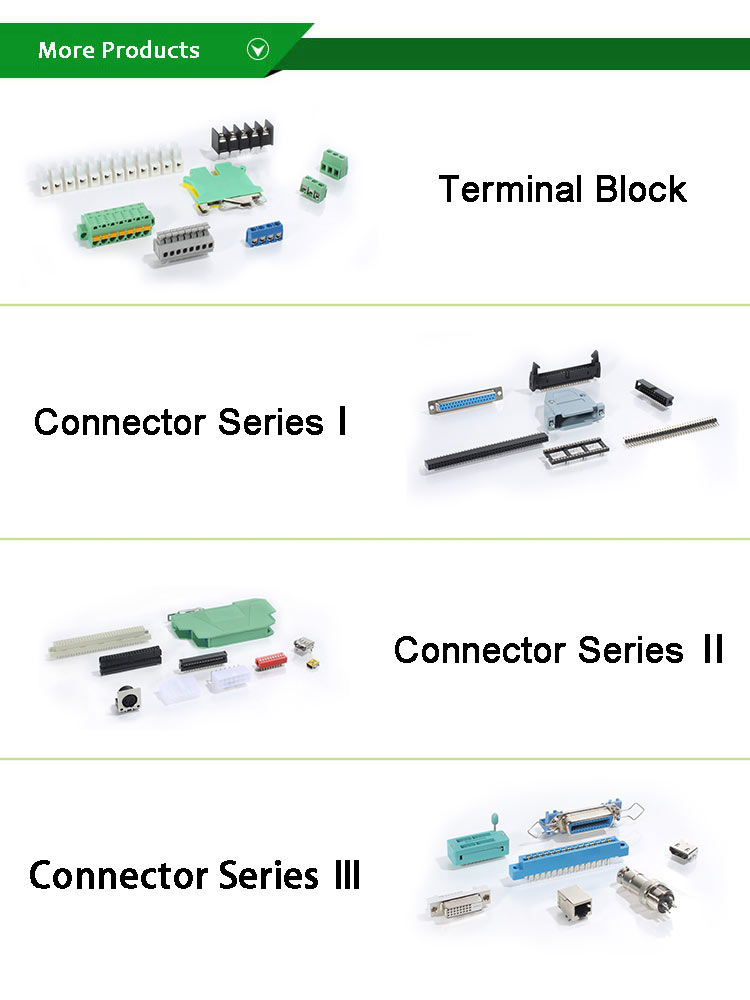

more products
