KOMAY Factory Price HFP56 Enclosed Conductor Busway System for Cranes
- $6.50 / >=100 meters
- 100 meters
- Wuxi Komay Electric Equipment Co., Ltd.
- Jiangsu, China
- Mr Colin Chen
Product Detail
| payment terms: | wire transfer | model: | HFP56 |
| Insulation Materials: | pvc | Packaging Details: | Packaging details: metal packaging according to customer requirements |
| Origin: | Jiangsu, China | brand: | Comey |
| Certificate: | ISO CCC CE | Processing: | Yes |
| Supply capacity: | 200,000 meters per month | Package preview: | |
| product name: | Enclosed Conductor Bar System | Conductor material: | copper |
| Poles: | 4P conductor rail | Standard length: | 4m, other lengths available |
| type: | Enclosed Power Busway | temperature range: | -40℃~+115℃ |
| application: | Cranes, monorails, electric hoists, power tools, stacking systems | Material: | copper |
| port: | Shanghai, Ningbo, Shenzhen, etc. | Rated current: | 35A-240A |
Product Description

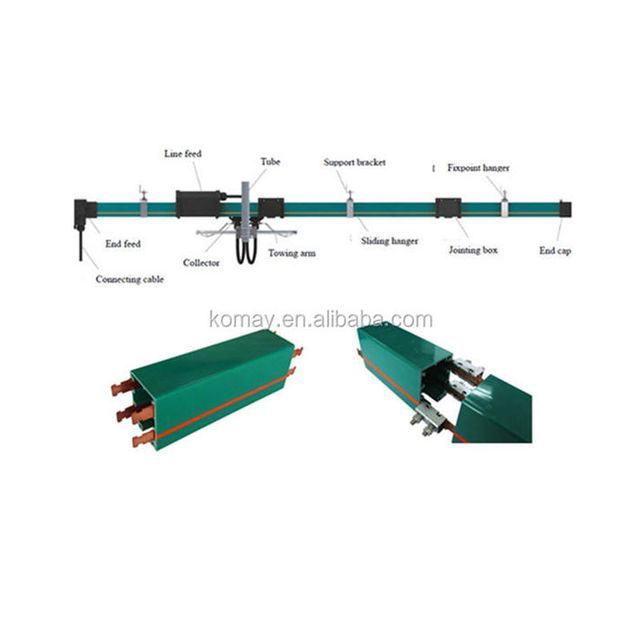

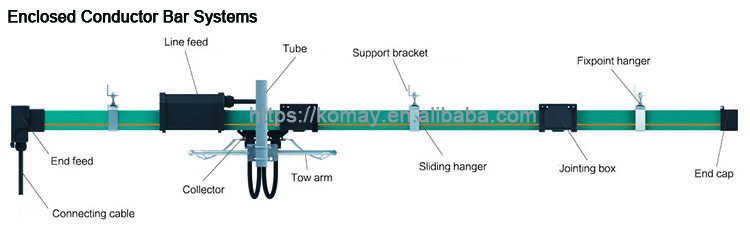

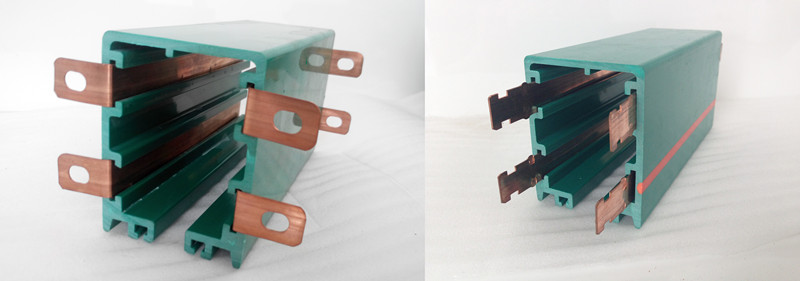

The Powerail enclosed trolley line system is a power rail with protection against contact (IP23) for indoor and outdoor installations. They are wires in a hard green PVC housing with varying copper cross-sections and are rated for 35-240A. Model HFP-P: Does not include seal, with factory installed flat copper strip and bolt operated plug connector. Type HFP-R: R≥800mm curve with factory installed flat copper strip and screw connectors. Passed: CCC, ISO9001 and CE approved and listed.
polish | 4P/Customizable |

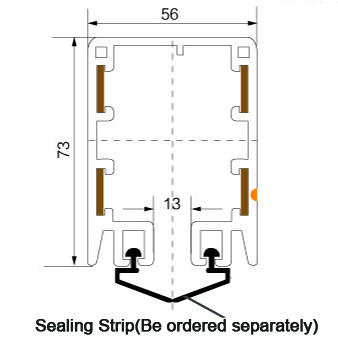

copper width | 1:14.5mm 2:17.6mm 3:21.0mm |
length | Standard length: 4m, can be customized, but not more than 6m |
curve | Minimum 800mm |
Support spacing | Straight 1.2m |
