Electrical Equipment Compact Aluminum Busway Busway System
- $100.00 / >=50 meters
- 50 meters
- Chongqing Tianbao Conductor Busbar Electrical Co., Ltd.
- Chongqing, China
- Mr Lu Tingliang
Product Detail
| Warranty: | 1 year | Certificate: | ISO9001 |
| Supply capacity: | 20000 meters per month | Package preview: | |
| frequency: | 50/60 Hz | Rated current: | 250A.~5000A, 250A.~5000A |
| application: | Industrial plants, hospitals, hospitals, high-rise buildings, etc. | Conductor material: | copper, aluminum |
| model: | CMC | brand: | Tempo |
| Material: | aluminum | Voltage: | 380V/660V |
| type: | Compact Busway, Power Busways | payment terms: | L/C, Western Union, T/T |
| Origin: | Chongqing, China | Packaging Details: | Standard plywood, or customized according to customer requirements |
| stage: | 3-phase 4-wire, 3-phase 5-wire | housing: | aluminum, steel |
| port: | Shanghai |

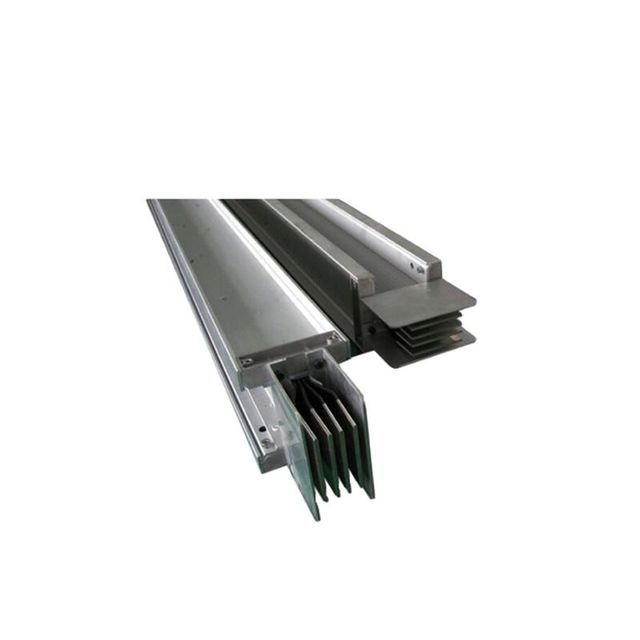

Electrical Equipment Compact Aluminum Busway Busway System
CM compact busway is used in AC three-phase four-wire or three-phase five-wire power distribution system, with a rated current of 250A~5000A, as a low-cost and high-efficiency solution for industrial plants, hospitals, hospitals, high-rise buildings and other environmental requirements . -tech, achieving a good price/performance ratio.
Specification
- Current rating: 400 A to 6300 A (copper) or 100A to 4000A (aluminum)
- Degree of protection: IP54 or IP65
- Insulation rated current: [up to 1000 A]
- Standard length: 4m/3m/2m/1m
- System voltage: AC380 /690V
- Conductor material: high conductivity copper or aluminum
- Halogen free, flame retardant class B epoxy resin insulation
- Tapping unit for MCCB or SDF or MCB
application:
- Residential apartment
-Business premises and commercial complexes
-Resorts and hotels
-Educational institutions
-shopping center
-assembly line
-industry
-Airport
-Hospital
- Oil and gas platform
-power plant
Technical Parameters:
| Rated current (A) | Ground Rod Resistance (10-6Ω/m) | |
| copper conductor | aluminum conductor | |
| 100 | 368.3 | 404.7 |
| 160 | 368.3 | 404.7 |
| 200 | 368.3 | 404.7 |
| 250 | 368.3 | 404.7 |
| 400 | 248 | 306.8 |
| 500 | 213.6 | 248.8 |
| 630 | 213.6 | 210.3 |
| 800 | 168.2 | 163 |
| 1000 | 139.5 | 141 |
| 1250 | 112.3 | 112.5 |
| 1350 | 96.6 | 101.7 |
| 1600 | 82.8 | 90.8 |
| 2000 | 66.5 | 74.8 |
| 2300 | 54.6 | 66.6 |
| 2500 | 44.9 | 62.2 |
| 3150 | 34.5 | 40.2 |
| 3800 | 29.6 | 33.3 |
| 4000 | 27.9 | 31.1 |
| 4500 | 22.5 | / |
| 5000 | 20.5 | / |
Competitive Features:
- Small size, good flexibility.
- Convenient and easy to install.
- All-aluminum shell, dust-proof, ventilated, good electrical conductivity.
- High quality conductor and housing material
The main components:
feeder cluster
Plug-in busway
joint block
Horizontal elbow
Horizontal Offset [Z] Elbow
vertical elbow
Vertical Offset [Z] Elbow
Vertical Tee Section
Standard flanged end
Flanged end box and end connection details
Molded case circuit breaker plug-in box
Detailed photos:
Resignation reference:
| rated current | Width (mm) | height (mm) | Weight (kg/m) | |
| four lines | five elements | |||
| 250 | 128 | 77 | 9 | 9.5 |
| 400 | 128 | 87 | 11.5 | 12.3 |
| 630 | 128 | 92 | 12.5 | 13.4 |
| 800 | 128 | 102 | 15 | 16.2 |
| 1000 | 128 | 112 | 16.9 | 18.4 |
| 1250 | 128 | 127 | 20.9 | 22.7 |
| 1350 | 128 | 142 | 23.9 | 26.2 |
| 1600 | 128 | 157 | 27.7 | 30.4 |
| 2000 | 128 | 187 | 34.7 | 38.1 |
| 2300 | 128 | 222 | 42.7 | 47.1 |
| 2500 | 128 | 262 | 51.8 | 52.3 |
| 3150 | 128 | 339 | 62.6 | 69.3 |
| 3800 | 128 | 389 | 74.5 | 82.5 |
| 4000 | 128 | 409 | 79.3 | 87.9 |
| 4500 | 128 | 499 | 99.9 | 110.8 |
| 5000 | 128 | 539 | 109.6 | 121.6 |
Package:
download Google:
1. Material: copper or aluminum
2 current:
three phase
4 Quantity: ___ meters
5 the number of elbows or knees,
6 number of plugins
7 Insertion unit current
8 applications
9 If you have drawings, please send us the drawings to get a better quotation.
