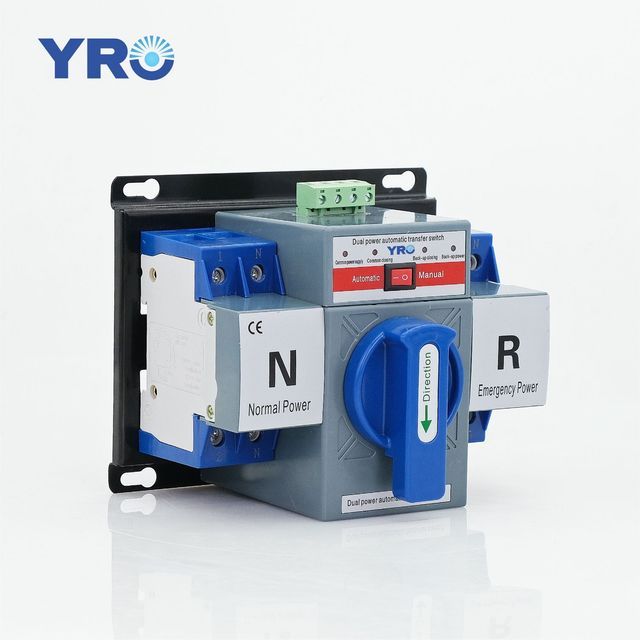

YRO dual power supply automatic transfer switch 32A 63A 2P 4P mains and generator automatic transfer switch
- $15.00 / >=10 pieces
- 10 pieces
- Yueqing Yirui Electric Appliance Co., Ltd.
- Zhejiang, China
- Mr
Product Detail
| Supply capacity: | 50000 pieces per month | port: | Ningbo/Shanghai/Shenzhen |
| frequency: | 50Hz/60Hz | pole: | 4p |
| Rated current: | 63A | Rated voltage: | 400V |
| Origin: | Zhejiang, China | model: | YRQ2CB-63 |
| brand: | YRO | product name: | 4P/125A automatic switching |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Warranty: | 1 year |
| Packaging Details: | carton | maximum. Voltage: | 400V |
| Certification: | International Organization for Standardization | maximum. current: | 63A |
Product Description
YRQ2CB-63 series automatic transfer switch is designed and developed by our company according to the needs of customers
Require.
The switch uses YRCB-63 (C45=CB2) miniature circuit breaker as the action element, and is equipped with a new
control mechanism.
It has the smallest volume among similar products, and it also has functions such as fire control (OPINIONAL) and power supply
generation, while it
Dedicated to important power supply places that do not allow power outages.
Require.
The switch uses YRCB-63 (C45=CB2) miniature circuit breaker as the action element, and is equipped with a new
control mechanism.
It has the smallest volume among similar products, and it also has functions such as fire control (OPINIONAL) and power supply
generation, while it
Dedicated to important power supply places that do not allow power outages.
Specification
type | YRQ2CB-63 |
Specification current Ie(A) | 6/10/16/20/25/32/40/50/63 |
Rated working voltage, Ue (V) | AC230V/AC400V |
Rated insulation voltage Ui (V) | AC 690V |
Rated impulse withstand voltage (KV) | 4KV |
Rated short-circuit making capacity Icm | 6KA |
Rated short-circuit breaking capacity Icn | 4.5KA |
service life | 5000 times |
Electrical grade | CB level |
controller | A type (basic type) |
Rated control power supply voltage, Us(V) | 230V 50/60Hz |
Operation transition time (without delay) | ≤3s |
Key words | AC ATS automatic transfer switch |
