smart home heating sistema floor crawler heating cable

Product Detail

Package preview:Insulation optional:TPEE(T) for T-cable, XLPE(X) for T-cable
Project solution ability:The overall solution of the project, nodesign style:modern
port:Shanghai, Ningbo or other portsAfter-sales service:Online technical support, return and exchange
Cable structure:double conductorFloor heating valve:Anti-condensation balance valve
Warranty:over 5 yearsshield:Aluminum plastic tape
application:bathroompayment terms:L/C, Western Union, D/P, T/T, MoneyGram
Insulation Materials:Fluoropolymer inner insulationCertification:CE/EAC/TUV
Packaging Details:Packing of Reptile Heating Cable: 1. If you want to save shipping cost, it is recommended that you use normal packaging and put the heating cable in a carton without an inner box. 2. If you want to better protect the annoying wires, it is recommended to use the inner box first, and then put it into the carton. 3. If you sell goods under your own brand, it is recommended that you use color boxes with your own design, such as logo, etc., and then put these color boxes into cartons.Types of floor heating components:Floor heating cable
Rated voltage:230VAC 50Hzmodel:T-cable
place of origin; place of origin:Anhui, ChinaOuter insulation (standard):pvc
Cable diameter (standard):3.6mm-4 2mm ( 1/7"-1/6" ) Accept customizedConductor material:Solid heating core
brand:Huanrui or OEMtype:Floor heating accessories
Power output:12W/m 18W/mMaterial:other
Supply capacity:Reptile heating cables 100,000 meters per month
product description



smart home heating sistema floor crawler heating cable



Product desciption

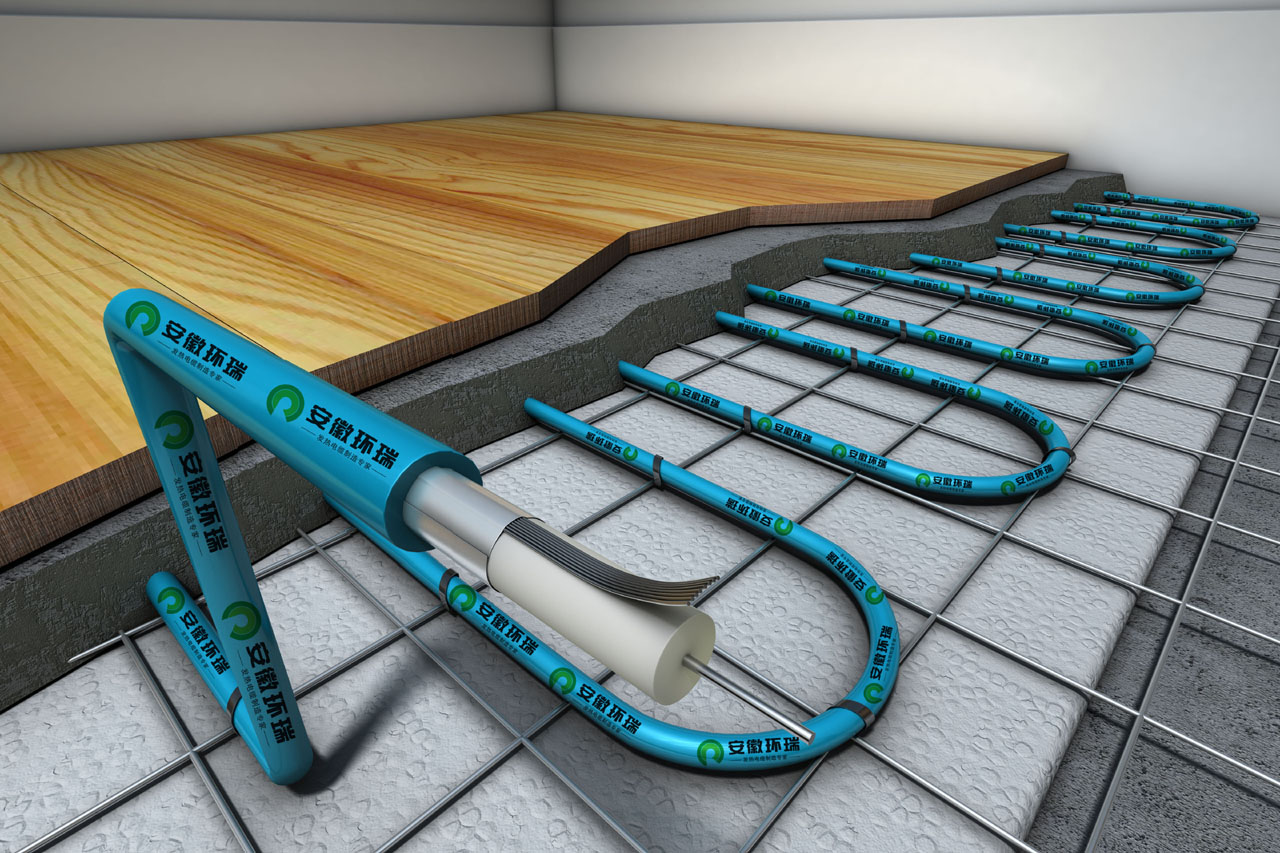

The T-cable reptile heating cable is designed to be as thin as possible, with a diameter of only 3.6mm, with two output powers, ensuring economical energy saving and minimizing floor height. It is designed for installation under tiles, wooden floors, marble floors and is usually set to install 100 w/m2, 150 w/m2 and 200 w/m2.



feature

*Double core heating cable

*Flexible installation

* Emits zero EMF (electromagnetic field)

* Durable construction

*Single point of secure connection



Technical data

Cable Construction Double Conductor

Conductor Material Solid Heating Core

Insulating material Fluoropolymer

Insulation optional TPEE for T-cable(T), XLPE for T-cable(X)

Shielding Aluminum Foil

External insulation PVC

Connector output splicing

Cable diameter 3.6mm

Rated voltage 230VAC

Power output 12 w/m, 18 w/m

Resistance tolerance +10/-5 %

Cold lead 2.5 m long

CertificateCE/EAC/TUV/CSA



Part Number Power (W) Length (m) ohm
T-cable 12-150 150 12.5 352.7
T-cable 12-225 225 18.8 235.1
T-cable 12-300 300 25 176.3
T-cable 12-375 375 31.3 141.1
T-cable 12-450 450 37.5 117.6
T-cable 12-525 525 43.8 100.8
T-cable 12-600 600 50 88.2
T-cable 12-675 675 56.3 78.4
T-cable 12-750 750 62.5 70.5
T-cable 12-900 900 75 58.8
T-cable 12-1050 1050 87.5 50.4
T-cable 12-1200 1200 100 44.1
T-cable 12-1350 1350 112.5 39.2
T-cable 12-1500 1500 125 35.3
T-cable 12-1800 1800 150 29.4



Part Number Power (W) Length (m) ohm
T-cable 18-135 135 7.5 391.9
T-cable 18-200 200 11.1 264.5
T-cable 18-270 270 15 195.9
T-cable 18-400 400 22.2 132.3
T-cable 18-535 535 29.7 98.9
T-cable 18-600 600 33.3 88.2
T-cable 18-680 680 37.8 77.8
T-cable 18-800 800 44.4 66.1
T-cable 18-935 935 51.9 56.6
T-cable 18-1100 1100 61.1 48.1
T-cable 18-1220 1220 67.8 43.4
T-cable 18-1340 1340 74.4 39.5
T-cable 18-1500 1500 83.3 35.3
T-cable 18-1625 1625 90.3 32.6
T-cable 18-1900 1900 105.6 27.8
T-cable 18-2135 2135 118.6 24.8
T-cable 18-2295 2295 127.5 23.1
T-cable 18-2775 2775 154.2 19.1



Product advantages
