Cover system for underfloor heating with a thickness of 3 to 4 mm

Product Detail

Certification:EU CE, European Communitycolor:Red, green, blue, black, OEM available
Package preview:product name:Floor heating cable
payment terms:L/C, Western Union, T/T, MoneyGramAfter-sales service:Online technical support, on-site installation
port:Ningbo/Shanghai, ChinaOrigin:zhejiang
MOQ:10pcstype:floor heating system
Project Solution Capabilities:overall project solutionMaterial:Others, Fluoropolymers, PVC
Packaging Details:Packed with or without inner box, then packed in outer carton, and finally packed in palletProduct output:12W/m, 16W/m, 18W/m, 20W/m
Supply capacity:5000 pieces per weekbrand:Tyco
application:apartmentWarranty:over 5 years
Voltage:230VFunction:Underfloor heating system temperature control
model:FHCTdesign style:modern
Cable structure:double conductor
Product Description
Tyco Electric Floor Heating System

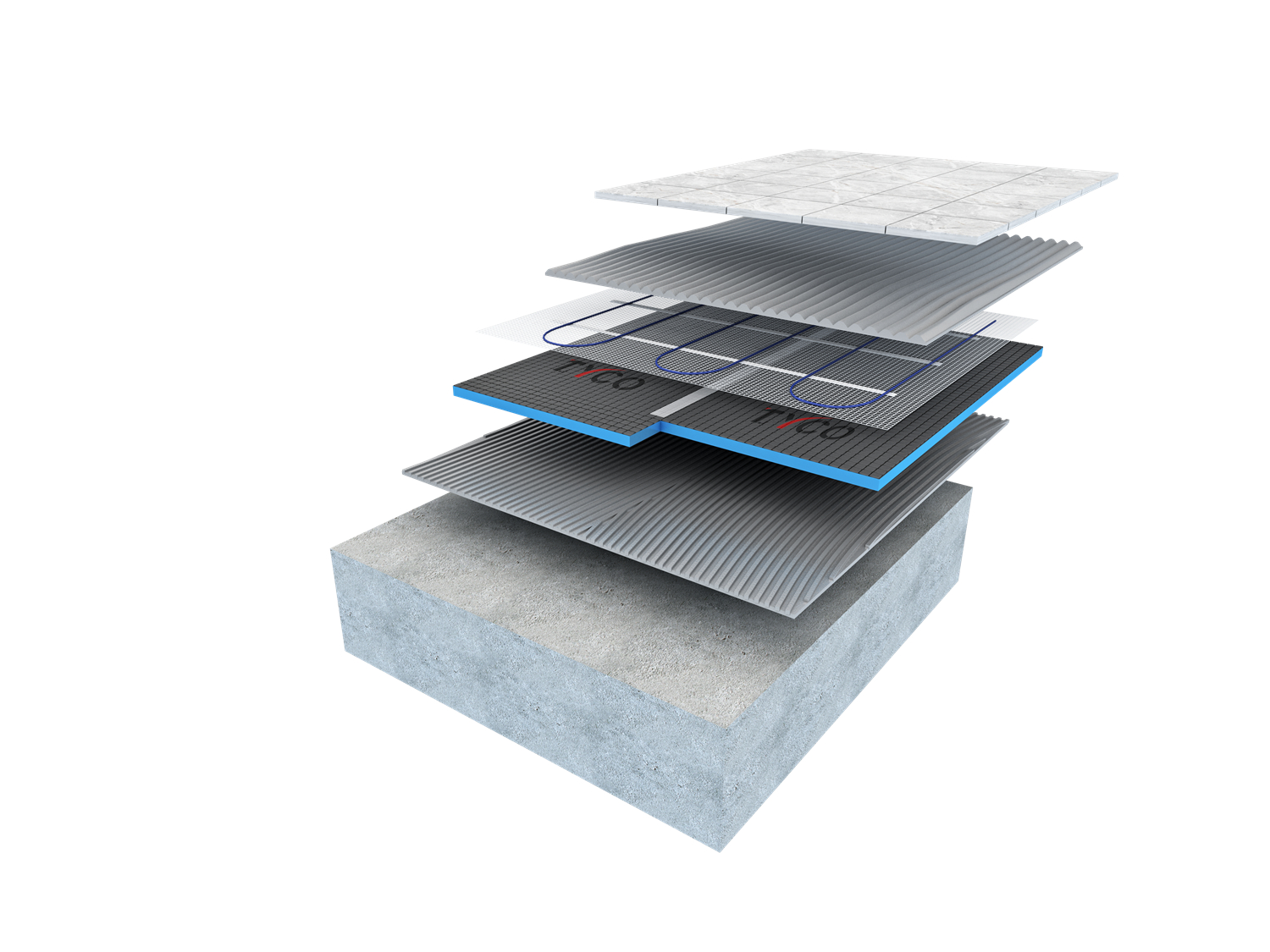

we supplycomplete setelectric heating system,Insulation board + heating pad + thermostat.The XPS insulation layer is installed under the heating pad, which can save energy by at least 30%.

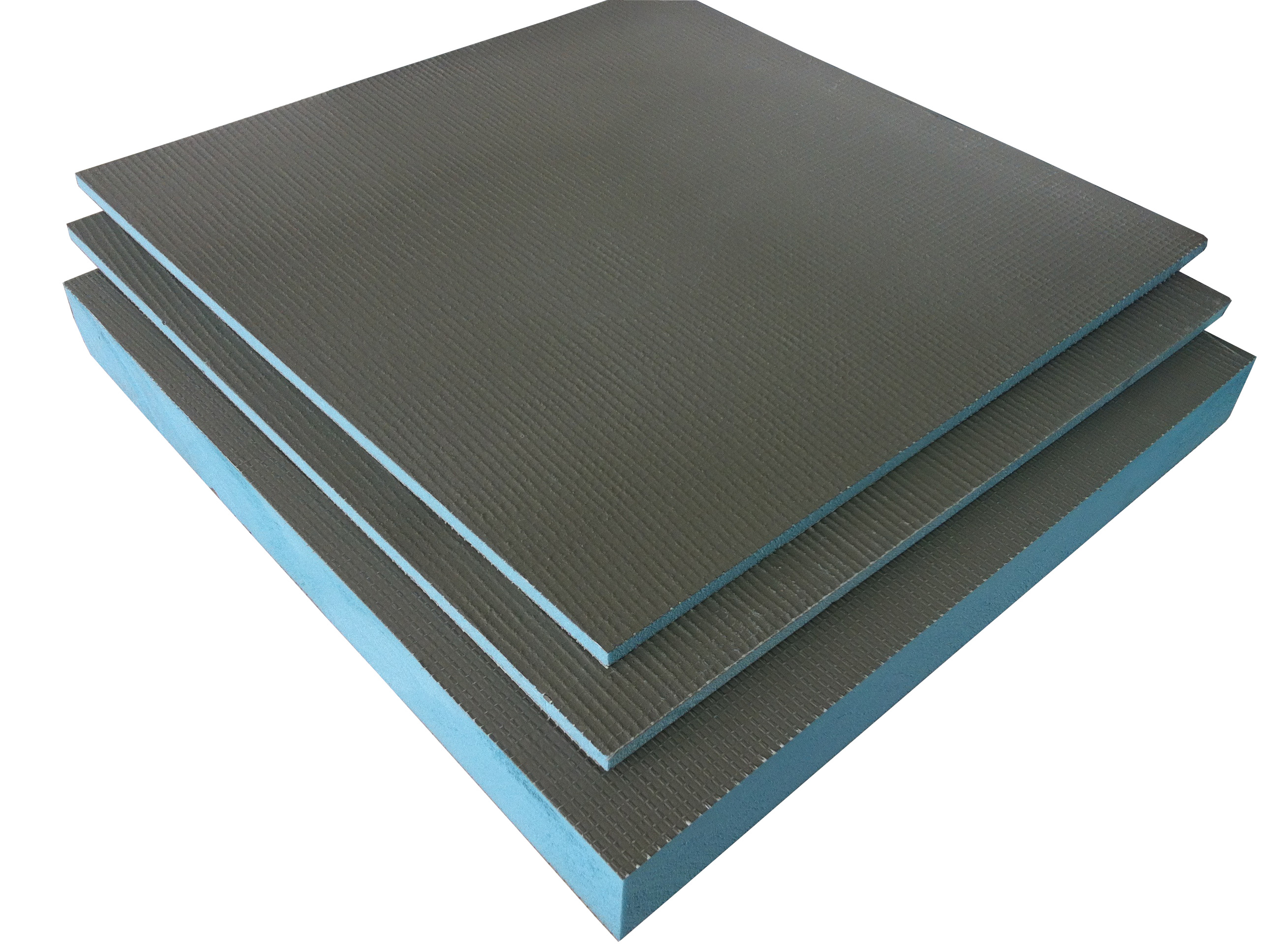

TYCO XPS Tile Backplane Heating Mat Specifications

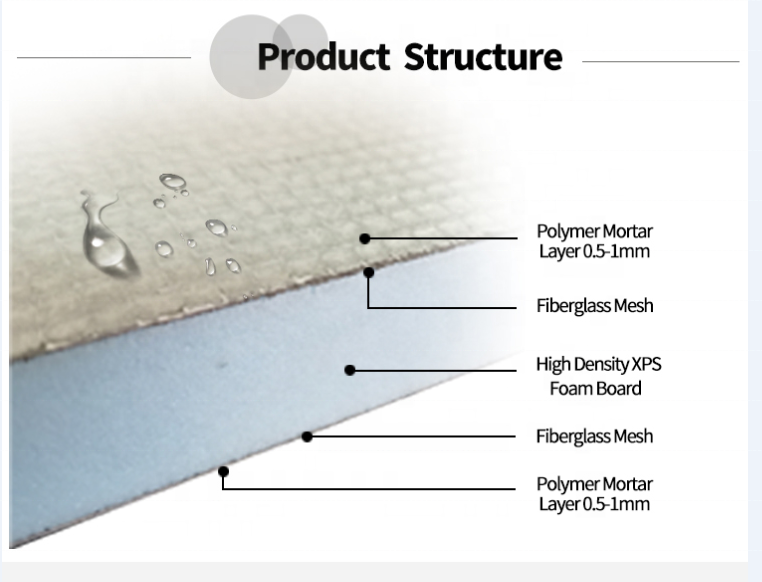

Insulation board material
Glass fiber grid cement + XPS + glass fiber grid cement


board size
1200*600*6mm
1200*600*10mm
2440*600*10mm
2440*600*20mm
ETC
Plate compressive strength
More than 300kpa (one square meter can bear 30000 kg)
Board water absorption
<1%
Fire-proof level
European Class E
application
Save energy under electric heating pad, tile ready

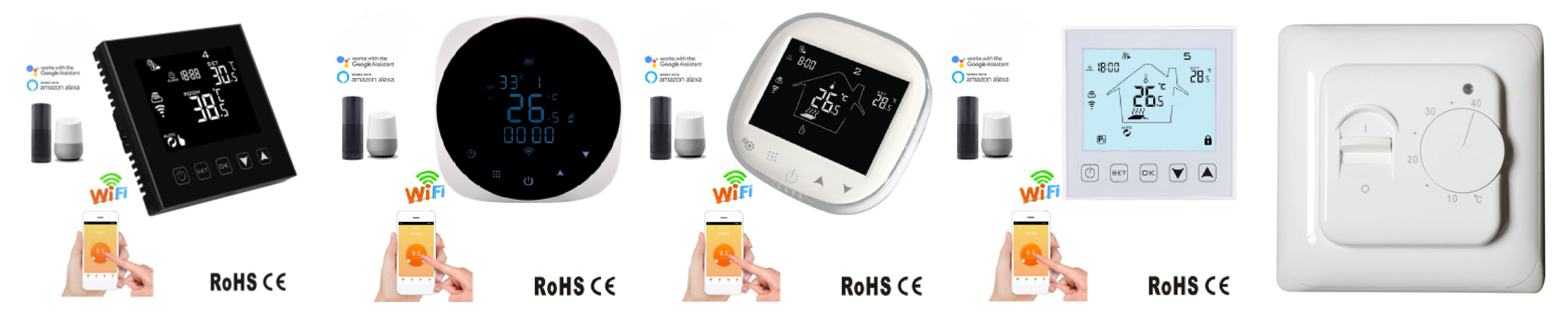

TYCO electric heating system thermostat
Function
On/off control, digital display, 7-day programmable
voltage
230 V, 50/60 Hz
Maximum switching current
16/32 amps
Temperature control range
5~40℃
Environmental range
0~40℃
floor temperature sensor
2 wires, 3.0m leads

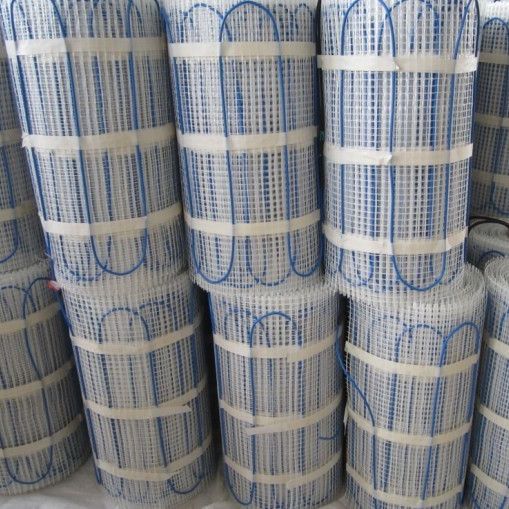

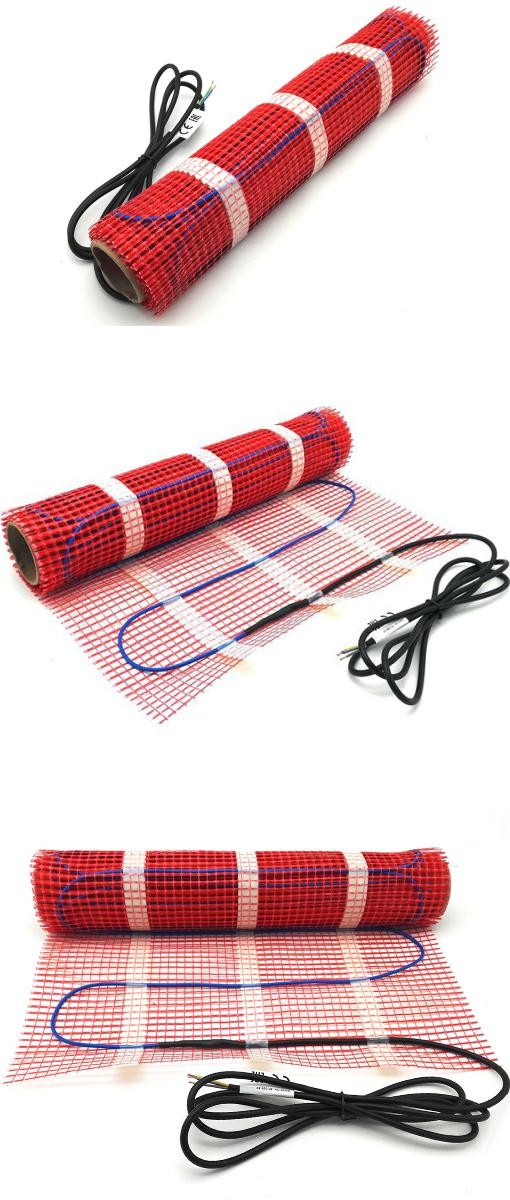

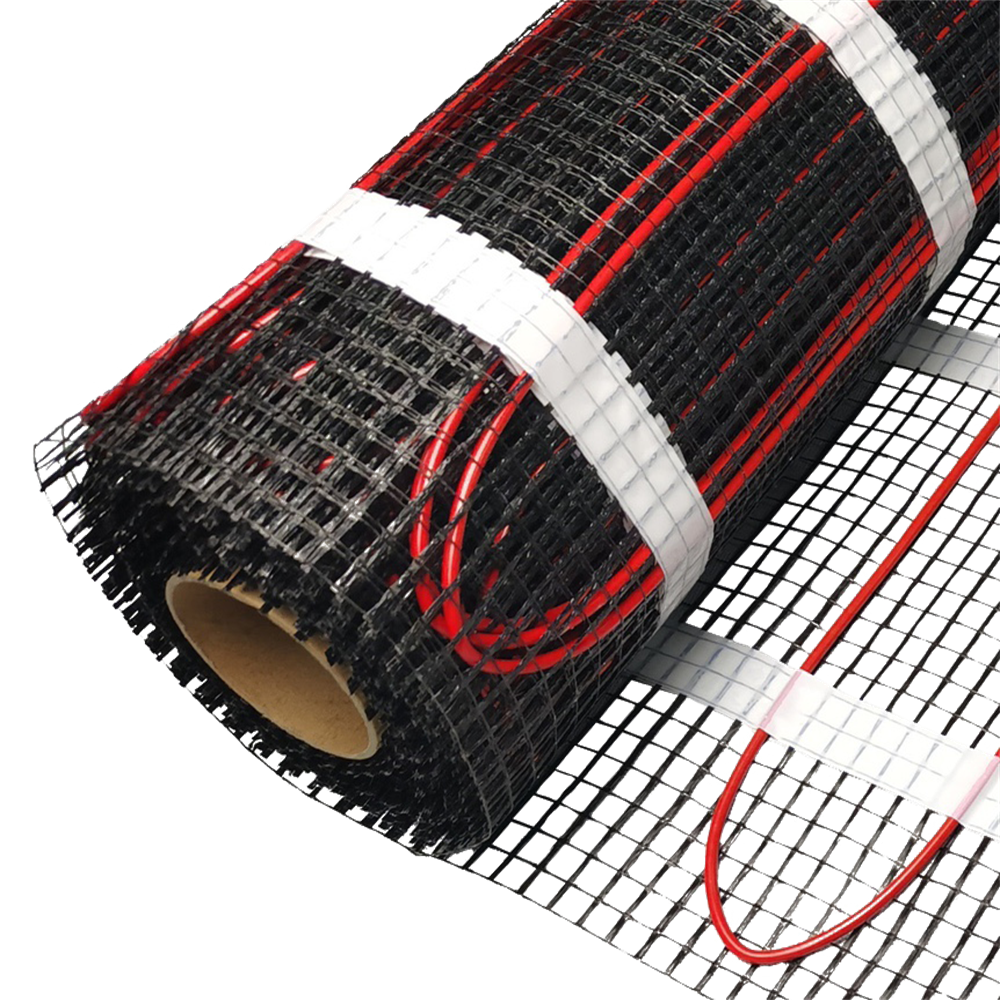

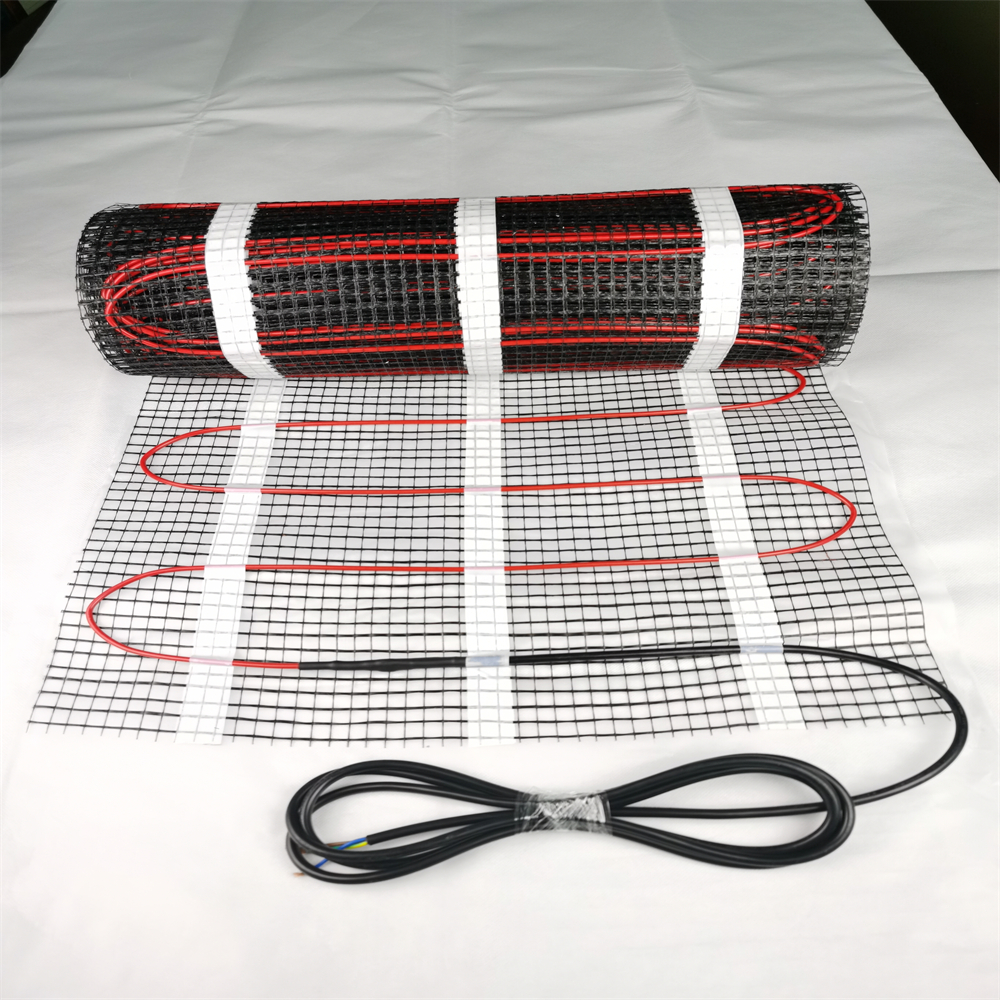

TYCO Dual Conductor Heating Pad Specifications
dual heating pad
FHMT is the safest, cheapest and easiest way to install floor heating and provides years of long-lasting comfort.

feature
√Single point connection for easy installation √ Shielded twin-core cable with no measurable electromagnetic field √ Floor heating cables in various sizes designed to fit the heated zone of any floor √ Compatible with all standard subfloor materials and only 3.6 mm thick, making it a Ideal for remodeling projects. √ Safety certified for use in wet environments √ Durable construction √ 25-year limited warranty against manufacturing defects


Specification
cable structure
double conductor
Operating Voltage
230 volts
power output
12W/m, 16W/m
Cable diameter
3.5mm
Minimum bending radius
25mm
conductor insulation
Fluoropolymer
Outer insulation
pvc
ambient temperature
30℃
Minimum installation temperature
5°C
cold lead
2.5m long
Heating Pad Width
0.5m
150w/m² heating pad
Item Number
Heating area(m²)
Mat size (m*m)
output power(w)
Current (A)
Resistance (ohms)
FHMT 150-150-1.0
1.0
0.5*2
150
0.7
352.7
FHMT 150-225-1.5
1.5
0.5*3
225
1.0
235.1
FHMT 150-300-2.0
2.0
0.5*4
300
1.3
176.3
FHMT 150-375-2.5
2.5
0.5*5
Chapter 375
1.6
141.1
FHMT 150-450-3.0
3.0
0.5*6
450
2.0
117.6
FHMT 150-525-3.5
3.5
0.5*7
Chapter 525
2.3
100.8
FHMT 150-600-4.0
4.0
0.5*8
600
2.6
88.2
FHMT 150-675-4.5
4.5
0.5*9
Chapter 675
2.9
78.4
FHMT 150-750-5.0
5.0
0.5*10
750
3.3
70.5
FHMT 150-900-6.0
6.0
0.5*12
900
3.9
58.8
FHMT 150-1050-7.0
7.0
0.5*14
1050
4.6
50.4
FHMT 150-1200-8.0
8.0
0.5*16
1200
5.2
44.1
FHMT 150-1350-9.0
9.0
0.5*18
1350
5.9
39.2
FHMT 150-1500-10.0
10.0
0.5*20
1500
6.5
35.3
FHMT 150-1800-12.0
12.0
0.5*24
1800
7.8
29.4
200w/m² heating pad
Item Number
Heating area(m²)
Mat size (m*m)
output power(w)
Current (A)
Resistance (ohms)
FHMT 200-200-1.0
1.0
0.5*2
200
0.9
264.5
FHMT 200-300-1.5
1.5
0.5*3
300
1.3
176.3
FHMT 200-400-2.0
2.0
0.5*4
400
1.7
132.3
FHMT 200-500-2.5
2.5
0.5*5
500
2.2
105.8
FHMT 200-600-3.0
3.0
0.5*6
600
2.6
88.2
FHMT 200-700-3.5
3.5
0.5*7
700
3.0
75.6
FHMT 200-800-4.0
4.0
0.5*8
800
3.5
66.1
FHMT 200-900-4.5
4.5
0.5*9
900
3.9
58.8
FHMT 200-1000-5.0
5.0
0.5*10
1000
4.3
52.9
FHMT 200-1200-6.0
6.0
0.5*12
1200
5.2
44.1
FHMT 200-1400-7.0
7.0
0.5*14
1400
6.1
37.8
FHMT 200-1600-8.0
8.0
0.5*16
1600
7.0
33.1
FHMT 200-1800-9.0
9.0
0.5*18
1800
7.8
29.4
FHMT200-2000-10.0
10.0
0.5*20
2000
8.7
26.5
FHMT 200-2400-12.0
12.0
0.5*24
2400
10.1
22.0
