Aluminum floor heating supplier 2018 hot sale
- $1.00 /piece
- 1 piece
- Hangzhou Tyco Industrial Co., Ltd.
- Zhejiang, China
- Ms Shine Jin
Product Detail
| Temperature limit: | -50～+75 degrees Celsius | Pipe outer diameter: | 20/16mm |
| After-sales service: | online technical support | color: | blue |
| Certification: | CE, SGS | Project solution ability: | overall project solution |
| brand: | Tyco | Compressive strength: | ≥300Kpa |
| application: | floor, floor | model: | Ultra High Pressure-AL25-20 |
| Supply capacity: | 100000 pieces per month | payment terms: | L/C, D/A, D/P, T/T, Western Union |
| place of origin; place of origin: | Zhejiang, China | Function: | Heated hot water |
| port: | Shanghai or Ningbo | Warranty: | over 5 years |
| Density for XPS: | 35-45 kg/m3 | Material: | XPS foam board |
| type: | floor heating system | Packaging Details: | 10 floor heating panels/20 aluminum panels in plastic bags/carton |
| XPS Colors: | blue | Chanel distance: | 150/200mm |
Product Description
Aluminum floor heating supplier 2018 hot sale

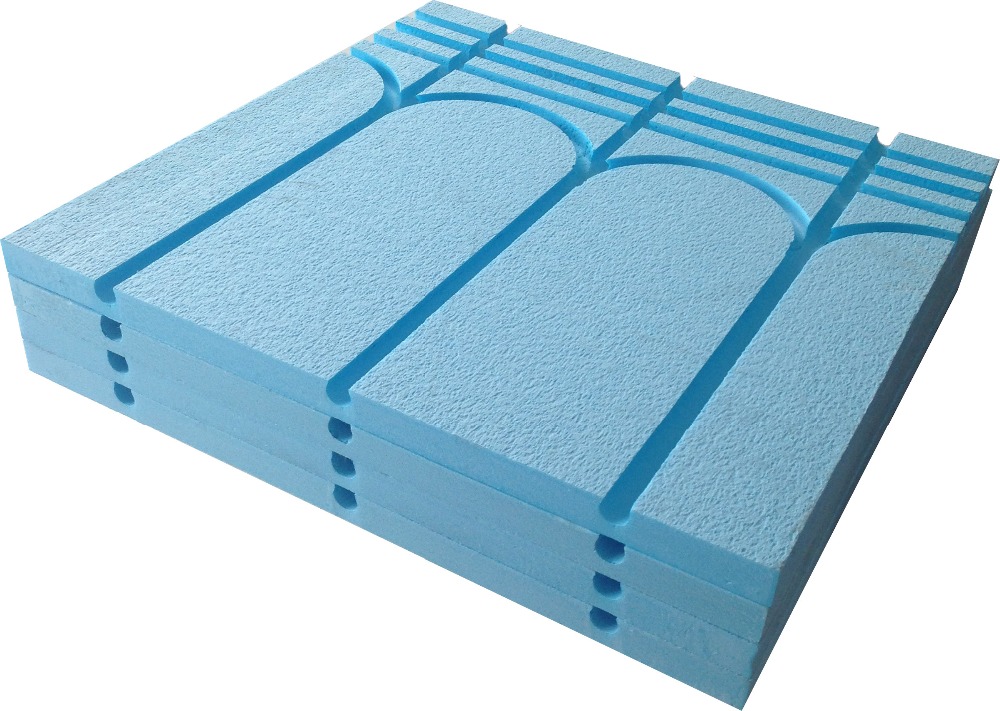

1) In the floor heating system, the slotted EPS/XPS board is used to achieve the effects of heat preservation, fire prevention, sound insulation and waterproof.
2) There are two types of floor heating systems, one is foil and the other is aluminum.
3) The hot water pipe can be installed in the groove, when the hot water flows, the heat can spread efficiently and evenly, and finally conduct the heat to the floor surface.

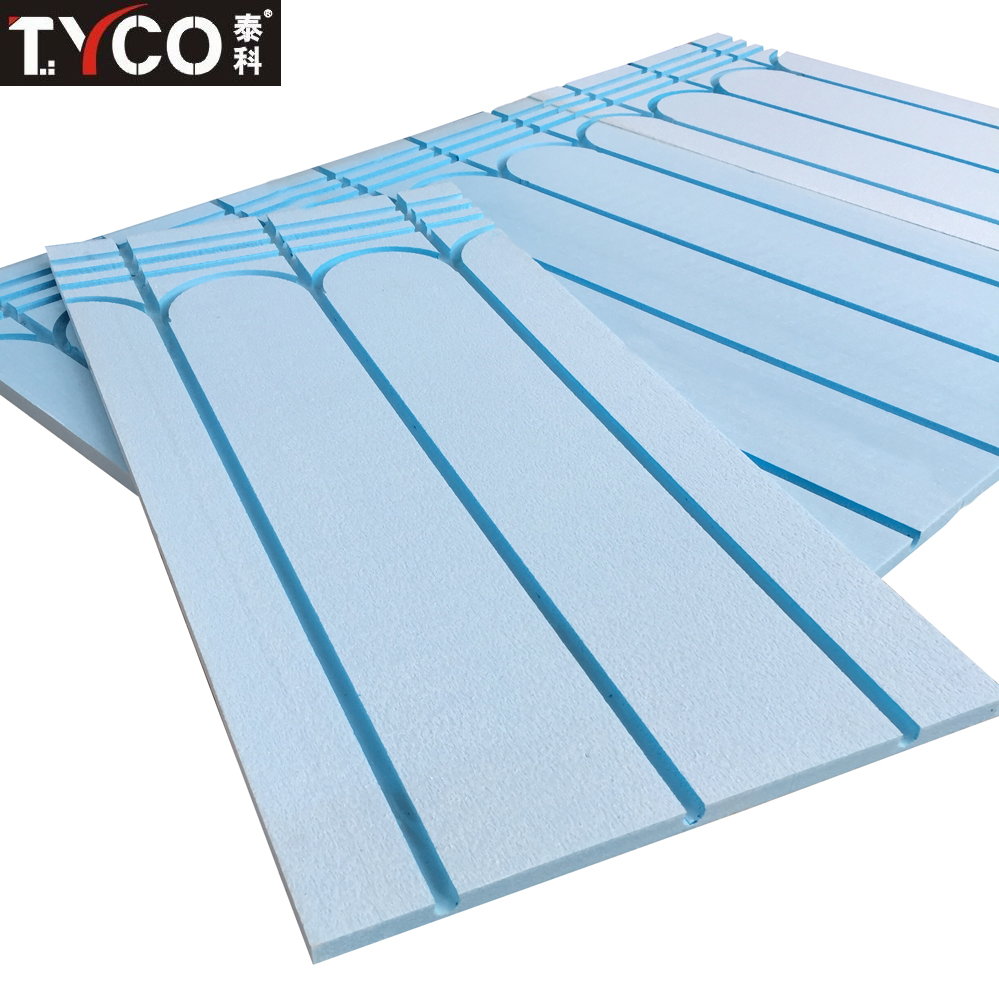

Two Types of Floor Heating Insulation Boards

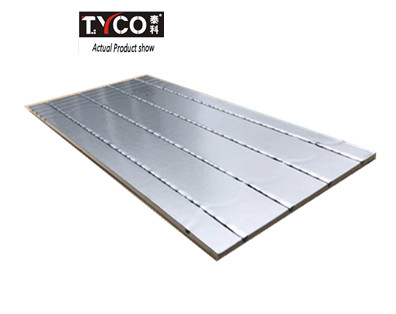

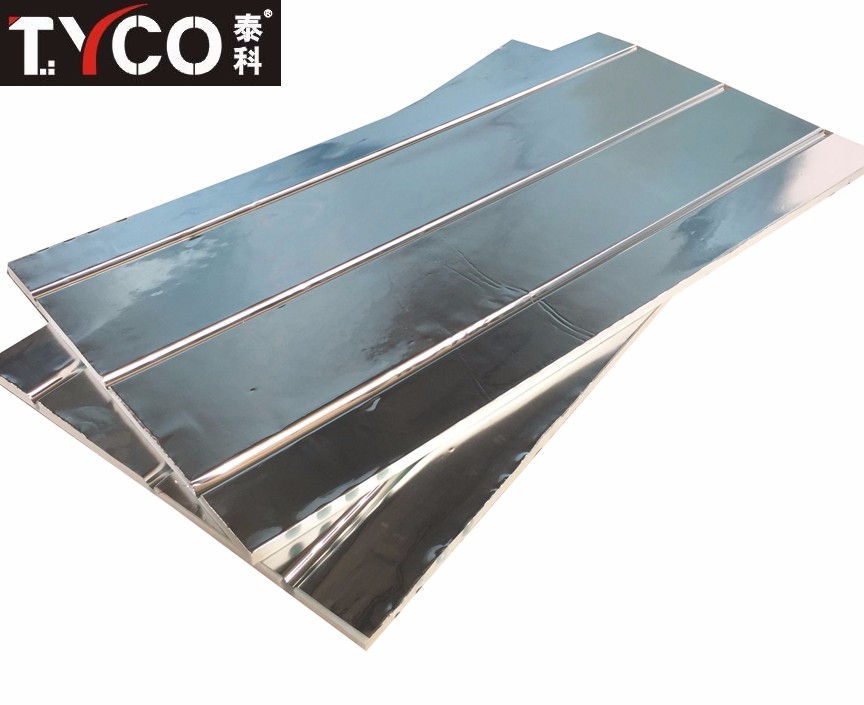

1. Fluted extruded composite aluminum foil----------------more suitable for finished ceramic tile floors
Numbering. | panel size | Pipe diameter | chanel distance | ||
Ultra High Pressure-AL25-16 | 1200*600*25mm | 16mm | 15/20cm | ||
Ultra High Pressure-AL30-20 | 1200*600*30mm | 20mm | 15/20cm | ||
aluminum foil | Full Lamination for Slotted XPS Foam Boards | ||||

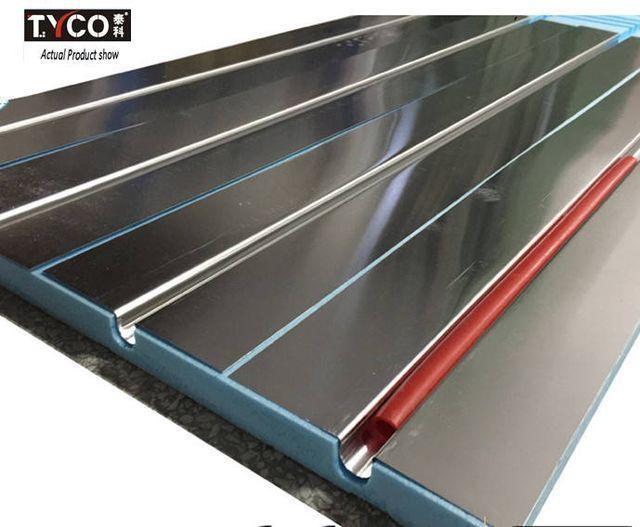

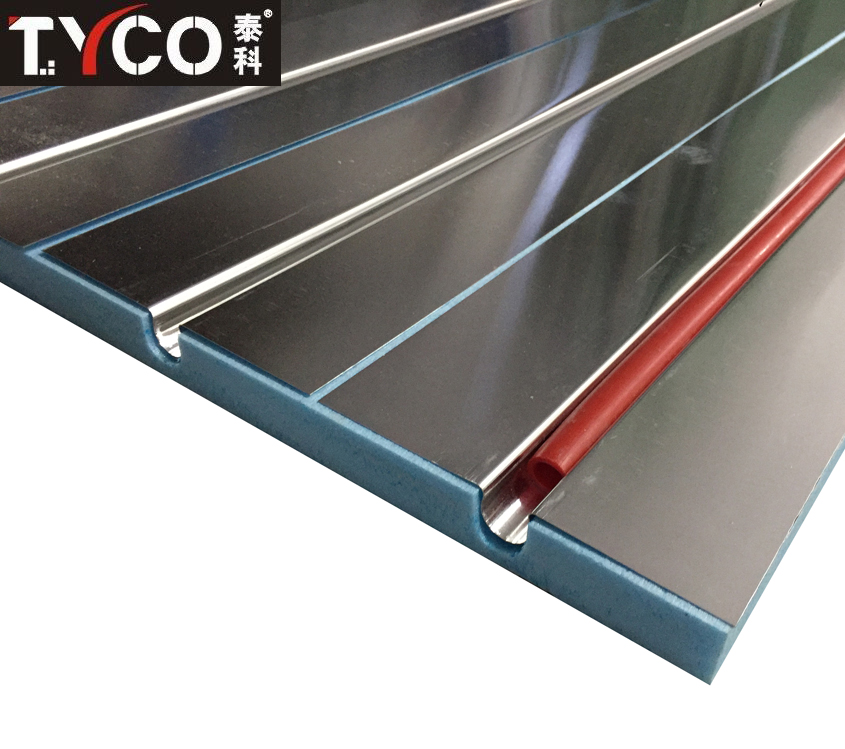

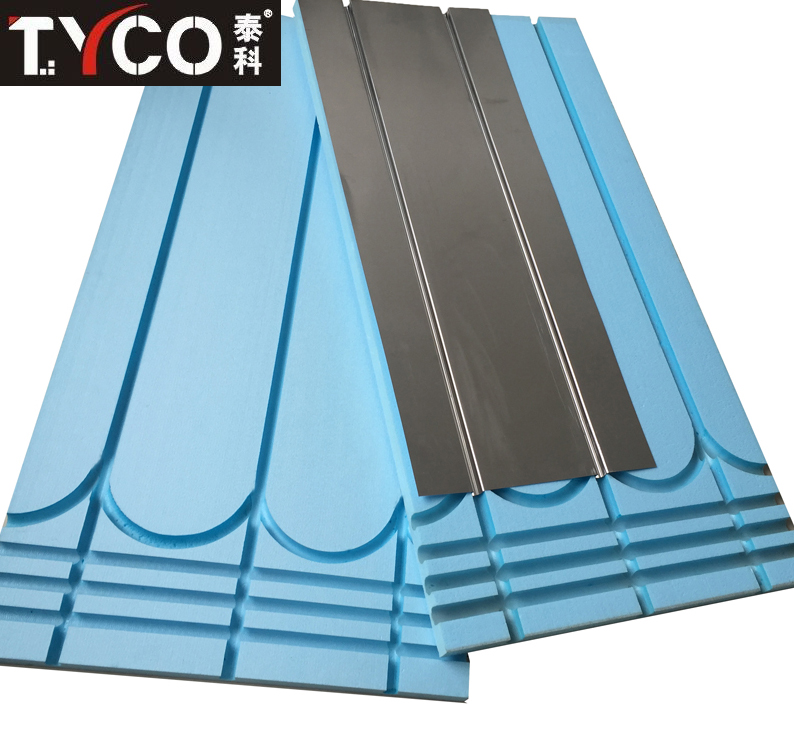

2. Corrugated XPS+aluminum board----------------------------Wood veneer floor is better
Numbering. | panel size | Pipe diameter | chanel distance |
UHV 25-16 | 1200*600*25mm | 16mm | 15/20cm |
UHV 30-20 | 1200*600*30mm | 20mm | 15/20cm |
Aluminum plate | 1000*390*0.45mm | 16/20mm | 15/20cm |
3. OEM or ODM is also acceptable, we can produce according to your requirements
features
1. Aluminum Plate Underfloor Heating Supplier 2018 Hot Sale, we use fresh material to make XPS foam board,
Does not contain CFC, HCFC

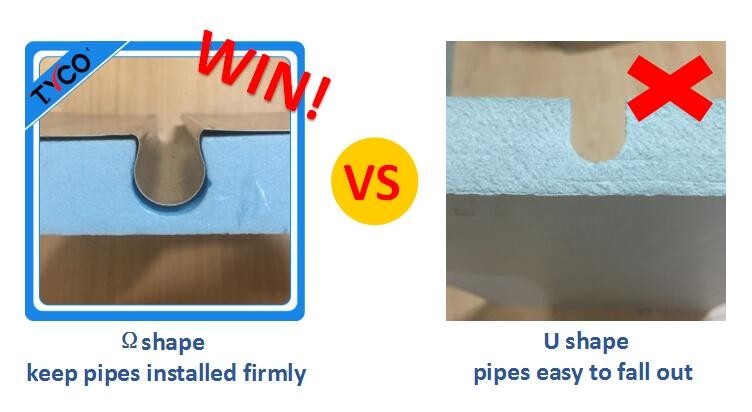

2. Ʊ-shaped groove - easy to install. For example, two people can complete 1000 square meters in two hours
3. High compressive strength 250~400kpa (1m2 area can bear 25~30 tons of weight)
XPS UHP Aluminum Foil
Numbering. | panel size | Pipe diameter | chanel distance | aluminum thickness |
Ultra High Pressure-AL25-16 | 1200*600*25mm | 16mm | 150/200mm | 0.03mm |
Ultra High Pressure-AL30-20 | 1200*600*30mm | 20/16mm | 150/200mm | 0.03mm |
Ultra High Pressure-AL25-16 | 1200*600*25mm | 16mm | 150/200mm | 0.1 mm |
Ultra High Pressure-AL30-20 | 1200*600*30mm | 20/16mm | 150/200mm | 0.1 mm |
Ultra High Pressure-AL25-16 | 1200*600*25mm | 16mm | 150/200mm | 0.2mm |
Ultra High Pressure-AL30-20 | 1200*600*30mm | 20/16mm | 150/200mm | 0.2mm |
EPS400 UHP with aluminum foil
Numbering. | panel size | Pipe diameter | chanel distance | aluminum thickness | Compressive strength |
EPS 400-2516-0.2 | 1200*600*20mm | 16mm | 150mm | 0.2mm | 400kpa |
EPS 400-2516-0.2 | 1200*600*20mm | 16mm | 150mm | 0.1 mm | 400kpa |
EPS 400-2516-0.2 | 1200*600*20mm | 16mm | 150mm | 0.2mm | 300kpa |
EPS 400-2516-0.2 | 1200*600*20mm | 16mm | 150mm | 0.1 mm | 300kpa |
EPS100 | 1200*600*25/30mm | 16/20mm | 150/200mm | 0.03mm | 100kpa |
application

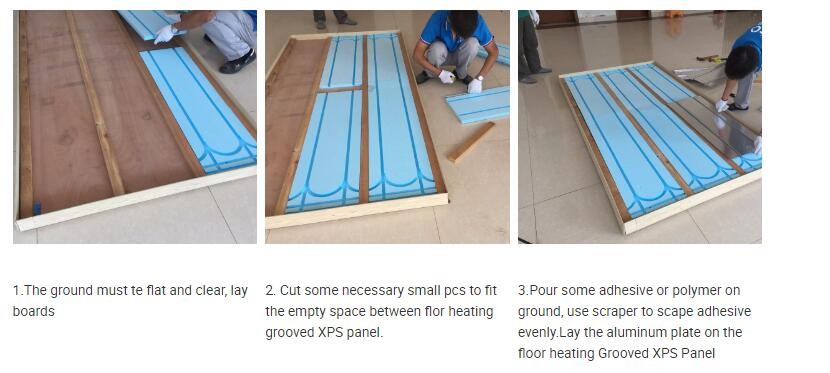

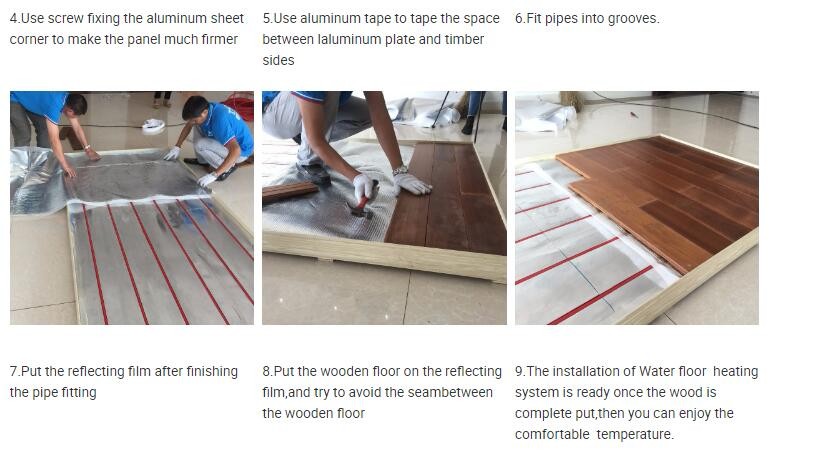

Application of XPS/EPS aluminum plate thermal insulation foam board
Application of XPS/EPS Aluminum Foil Insulation Foam Board
