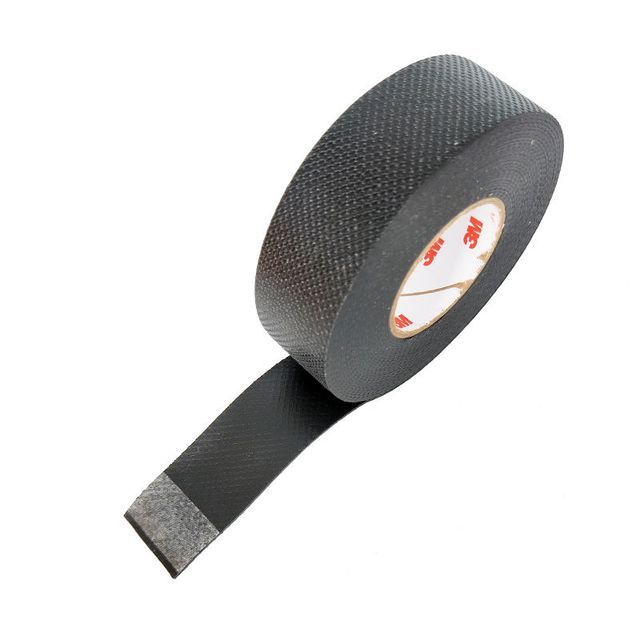

3m 23 full voltage rubber splicing tape for all solid insulated cables
-
$3.99 / 1 - 49 rolls
$3.56 / 50 - 99 rolls
$3.28 / >=100 rolls - 1 roll
- Shenzhen Simihui Electronic Materials Co., Ltd.
- Guangdong, China
- Mr yes lewin
Product Detail
| Specification: | 25.4mm*5m | Tape Color: | Black |
| Packaging Details: | Mode: No MOQ Packaging Details: Standard packing or as your request. | Origin: | Guangdong, China |
| thickness: | 0.76mm | port: | Shenzhen |
| Adhesive material: | rubber resin | model: | 23#-2071 |
| payment terms: | wire transfer | brand: | 3 meters |
| Rated voltage: | 69 kV |
3m scotch 23 full voltage rubber splicing tape for all solid insulated cables
product information
| Specification | 25.4mm*5m |
| thickness | 0.76mm |
| Adhesive material | rubber resin |
| Rated voltage | 69 kV |
| tape color | Black |
| Product Keywords | 3m scotch 23 full voltage rubber splicing tape 3m rubber splicing tape 233m 23 |
Model: 3m 23#
Specification: 25.4mm*5m
Thickness: 0.76mm
Adhesion to steel: N/A
Adhesive material: rubber resin
Applications: electrical maintenance, insulation
Backing Material: Ethylene Propylene Rubber, Polyester Lining
Backing Thickness (Metric): 0.76mm
Breaking Strength (imperial): 8 lbs/in
Color: black, black
Dielectric Strength (V/mil) :800, 800 V/mil
Elongation: 10%
Elongation at break: 1000%
Emergency overload temperature (Celsius): 130°C
Emergency Overload Temperature (Fahrenheit): 266°F
Series: Rubber splicing tape 23
High temperature rating: 194°F (90°C)
Insulation: yes
Insulation resistance: > 10^6 megohms
Material: EPR with lining
Maximum operating temperature (Celsius): 90 °C
Maximum Operating Temperature (Fahrenheit): 194 °F
Product market: electrical construction, electrical MRO, power distribution
Product Type: Rubber and Splicing Tape, Rubber Tape
Tape Color: Black
Tape Length (Metric): 9.1 m
Tape Type: Professional Grade Rubber Tape
Tape Width (Metric): 19.1mm, 25.4mm, 50.8mm
Tensile strength (metric): 55 kPa
Overall Thickness: 0.76mm
Voltage: 69kV
Voltage application: all voltage levels
Rated voltage: 69kV
detail
Rubber resin with excellent adhesion to irregular surfaces
Primary electrical insulation for spliced cables from 600V to 69kV, suitable for all solid dielectric cables
Suitable for jacketed high pressure fittings and end connections
Available in narrow and wide widths (0.75"–2")
Continuous bond rated to 194°F (90°C)
Withstands temperatures up to 194°F (90°C)
Special polyester liner
ASTM certified and RoHS 2002/65/EC compliant
High and low voltage insulation, self-melting tape. Primary electrical insulation of all solid dielectric cables spliced through 69kV
Scotch® Rubber Splicing Tape 23 has improved physical and electrical properties regardless of stretching. This tape is highly resistant to cracking, tearing and edge lifting when exposed to indoor or outdoor environments. It is designed for splicing and terminating cables with emergency overload temperatures up to 266°F (130°C). This Self-Fusing Ethylene Propylene Rubber High Insulation Voltage Tape has a snakeskin lining that can be easily removed when the tape is applied. It is compatible with synthetic cable insulation and paper insulated cables.
