Android 1200kg Smart Circuit Board Automatic Electric Door Opener

  • $88.00 / 2 - 30 sets
    $85.00 / 31 - 300 sets
    $82.00 / 301 - 499 sets
    $78.50 / >=500 sets
  • 2 sets
  • Quanzhou Autoga Machinery Co., Ltd.
  • Fujian, China
  • Mr Will Wu

Product Detail

Package preview:Operating temperature:-20℃~+50℃
Project solution ability:overall project solutionOrigin:Fujian China
Motor Power:220VAC 280WOpening (closing) speed:12m/min
Supply capacity:2000 sets per monthWarranty:1 year
brand:giant sliding door openerpayment terms:L/C, T/T, PayPal
design style:modernInput voltage:220V±10% 50HZ
port:XiamenOutput gear modulus:m=4
Packaging Details:1 set/carton (32cm*24cm*30cm) 40CTNS/ CBM 1200sets /20'ContainerMaximum loading weight:600kg/800KG/1300kg
Maximum pulling force:1100Nmodel:Jinjiang-PYM-A2201
Number of output gears:Z=16application:villa
gross weight:11KGAfter-sales service:Online technical support, free spare parts

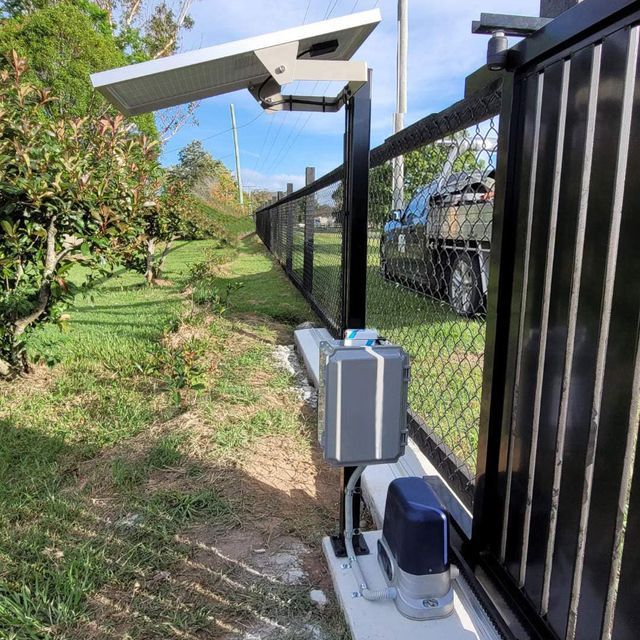

product display
Smart circuit board automatic 1200kg android electric door opener
PYM A2201
PYM A2202
PYM A2203
PYM A024
Rated voltage
220V±10%/110V±10%
50Hz/60Hz
220V±10%/110V±10% 50HZ/60HZ
220V±10%/110V±10% 50HZ/60HZ
220V±10%/110V±10% 50HZ/60HZ
Maximum Loading Weight
600 kg
800 kg
1300 kg
500 kg
Gear modulus
m=4
m=4
m=4
m=4
opening/closing speed
12m/min
12m/min
12m/min
15m/min
electric motor
220VAC/110VAC
220VAC/110VAC
220VAC/110VAC
24V DC
Motor rated power
200W
280W
380W
120W
output speed
50 rpm ±10%
50 rpm ±10%
50 rpm ±10%
50 rpm ±10%
Output torque (Nm)
16.8-32 Nm
16.8-32 Nm
16.8-32 Nm
16.8-32 Nm
limit switch
Spring/Magnetic
Spring/Magnetic
Spring/Magnetic
Spring/Magnetic
Operating temperature
-20℃~+55℃
-20℃~+55℃
-20℃~+55℃
-20℃~+55℃

Specification:

1. Fully integrated electromechanical system (frame not included).
2. The control board interface of the shock-proof infrared photocell is optional.
3. It can be connected with flashlight, keyboard and electric lock, etc.
4. Automatic delay off.
5. Resistance sensitivity is adjustable.
6. When encountering an obstacle, the door automatically stops and reopens.
7. Wireless remote control or wired remote control is optional.
8. 24VDC sliding door opener can connect transformer and backup battery.








internal picture

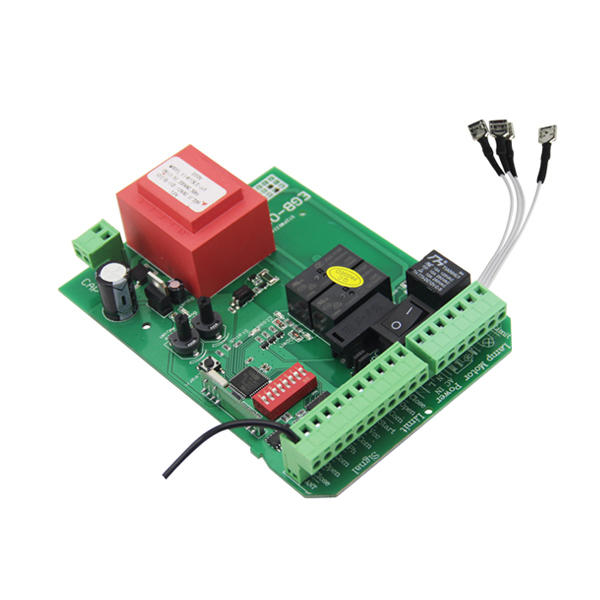

control panel
Model
EGB-02
Voltage
220V/110V
modulation
ask
frequency
433.92Mhz
motherboard memory
50 remote controls
The output voltage
AC 24V

Function

Cyclic single-key control/three-key control optional
Alarm light interface
Adjustable automatic shutdown time
pedestrian mode
apartment model
Limit switch NC/NO optional
Photocell NC/NO optional
Switching power on/off button on board
Turn motor sensitivity settings on and off individually
Terminals are open only and closed only for external control equipment.
Adjustable resistance sensitivity
The door automatically stops and reopens when an obstacle is encountered
