High Speed ​​Premium Elevated Industrial Door Opener

Product Detail

Shaft diameter:25.4 mmAfter-sales service:Online technical support, return and exchange
design style:modernOutput speed:24 turns
Project solution ability:overall project solutionMaximum door opening:40 square meters
Supply capacity:1500 sets per monthstrength:400V /3~ 50-60Hz
Protection factor:Protection class 54brand:OK
type:automatic door operatorapplication:hotel
Output torque:140 Newtonspayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
model:SD-140Operating temperature:-20℃ ~ 60℃
Limit switch:Electronic model (encoder)Motor Power:0,55 kW
Warranty:1 yearOrigin:Kayseri, Turkey
port:Mersin
Product Description

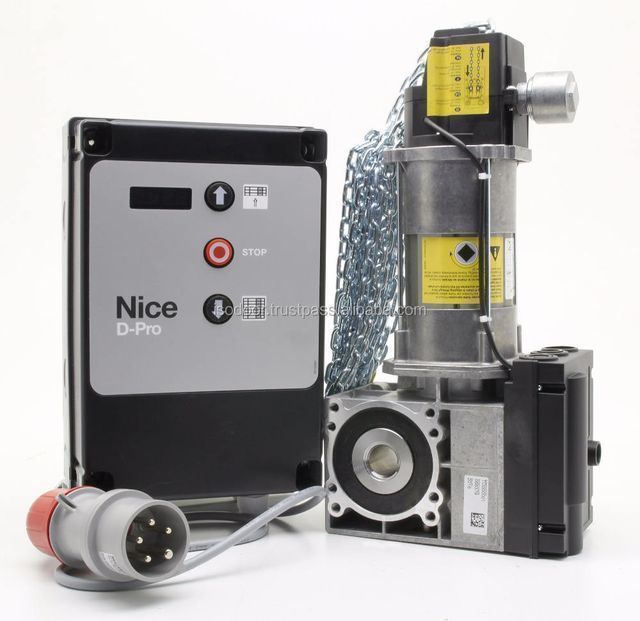

(includes D-PRO control panel)
Shaft diameter: 25,4 mm max. Torque: 140 N
maximum. Door size: 45 m²
Output speed: 24 Rpm - Motor power: 0,55 KW
Working voltage: 400V /3~
Frequency: 50 Hz - max. Current: 2A
Control Voltage: 24 V - Motor Cycle: S3-60% ED
Operating temperature: -20 /+60 °C
Protection factor: IP 54
strong-mute-tune encoder
The photoelectric laser safety system is included in the package.
You can do it manually using the caraskal system.
The length of the chain is 4 x 2 = 8 meters.



main feature
Unique brakes are provided to accurately stop the door.
In the event of a power outage, the release device allows the door to be opened and closed manually.
Thermal Protection.
Protection class: IP54
Excellent zero-grade grease ensures quiet and stable operation, suitable for cold regions.
Mechatronics.
Terminals for remote controls, buttons, pressure sensors, and infrared photocells.
Conforms to the industry standard of "Commercial Segmented Door Crane" in Turkey







Packaging and Shipping









our service



  • Low MOQ: One set is available for convenient to check our quality first.
  • Good Quality: Your customers are satisfied with our quality. You can gain a good reputation from your market and get more orders.
  • Good service: Our professional pre-sales and after-sales service.
  • reasonable price
  • Fast and cheap delivery: We get great discounts from our freight forwarders (long-term contracts).
  • Welcome OEM
