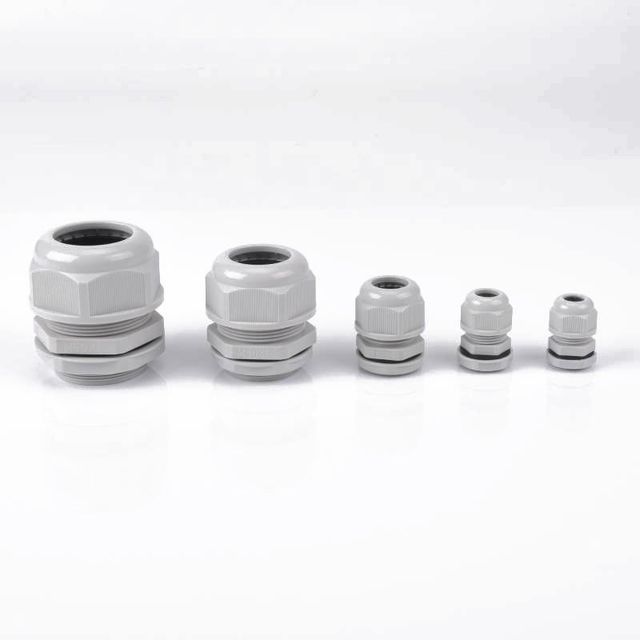

FREE Sample IP68 Waterproof Nylon Metric Cable Gland All Types M12 M16 M20 M25 M32 M40 M50 M63
-
$0.12 / 1000 - 4998 pieces
$0.11 / 4999 - 99998 pieces
$0.10 / 99999 - 999998 pieces
$0.01 / >=999999 pieces - 1000 pieces
- Rongwei Electric Co., Ltd.
- Zhejiang, China
- Mr Lin

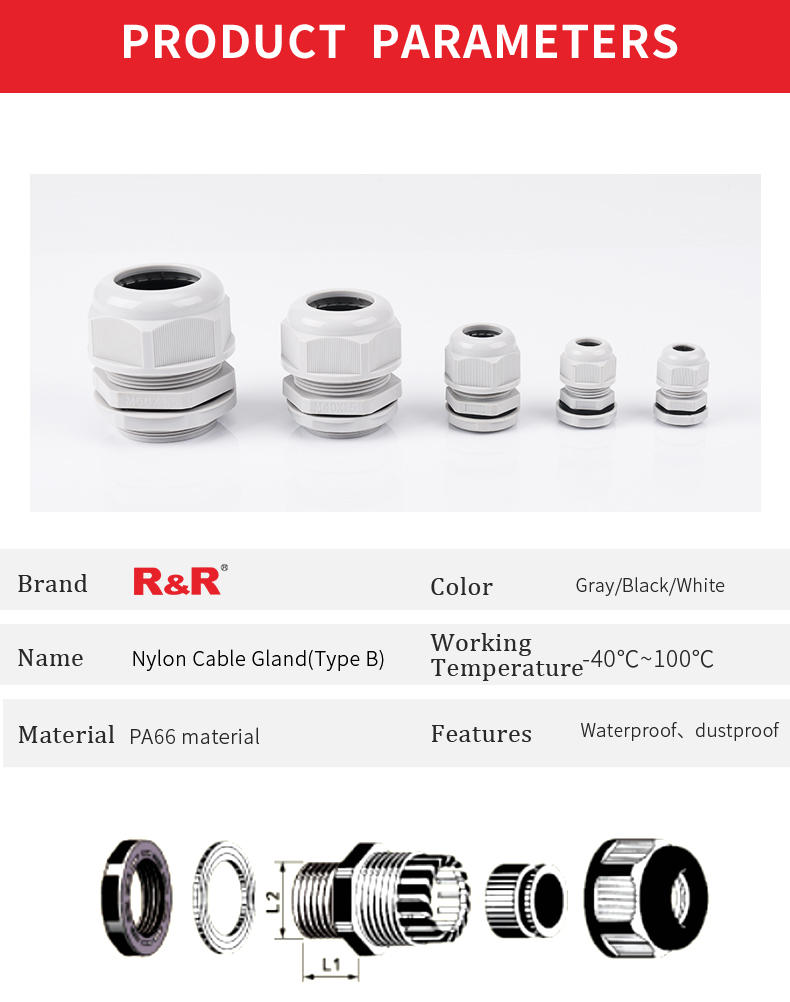

Product Detail
| payment terms: | wire transfer | Supply capacity: | 100000 boxes per day |
| Origin: | Zhejiang, China | model: | RNB,RNB |
| port: | Ningbo | Protection class: | IP68 |
| Operating temperature: | -40℃~100℃ | Function: | Cable Connector |
| size: | Metric, NPT, PG, G | color: | white |
| brand: | recuperate | Material: | nylon |
| product name: | PG cable gland |
Tel: +86 18005878000 Manager: Mr. Chen
Email: [email protected] Website: chinarongwei.en.alibaba.co

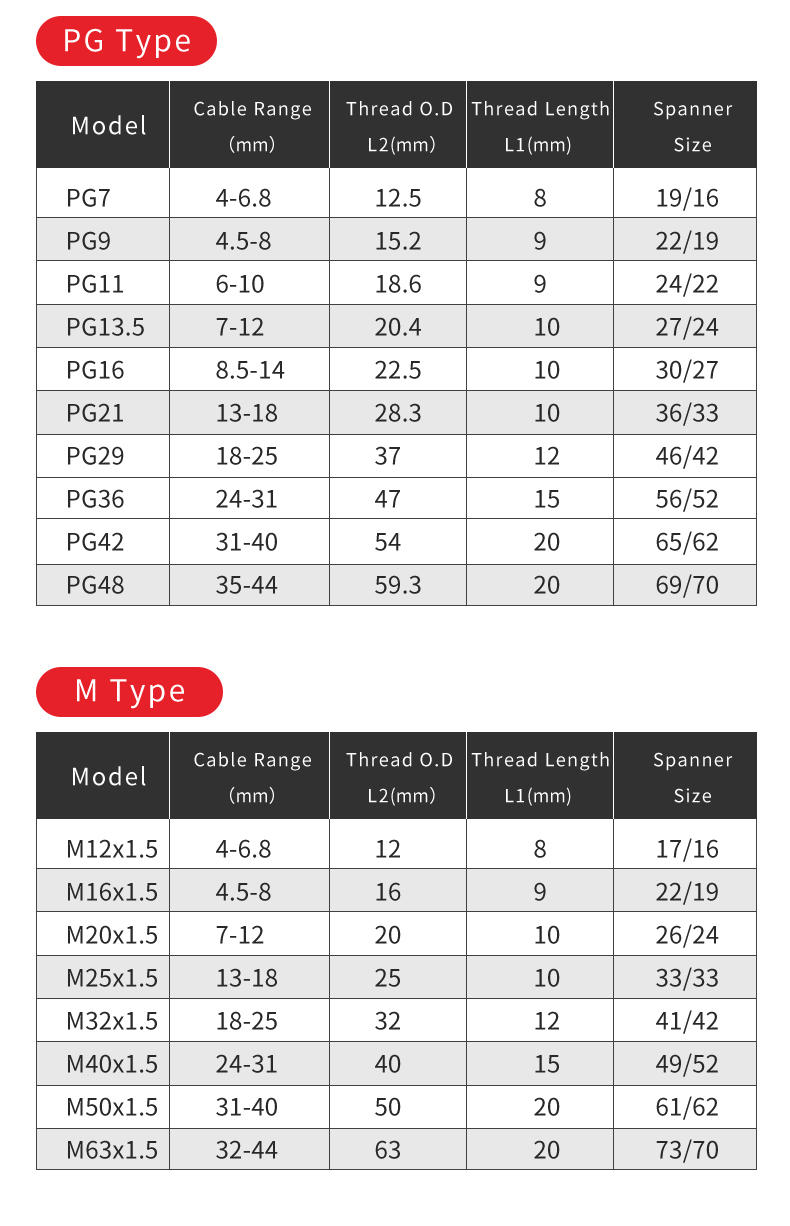

Part Number | Wire size | cable range (mm) | Thread outer diameter (mm) | Thread length length (mm) | Wrench size A & E (mm) | Quantity/bag |
RNB-PG7 | PG7 | 4~6.8 | 12.5 | 8 | 19/16 | 100 |
RNB-PG9 | PG9 | 4.5~8 | 15.2 | 9 | 22/19 | 100 |
RNB-PG11 | PG11 | 6~10 | 18.6 | 9 | 24/22 | 100 |
RNB-PG13.5 | PG13.5 | 7~12 | 20.4 | 10 | 27/24 | 100 |
RNB-PG16 | PG16 | 8.5~14 | 22.5 | 10 | 30/27 | 100 |
RNB-PG21 | PG21 | 13~18 years old | 28.3 | 10 | 36/33 | 100 |
RNB-PG29 | PG29 | 18~25 years old | 37 | 12 | 46/42 | 50 |
RNB-PG36 | PG36 | 24~31 years old | 47 | 15 | 56/52 | 20 |
RNB-PG42 | PG42 | 31~40 years old | 54 | 20 | 65/62 | 20 |
RNB-PG48 | PG48 | 35~44 years old | 59.3 | 20 | 69/70 | 20 |
Part Number | Wire size | cable range (mm) | Thread outer diameter (mm) | Thread length length (mm) | Wrench size A & E (mm) | Quantity/bag |
RNB-M12 | M12x1.5 | 4~6.8 | 12 | 8 | 17/16 | 100 |
RNB-M16 | M16x1.5 | 4.5~8 | 16 | 9 | 22/19 | 100 |
RNB-M20 | M20x1.5 | 7~12 | 20 | 10 | 26/24 | 100 |
RNB-M25 | M25x1.5 | 13~18 years old | 25 | 10 | 33/33 | 100 |
RNB-M32 | M32x1.5 | 18~25 years old | 32 | 12 | 41/42 | 50 |
RNB-M40 | M40x1.5 | 24~31 years old | 40 | 15 | 49/52 | 20 |
RNB-M50 | M50x1.5 | 31~40 years old | 50 | 20 | 61/62 | 20 |
RNB-M63 | M63x1.5 | 32~44 years old | 63 | 20 | 73/70 | 20 |
Part Number | Wire size | cable range (mm) | Thread outer diameter (mm) | Thread length length (mm) | Wrench size A & E (mm) | Quantity/bag |
RNB-NPT1/4'' | NPT1/4” | 4~6.8 | 13.7 | 15 | 19/16 | 100 |
RNB-NPT3/8'' | NPT3/8” | 4.5~8 | 17.1 | 15 | 22/19 | 100 |
RNB-NPT1/2'' | NPT 1/2" | 7~12 | 21.3 | 15 | 26/24 | 100 |
RNB-NPT3/4'' | NPT3/4” | 13~18 years old | 26.6 | 15 | 33/33 | 100 |
RNB-NPT1'' | NPT1" | 18~25 years old | 33.5 | 17 | 41/42 | 50 |
RNB-NPT1 1/4'' | NPT1"1/4 | 24~31 years old | 42 | 18 | 49/52 | 20 |
RNB-NPT1 1/2'' | NPT1"1/2 | 31~40 years old | 48 | 20 | 56/62 | 20 |
RNB-NPT2'' | NPT2" | 32~44 years old | 60 | 20 | 70/70 | 20 |
Part Number | Wire size | cable range (mm) | Thread outer diameter L2 (mm) | Thread length L1 (mm) | Wrench size A & E (mm) | Quantity/bag |
RNB-G1/4'' | G1/4" | 4~6.8 | 13.1 | 8 | 19/16 | 100 |
RNB-G3/8'' | G3/8" | 4.5~8 | 16.6 | 9 | 22/19 | 100 |
RNB-G1/2'' | G1/2" | 7~12 | 20.9 | 10 | 27/24 | 100 |
RNB-G3/4'' | G3/4" | 13~18 years old | 26.4 | 10 | 33/33 | 100 |
RNB-G1'' | G1" | 18~25 years old | 33.2 | 12 | 41/42 | 50 |
RNB-G1'' | G1"1/4 | 24~31 years old | 41.9 | 15 | 49/52 | 20 |
RNB-G1'' | G1"1/2 | 31~40 years old | 48 | 20 | 56/62 | 20 |
RNB-G2'' | G2" | 32~44 years old | 60 | 20 | 70/70 | 20 |
FAQ
Q: Is OEM available? A: Yes, OEM and customization are available. Also, we can provide label printing service. Q: Are samples available? A: Free samples are provided, freight collected. Q: What's your payment terms? A: T/T, L/C, D/A, D/P, Paypal for different situations. Q: What is your delivery method? A: Express, air, sea are available according to your requirements. Q: What's your delivery time? A: The usual delivery time is 5-10 days after receiving your advance payment; for customized products, 15-30 days after receiving your advance payment.
