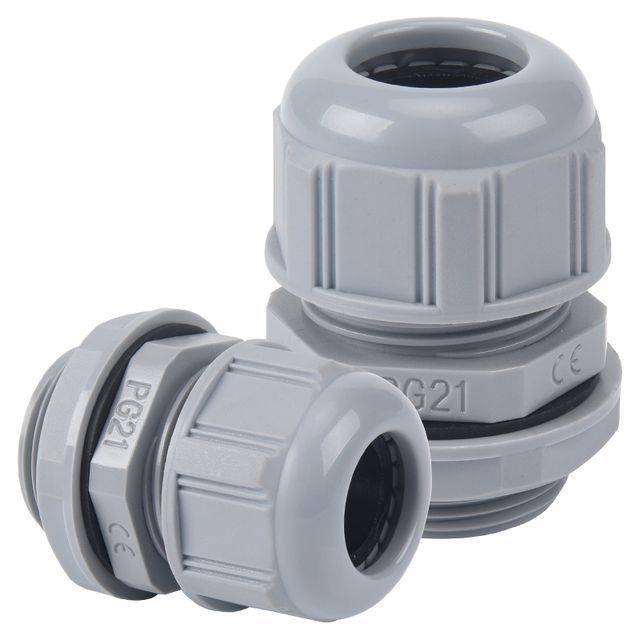

R&R Free Sample Gray Pg Series Waterproof Cable Connector Wire Gland IP68 Safety Nylon RNS Cable Gland with Lock Nut for Network
-
$0.10 / 100 - 9999 pieces
$0.08 / 10000 - 99999 pieces
$0.06 / >=100000 pieces - 100 pieces
- Rongwei Electric Co., Ltd.
- Zhejiang, China
- Mr Lin
Product Detail
| Wire: | 18-25 | Function: | Keep wires safe |
| place of origin; place of origin: | Zhejiang, China, Zhejiang, China | Protection class: | IP68 |
| size: | 2.0*20 | model: | Navigation System |
| Operating temperature: | Static: -40 ~100 | payment terms: | wire transfer |
| feature: | The sealing part firmly holds the cable | advantage: | Waterproof and dustproof |
| color: | white/black | product name: | PG cable gland |
| port: | Ningbo | brand: | Tolerance, R&R |
| Supply capacity: | 100000 boxes per day | Material: | nylon |
Tel: +86 18005878000 Manager: Mr. Chen
E-mail: [email protected] Website: chinarongwei.en.alibaba.co

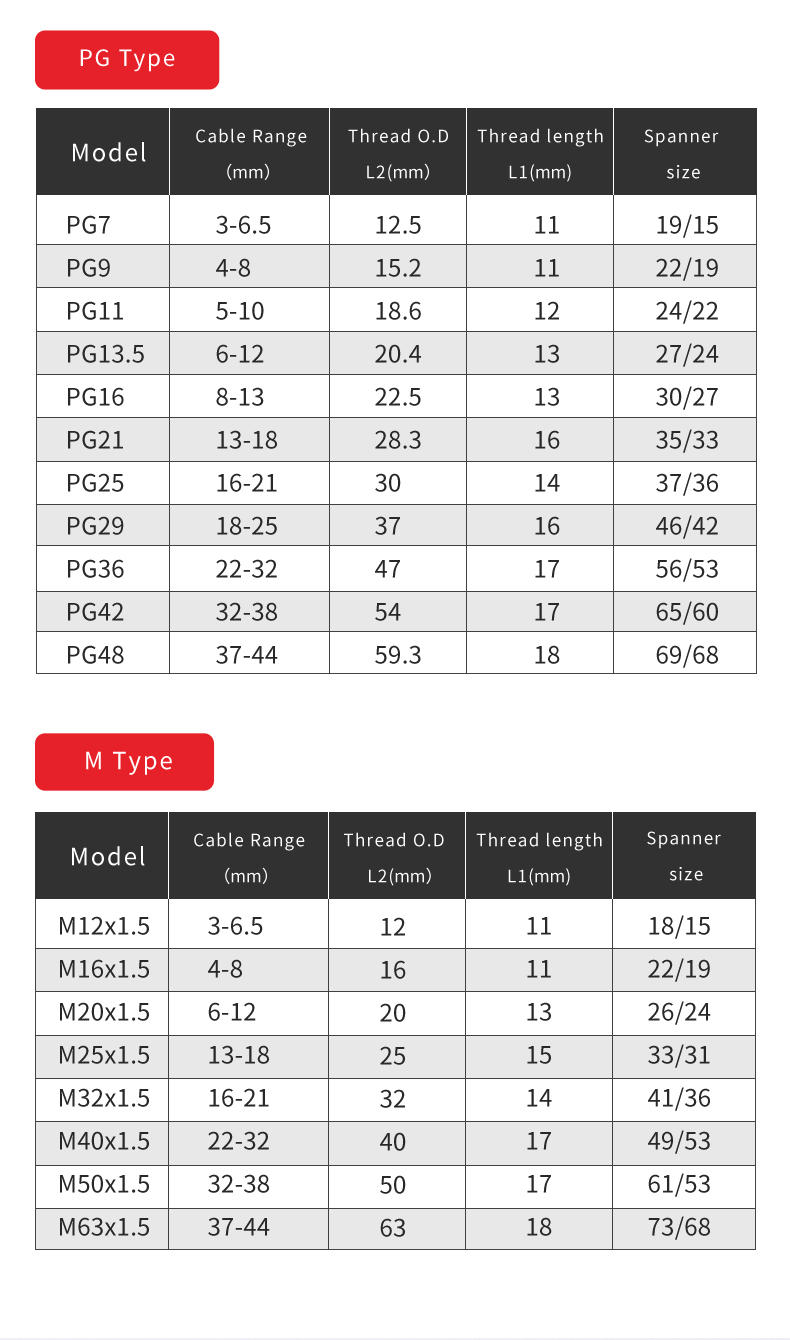

Part Number | Wire size | cable range (mm) | Thread outer diameter L2 (mm) | Thread length L1 (mm) | Wrench size A & E (mm) | Quantity/bag |
RNS-PG7 | PG7 | 3~6.5 | 12.5 | 11 | 19/15 | 100 |
RNS-PG9 | PG9 | 4~8 | 15.2 | 11 | 22/19 | 100 |
RNS-PG11 | PG11 | 5~10 | 18.6 | 12 | 24/22 | 100 |
RNS-PG13.5 | PG13.5 | 6~12 | 20.4 | 13 | 26724 | 100 |
RNS-PG16 | PG16 | 8~13 years old | 22.5 | 13 | 30/27 | 100 |
RNS-PG21 | PG21 | 13~18 years old | 28.3 | 16 | 35/33 | 100 |
RNS-PG25 | PG25 | 16~21 years old | 30 | 14 | 37/36 | 50 |
RNS-PG29 | PG29 | 18~25 years old | 37 | 16 | 46/42 | 50 |
RNS-PG36 | PG36 | 22~32 years old | 47 | 17 | 56/53 | 20 |
RNS-PG42 | PG42 | 32~38 years old | 54 | 17 | 65/60 | 20 |
RNS-PG48 | PG48 | 37~44 years old | 59.3 | 18 | 69/68 | 20 |
Part Number | Wire size | cable range (mm) | Thread outer diameter L2 (mm) | Thread length L1 (mm) | Wrench size A & E (mm) | Quantity/bag |
RNS-M12 | M12x1.5 | 3~6.5 | 12 | 11 | 18/15 | 100 |
RNS-M16 | M16x1.5 | 4~8 | 16 | 11 | 22/19 | 100 |
RNS-M20 | M20x1.5 | 6~12 | 20 | 13 | 26/24 | 100 |
RNS-M25 | M25x1.5 | 13~18 years old | 25 | 15 | 33/31 | 100 |
RNS-M32 | M32x1.5 | 16~21 years old | 32 | 14 | 41/36 | 50 |
RNS-M40 | M40x1.5 | 22-32 | 40 | 17 | 49/53 | 20 |
RNS-M50 | M50x1.5 | 32-38 | 50 | 17 | 61/53 | 20 |
RNS-M63 | M63x1.5 | 37~44 years old | 63 | 18 | 73/68 | 20 |
