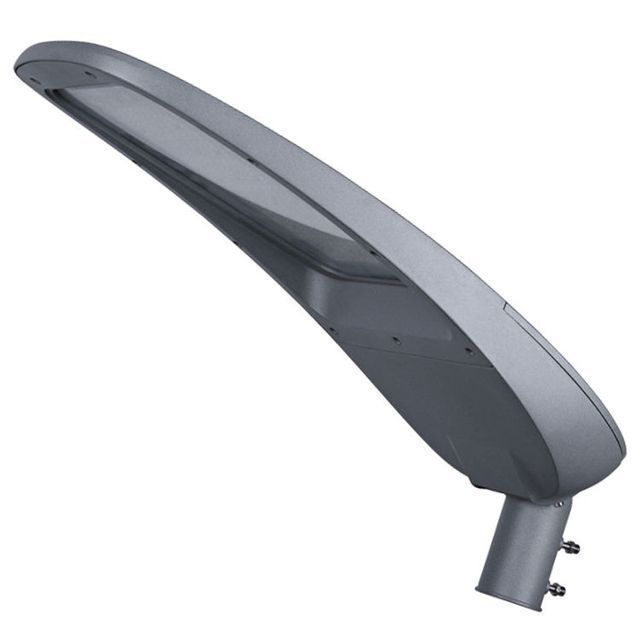

led module led street lamp assembly street lamp led shell
- $1.00 /piece
- 1 piece
- Shenzhen Koala Tech. Co., Ltd.
- Guangdong, China
- Ms Lisa Jin
Product Detail
| Beam angle: | 70*150 degrees | Surface treatment: | Brushed stainless steel |
| port: | Shenzhen | Power factor: | >0.95 |
| Lumen Efficiency: | 125 lumens/watt | type: | heat sink |
| shape: | square | brand: | KA-STC-100W |
| process: | die casting | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Certification: | CE, FCC, RoHS | Working humidity: | 10%-90% |
| LED light source: | Chip | application: | highway, street, garden, way |
| product name: | led module led street lamp assembly street lamp led shell | Package preview: | |
| Packaging Details: | One piece per box, 735*175*355, 7kg | Warranty (year): | 5 |
| Body material: | aluminum | place of origin; place of origin: | Guangdong, China |
| Key Features: | Both horizontal and vertical, adjustable angle -15° to 15° | Protection class: | IP67 |
| the color of car: | grey/black,gray | rated power: | 30W/40W/60W/80W/100W/150W/200W |
| Supply capacity: | 30000pcs manufacturer SMD COB 100w led street light housing per month |
Product Description
hot product
 |  |  |
 |  |  |
led module led street lamp assembly street lamp led shell
=== LED street light shell product features =====
| 1 | Stainless steel parts are used, the overall structure has been treated with protective technology, and has passed 500 hours of salt spray test. |
| 2 | IP66 rating. dust-proof |
| 3 | Anti-17 hurricane |
| 4 | Both horizontal and vertical, adjustable angle -15° to 15° |

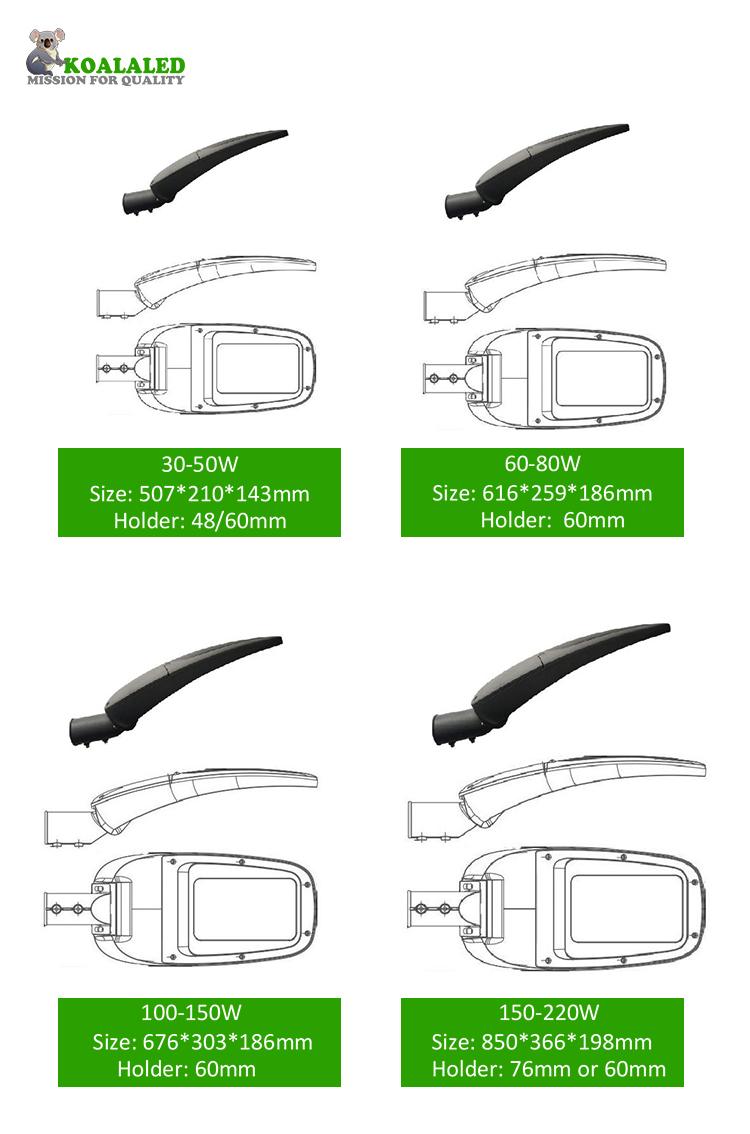

| 5 | 50mm 60mm two different street lamp sizes for customers to choose |
| 6 | Configure a variety of lenses, suitable for smd led 2835/3030/3535, etc. |
=== led street light shell product parameters ===
| Model | watt | Volt (V) | Current (mA) | LED light source | Number of LEDs | degree of protection | Series and parallel |
| KA-STC-30W | 30W | 36V | 750 | SMD 3030 | 36pcs | IP66 | 6P6S |
| KA-STC-50W | 50W | 36V | 1000 | SMD 3030 | 72pcs | IP66 | 12P6S |
| KA-STC-80W | 80W | 36V | 1500 | SMD 3030 | 96pcs | IP66 | 16P6S |
| KA-STC-100W | 100W | 36V | 2000 | SMD 3030 | 144PCS | IP66 | 24P6S |
| KA-STC150W | 150W | 36V | 2600 | SMD 3030 | 180PCS | IP66 | 30P6S |
| KA-STC-200W | 200W | 36V | 3800 | SMD 3030 | 240pcs | IP66 | 60P6S |

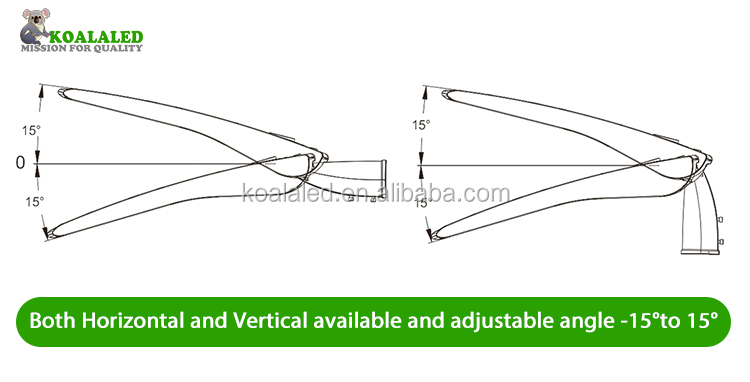

Both horizontal and vertical, adjustable angle -15° to 15°
