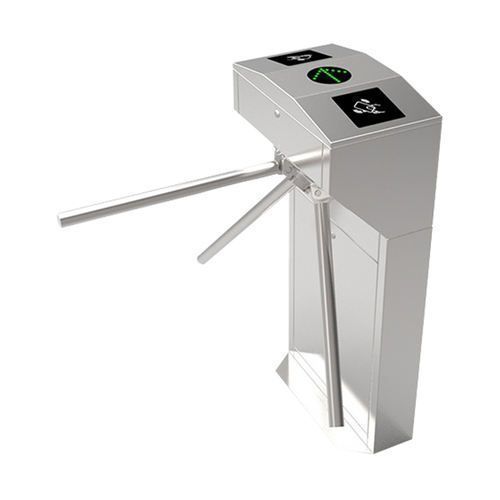

Compact revolving door vertical tripod turnstile RFID card access control tripod turnstile for pedestrians
-
$368.00 / 10 - 49 pieces
$298.00 / >=50 pieces - 10 pieces
- Shenzhen Karsun Access Technology Co., Ltd.
- Guangdong, China
- Mr vicky Luo
Product Detail
| application: | Buildings/schools/bus stops, etc. | aspect: | 420*330*1000mm |
| Packaging Details: | Foam + carton + seaworthy wooden box | motor: | DC24V/12V |
| model: | SGZ002C | working environment: | Indoor and outdoor |
| energy consumption: | 40W | Warranty: | 1 year |
| place of origin; place of origin: | Guangdong, China | Building materials: | 304 stainless steel.1.5mm |
| Package preview: | payment terms: | wire transfer | |
| product name: | Vertical triangle gate | Certificate: | CE certification |
| Communication Interface: | RS232/RS485 | brand: | Jiashun / Jiashun |
Product Description

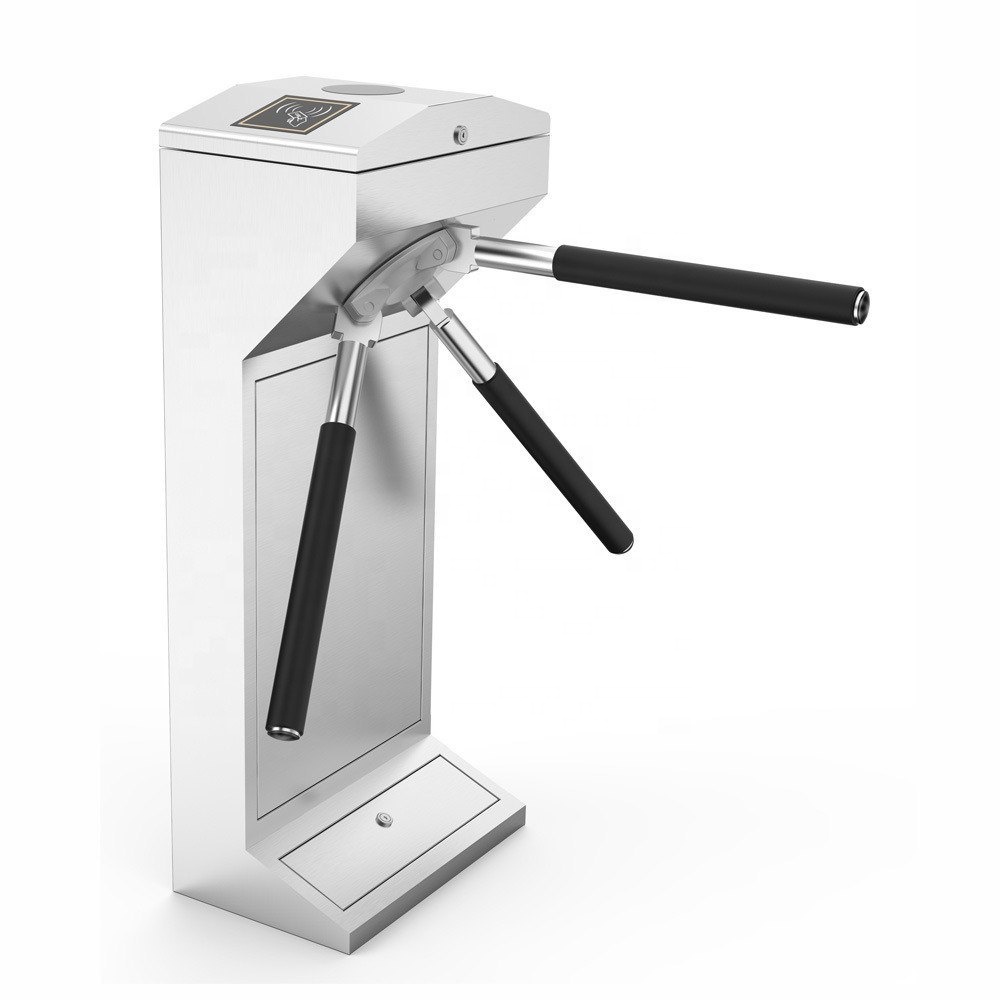

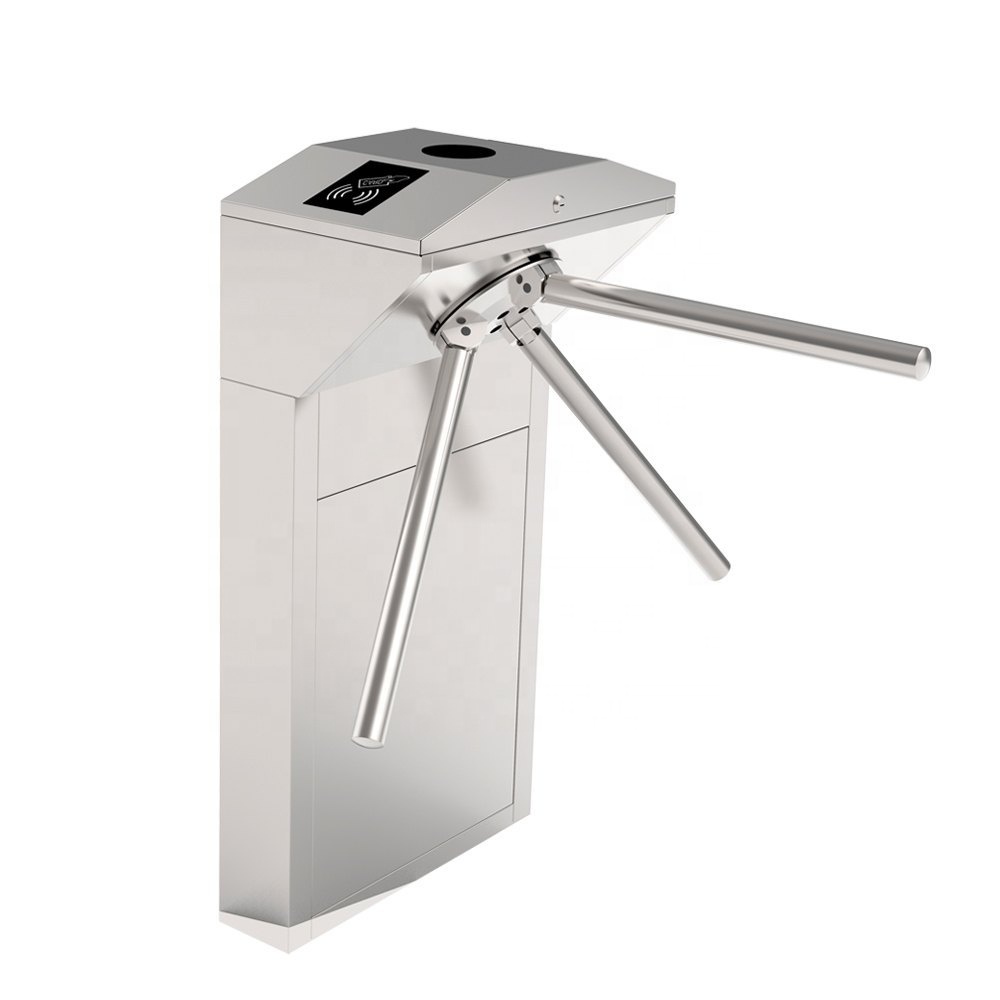

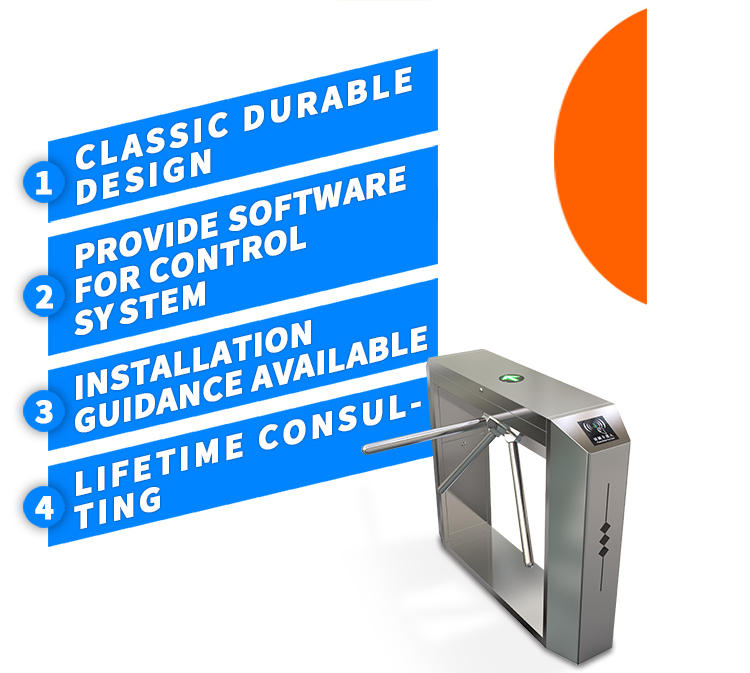

Vertical triangle gate
Kelshun triangular gate is an efficient pedestrian entrance and exit control equipment
The vertical tripod gate has a small footprint and is suitable for narrow spaces with a throughput of 35-45p/m. High-quality stainless steel 304 (316/paint optional) is used to provide orderly and civilized access to pedestrians, prevent illegal passage, and quickly control the arm or raise the arm in an emergency. With standard electrical interface, card readers such as barcode cards, ID cards, and IC cards can be easily integrated into the device, providing civilized and orderly access for pedestrians, and preventing unauthorized personnel from entering. In addition, the system is specially designed to meet the fire protection requirements, to ensure that the passage is unimpeded, and to facilitate the timely evacuation of pedestrians in emergency situations.
product specification
Model | JS-SGZ002C |

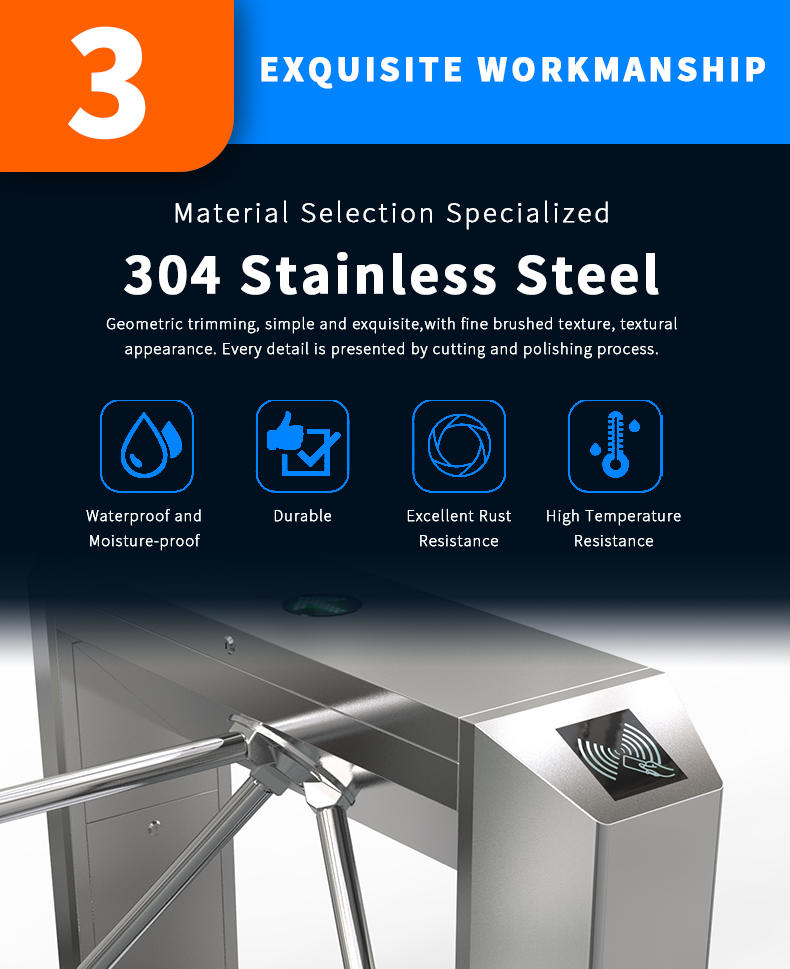

case material | stainless steel 304 |
tripod material | Stainless steel 304+ casing |
production process | CNC laser cutting |
size | 420*330*980mm |
power input | AC100-240V, 50/60HZ |
Operating Voltage | DC24V, 3A, power: 40W |
Electromagnetic | Duty cycle 100% |
barrier arm length | 510mm |
The maximum exerted force of the arm | 45Kg |
arm operating force | 3 kg |
direction of travel | two-way traffic control |
Throughput | 30-40 people/minute |
operating hours | 0.2 seconds |
Automatic reset function | Automatically lock within a set time (adjustable) |
Working humidity | 0~95% (no freezing) |
operating temperature | -15℃~+60℃ |
operating environment | Indoor and outdoor |
degree of protection | IP45 |
Communication Interface | RS232/485 |
MCBF | 5,000,000 cycles |
product display
