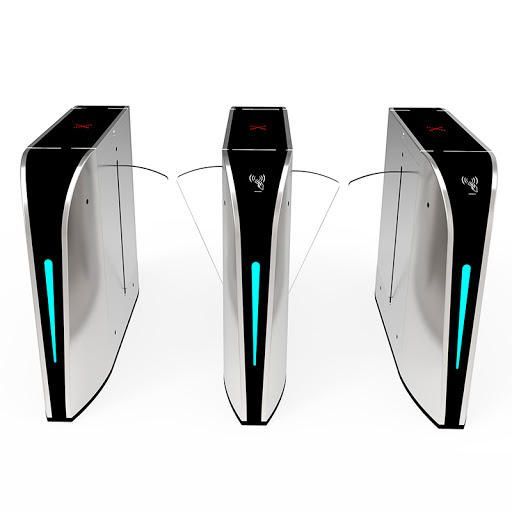

A new upgraded version of the safety gate mechanism flap gate gate
-
$480.00 / 1 - 19 sets
$460.00 / 20 - 99 sets
$420.00 / >=100 sets - 1 set
- Shenzhen Zento Traffic Equipment Co., Ltd.
- Guangdong, China
- Ms Gina Li
Product Detail
| Open shipping speed: | 30-45 people per minute | Packaging Details: | Carton/wooden box |
| Package preview: | Origin: | Guangdong, China | |
| Turn off shipping speed: | 25-30 beats per minute | Communication Interface: | RS485, distance≤1200m |
| model: | ZT-969A | payment terms: | L/C, D/P, T/T, MoneyGram |
| aspect: | 1600*300*1000mm | rated power: | 120W |
| LED indicators: | one | Card reader window: | two |
| power supply: | AC 220V/110V±10% 50/60MHZ (optional) | Channel width: | 800 mm |

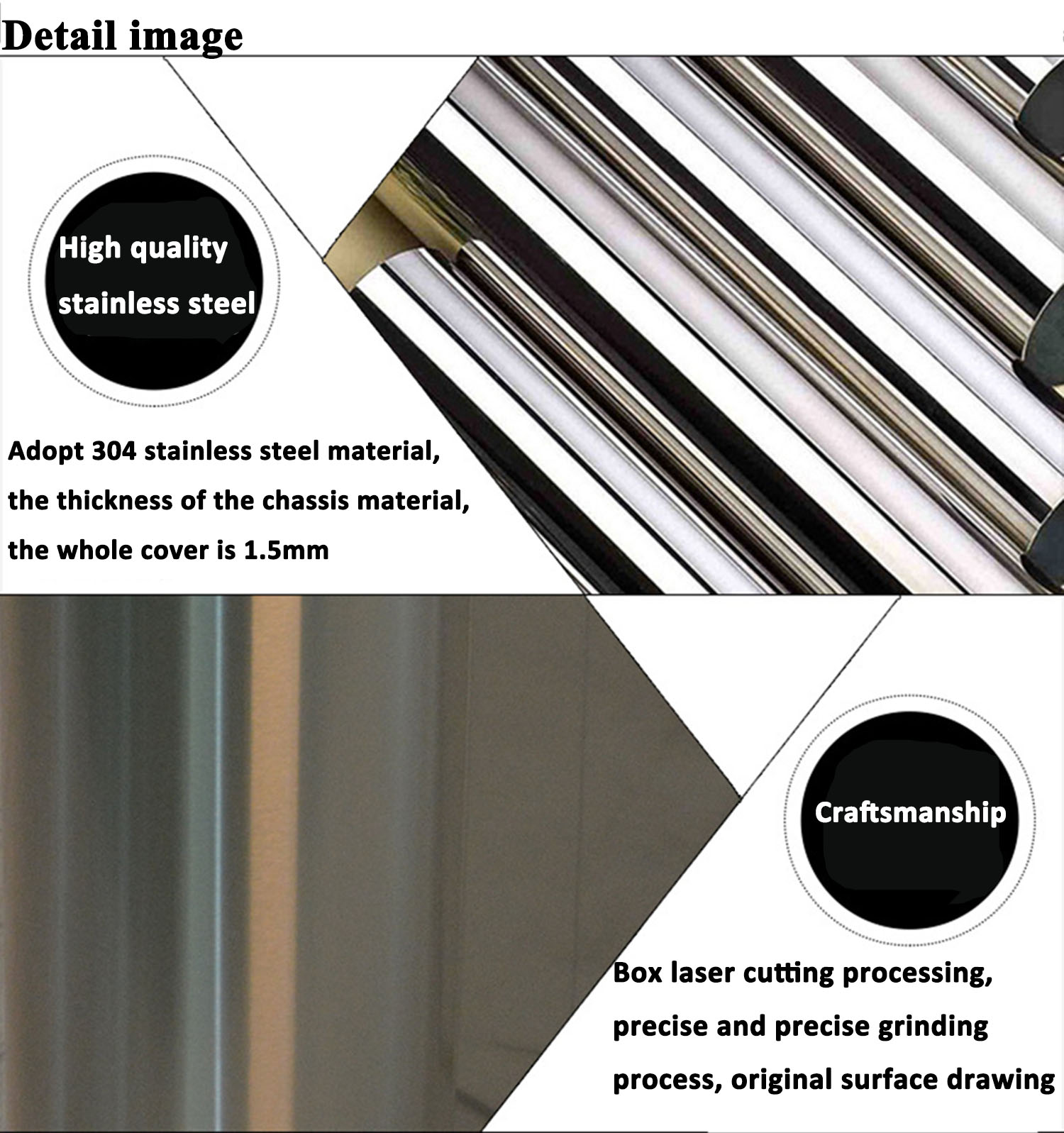

| brand: | uphold | frame: | 304 stainless steel |
| port: | Shenzhen | Supply capacity: | 100 groups per week |
Applications

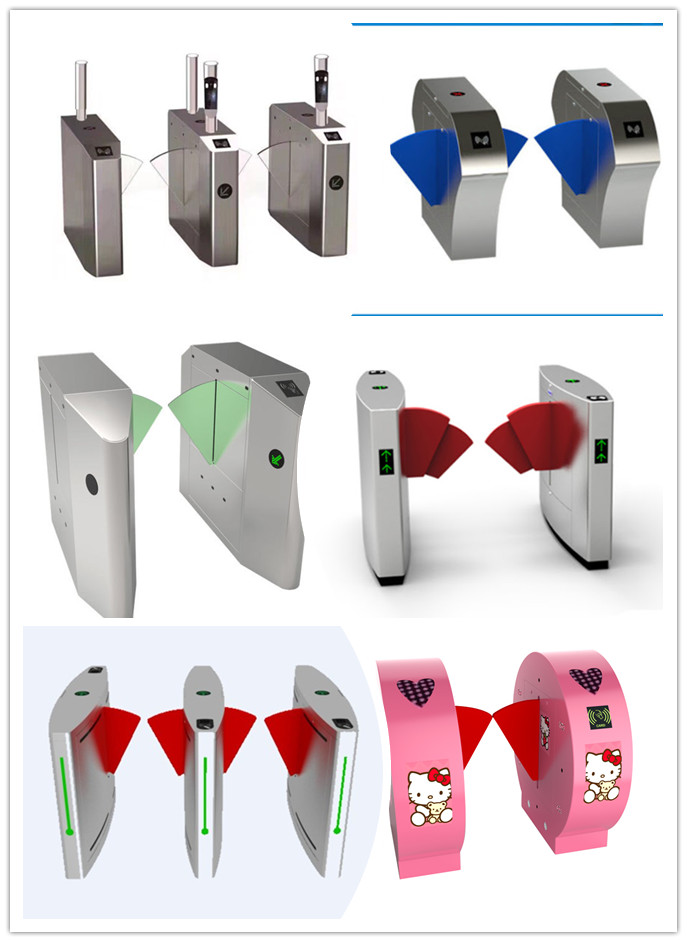

Luxurious smart wing gate - compatible with identification devices such as IC card, ID card, barcode card, fingerprint card reader, etc., for the staff to use, providing a civilized and orderly way of passage; effective management of staff access. Wing gates can be widely used in stations, docks, subways, factories, office buildings, hotels, clubs, intelligent communities, enterprises and institutions, etc. where intelligent access management is required.
frame | 304 stainless steel | ||||
aspect | 1200*300*980 mm | ||||
Operating Voltage | AC220V±10% 50HZ±10% | ||||
nuclear | DC24V solenoid valve | ||||
channel width | 600mm | ||||
Maximum carrying capacity | 50 kg | ||||
rated power | 120W | ||||
Operating temperature | -25℃～+60℃, relative humidity ≤90% | ||||
relative humidity | ≥90%RH | ||||
Communication Interface | RS485, distance≤1200m | ||||
power supply | AC 220V/110V±10% 50/60MHZ (optional) | ||||
Open shipping speed: | 30-45 people per minute | ||||
card window | 2 | ||||

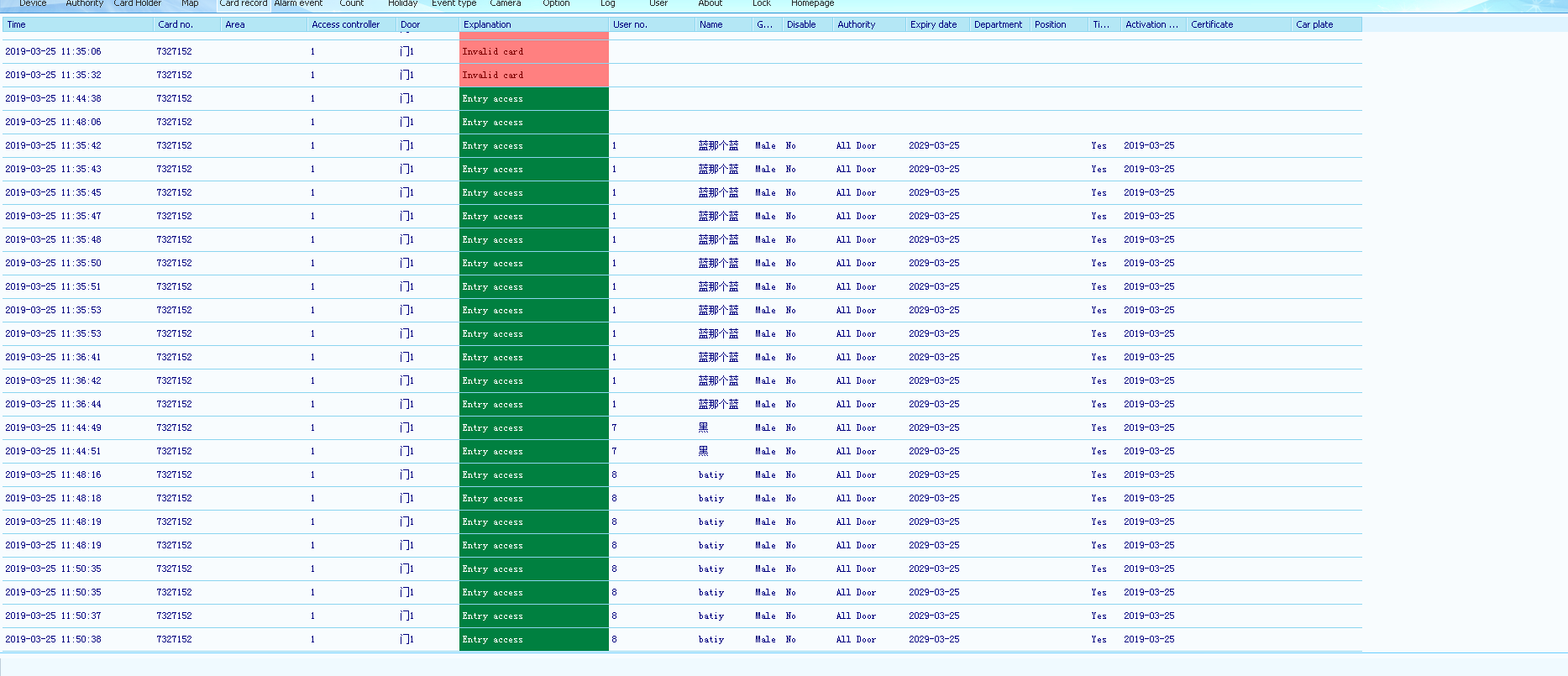

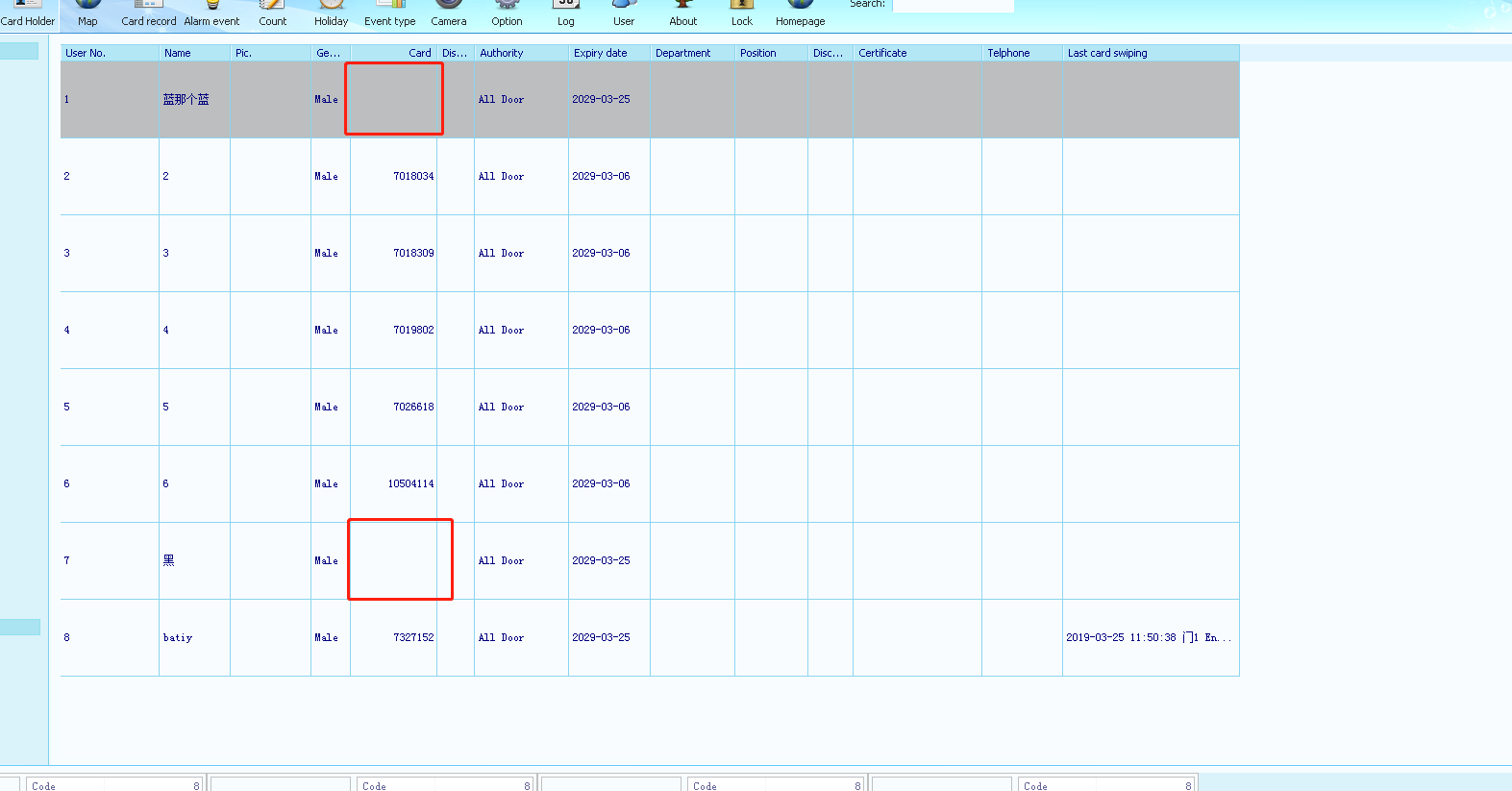

We have our own access control software, the system is stable, regular free update service, and has attendance function.

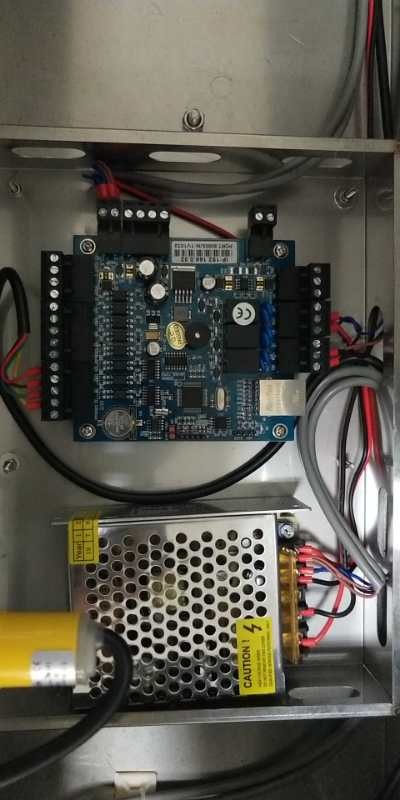

Smart Control Panel
main feature
Functions and Features | fully automatic | semi-automatic | manual |
1. Fault self-inspection and alarm reminder, convenient for maintenance and use | √ | x | x |
2. The operation mode can be set through the small button on the control panel | √ | √ | x |
3. How the arm reacts in an emergency | automatic drop | automatic drop | no movement |
4. How does the arm react after power on? | automatic rise | go up by hand | no movement |
5. Automatic reset. The right of way will be canceled if there is no passage within the set time, the default time is 10 seconds (0-60 adjustable) | √ | √ | x |
6. Compatible with access control system, consumer system, electronic ticketing system, biometric system, ESD system, etc. | √ | √ | x |
7. Unique positioning, automatic reset, one arm is always in a horizontal position | √ | √ | x |

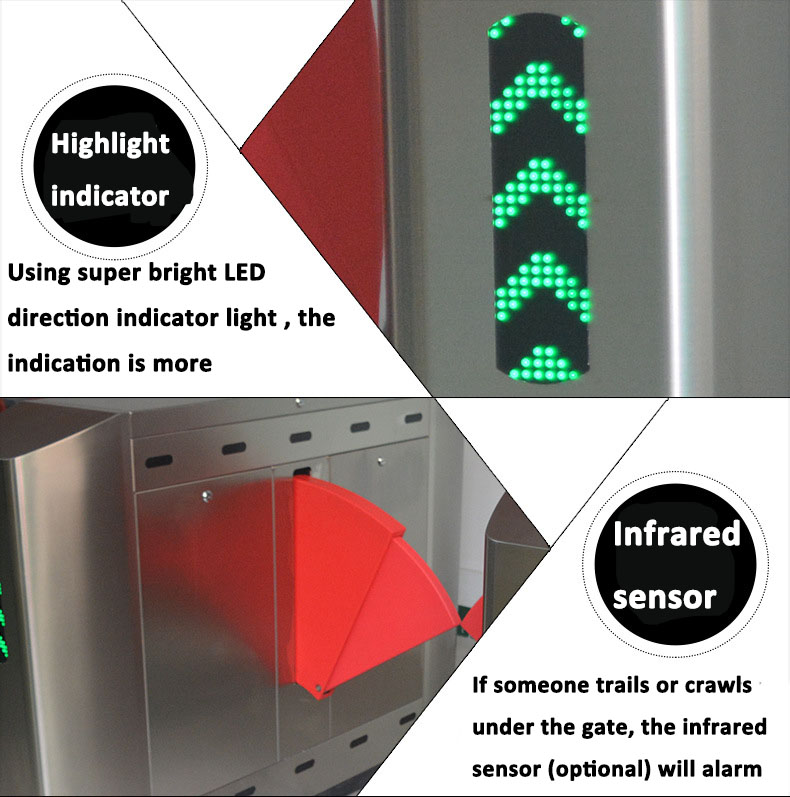

8. LED light indication | √ | √ | x |
9. When the open signal is issued, the arm rotates at a certain angle | √ | x | x |
10. How the arm reacts when someone walks by | auto rotate | push by hand | push by hand |
11. One-way or two-way flow control | √ | √ | manual adjustment |
12. Remote control and management directly with PC | √ | √ | x |
13. Two-way anti-reverse | √ | √ | x |
