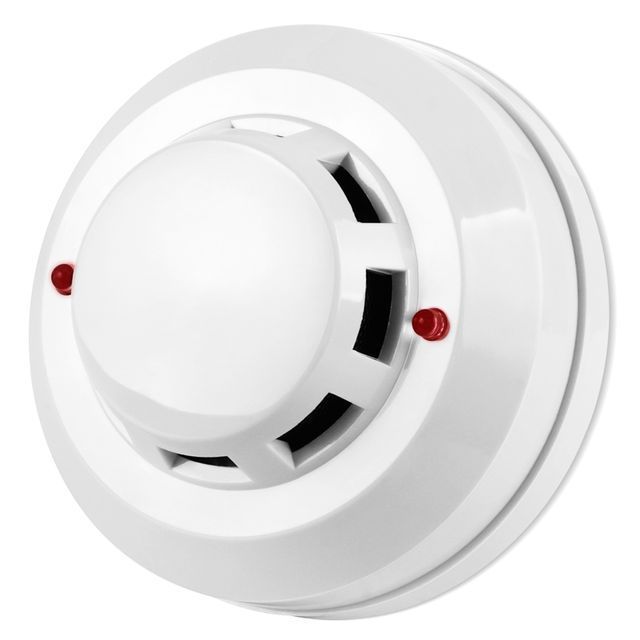

Factory Network High Quality Photoelectric Smoke Leak Detector 4 Wire Hard Wire Smoke Detector Smoke Alarm Sensor
- $3.00 / >=10 pieces
- 10 pieces
- Shenzhen Pushuntai Electronics Technology Co.,Ltd
- Guangdong, China
- Ms Helen Peng
Product Detail
| place of origin; place of origin: | Guangdong, China | port: | Shenzhen |
| Features: | Automatic/manual reset adjustable | brand: | Prosec/neutral/OEM brand |
| usage: | alarm system | Battery Life: | other |
| voltage: | DC 9V-35V | Material: | ABS flame retardant |
| special function: | Waterproof/weatherproof | Certification: | CE certification |
| Packaging Details: | Inner packing: Smoke detectors are individually packed in white box/Customized as required Outer packing: Standard Carton Quantity: 100pcs/Carton Gross Weight: 23kg/Carton Carton Size: 58*32*46cm | product name: | Photoelectric Smoke Detector |
| Supply capacity: | 10000 pieces per month | size: | 100*46mm |
| payment terms: | Western Union, T/T | electric wire: | 4 lines |

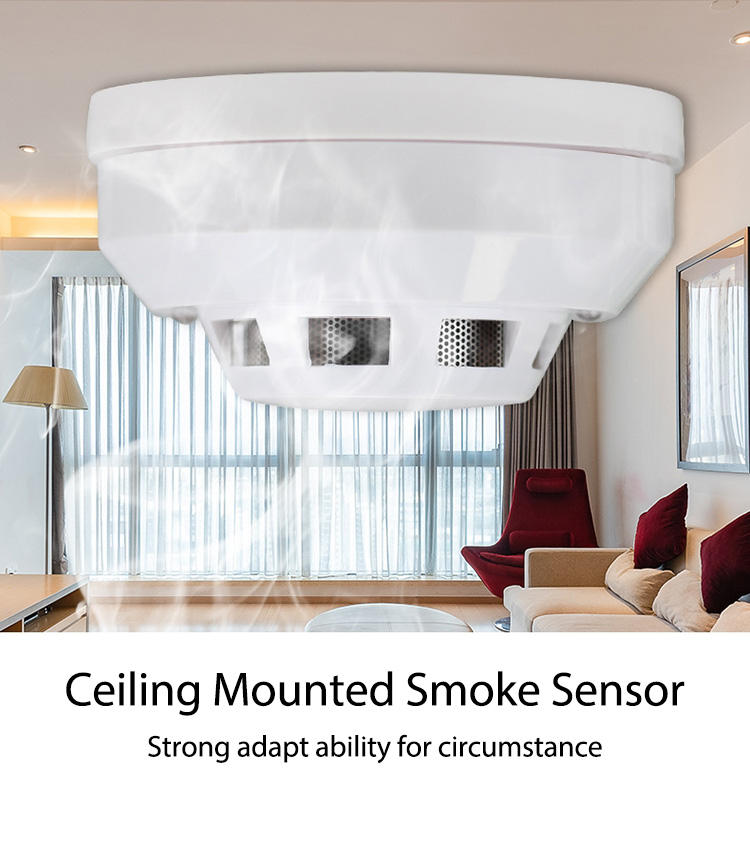

| Operating temperature: | -10℃~50℃ | Types of: | Ceiling type |
| model: | SD-901S | Alarm indication: | Red LED lights up |
Product Details
Types of:

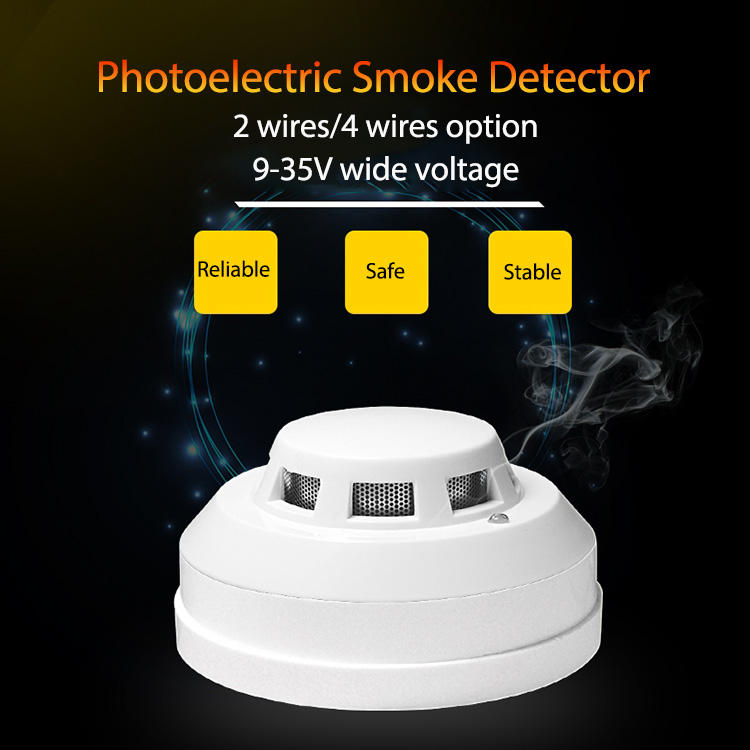

Photoelectric 4-wire smoke detector DC 9-35V networked smoke detector
Product Description:
Strong ability to adapt to the environment
SMT design, high stability
DC 9 to 35V wide voltage
Metal shielding, anti-radio frequency interference and anti-electromagnetic interference
SMT design, high stability
DC 9 to 35V wide voltage
Metal shielding, anti-radio frequency interference and anti-electromagnetic interference
low standby current
Power non-polarized input
blinking led power indicator
Alarm relay NC/NO selectable (4 wires)
Fireproof ABS material

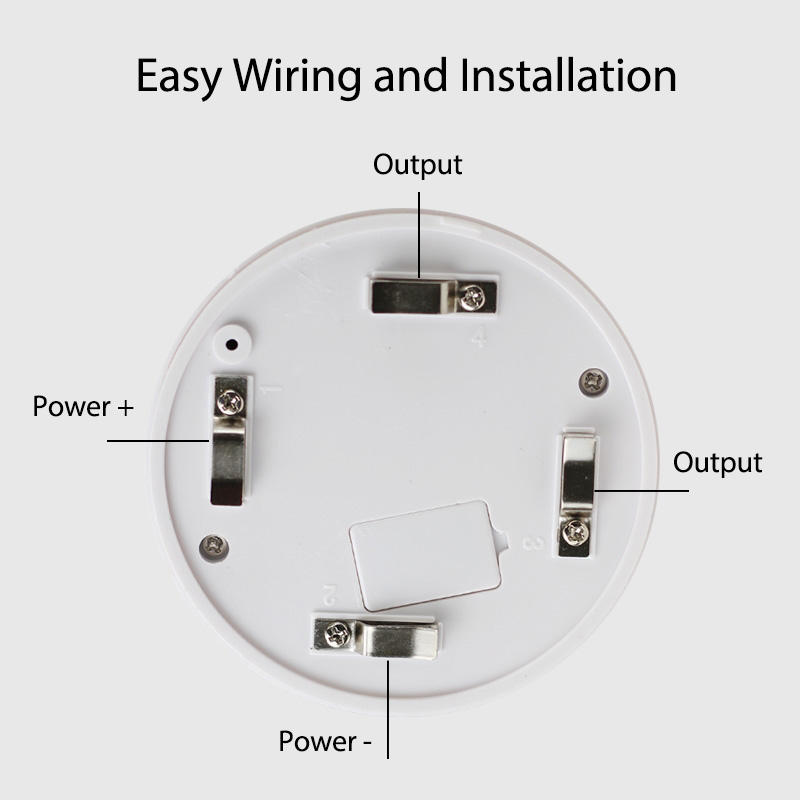

Mounting base for easy wiring and installation
Power non-polarized input
blinking led power indicator
Alarm relay NC/NO selectable (4 wires)
Fireproof ABS material
Mounting base for easy wiring and installation
feature:
NO/NC selectable
Compatible with any wired alarm panel
Compatible with any wired alarm panel
This photoelectric smoke detector detects smoke through several infrared diodes. When it is triggered, it will send a signal to the alarm panel, the red LED lights up and sounds to warn the end user in time.
Specification
product category | 2 lines | 4 lines | |
Operating Voltage | DC 9V-35V | ||
stand-by current | 55uA | 2mA (relay NO) 12mA (relay normally closed) | |
Alarm current | 18mA @12V 40mA @24V | 15mA (relay NO) 3mA (relay normally closed) | |
Alarm indication | Red LED lights up | ||
temperature range | -10℃~+50℃ | ||
Working humidity | 0%~95% RH (non-condensing) | ||
Alarm Output | remote indicator light | Relay output | |
contact rating | Not applicable | 0.5A @DC 58V | |
sensitivity | 0.15dB/m(±0.03dB/m) | ||

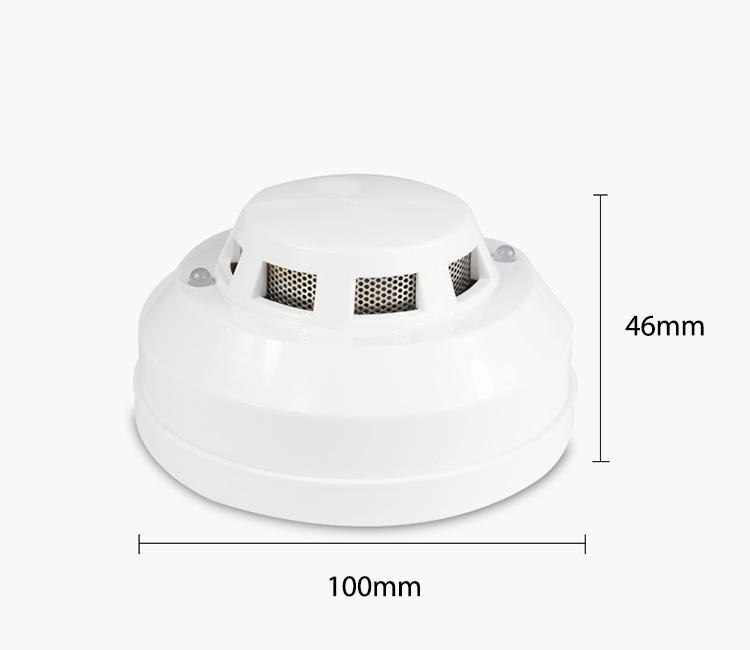

size | φ100*46mm | ||
