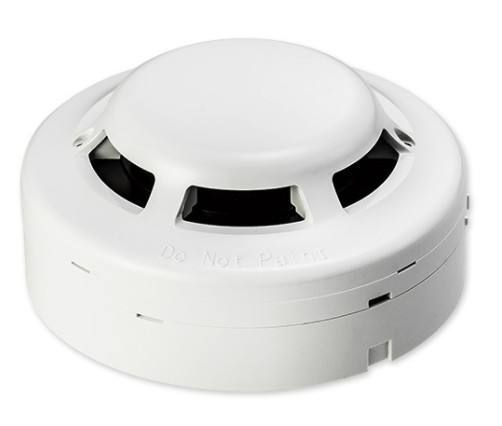

Q01 photoelectric smoke fire alarm
- $10.50 /piece
- 1 piece
- HORING LIH INDUSTRIAL CO., LTD.
- Taiwan, China
- Mr Henry Shaw
Product Detail
| Packaging Details: | Q01-2 2-wire detector: 100pcs/carton: NW 15.0 (KG) GW 20.0 (KG) | Sensitivity settings: | Conforms to EN54 |
| Battery Life: | wiring | Standby current @24V DC 470 ohms: | Less than 75 μA |

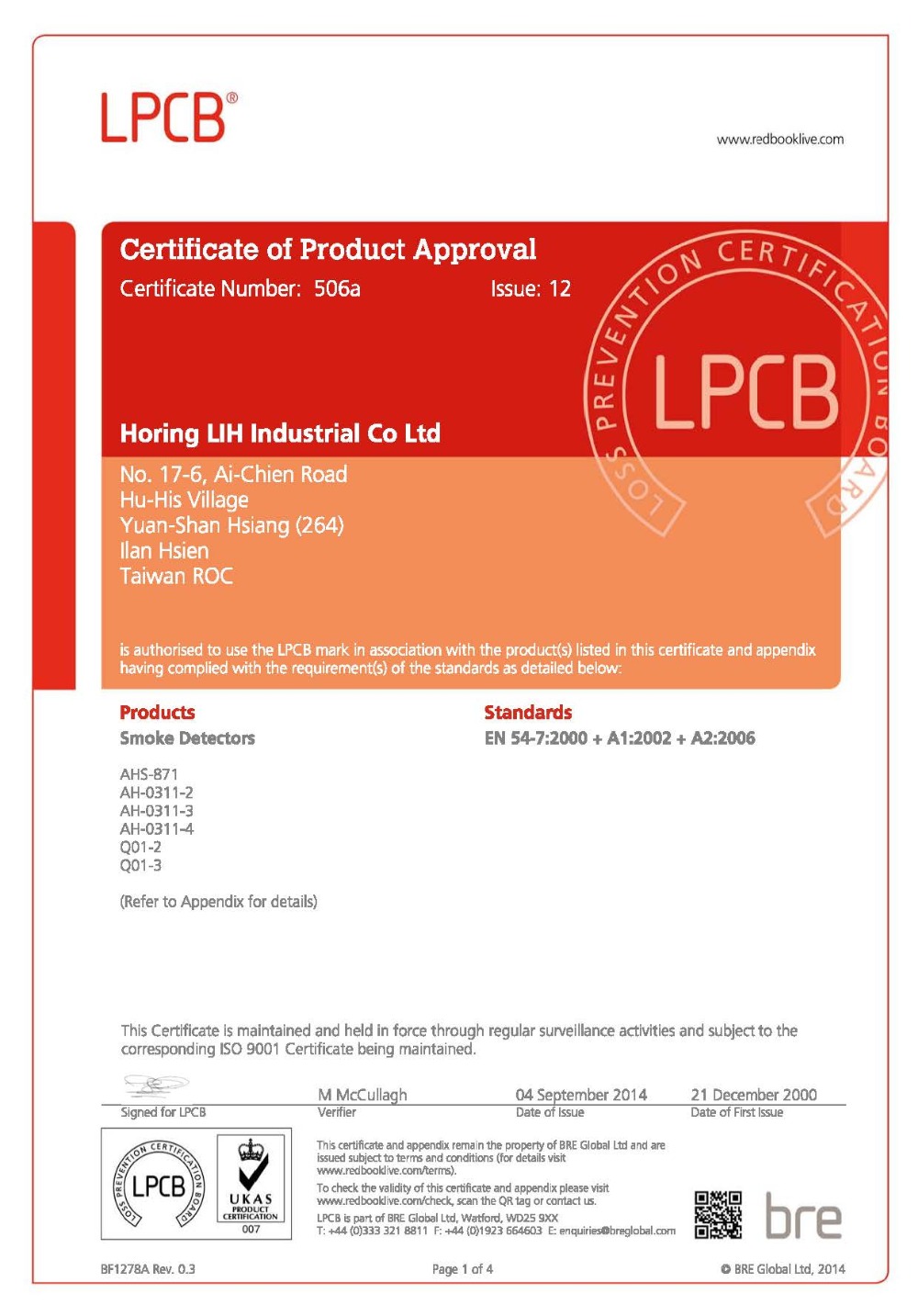

| port: | Any port in Taiwan | approve: | EN54 LPCB(506a) CE |
| place of origin; place of origin: | Taiwan, China | Model information: | Q01-2 / Q01-3 / Q01-4 |
| weight: | 130g/130g/145g | Material: | fireproof plastic |
| payment terms: | L/C, T/T | Ambient temperature: | -10℃ ~ +55℃ |
| brand: | HORING LIH or OEM brand are available | voltage range: | 12 ~ 30VDC |
| special function: | only smoke | Alarm current @24V DC 470 ohms: | 40mA/40mA/45mA |
| aspect: | 102mm(diameter) x 48mm(H) | model: | Q01-2 / Q01-3 / Q01-4 |
| Supply capacity: | 70000 pieces per month |
Q01 photoelectric smoke fire alarm
Product Description
EN Listed Conventional Photoelectric Smoke Detectors
feature
- Standard detectors are 2-wire or 3-wire. For 4-wire models just add a relay output module to the 3-wire base. Easy-to-use module placement allows for a wider range of applications and flexible inventory control.
- The detector is made of highly durable, strong, colorfast fire-resistant plastic.
- Lock screws on base terminals allow for easy installation.
- The detector has passed strict EMC tests, which greatly eliminates false alarms caused by near-source interference.
- Dual LEDs for 360 degree visibility. Dual-color LED, standby state: green; alarm state: red.
Specification
| Model |
Q01-2
|
Q01-3
|
Q01-4
|
| Alarm contact |
Not applicable
|
Not applicable
|
0.8A @30V DC |
| voltage range |
12 ~ 30V DC
|
||
|
Alarm current @24V DC 470Ω |
40mA
|
40mA
|
45 mA
|
|
stand-by current |
Less than 75μA
|
||
| Sensitivity setting |
Conforms to EN54
|
||
| ambient temperature |
-10°C ~ +55°C
|
||
| Material |
fireproof plastic
|
||
| aspect |
102mm(diameter) x 48mm(H)
|
||
| weight |
130 grams
|
130 grams
|
145 grams
|
| color |
white
|
||
our service
order information
Q01-2 2 wires
Q01-3 3-wire with remote indication output
Q01-4 4-wire with relay output
Effective alert area
| building height |
coverage area
|
| Below 4M |
150 meters2
|
| 4~20M | 75 meters2 |
