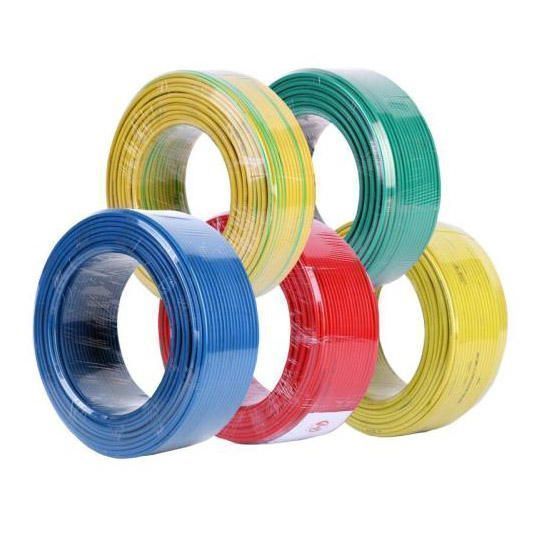

Special sale WDZ-BY WDZ-BYJ 300/500V insulated power cable

Product Detail

Rated temperature:150°CNumber of Conductors:2-6
Standard Voltage:300/500Vplace of origin; place of origin:Jiangsu, China
Conductor material:copper, tinned copperport:Shanghai
model:WDZ-BY WDZ-BYJ WDZN-BijCertified products:WDZ-BYJ wire
color:custom madeTypes of:high pressure
Test voltage:2000VSupply capacity:50000 meters per week
Insulation Materials:Polyethylene, XLPE/PVCjacket:XLPE
application:Recording studio, electronic circuit, etc.payment terms:L/C, Western Union, T/T
Why choose us
Product Description
WDZ-RYJ cable
Nominal voltage: 300/500V or 450/750V
Rated temperature: 150°C
Test: Non-PVC insulation (XL-PE), passed UL VW-1Vertical Flame Test.Halogen free XL-PE insulation, Horizontal Flame Test
application:
Suitable for home appliances, headlights, machinery, etc.
cross-sectional area
insulation
maximum resistance
(Ω/km, 20℃, DC)
minute insulation resistance
MΩ*km
Nominal thickness.
(mm)
The maximum diameter
(mm)
bare copper
tinned copper
0.5
0.6
2.7
36.0
36.7
0.014
0.75
0.6
2.8
24.5
24.8
0.014
1
0.7
3.1
18.1
18.2
0.013
1.5
0.7
3.4
12.1
12.2
0.011
2.5
0.8
4.2
7.41
7.56
0.009
4
0.8
4.8
4.61
4.7
0.0077
6
0.8
5.4
3.08
3.11
0.0070
10
1.0
6.8
1.83
1.84
0.0065
16
1.0
8.0
1.15
1.16
0.0050
25
1.2
9.8
0.727
0.734
0.0050

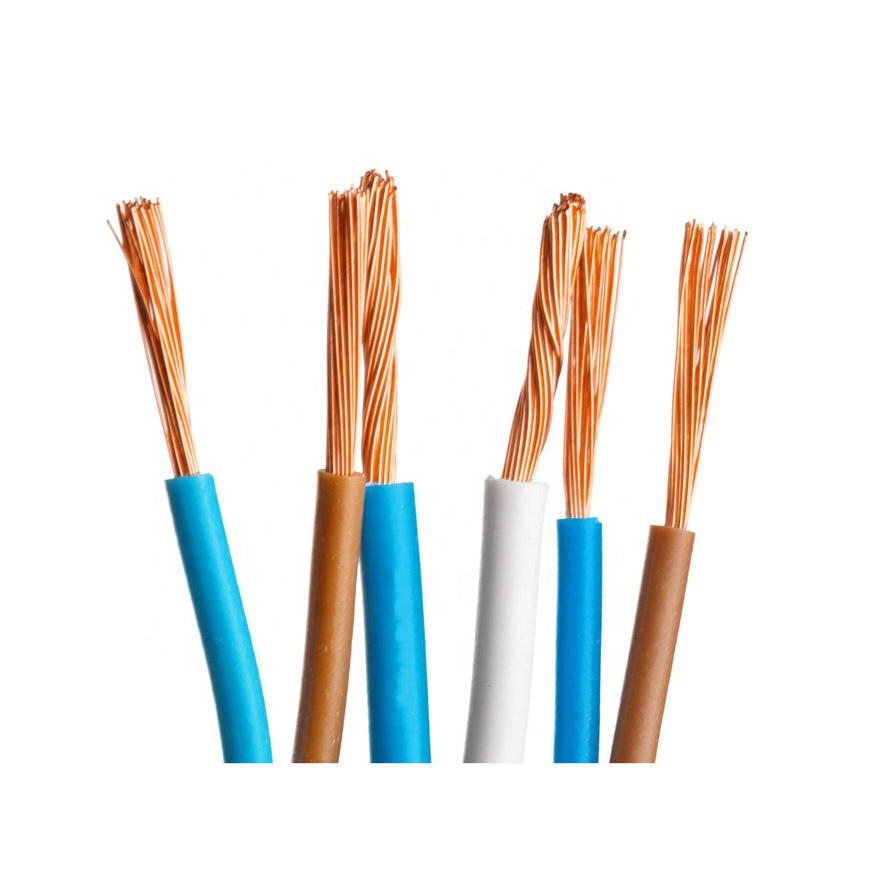

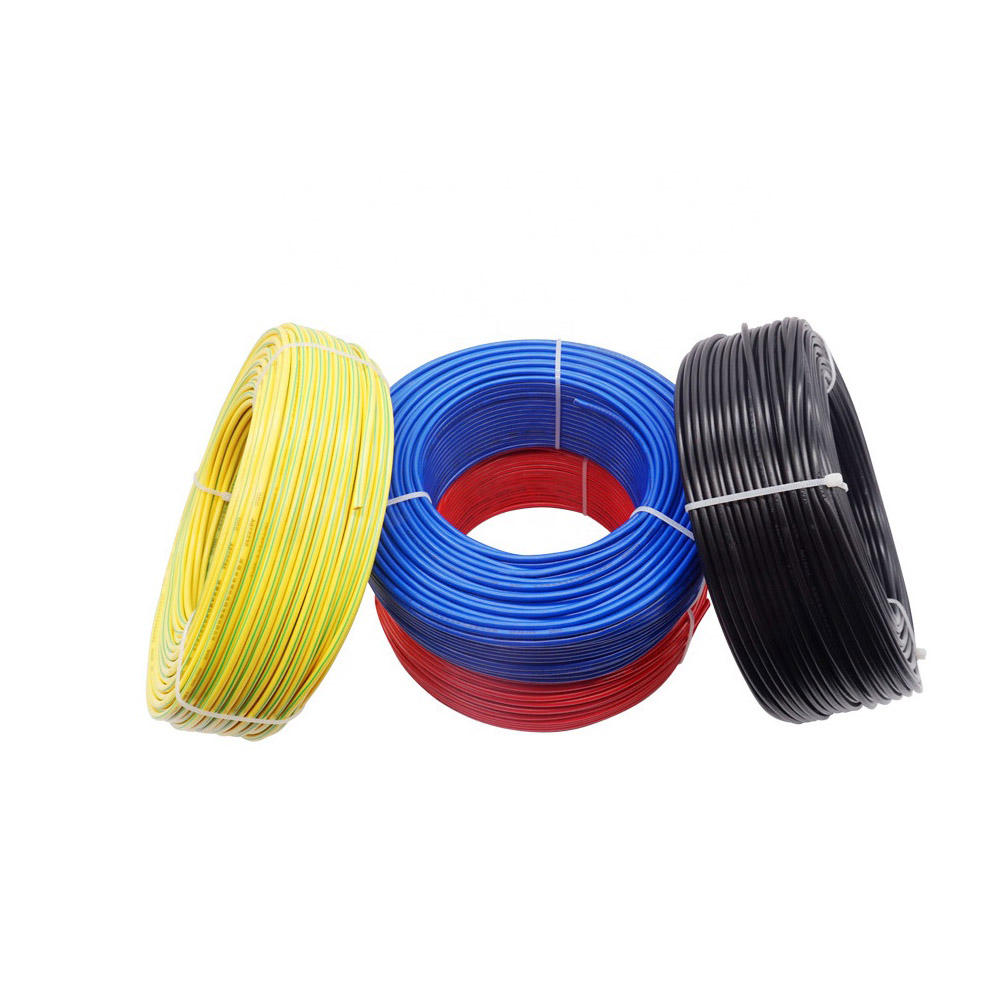

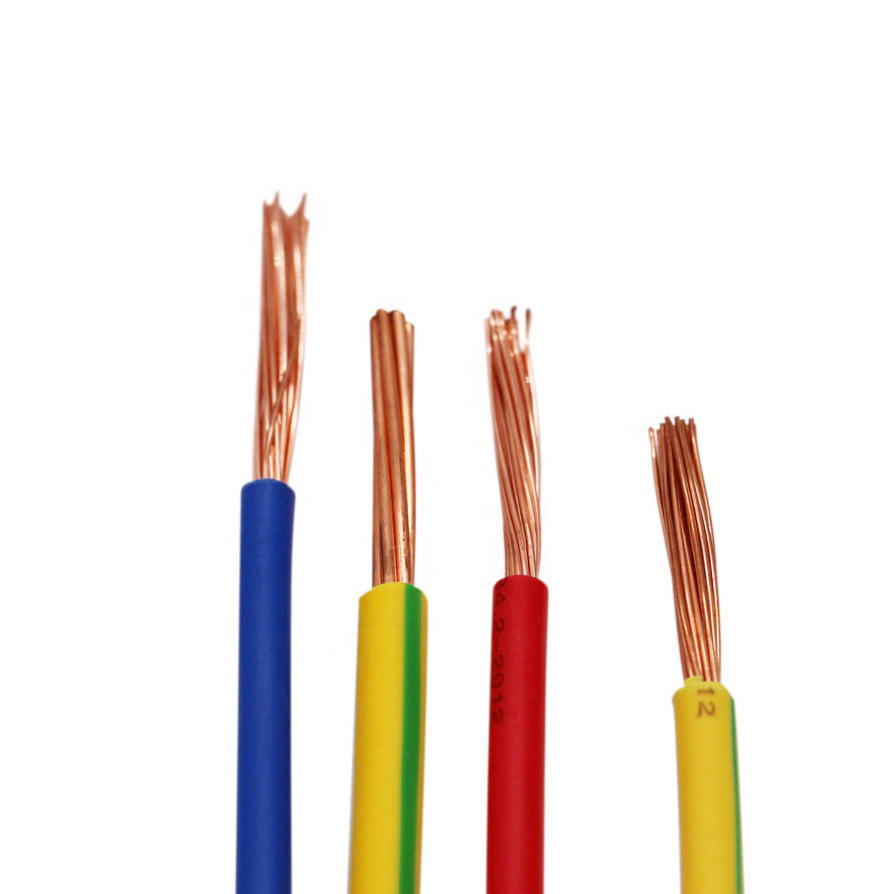

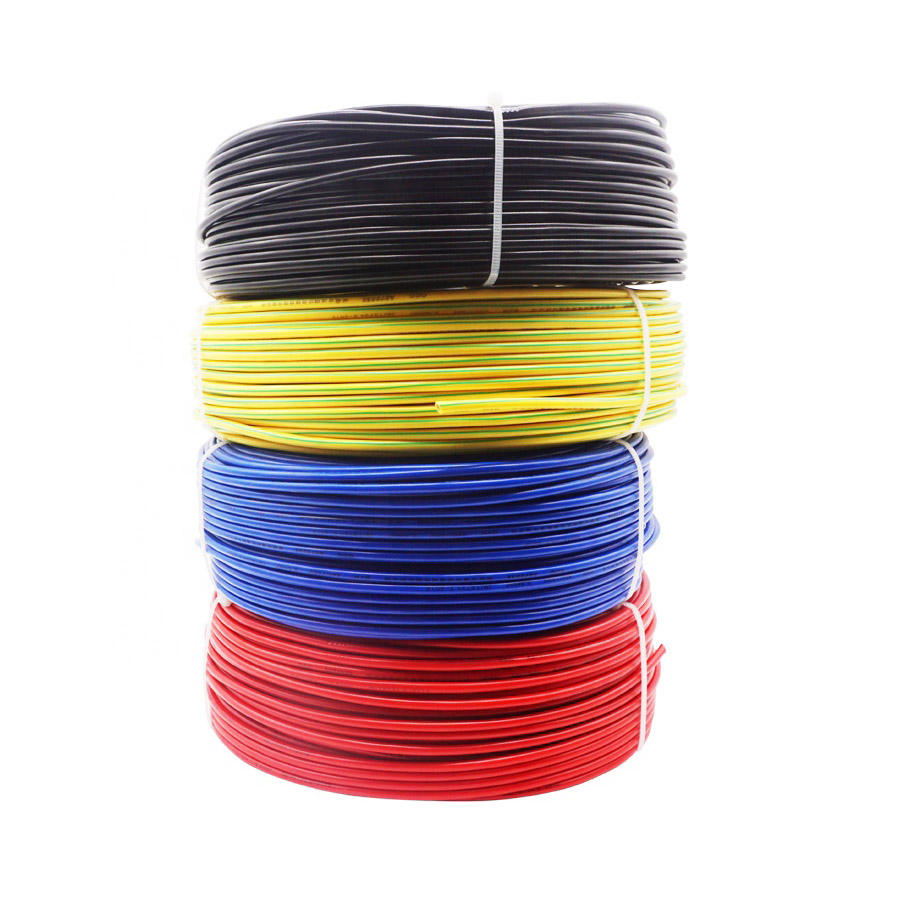

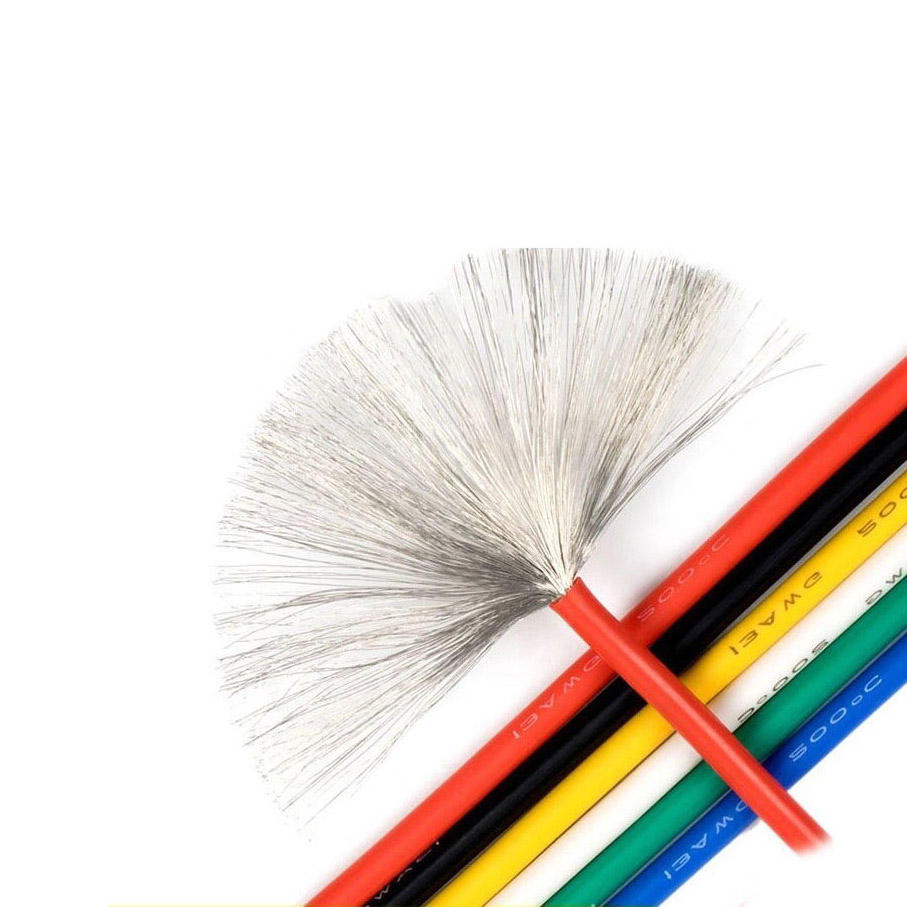

product display
