Suspended Platform Platform Electric Hoist Electric Hoist Motor
-
$220.00 / 1 - 1 sets
$210.00 / 2 - 4 sets
$200.00 / 5 - 9 sets
$180.00 / >=10 sets - 1 set
- Hebei Hengxiang Engineering Materials Co., Ltd.
- Hebei, China
- Ms Connie Li
Product Detail
| Warranty: | 1 year, 1 year | design style: | industrial |
| place of origin; place of origin: | Hebei china | model: | promote |
| Model: | limited company | brand: | Hengxiang |
| Types of: | Suspended Work Platform Equipment | application: | floating platform, building |
| Package preview: | product name: | Platform hoist | |
| standard: | JIS | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Certification: | ISO9001 | Material: | Aluminum-magnesium alloy |
| Key words: | Working at heights | color: | customer request |
| Project solution ability: | graphic design, other | After-sales service: | Online Technical Support, Free Spare Parts, Returns, Others, None |
Product Description

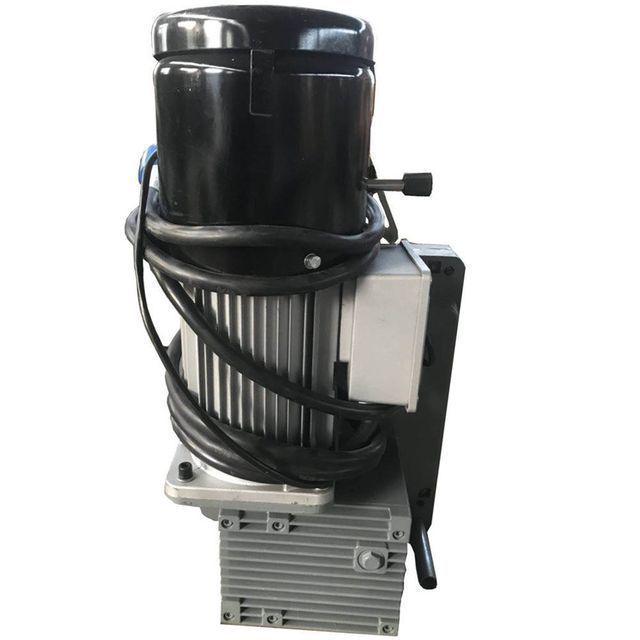

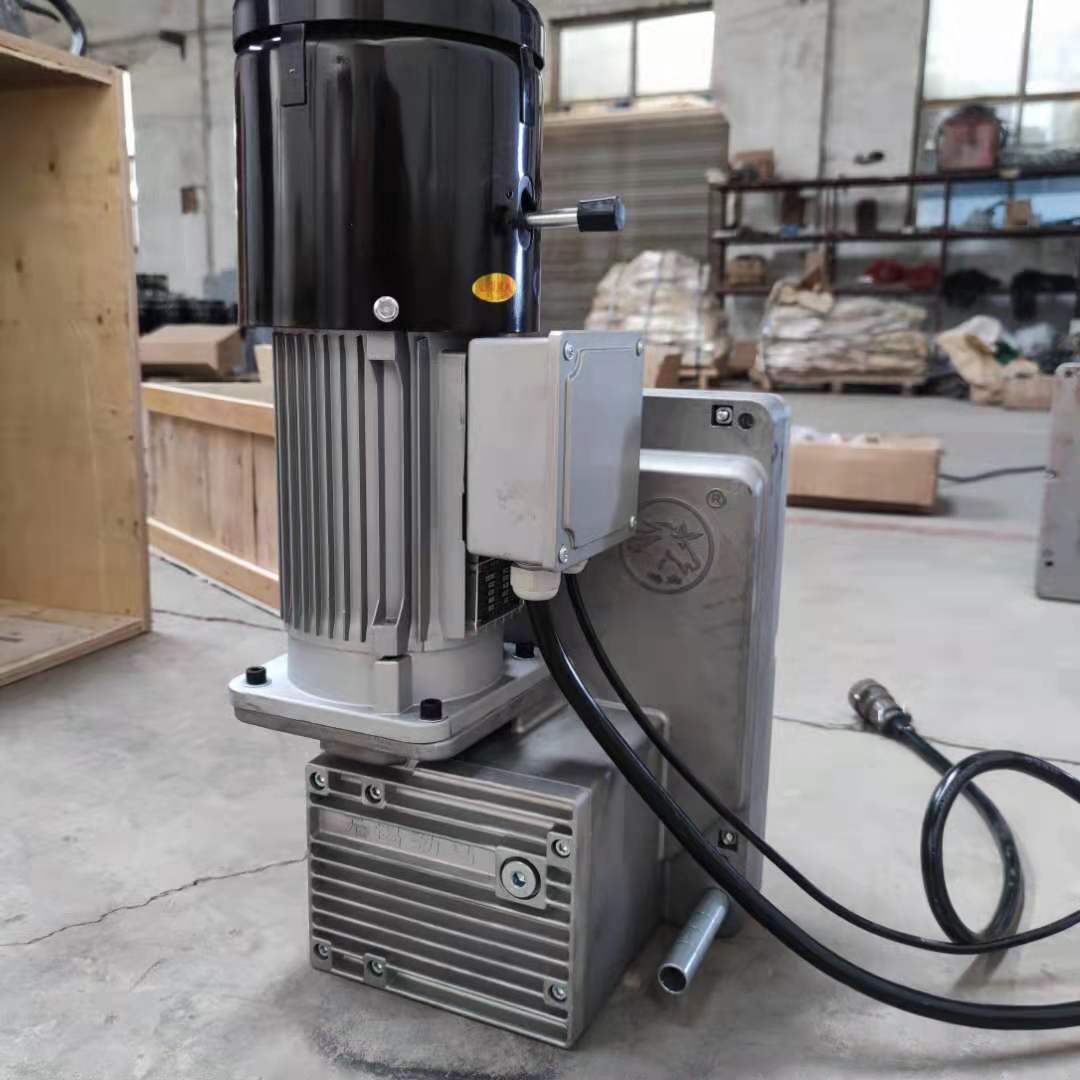

LTD80 hanging basket electric hoist

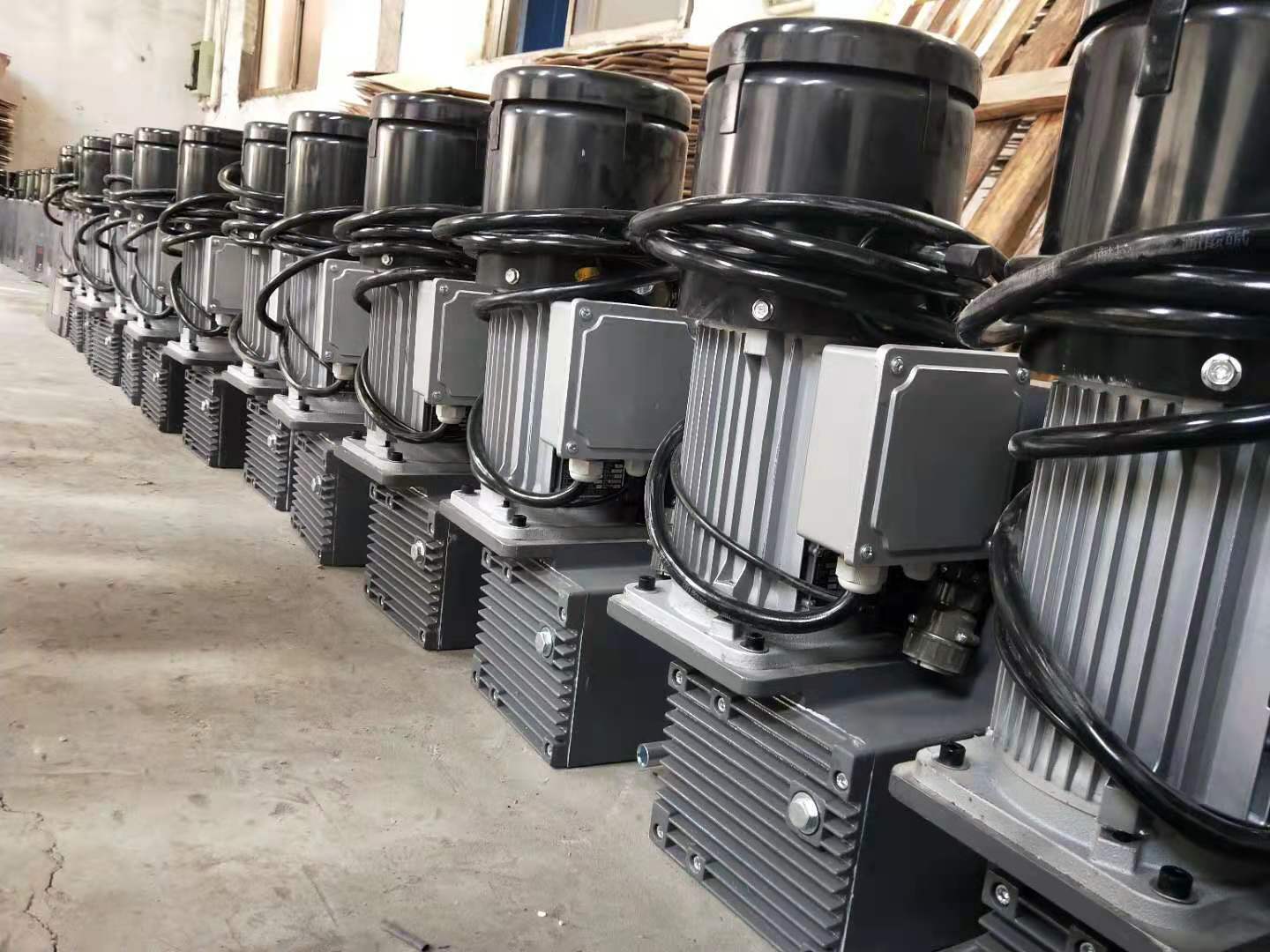

detailed image
promote,As a key component of the suspended platform, it is the power mechanism of the working platform.
The hoist is driven by an electromagnetic braking three-phase asynchronous motor, which drives the wire rope conveying mechanism after being decelerated by a worm wheel and a pair of meshing gears. The wire rope conveying mechanism is mainly composed of a pair of driving wheels and a grooved internal gear.
LTD63The working wire rope is twisted in "α" shape in the "V" shape groove of the grooved internal gear. Relying on the friction force on both sides of the "V" groove to make the hoist move up and down along the working wire rope.
Working principle of LTD80 hoist:The working wire rope is twisted in an "S" shape in the "V" shape groove of the grooved internal gear.
The hoist is driven by an electromagnetic braking three-phase asynchronous motor, which drives the wire rope conveying mechanism after being decelerated by a worm wheel and a pair of meshing gears. The wire rope conveying mechanism is mainly composed of a pair of driving wheels and a grooved internal gear.
LTD63The working wire rope is twisted in "α" shape in the "V" shape groove of the grooved internal gear. Relying on the friction force on both sides of the "V" groove to make the hoist move up and down along the working wire rope.
Working principle of LTD80 hoist:The working wire rope is twisted in an "S" shape in the "V" shape groove of the grooved internal gear.

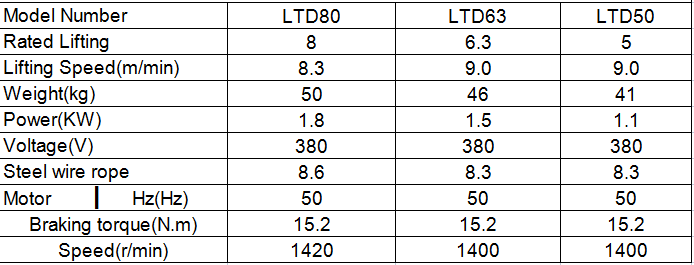

Product parameters:

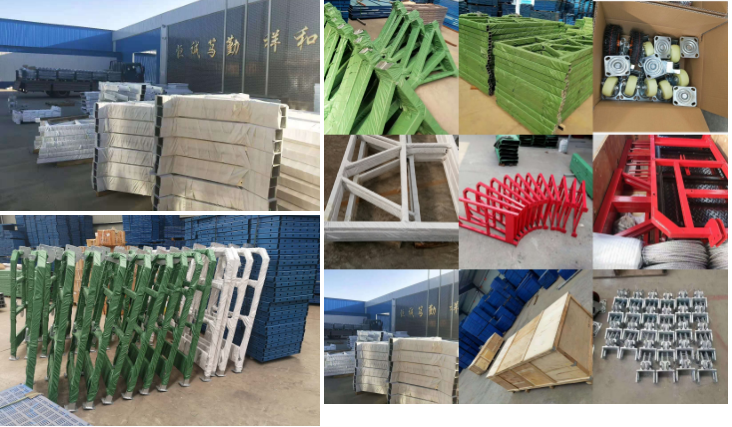

other products

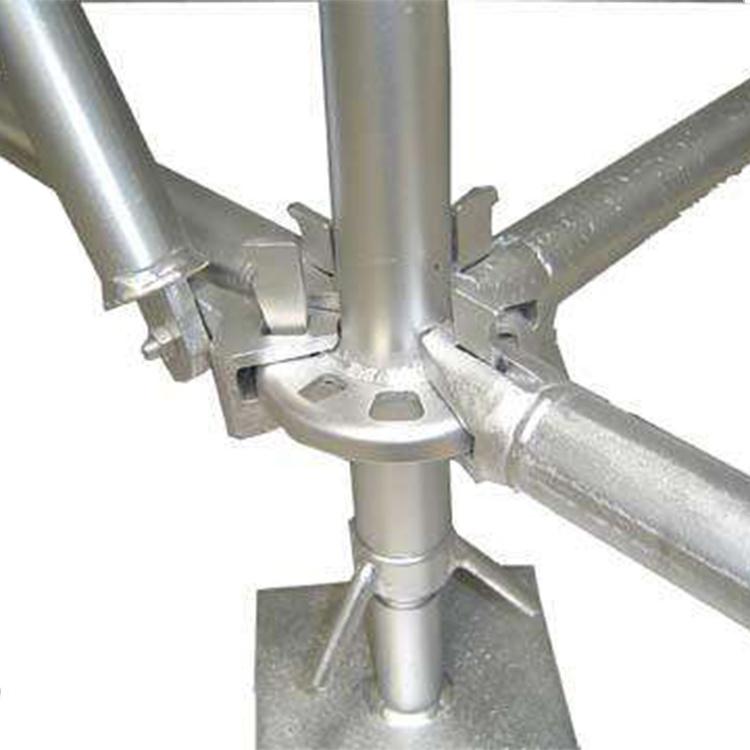

ring lock scaffolding

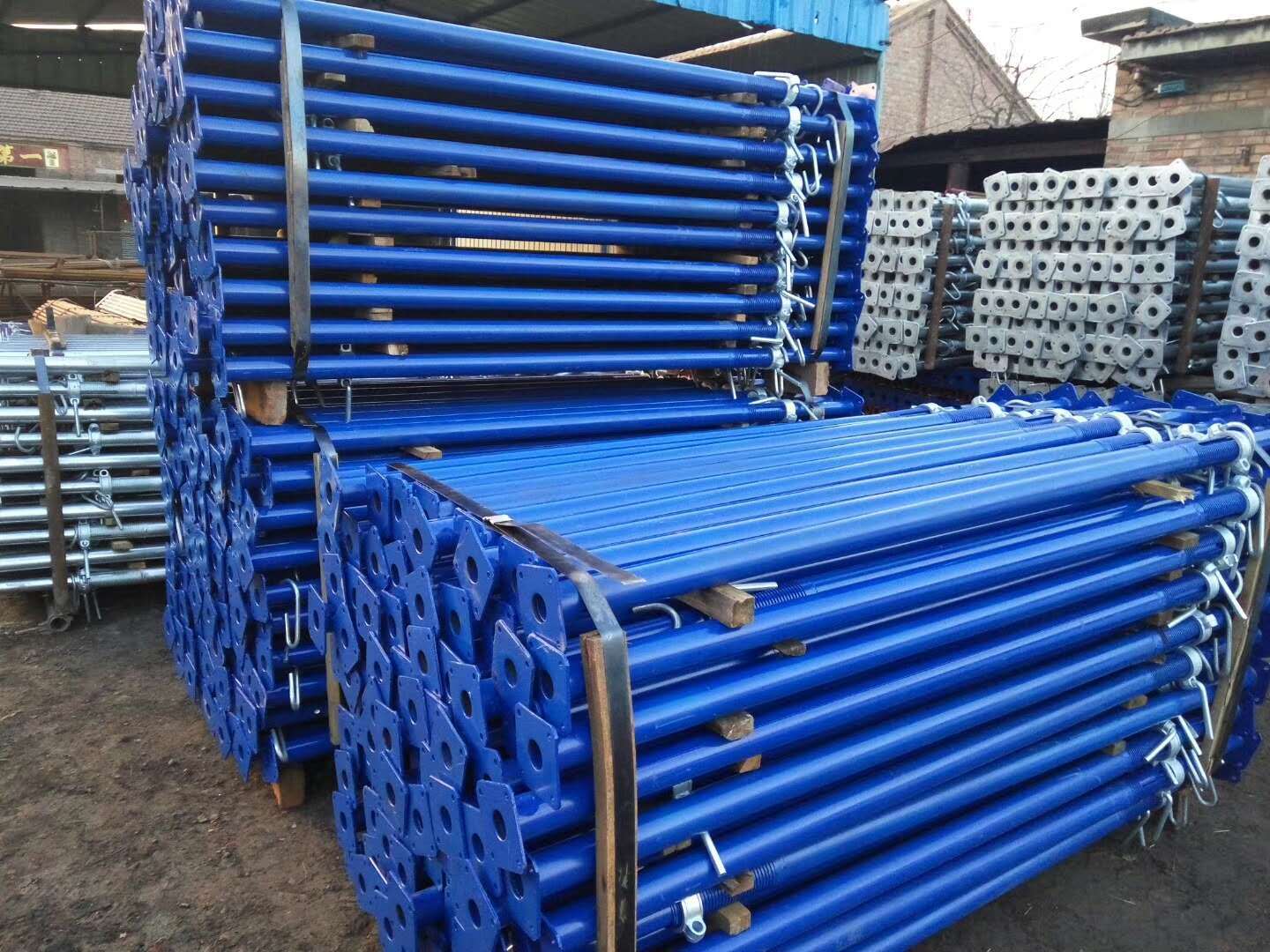

Steel support

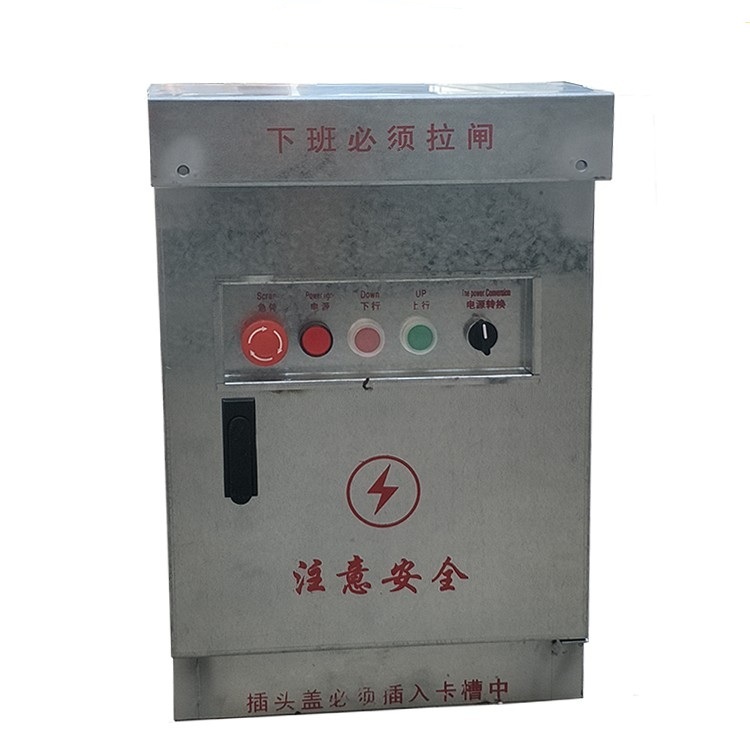

Electrical Cabinet/Electric Control Box

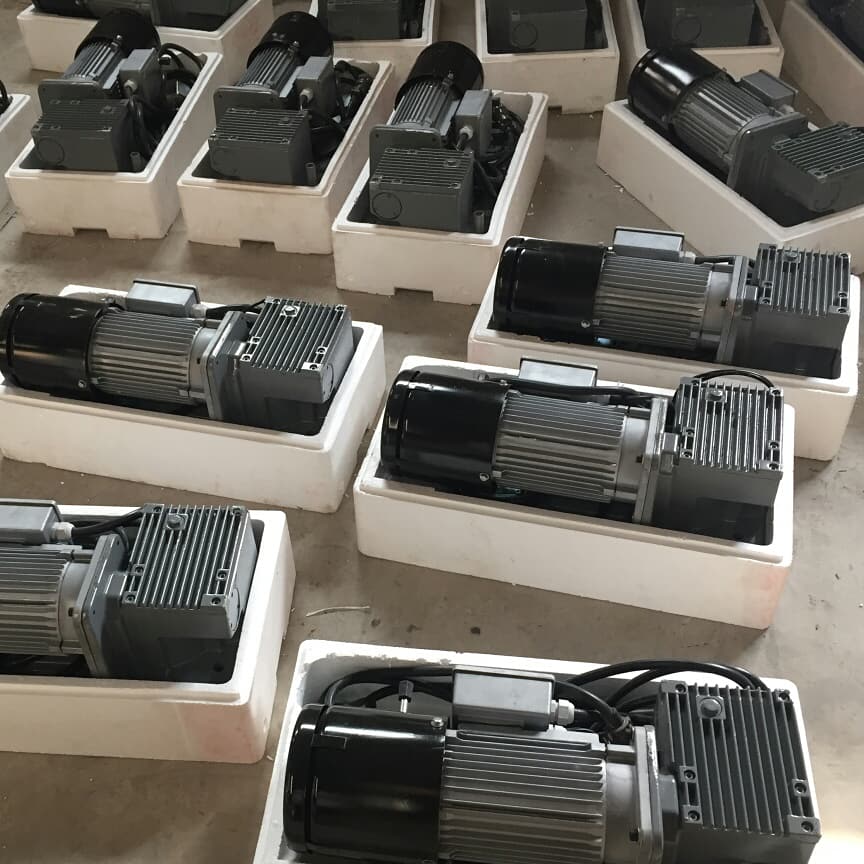

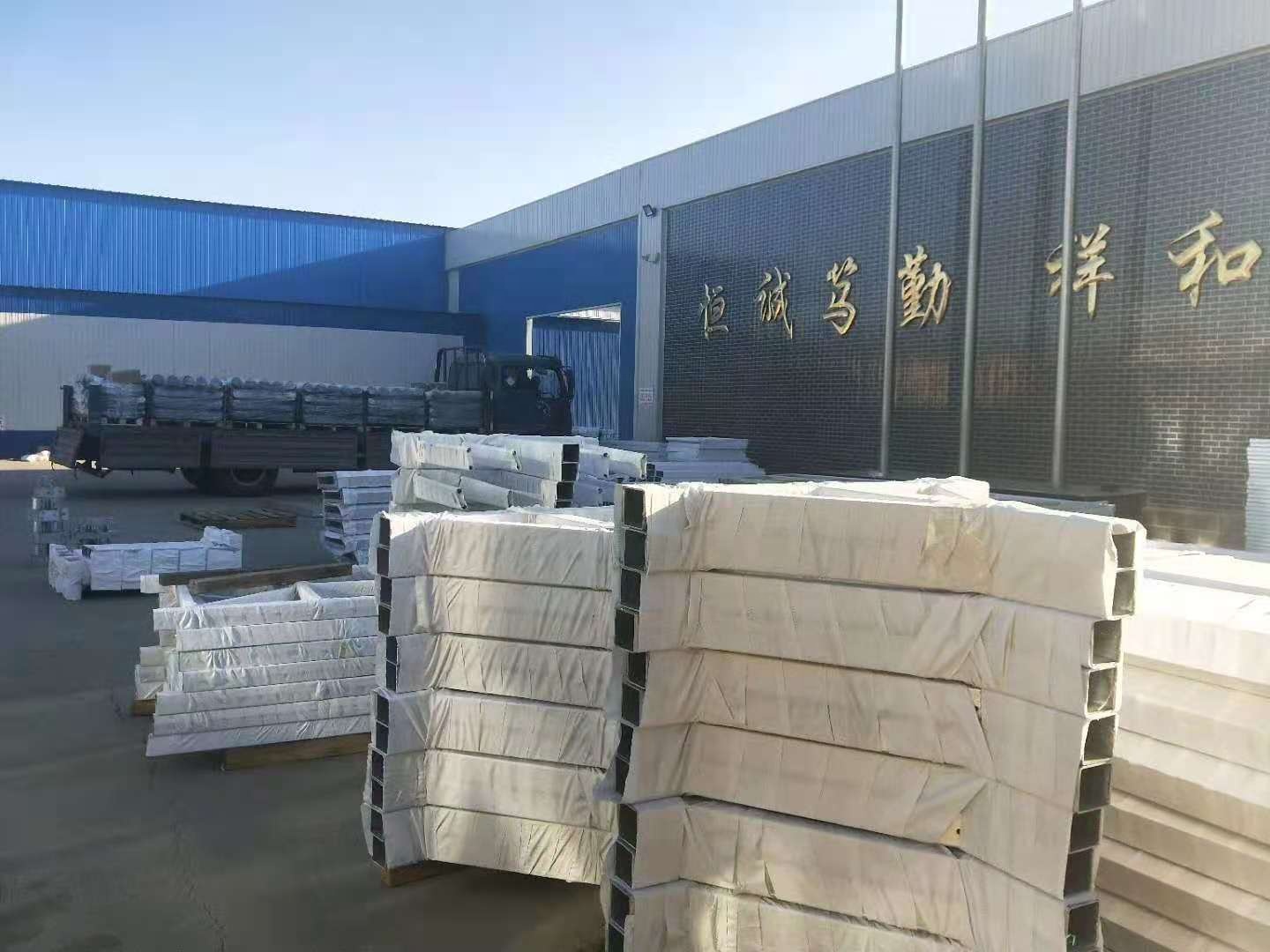

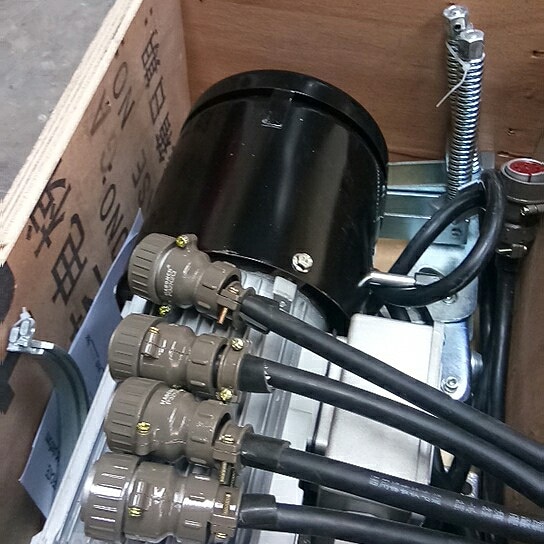

Packaging & Inventory
1-4sets/ 1 set for a wooden case-5cbm/set by LCL
More than 5 sets/full carton packed on pallets
14 sets of counterweights in a 20' container
31 units in 40' container with counterweight
More than 5 sets/full carton packed on pallets
14 sets of counterweights in a 20' container
31 units in 40' container with counterweight
