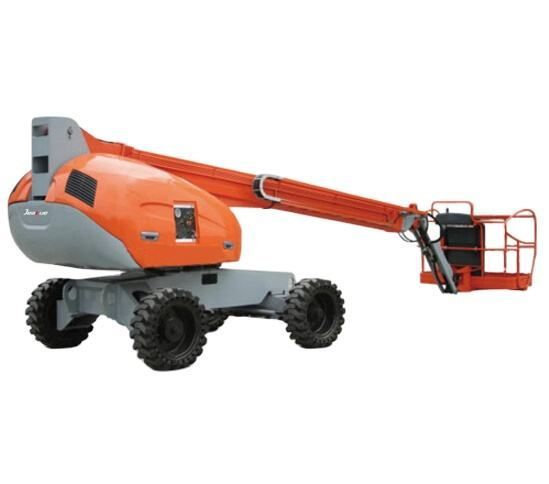

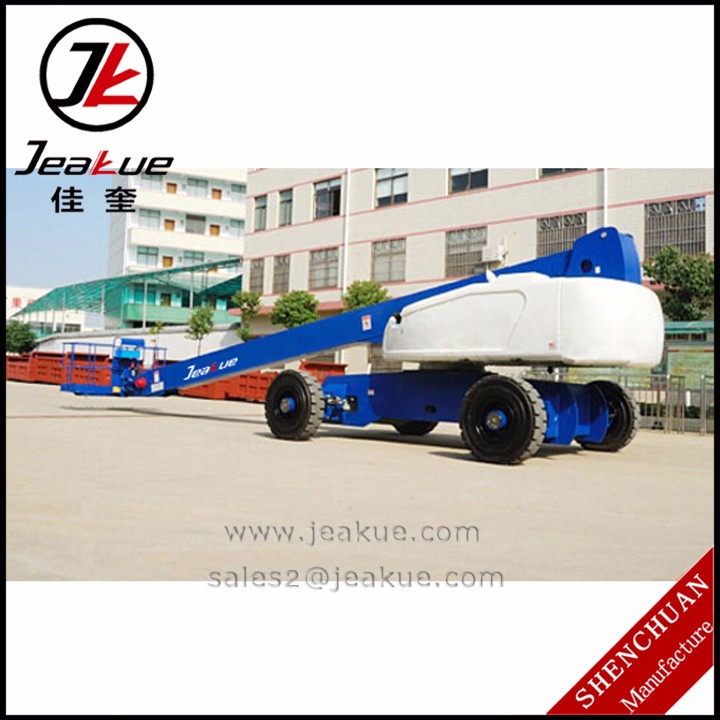

32m elevated diesel engine working platform, retractable aerial work platform

Shipyards can adapt to specific operating environments, namely humid, corrosive, dusty, high temperature, low temperature environments.

· The boom is at any position, and the working platform is safe to walk; the walking speed increases with the increase of the lifting height.

· It has upper and lower consoles (console and floor console platform) and upper and lower console reversing switches. When the upper and lower parts of the console are controlled using the locking function.

·Indication of diesel engine oil temperature, oil pressure, water temperature, etc. on the console.

· Provided under reverse engine running conditions means restart.

· The telescopic boom, luffing and slewing run smoothly and are equipped with buffer devices.

· The telescopic boom, luffing, slewing, and walking platforms are all controlled by electro-hydraulic ratio, with stepless speed change.

· The walking and jib slewing platforms should be equipped with reliable brakes to ensure reliable control during operation on slopes. Install manual rotation to lock and release the travel brakes so the platform is pulled.

• When walking the platform, if one box is emptied by the distribution valve, the other drive wheel can walk alone.

• When the boom angle is above the horizon or the telescopic boom is extended more than 1.2 meters, the vehicle's travel speed is limited.

· The telescopic arm, luffing platform and rotary platform can perform multiple operations at the same time.

· The working bucket has an automatic leveling function, and the inclination angle of the bucket relative to the working level cannot exceed 1.5°.

· The upper and lower consoles are equipped with emergency stop buttons. When an accident occurs during operation, the operator can quickly extinguish the engine of the platform to avoid continuing to move.

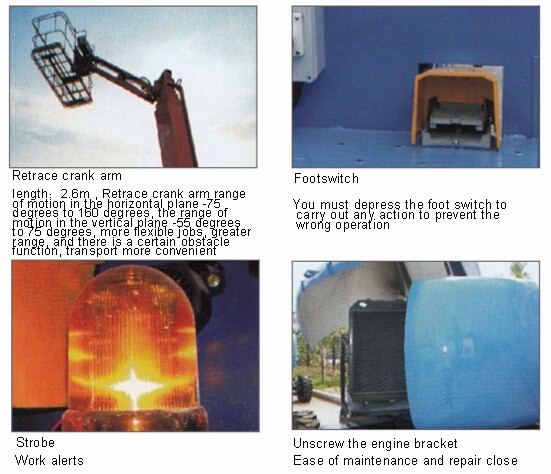

There should be a foot switch on the platform, which can only be operated by stepping on the foot switch.

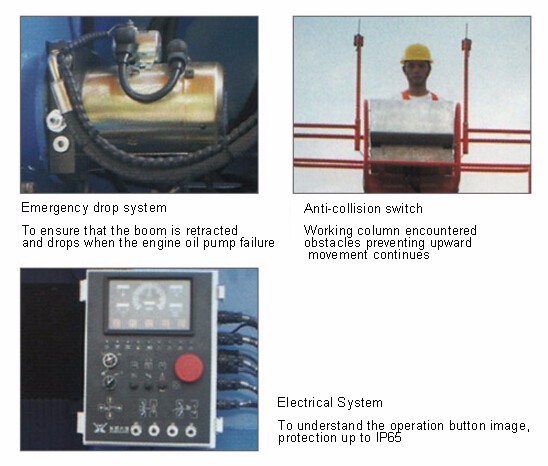

· With 24V auxiliary power unit, when the engine or the main pump fails, the bucket can be safely lowered to the ground to work.

· Equipped with a torque limiter to control the working range of the bucket, limit the working angle and extension angle of the working arm to the working range, and ensure the stability of the vehicle.

· The digital double sensor detection circuit detects parameters such as length and angle in time, and dynamically reflects the working status of the boom. When a circuit fails, the other circuit can still complete the circuit detection of all parameters.

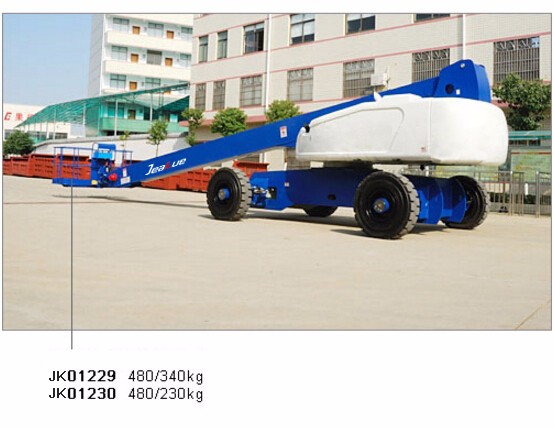

· With bucket weighing function, it can accurately detect the load platform regardless of the position of the load on the platform. It should have two or more load capacities, and different loads allow different working ranges. When the maximum allowable load of the platform load exceeds the corresponding amplitude state, it should be able to display and alarm and limit the movement of the platform, so as to ensure the connection strength between the working bucket and the working bucket and the operation safety.

* With automatic speed change and alarm shutdown function: when the amplitude reaches or exceeds 80% of the corresponding allowable amplitude, all actions will automatically decelerate with buzzer and flashing alarm, the closer to the maximum amplitude limit, the lower the working speed, the buzzer The buzzer sounded faster and faster. When the working range reaches 100% of the maximum allowable level, it automatically stops all movement in dangerous directions.

·The engine throttle should have three gears to control the speed. When there is no action for a long time, the engine will automatically reduce to a low idle speed to meet the energy requirements.

· When the machine stops on the ground and the unevenness exceeds 5°, the movement of the arm will be restricted.

·Audible and visual alarm for equipment walking and turning.

It adopts PLC and CAN bus control mode, which simplifies wiring and facilitates maintenance and repair. The metal plug is air-proof, and the protection grade is IP65.

· The engine intake system adopts a closed secondary filter, which is suitable for working in a dusty environment; and it is easy to maintain.

· The upper and lower operating platforms should be protected by protective covers.

· Boom head, oil cylinder piston rod, etc. There are dust and sediment retention devices.

· The oil pump has the function of automatic pressure compensation and load sensing to ensure that the oil pump and engine will not be damaged due to overload.

·It is equipped with an automatic shutdown device to prevent engine overheating and hydraulic oil pressure from being too low.

· Install a safety valve in the hydraulic circuit to prevent the pressure of hydraulic components from rising abnormally.

·Each cylinder has a balance valve or hydraulic lock that does not automatically guarantee work, and the connection between the fuel tank and the balance valve and hydraulic lock is rigid.

· Hydraulic components and control components are imported brand products with high reliability.

· The drag chain sleeve mechanism adopts patented technology, the sleeve is made of aluminum alloy surface treatment, and the drag chain is made of marine-resistant high-strength plastic, which is suitable for harsh working environments.

· The landing gear with rings and the turntable position are convenient for lifting.

Standard configuration

Automatic limiter, scale, automatic leveling, tire telescopic shaft

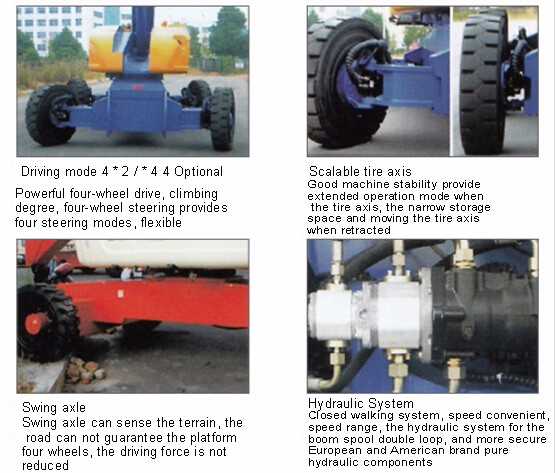

Four-wheel drive, four-way steering, high and low speed travel, full proportional control

Rough ground protection system, emergency descent system, turntable

Stage anti-collision protection, engine restart protection, engine warm-up protection

Triple engine throttle control, hydraulic oil cooler, dust protection, solid tires

Strobe, Horn

optional equipment

2 drivers, 2 steering, Perkins engine, ventilator

Work bench power up, platform work lights, foam tires
