5mm Double Deck Cedar Canopy Cedar for Fabric N for Marquee (For Canopy Architecture)
- $0.50 / >=2000 meters
- 2000 meters
- Haining Mangrove General Trading Co., Ltd.
- Zhejiang, China
- Ms Cindy Wang
Product Detail
place of origin; place of origin: | Zhejiang, China | usage: | tent, flag |
brand: | mangrove | delivery time: | 7-15 days |
Optional materials: | double room, single room | model: | MD08 |
Types of: | Shade accessories | Frame material: | pvc |
Supply capacity: | 10000000 meters per month | payment terms: | L/C, T/T |
PVC wire diameter: | 3mm, 5.00m, 6mm, 8mm. 9 mm. 10mm, 11mm, 12mm, 13mm | Certificate: | CE certification |
Material: | plastic | Fabric: | Heavy duty PVC coated cloth |
port: | Shanghai | Welding area method: | high frequency welding |
length: | 200M | color: | white |
Packaging Details: | carton |
5mm Keder tent double flap Keder for N fabric for marquee(For Tent Architecture)
Our Product Specifications
name | Cade |
raw material | Virgin resin PVC core; PVC coated fabric |
fabric color | white; black; dark gray |
Fabric GSM | 460GSM, 650GSM, 750GSM, 850GSM, 900GSM |
fabric requirements | Blackout; double-side coated or single-side coated; or as customer's choice |
wire size | 3.2 to13mm as customer option |
welding area | 5mm to 50mm as customer option |
Flaps: | 5 mm to50mm forcustomer choice |
usage | Tents, flags... |
Package | 200m/roll |
Minimum order | 2000m according to customer specification |
What is Cade?

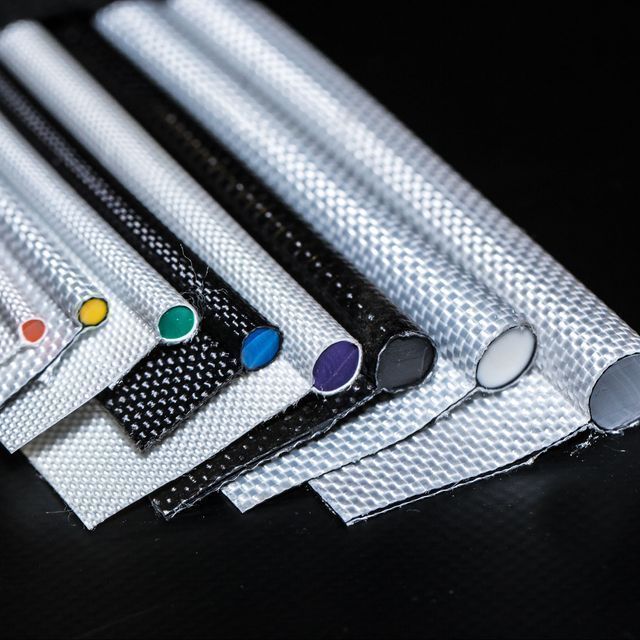

Keder consists of two parts: core and fabric. The core is made of extruded PVC or other elastic material to provide flexibility. The core is then wrapped in keder fabric which has exposed fibers on the outside allowing the keder to slide easily into the extrusion with pleated grooves - the keder track. It is coated on the inside to ensure proper adhesion during soldering. For maximum strength, a double-coated Keder can be used
How is the keder welded to the fabric?
The method of welding the keder to the fabric depends on the style used. Double-wing sewing machines are generally welded by radio frequency welding machines, because three layers of fabric are welded at the same time. However, a single-lobed keder can be welded using a wedge welder or a hot-air welder, requiring only a simple lap weld. Keder can also be sewn onto fabric.
How do I know which size Keder to choose?
If you are replacing the keder for your current project, please measure the diameter of your current PVC wire. For new keder projects, look at the rail/frame system the keder will slide into. Make sure to order a keder that is slightly smaller than the channel diameter. We will be happy to assist you in your selection.
Single flap, double flap, prosthetic flap or welded flap? How do I know which style of keder to use?
There really is no "right" answer to this, it's a personal choice based on your project. However, we recommend using specific styles for certain applications.
Single Flap Keder - For the awning, banner and canopy industry, unless the keder will be continuously exposed to the outdoor elements, we recommend the Double Flap Keder for extra protection.
Double Flap Keder – Tents and Structures, Industrial Drapes, Pool Covers, Tarpaulins and Trampoline Industries.
What is the keder for?
Keder is attached to the fabric creating a continuous waterproof connection between the fabric and the frame. Keder is used in a variety of applications including permanent and semi-permanent tents and structures, banners, building facades, façades, awnings, drapes and marine products.
What packaged keder?
The packaging of our products is painstaking. After our resonance test, we have developed a professional packaging that is very suitable for tent habits, which can reduce waste. We use different sizes of shafts to pack different diameters of keder, and use paper and wrapping paper outside Foil Protection Cord
outer diameter | m/roll | Roll/H carton | m/height carton | m/cabinet |
7 mm | 200m/roll | 24 volumes | 4,800m/H box | 96,000m/container |
7.5 mm | 200m/B roll | 20 rolls | 4,000m/H box | 80,000m/container |
8 mm | 200m/°C | 16 volumes | 3,200m/H box | 64,000m/container |
9mm-10mm | 200m/D roll | 12 rolls | 2,400m/H box | 48,000m/container |
11mm-14.5mm | 200m/E roll | 8 rolls | 1,600m/H box | 32,000m/container |
