Fingerprint Scanner MFS500 4 4 2 TEN livescan Four Finger Fingerprint Collector Biometric

Product Detail

Warranty:1 yearPlaten size:3.62 X 3.11 inches (92 X 79 mm)
Rolling area:1.6X 1.5 inches (40.64x 38.1 mm)Gross weight per piece:2.200 kg
brand:Mattelaspect:5.35 X 6.34 X 3.6 inches (136 X 161 X 91mm)
Sales unit:single productSingle package size:37X26X25 cm
Customization support:Customized logo, OEM, ODMplace of origin; place of origin:China
special function:Biometrics, built-in camera, touch screen, motion detectionActive platen area:3.2 X 3.0 inches (81.3 X 76.2 mm)
Resolution:500Dpimodel:MFS500
Product Description

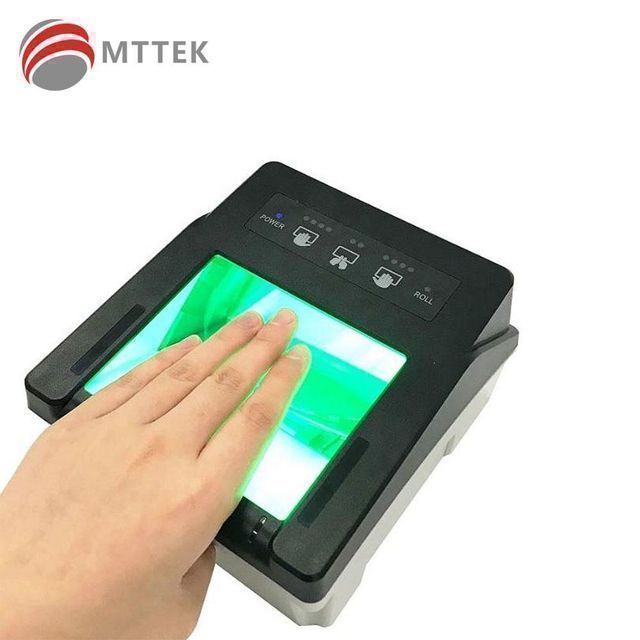

MFS500 Fingerprint Scanner
The MFS500 fingerprint liveness scanner is a light and compact optical fingerprint device. Its 91mm height should be the slimmest among optical quad fingerprint scanners. The USB 2.0 interface eliminates cumbersome cables. All of this makes it easy to integrate into new or existing applications. The MFS500 scanner has finger indicators on the panel to guide the operator in capturing rolled and flat prints. The software guides the operator through the capture process with on-screen prompts and graphical displays. Real-time image quality check, sequence verification, auto-position, auto-rotate, and auto-cut features ensure capture of high-quality prints for operator convenience.

application:
> Voter ID > National ID Cards > Finance and Banking
...
> Telecommunications > Healthcare > Law Enforcement
feature:
> Supports single, roll and plane capture functions > Automatic calibration > Automatic positioning of fingerprints > Automatic segmentation > Automatic elimination of hidden prints. >Fingerprint Quality Feedback>Wrong Finger Placement Prompt>Optional Automatic or Manual Capture>Fog Elimination>Full Compliant with ANSI/NIST ITL-1-2007 Standards>FBI IAFIS Appendix F Certification>Full Compliant with ISO/IEC 19794-4; Compliant IP54 standard
Specification:
fingerprint scanner
MFS500
interface
USB 2.0
resolution
500dpi ±1%
Active platen area
3.2 X 3.0 inches (81.3 X 76.2 mm)
platen size
3.62 X 3.11 inches (92 X 79 mm)
Rolling area
1.6X 1.5 inches (40.64x 38.1 mm)
image pixel size
1600 X 1500 pixels (flat image)
800 X 750 pixels (scrolling image)
image distortion
≤1%
Image grayscale range
≥200 gray scale Gray scale: 8 bits, 256 levels
Recovery rate
Single-finger scrolling frame rate: 20 Rate/sec.
Flat four-finger frame rate: 5 Rate/sec.
Operating temperature
0℃～50℃
Storage temperature
-20℃～60℃
Relative humidity
10～90%
capture mechanism
automatic
weight
2.76 lbs. (1.25 kg)
aspect
5.35 X 6.34 X 3.6 inches (136 X 161 X 91 mm)
LED indicator
Power, Status, and Fingerprint Indicators
capture format
Single Fingerprint Roll, Single Fingerprint Plane, Four Fingers, Two Thumbs
standard software
FBI standard processing software
Capture 14 NIST fingerprint images
FBI Standard WSQ Compression Module
SMTP, FTP, XML and NIST interface modules
QA and Sequence Check modules
Segment units into individual fingerprint images
Minimum Computer Specifications
Intel® Core™ i3 or higher; 2 GB RAM or higher; 80 GB hard drive or higher; USB 2.0; Windows® 7 or higher
Service and Maintenance
one year warranty

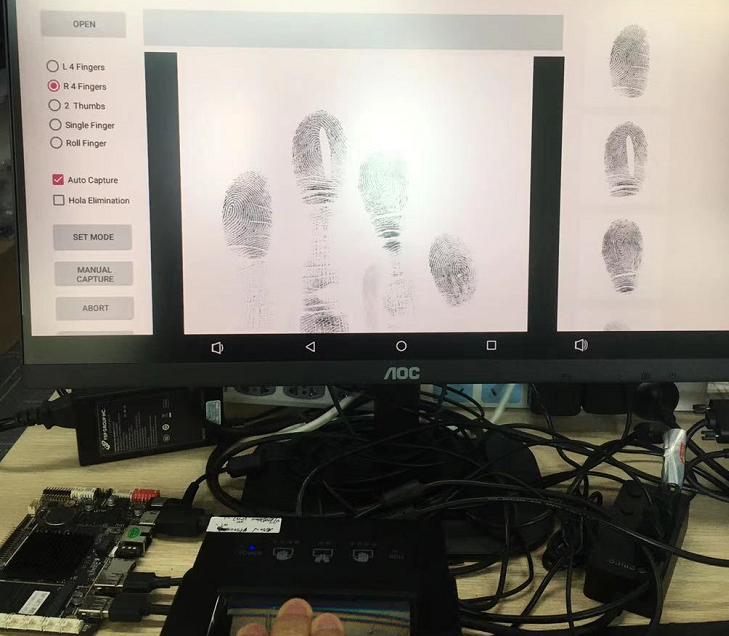

Support Windows operating system:

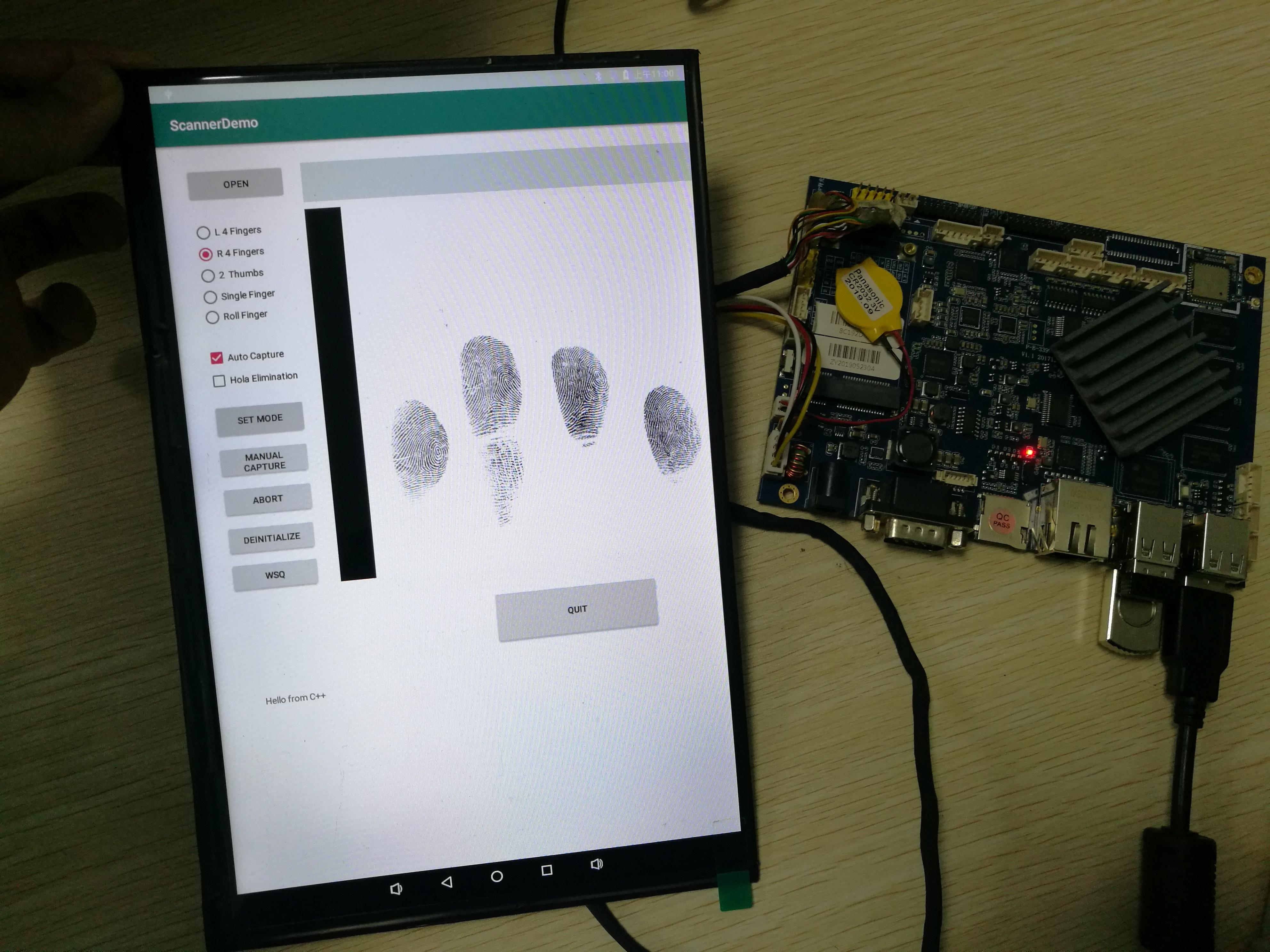

Support Android system:

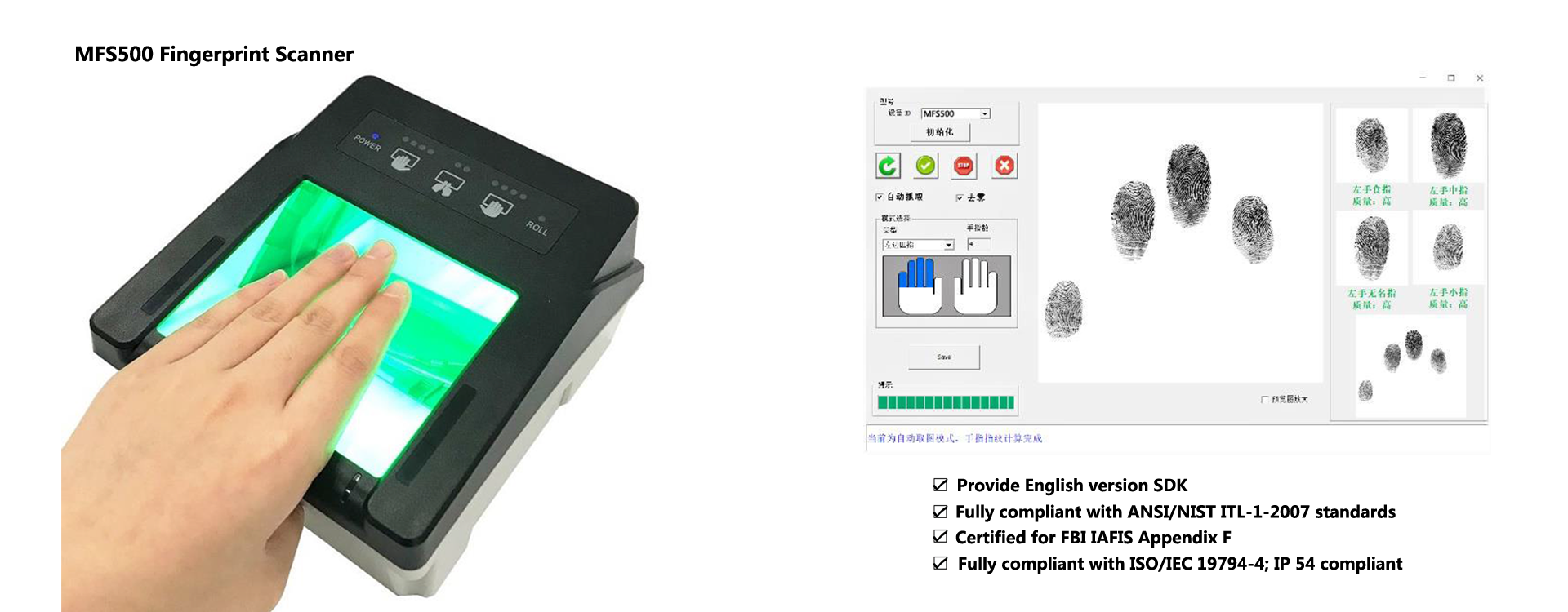

MFS500 Fingerprint Scanner
