Near Infrared Palm Data Acquisition Module Contactless Palm and Vein Reader Scanner Sensor

Product Detail

Origin:Guangdong, ChinaReading distance:20 to 35 cm
Sales unit:single productsystem:Android, Windows
brand:Expo Technologytype:palm
Customization support:OEM, OEMPackaging Details:In neutral packaging, OEM with customer's logo is acceptable.
model:Photovoltaic 10MSingle pack size:10X10X10 cm
special function:PalmistGross weight per piece:0.400 kg
Image size:480*640Warranty:1 year
communicate:USBsolve:Palmist
Product Description

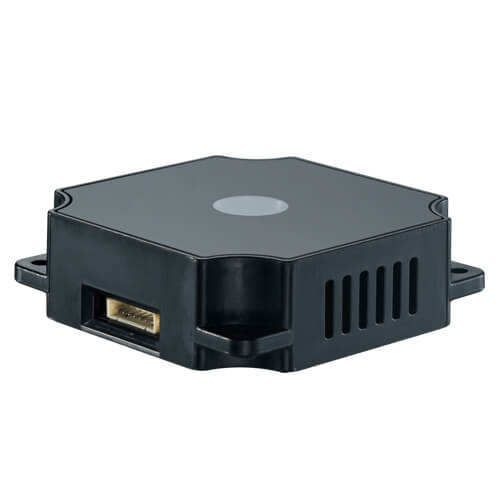

PV10M USB Desktop Pocket Reader Scanning Module

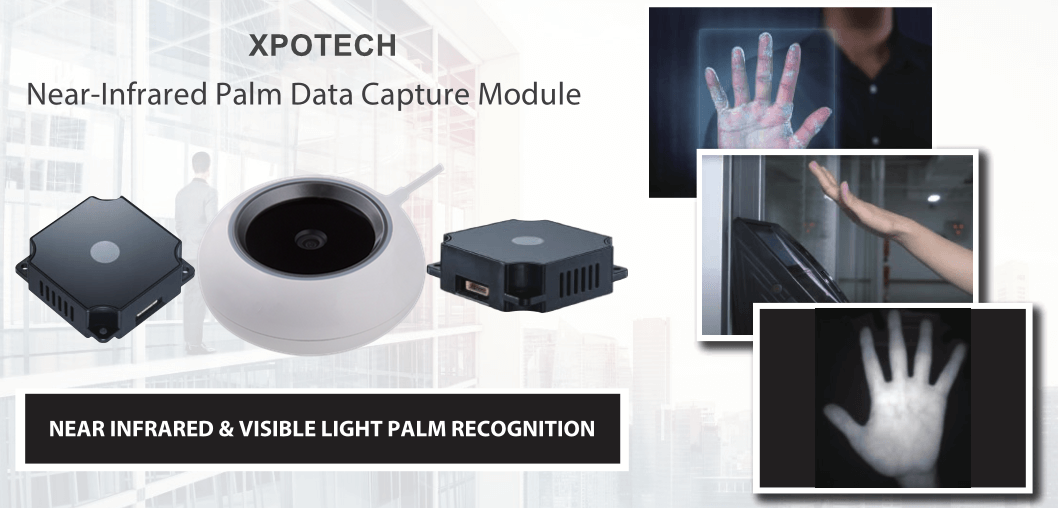

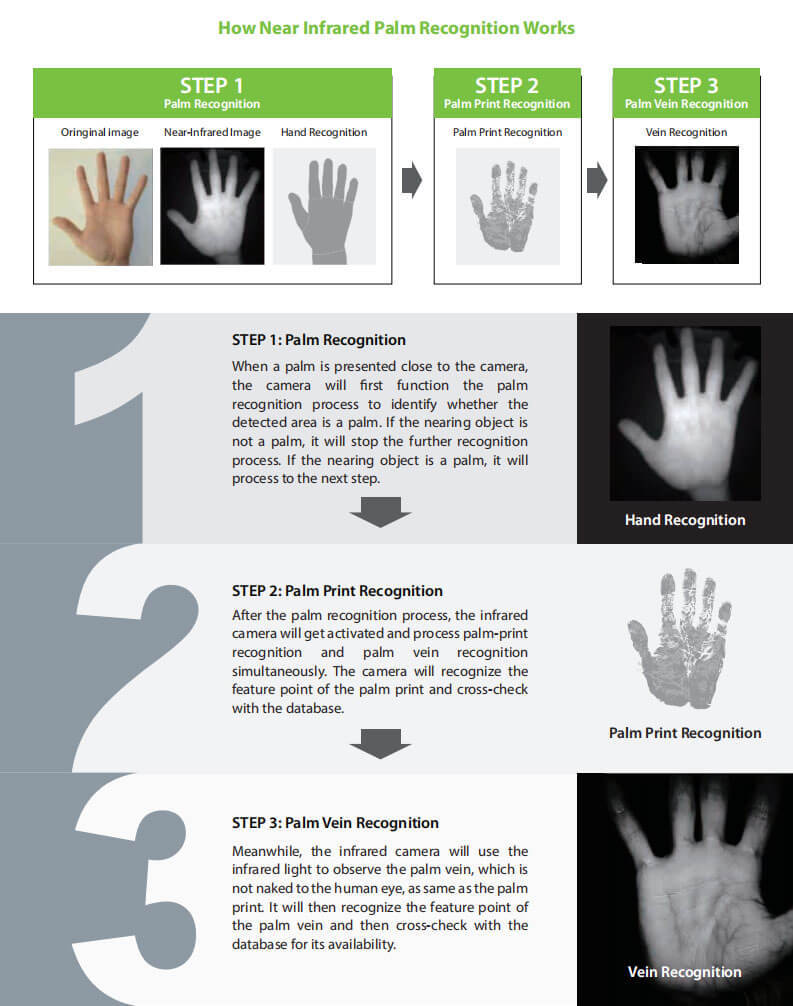

PV10M is a non-contact module for capturing palm and vein features. It uses near-infrared fill light, wide dynamic image sensor and aspheric distortion-free camera optics. It can capture images of veins in the palm and under the skin of the palm with excellent anti-spoofing performance.

Built-in high-performance low-power processor, main frequency up to 400MHz, USB interface for power supply and communication, and supports mainstream operating systems.

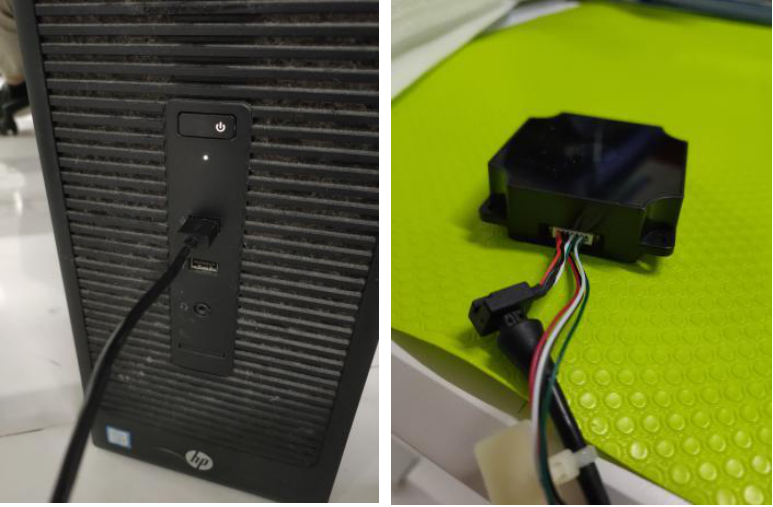

Support standard USB communication, easy to realize palm vein recognition.(The module does not come with a USB cable)

Compact contactless technology for ease of use
Built-in distance detection sensor, effectively reducing standby power consumption

Wide dynamic image sensor to adapt to a wide range of ambient light

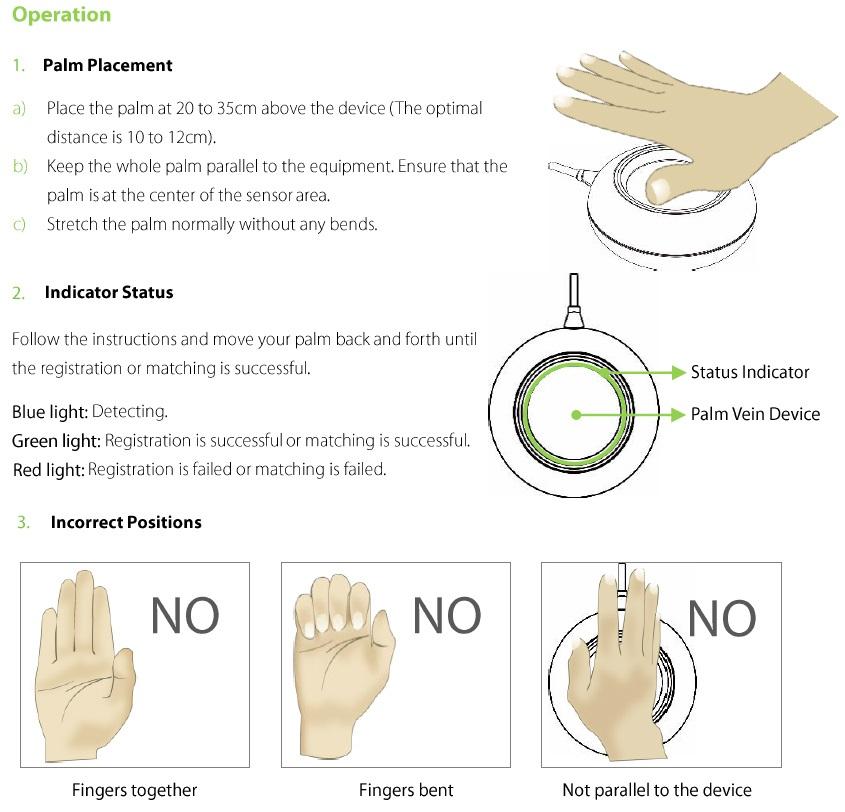

Palm recognition range 20cm to 35cm

Captures high-quality palm images even when palms are dry or wet
Product parameters
sensor
gray scale
256 levels
Image size
480*640
Distortion
<1%
Hardware/W
power requirements
USB 5V
temperature
-10°C ~ 45°C / 14°F ~ 113°F
humidity
0～90% relative humidity
lighting environment
Enrollment<800Lux; Certification<2,000Lux

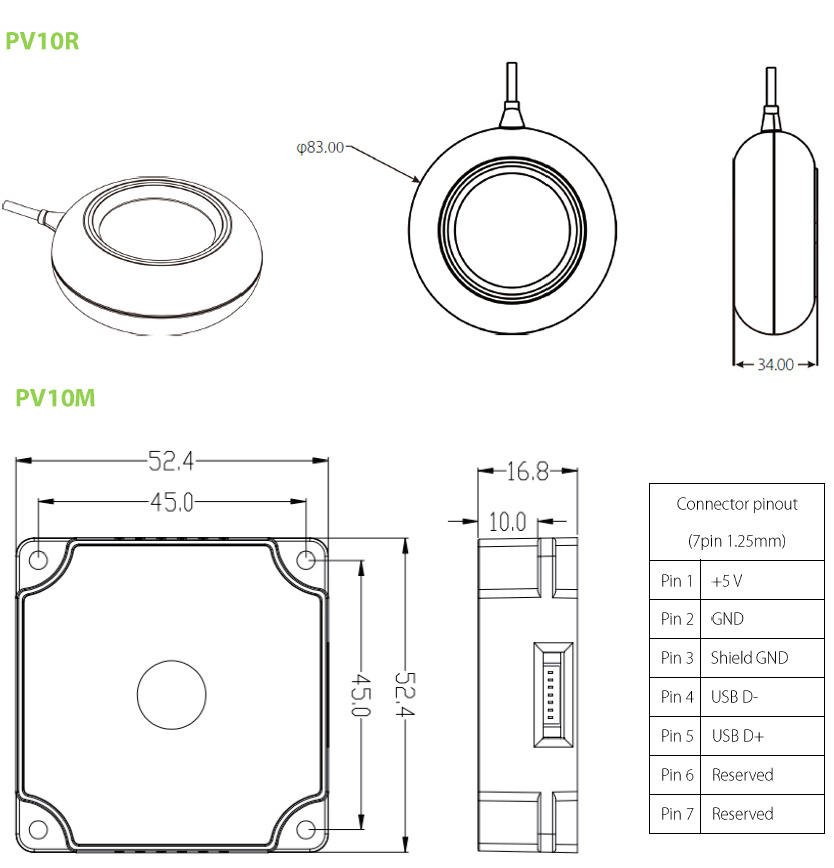

Dimensions (diameter*depth)
52.4mm*52.4mm (±1mm)
operating system
Windows
Windows XP / Windows 7 / Windows 10 (32/64 bit)
android
Android 4.1 or later

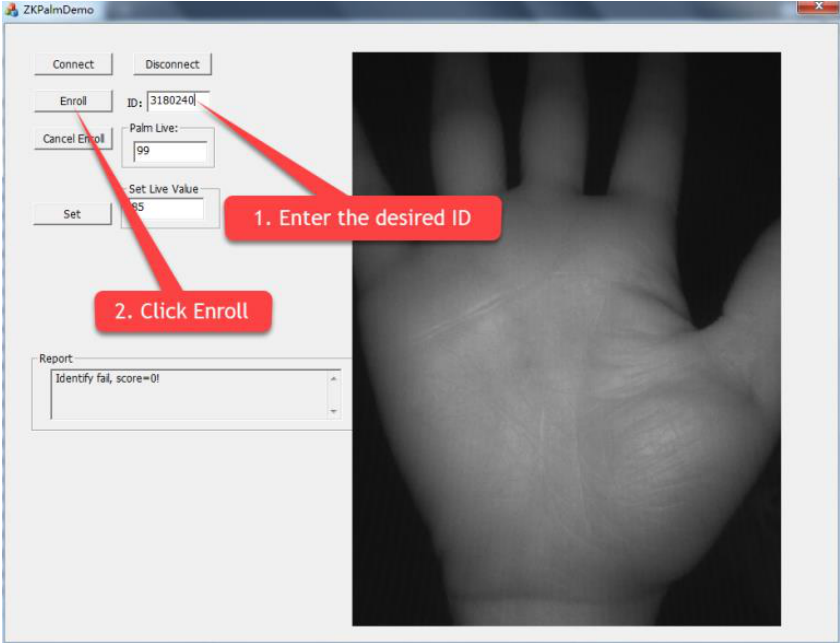

software development kit

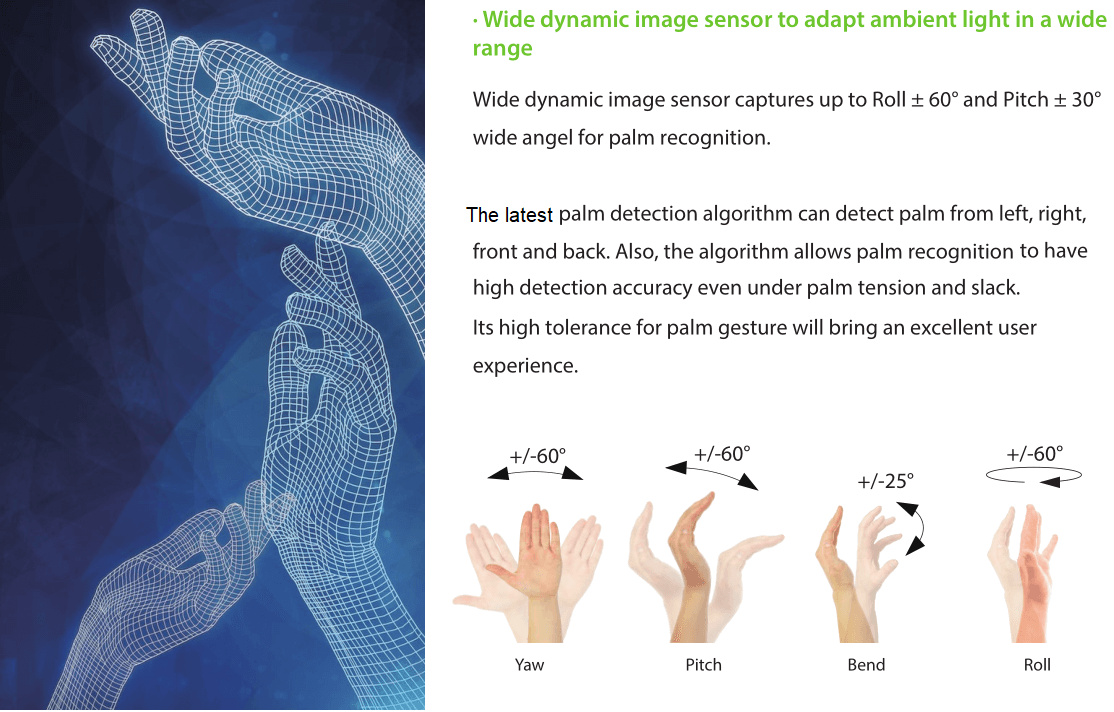

recognition angle
Roll ± 60°, Pitch ± 30°
recognition methods
1:1, 1:N
capacity
6,000 templates
accuracy
When FAR=0.001%, FRR=0.68%
recognition time
<300ms (Quad Core Cortex-A9 up to 1.6GHz)
Fingerprint Reader APP

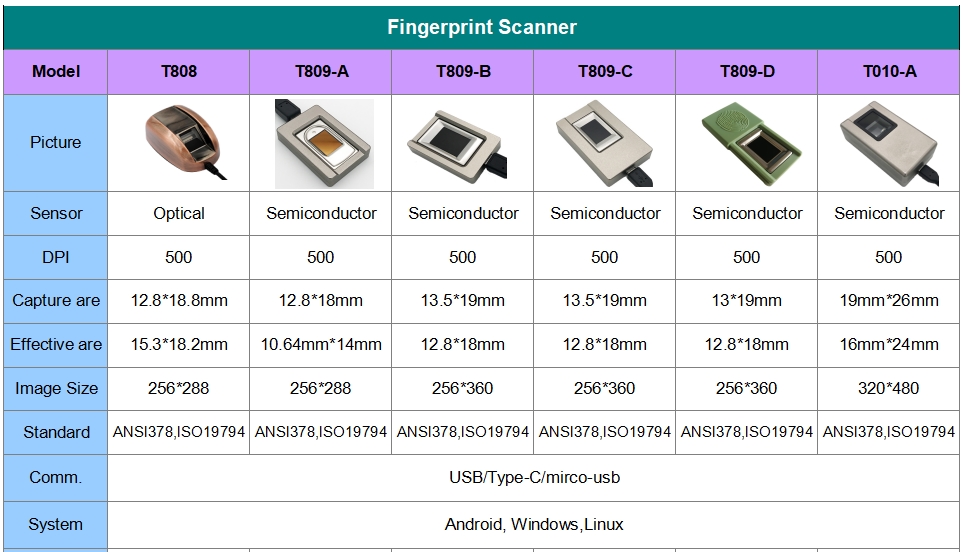

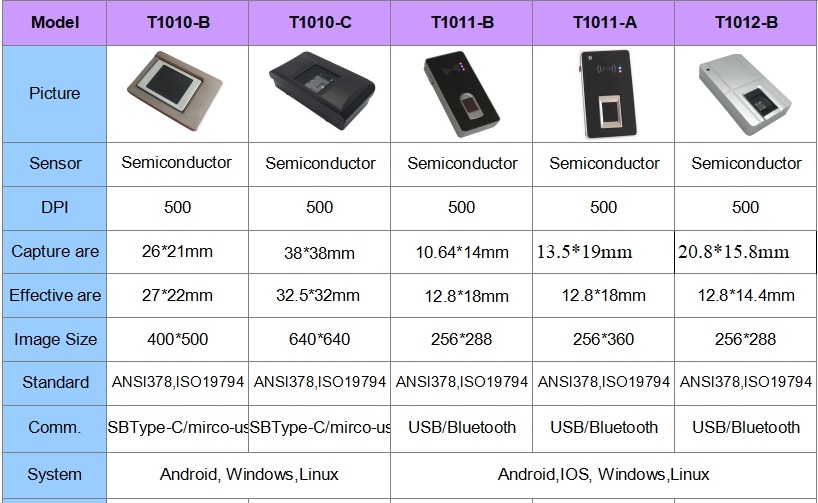

XPOTECH Fingerprint Scanner
XPO Technology offers different types of fingerprint scanners with different functions, including optical and capacitive fingerprint readers for Windows, Android, IOS and Linux systems. Communication methods include USB, mirco USB, RS232, Bluetooth, WIFI communication can also be customized.

In addition, we also accept OEM and ODM according to customers' requirements. If you have any requirements, please feel free to contact us.
