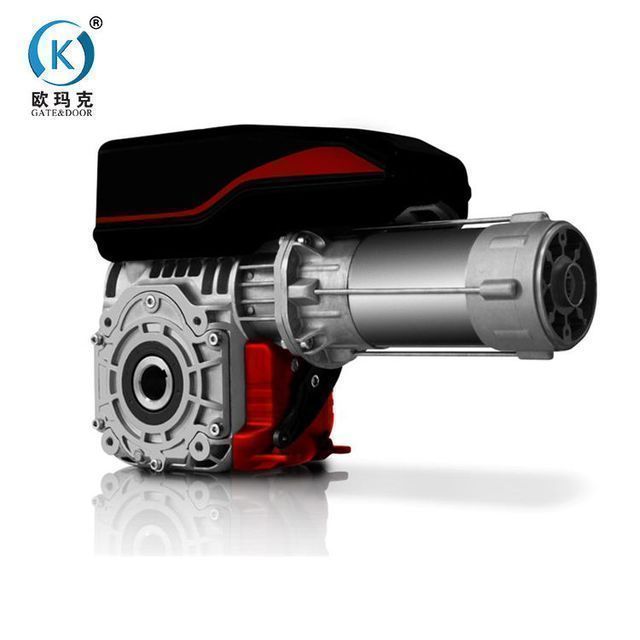

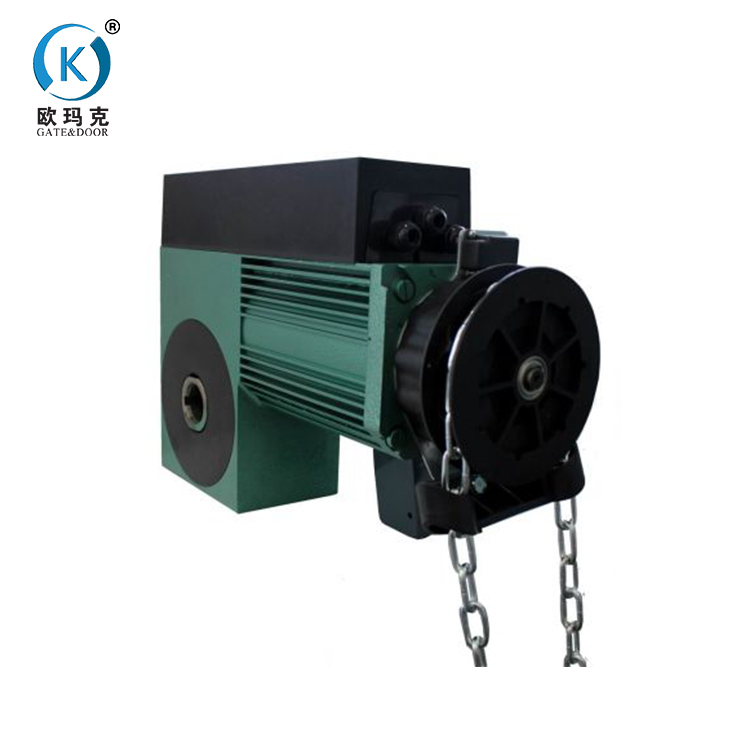

New design Ce certificated shaft universal door overhead door motor

Product Detail

Packaging Details:One set comes in two cartons, the roller shutter motor is in one carton, the foam and bracket are in another cartonsample:acceptable
place of origin; place of origin:Fujian Chinamodel:YJKDM-024
stage:single/three phasedesign style:modern
Certificate:CE/Rohs/FCC/CCC/ISO9001usage:Automatic door
Warranty:1 yearpayment terms:L/C, T/T, Western Union, MoneyGram, PayPal
Processing:acceptableSupply capacity:20000 sets per month
port:Fuzhoutrademark:custom made
name:New design Ce certificated shaft universal door overhead door motorbrand:ohm
After-sales service:Online technical support, free spare partsTypes of:top door motor
Motor winding:copper/aluminumapplication:office building
Project solution ability:not anyAdvantage:low noise

New design Ce certificated shaft universal door overhead door motor

Model Power (V) Rated frequency (Hz) Lifting force(KG) Output torque (Nm) Output speed(r/min) Lift/Mass Lift Height
(rice)
Rated Power (Watts) Rated current (A) Short Team Ration (minutes)
DCK-300KG-1P 220 50 300 164 5 6.0 250 2.5 8
DCK-300KG-3P 380 50 300 343 5 6.0 180 0.8 15
DCK-600KG-1P 220 50 600 412 6 6.0 370 3.5 8
DCK-600KG-3P 380 50 600 412 6 6.0 250 1.5 15
DCK-800KG-1P 220 50 800 647 4.2 9.0 400 4.7 8
DCK-800KG-3P 380 50 800 647 4.2 9.0 300 2.3 15
DCK-1000KG-3P 380 50 1000 810 3.6 9.0 400 2.4 15
DCK-1300KG-3P 380 50 1300 1050 4.2 13.0 600 3.5 15
DCK-1500KG-3P 380 50 1500 1220 3.8 13.0 600 4.0 15
DCK-DC-500KG-1P 220 50 500 490 4.8 6.0 200 12.0
DCK-DC-600KG-1P 220 50 600 588 4.8 6.0 250 12.0

Features

1.Either left or right mounting is fine.

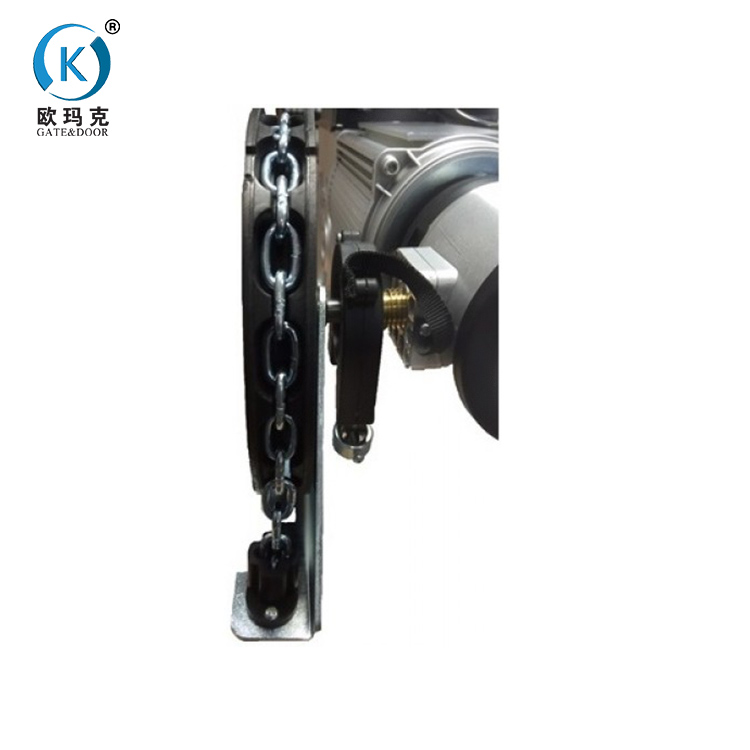

2.It can be easily operated by electric and manual.
3.Rolling shutter door motor with exquisite design, advanced structure and strong power.
4.Using imported components, safe and stable.
5.The motor has low noise, small vibration and low power consumption.
6.It is light in weight, small in size, easy to install, durable and reliable in performance.
7.Overheat protection: If the temperature of the roller shutter motor exceeds 110 degrees Celsius, it will automatically stop working, and it will restart to work if the temperature returns below 70 degrees Celsius.
