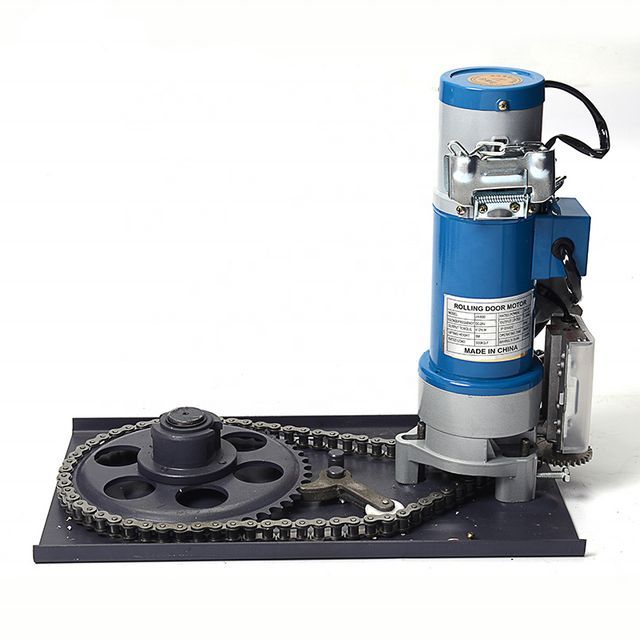

600KG 800KG automatic rolling shutter door motor rolling shutter door
- $1.00 / >=5 sets
- 5 sets
- Zhangzhou Zenen Motor Co., Ltd.
- Fujian, China
- Ms Helen Chen
Product Detail
| Lifting capacity: | 600kg | Function: | Shutter doors |
| color: | according to your requirements | Package preview: | |
| brand: | Zen, Zen | Place of origin: | Fujian Province, China |
| frequency: | 50/60 Hz | application: | Shopping malls, supermarkets, warehouses, workshops, shopping malls |
| design style: | modern | After-sales service: | Online technical support, on-site training, free spare parts |
| OEM: | acceptable | Warranty: | 1 year |
| Packaging details: | Packaging details: two cartons for main unit and accessories, padded with foam protection | model: | ZN-AC-600 |
| Project solution capabilities: | Overall project solution | Rated voltage: | 220V (can be customized according to your requirements) |
| port: | Xiamen | type: | Rolling shutter door motor AC series |
| Supply capacity: | 40,000 sets per month | Certificate: | CCC,CE |
| payment terms: | L/C, Western Union, T/T |
Specification
Model | Lifting capacity | rated power | Rated current | Lifting height(M) | Pipe diameter | Output torque Nm | Output speed (RPM) | |||||||
220V 50-60HZ | ||||||||||||||
AC-200KG | 200kg | 200W | 2.5A | 6 | 4 inches | 112 | 5.2 | |||||||
AC-300KG | 300kg | 250W | 2.8A | 6 | 4 inches | 168 | 5.0 | |||||||
AC-500KG | 500kg | 370W | 3.2A | 7 | 5 inch | 370 | 4.8 | |||||||
AC-600KG | 600kg | 370W | 3.3A | 6 | 5 inch | Chapter 412 | 4.8 | |||||||
AC-800KG | 800kg | 400W | 4.7A | 7 | 6 inches | Chapter 647 | 4.0 | |||||||
AC-1000KG | 1000kg | 400W | 4.9A | 6 | 6 inches | 809 | 3.5 | |||||||
380V 50-60HZ | ||||||||||||||
AC-1000KG | 1000 | 370 | 2.8A | 6 | 6 inches | 809 | 3.5 | |||||||
AC-1300KG | 1300 | 850 | 3.2A | 7 | 6 inches | 1401 | 4.4 | |||||||
AC-1500KG | 1500 | 1000 | 3.8A | 8 | 6 inches | 1617 | 5.2 | |||||||
AC-2000KG | 2000 | 1000 | 4.1A | 12 | 8 inches | 2450 | 3.6 | |||||||

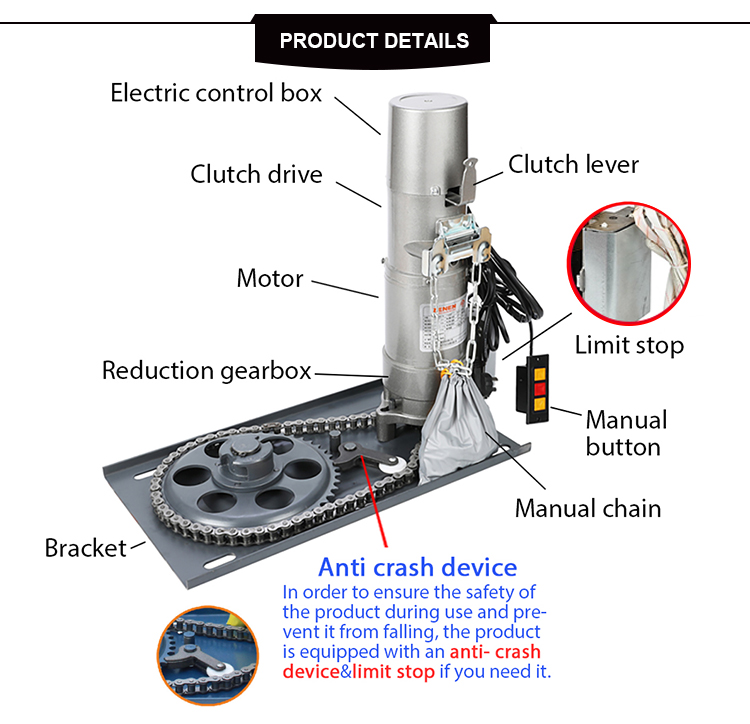

Product Details

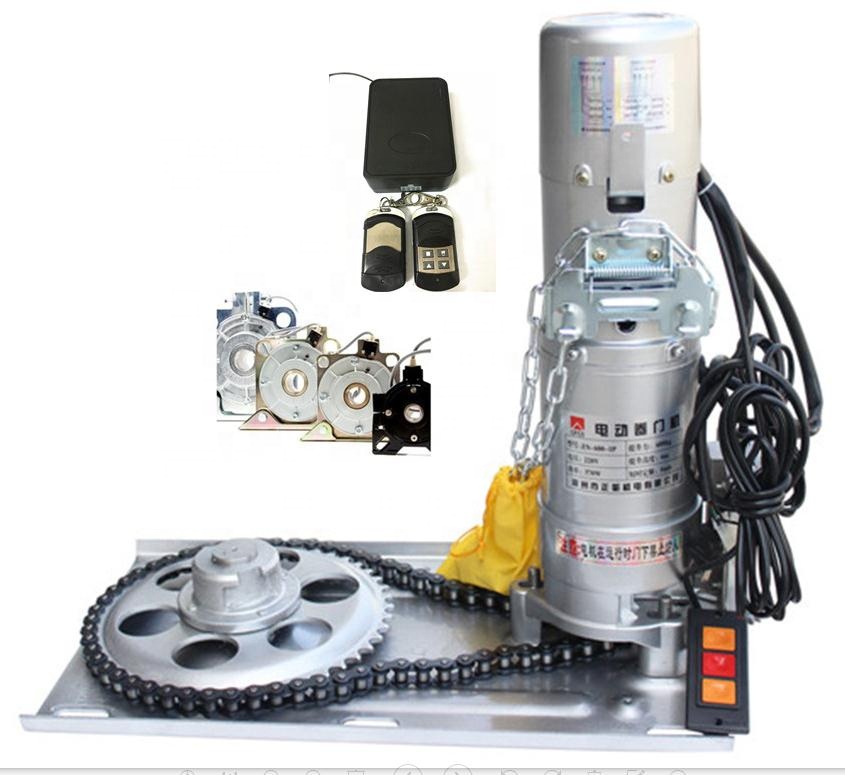

Accessories:
All parts are produced under strict control according to standard specifications.
2.Remote control
Low voltage control, stable performance, safe and reliable.
Features
※Overheating protection.
※Low-voltage high-power DC motor, low noise, low vibration and low consumption.
※It is easy to operate manually when there is a power outage, and it can also be equipped with a power storage device.
※The limit switch device can accurately adjust the up and down position of the door.
