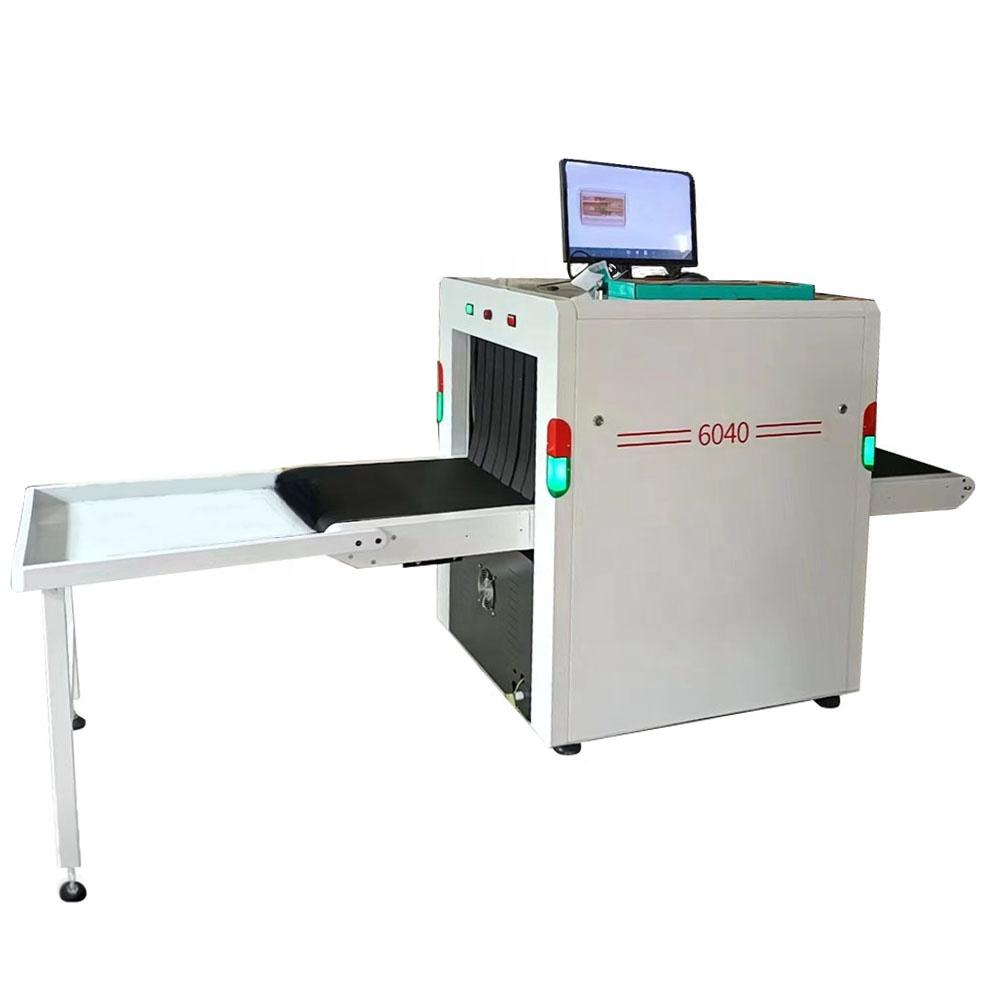

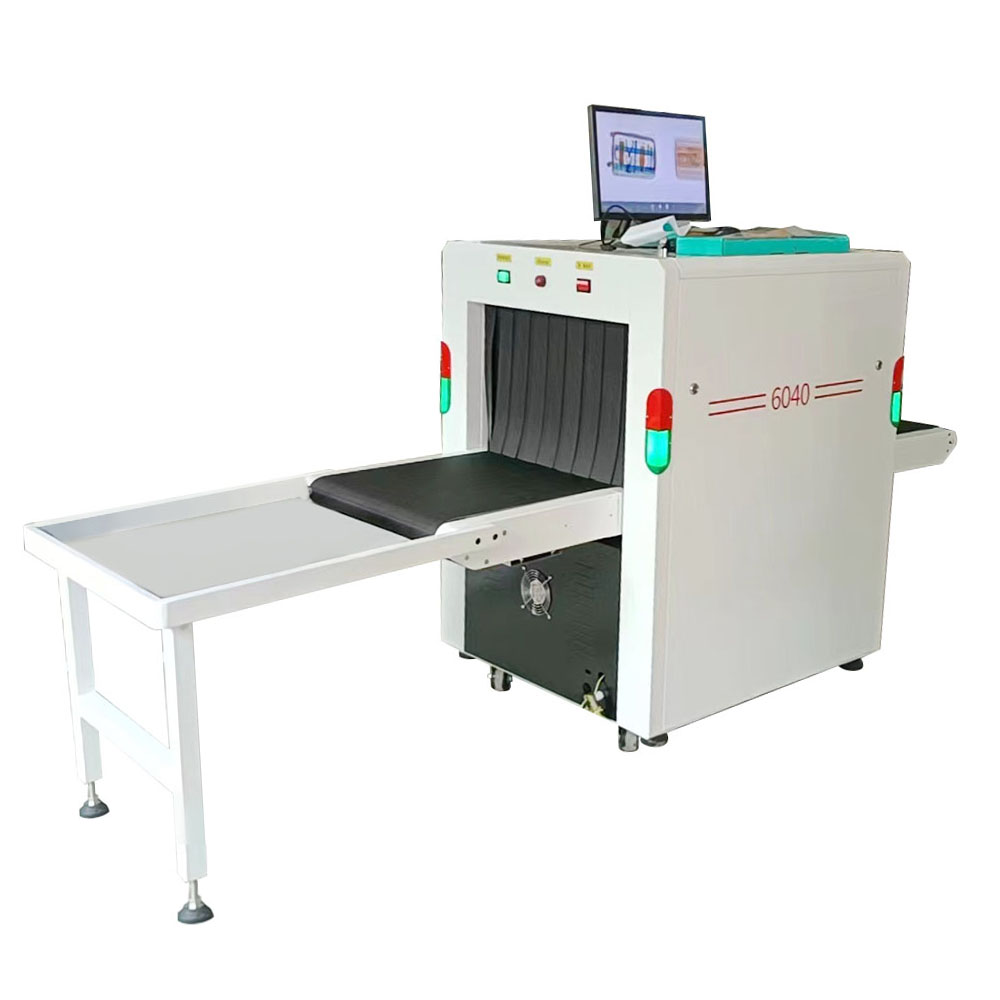

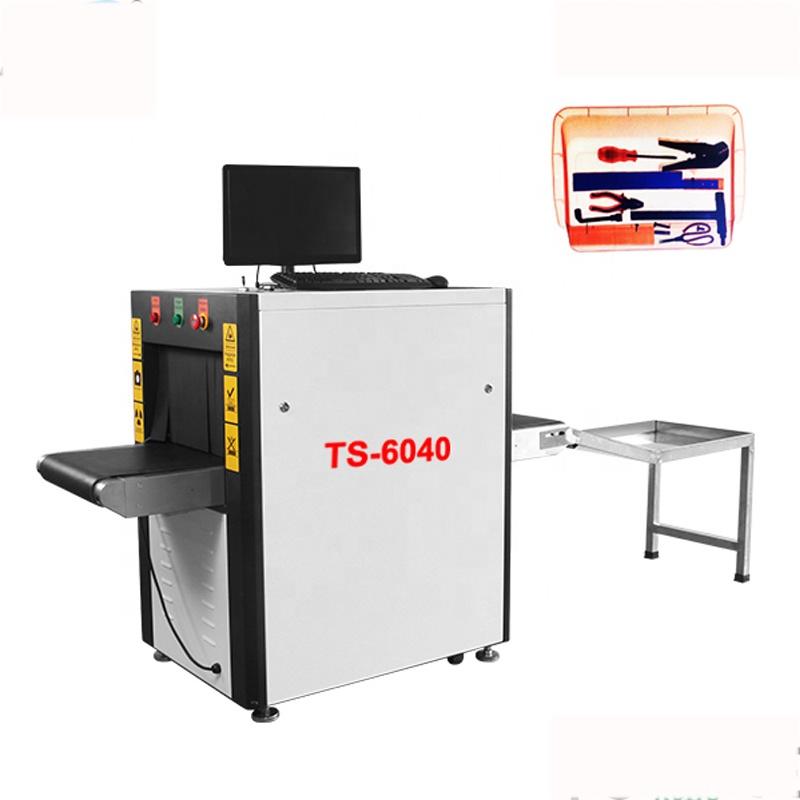

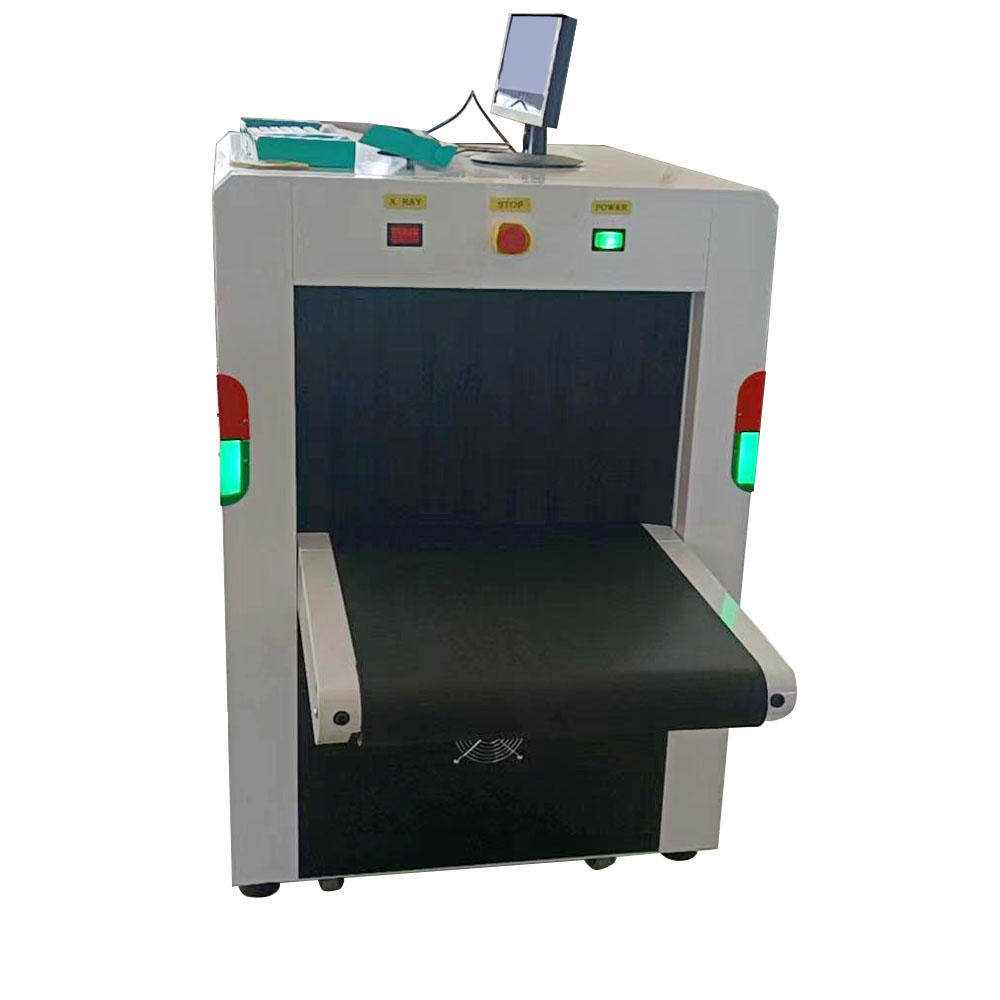

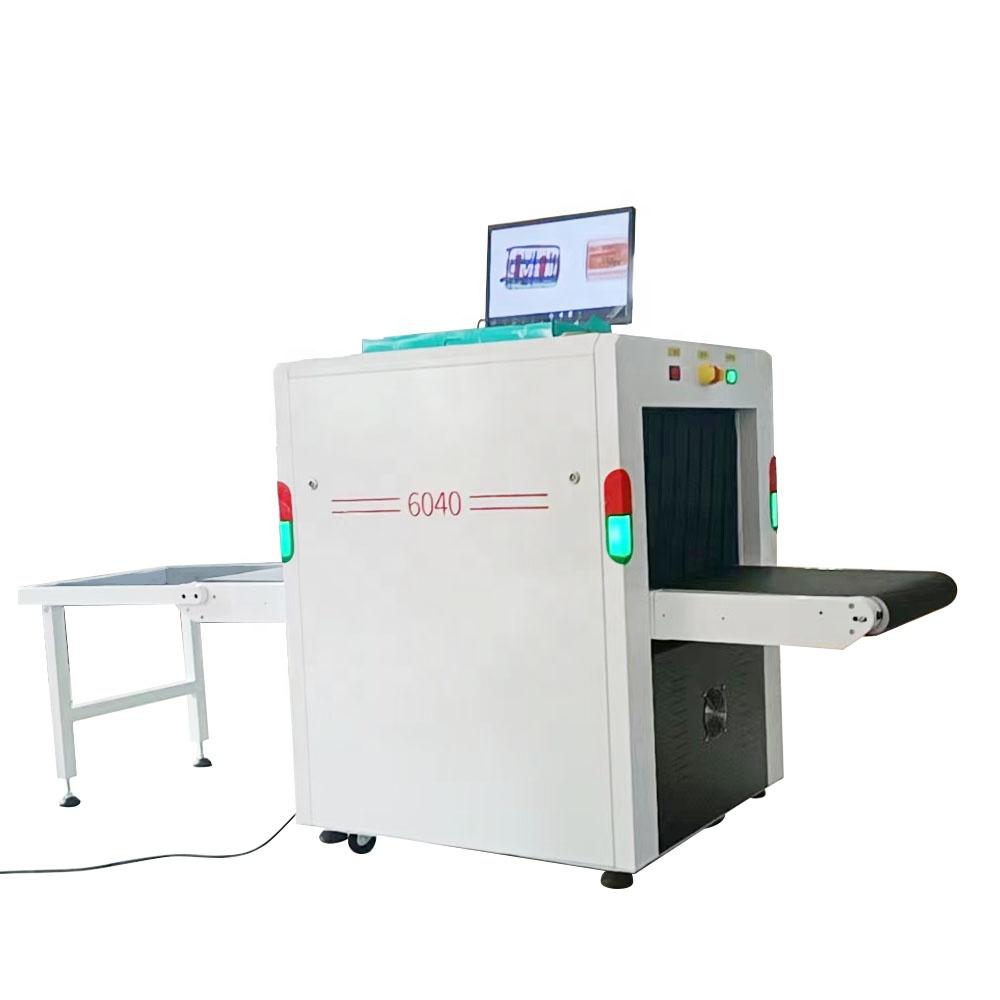

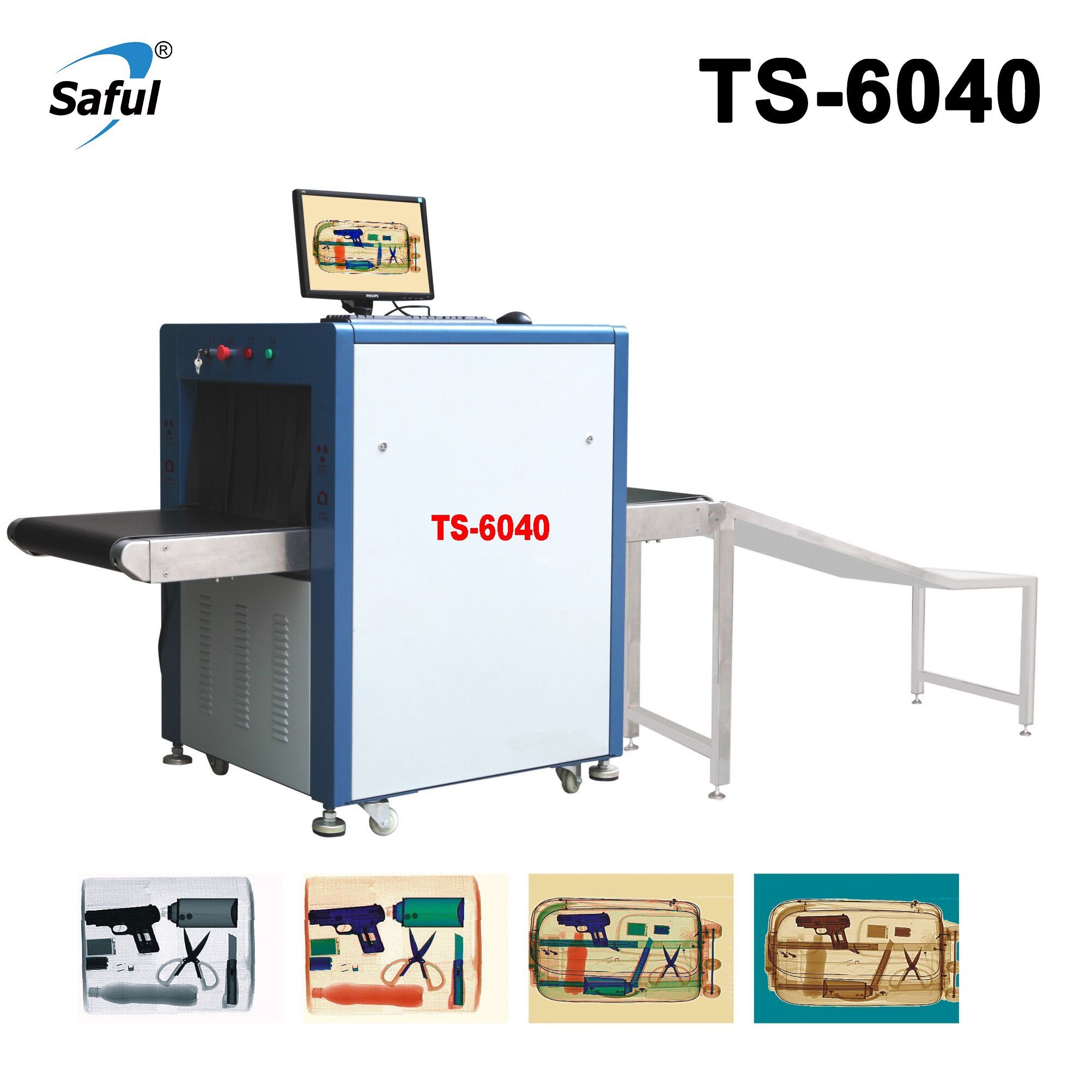

Saful 6040 Security Airport X-ray Baggage Scanner for Hotel/Mall/School/Station
-
$4500.00 / 1 - 99 sets
$4300.00 / >=100 sets - 1 set
- Shenzhen Top Saful Electronic Tech Co., Ltd.
- Guangdong, China
- Ms Sherry Luo
Product Detail
| penetration: | >34mm steel | place of origin; place of origin: | Guangdong, China |
| port: | Shenzhen Port | Resolution: | 0.0787mm diameter metal wire |
| Packaging Details: | Packing size: 2680*1760*2330mm wooden box, double protection Weight: 770kg | Membrane Security: | Film that guarantees ISO1600 |
| Supply capacity: | 500 sets per month | Warranty: | 5 years door-to-door service |
| Conveyor maximum load: | 170 kg | payment terms: | Western Union, T/T |
| brand: | Shafu | Ray leak rate: | Less than 0.1 μ Gy/h |
| Tunnel size: | 620*420mm | Package preview: | |
| Certificate: | CE, FCC, Rohs, etc. | strength: | Electronics |
| transfer speed: | 0.22 m/s |
Product Description
Specification
Dimensions: 2007.5mm x868mm x1314mm
Tunnel size: 620(W)*420(H)mm
Conveyor belt speed: 0.22m/s
Maximum load on the conveyor belt: 170kg
Ray leakage rate: less than 0.1μGy/h
Resolution: Dia0.0787mm wire
Penetration: >34mm steel
Film safety: guarantee ISO1600 film
X-ray generation model: American Spellman
X-ray Direct Generation: Down
X-ray generation angle: 80 degrees
X-ray anode voltage: 100-160Kv
X-ray anode current: 0.4 -1.2mA
X-ray dose per inspection <1.25μSv
Wire resolution: guaranteed 38AWG, typical 40AWG
Spatial resolution: horizontal: dia1.0mm, vertical: dia1.0mm
Tube current: 0.4 to 1.2MA (adjustable)
Tube voltage: 100 to 160kv (adjustable)
Cooling/Duty Cycle: Oil Cooling/100%
Operating temperature/humidity: 0-45C/20%-95% (non-condensing)
Storage temperature/humidity: -20-60C/20%-95% (non-condensing)
Operating power: 220VAC(+/-10%), 50+/-3Hz
Power consumption: 0.6 kW
Noise: less than 56dB
Wooden box packing size: 2680(L)*1760(W)*2330(H)mm
Total weight: 770kgs
Tunnel size: 620(W)*420(H)mm
Conveyor belt speed: 0.22m/s
Maximum load on the conveyor belt: 170kg
Ray leakage rate: less than 0.1μGy/h
Resolution: Dia0.0787mm wire
Penetration: >34mm steel
Film safety: guarantee ISO1600 film
X-ray generation model: American Spellman
X-ray Direct Generation: Down
X-ray generation angle: 80 degrees
X-ray anode voltage: 100-160Kv
X-ray anode current: 0.4 -1.2mA
X-ray dose per inspection <1.25μSv
Wire resolution: guaranteed 38AWG, typical 40AWG
Spatial resolution: horizontal: dia1.0mm, vertical: dia1.0mm
Tube current: 0.4 to 1.2MA (adjustable)
Tube voltage: 100 to 160kv (adjustable)
Cooling/Duty Cycle: Oil Cooling/100%
Operating temperature/humidity: 0-45C/20%-95% (non-condensing)
Storage temperature/humidity: -20-60C/20%-95% (non-condensing)
Operating power: 220VAC(+/-10%), 50+/-3Hz
Power consumption: 0.6 kW
Noise: less than 56dB
Wooden box packing size: 2680(L)*1760(W)*2330(H)mm
Total weight: 770kgs
feature of product
X-ray security inspection equipment includes baggage handling, X-ray source and control part, signal
Acquisition processing and transmission part, image processing part and electronic control part. The X-ray security inspection equipment sends the checked luggage into the crawler channel to complete the security inspection
Transfer with the help of a conveyor belt. After the goods enter the channel, the detection device transmits relevant information to the control unit, and the X-ray source is triggered by the control unit to emit X-rays. The X-ray passes through the collimator to form a very narrow fan-shaped beam, and enters the luggage on the detector through the conveyor belt, and the X-ray
The detector converts the received X-rays into electrical signals. The weak current signal is amplified and quantized,

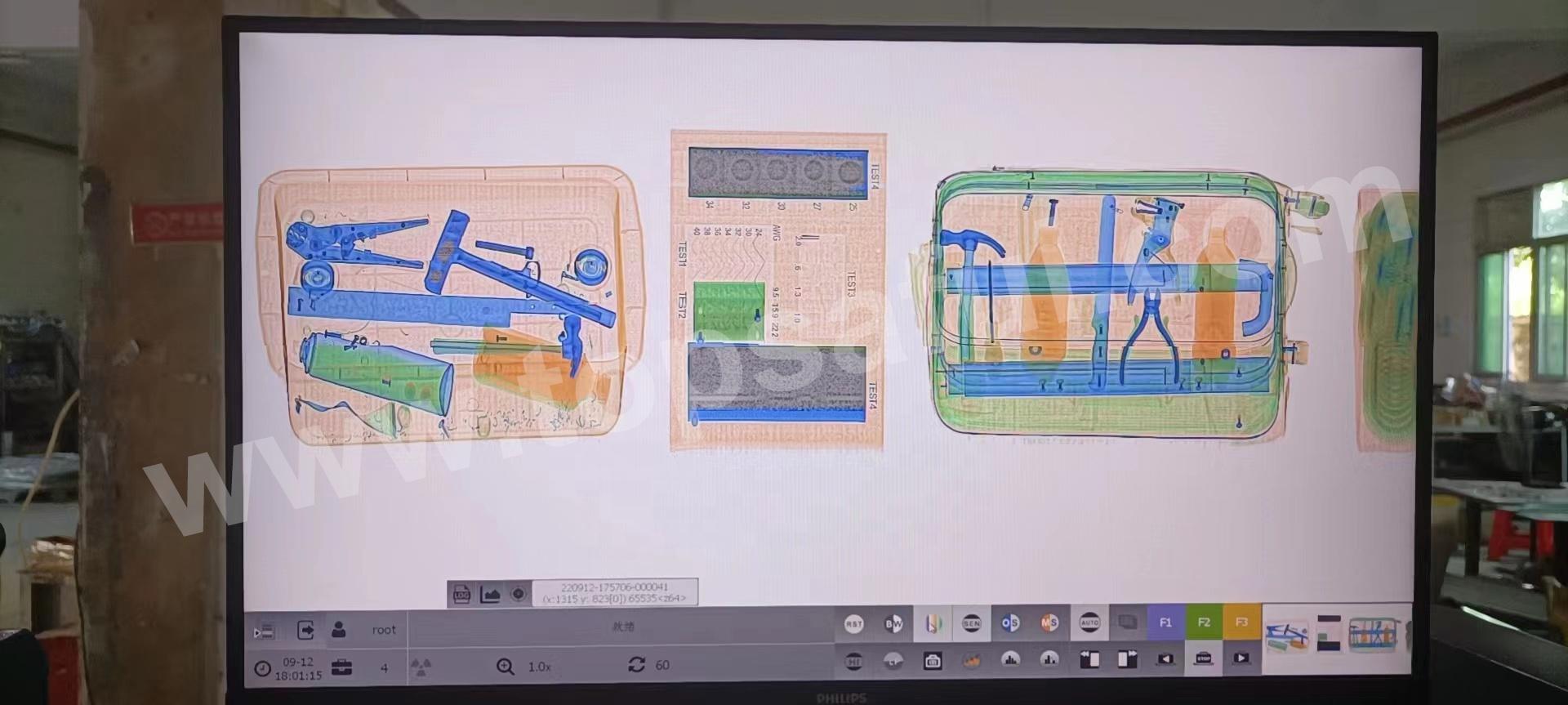

It is transmitted to the industrial control computer through the universal serial bus for further processing, and high-quality images are obtained after complex image processing.
Acquisition processing and transmission part, image processing part and electronic control part. The X-ray security inspection equipment sends the checked luggage into the crawler channel to complete the security inspection
Transfer with the help of a conveyor belt. After the goods enter the channel, the detection device transmits relevant information to the control unit, and the X-ray source is triggered by the control unit to emit X-rays. The X-ray passes through the collimator to form a very narrow fan-shaped beam, and enters the luggage on the detector through the conveyor belt, and the X-ray
The detector converts the received X-rays into electrical signals. The weak current signal is amplified and quantized,
It is transmitted to the industrial control computer through the universal serial bus for further processing, and high-quality images are obtained after complex image processing.
