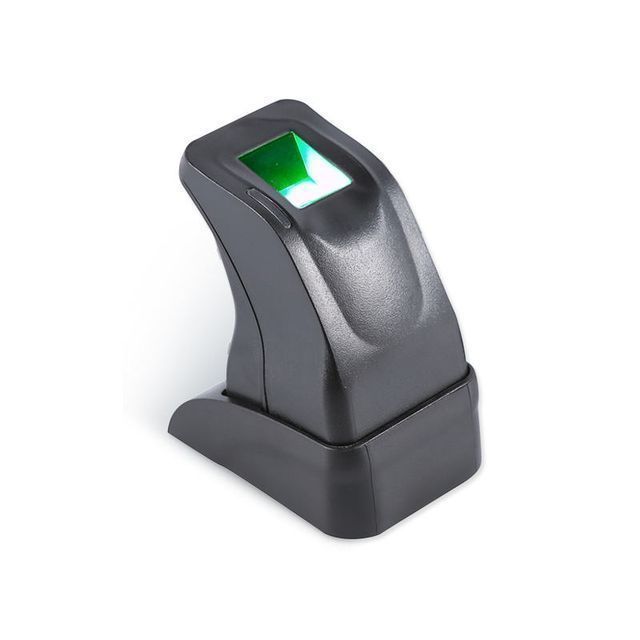

ZK4500 Optical Fingerprint Scanner Free SDK Biometric Sensor USB Fingerprint Reader

  • $45.00 / 1 - 9 units
    $40.00 / >=10 units
  • 1 unit
  • Granding Technology Co., Ltd.
  • Shanghai, China
  • Ms Sissi Tao

Product Detail

size:50*82*67mmWarranty:1 year
Image format:BN, JPGpower supply:5V
Resolution:512DPI, 500Dpibrand:grand
communicate:USB2.0, 1.0Customization support:OEM, design and manufacture
place of origin; place of origin:Chinapayment terms:L/C, T/T, MoneyGram
Certificate:European Commissionspecial function:attendance
Software and SDKs:freemodel:zk4500
Scan capture area:15*18mmWarranty:1 year
Fingerprint sensor:optical sensor

Introduction:

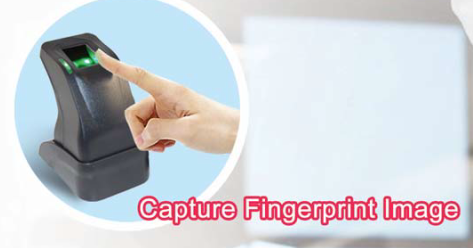

ZK4500 is a fingerprint scanner with stable performance and excellent performance. The device can collect fingerprint images and upload them to the computer, and then upload them to the fingerprint time attendance machine or access control terminal through the USB interface. It supports Windows 2000/XP/2003/Vista/Win7/9/win10 (32/64 bit). We provide SDK for developers. Developers can integrate the hardware into their own systems. This product is widely used in social security, public security, attendance, fingerprint encryption, embedded systems and other application fields.



feature:



• High-performance, maintenance-free optical fingerprint sensor.

• Easily accessible by any finger

• High-quality industrial-grade ABS plastic material with anti-scratch texture treatment on the surface

• Removable weighted stand

• Hi-Speed ​​USB interface

• LEDs indicate the status of the device

• Driver CD included

• Provide secondary development SDK



Specification:







Model Name

ZK4500

Material

Optical

CPU

120MHz Digital Signal Processor

flash

16 KB

system on chip

real-time operating system

Picture quality

300,000 pixel CMOS

Encrypted Fingerprint Data

Do not

Operation Sunshine

white filing, general sunlight

water splash

yes

Dry, wet, or rough fingerprints

The general level

energy consumption

5V: 200mA scan; 5V: 90mA idle (waiting for finger)

Live fingerprint detection

Do not

to lead

green

certified product

Federal Communications Commission, European Commission

voltage

5V (USB)

supply current

200mA

communicate

USB2.0 / USB1.1 / USB1.0

interface socket

USB Type A

Image Resolution

500dpi

effective collection area

13.24*15.7mm

collection area

15.4*18mm

Image size

280*360 pixels

size

65.5 * 48 * 79.8mm (L*W*H)

image format

bone morphogenetic protein

template

ZKFinger V10.0

template size

<2KB, (ZKFinger V10.0);1568 B (ISO 19794-2)

grayscale

256

weight

0.25 kg

operating environment

-20℃~+50℃; 90% relative humidity

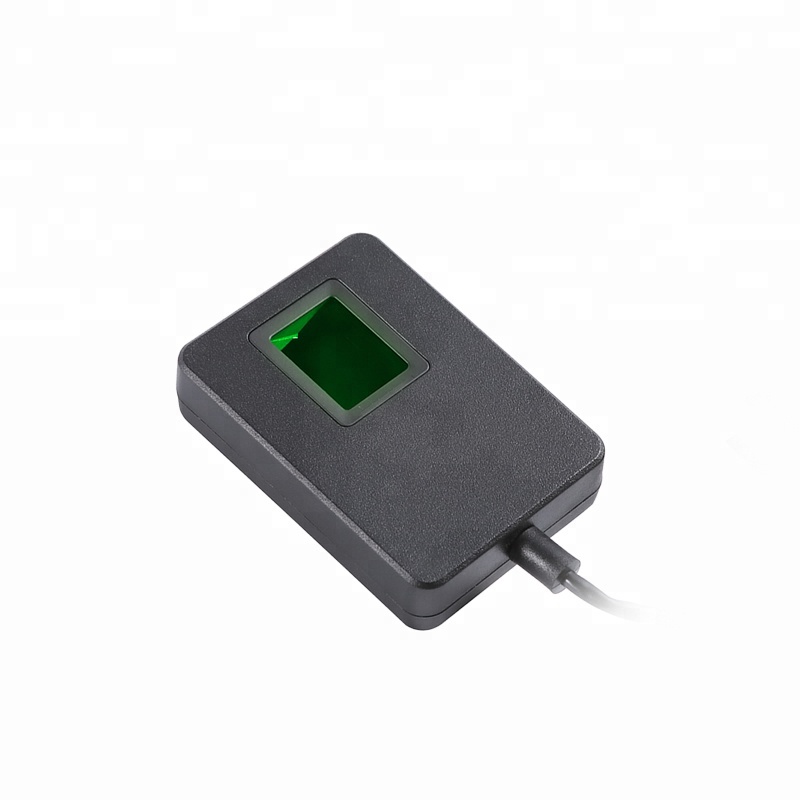

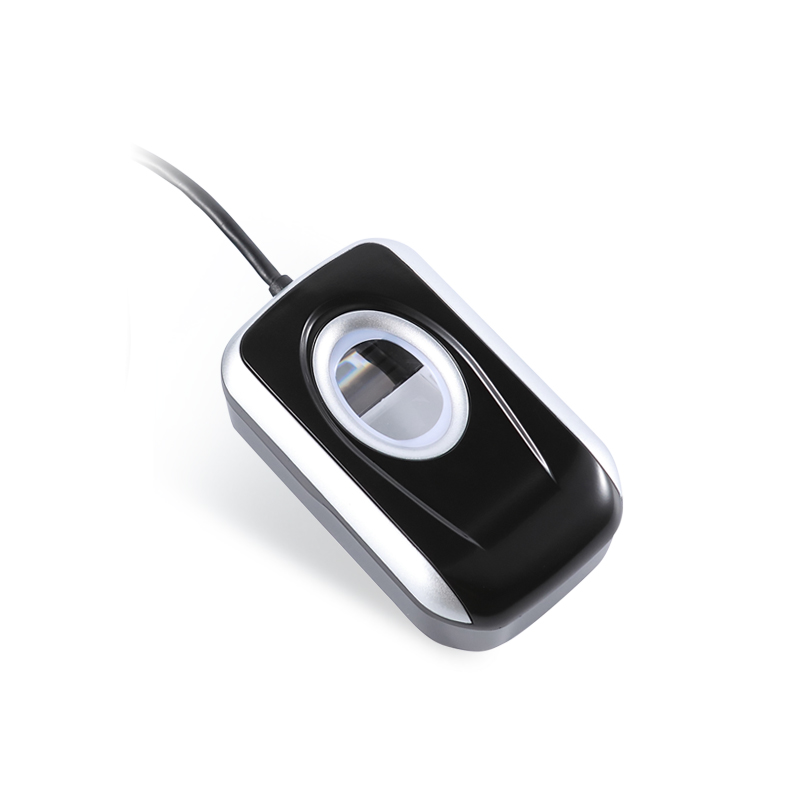

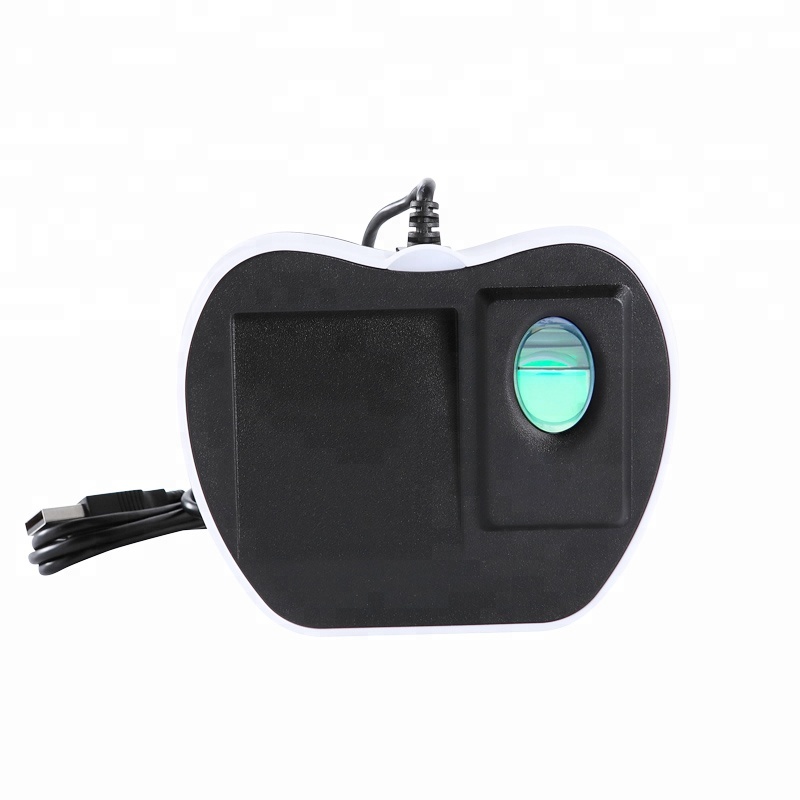

Related models



zk9500 zk7500 zk8500







view more products







Warranty conditions

2018 version

(only for GRANDING current production models)



Warranty:

GRANDING warrants its products to be free from defects in materials and workmanship under manufacture and normal use during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, GRANDING must be notified immediately by email or telephone and GRANDING will determine how to correct the defect, including but not limited to repair or replacement of the defective part or unit with a new part or unit, Or in the GRANDING option with refurbished parts or units that are not new but have been functionally tested at no cost to the customer.

GRANDING will also repair or replace the product after the warranty period, the cost of spare parts and return shipping will be charged.



How long is the warranty valid for:

Product warranty may vary depending on where you purchased it. The chart below is for your reference only. Authorized Service Centers will be responsible for return shipping



Product number

warranty period

3000T-C, Qclear-C, Qclear-TC, GT100, GT200, 5000T-C, TFT500, TFT600, TFT900, TFT900-H, FA1-H, FA2-H, FA1-P, F09, GT210, UscanII, 5000A, 5000A+, F08, D8-RE, GT168, GT268, GT368

24 months after shipment

other models

12 months after shipment



If a copy of the original proof of purchase cannot be provided, the warranty period will be deemed to begin on the date of manufacture (this applies only to incoming repairs or replacements). Once the warranty period ends, there is no grace period for the device.

Warranty is subject to change without notice.

GRANDING reserves the right to interpret the above content.
