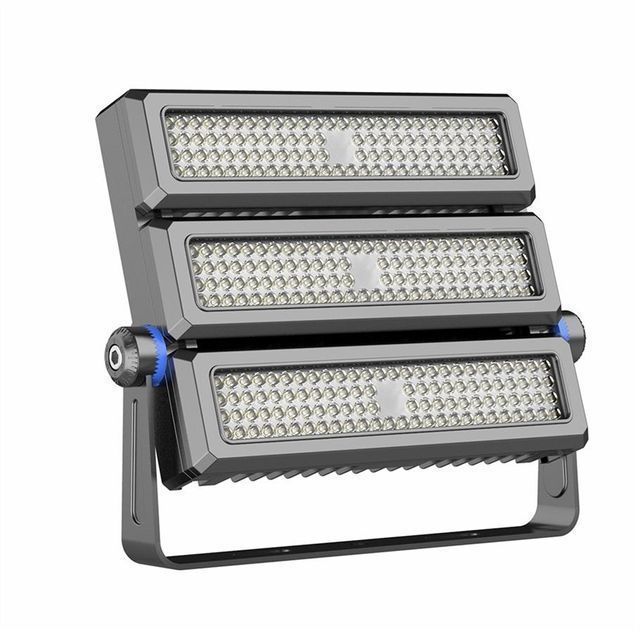

LED tunnel light with super bright glass 22500lm 150W IP66 IK10

Product Detail

Lamp Dimensions:310*372*97mmWarranty (year):5 years
model:LSS4150place of origin; place of origin:Guangdong, China
Protection class:IP66port:Shenzhen Yantian, Shenzhen Shekou
Working life (hours):50000payment terms:L/C, T/T
Lighting Solutions Services:Lighting and Circuit Design, DIALux evo Layout, LitePro DLX Layout, Agi32 Layout, Auto CAD LayoutProduct weight (kg):4
Working temperature(℃):-40 - 50Packaging Details:1/box
light source:to leadInput voltage (V):AC 85-265V
lumen:22500strength:150w
net weight:4 kgSupported dimmers:yes
Lamp luminous flux (lm):22500Color rendering index (Ra):80
Lamp Luminous Efficiency (lm/w):150Lifespan (hours):50000
Color rendering index (Ra>):80Working hours (hours):50000
Supply capacity:30000 pieces per monthbrand:LUXSENCE
Color temperature (CCT):3500K (warm white)
Product Description
Specification
main feature
Tempered glass cover, suitable for various harsh environments
Integrated trunking, wiring is simple and convenient
180° adjustable bracket for precise installation
Multi-lens 25° / 45° / 60° / 90° / 80*150° / 90*120°
Modular design power range from 50W to 250W
IK10 and IK66 durable quality
Reinforced 4mm bracket, anti-17 typhoon
150lm/w super bright OSRAM LED chip
Meanwell/Sosen driver, high power efficiency
Long service life LM80 TM21 > 100,000 hours

Electrical parameters
Model:
LSS4150XXD
strength:
150W
Operating Voltage:
AC90-305V, 50-60Hz
Power factor:
0.96
Power Efficiency:
0.92
Optical parameters
lumen:
22500lm
effect:
150 lumens/watt
Color temperature:
2700K ~ 6500K
Color rendering index:
Ra>70
LED chips:
SMD 3030
Beam angle:
20°, 45°, 60°, 90°, 80*150°, 90*120°
Mechanical parameters
Building materials:
ADC#12 die-cast aluminum
Protection class:
IP66
IK level:
IK10
Operating temperature:
-40℃~50℃
Working humidity
10% ~ 90% relative humidity
Lamp Dimensions:
310*372*97mm
net weight:
4 kg
