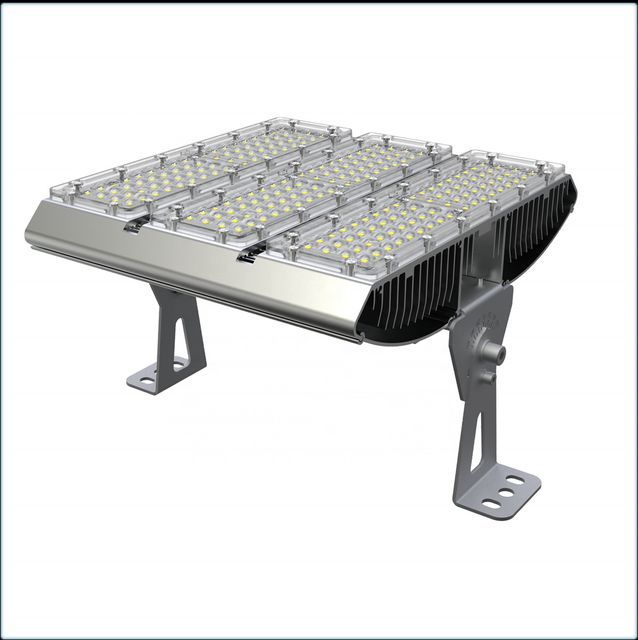

Tunnel Light LED Floodlight Module Design 50w 60w 80w 120w 150w 180w 200w Outdoor Waterproof IP65 Light Power
- $27.50 /set
- 1 set
- Yaham Optoelectronic Co., Ltd.
- Guangdong, China
- Mr Yaham shenzhen
Product Detail
| Product weight (kg): | 4 | Feature 4: | easy installation |
| Feature 3: | one body | Working temperature(℃): | -30 - 55 |
| Lamp luminous flux (lm): | 6200-24800 lumens | application: | tunnel underpass overpass |
| payment terms: | Western Union, D/P, D/A, T/T | weight: | 1.8 kg, 2 kg, 3 kg, 4 kg |
| Protection class: | IP65 | Lighting Solutions Services: | Engineering installation, tunnel underpass overpass |
| Color rendering index (Ra>): | 80 | Color temperature (correlated color temperature): | 3500k-5000k |
| Packaging Details: | Box | Feature 2: | Anti-glare design |
| product name: | LED floodlights | Color rendering index (Ra): | ≥80 |
| Working life (hours): | 30000 | model: | Yahan-TL-FC |
| Input voltage (V): | AC 120-277V | Origin: | gua |
| Warranty period (years): | 5 years | Supply capacity: | 1000 sets per month |
| port: | Shenzhen | brand: | Yahan |
| Feature 5: | Waterproof grade IP65 | Package preview: | |
| Lifespan (hours): | ≥30000 | Lamp Luminous Efficiency (lm/w): | 124 lumens/watt |
| Working hours (hours): | ≥30000 | feature: | High light efficiency |
| light source: | to lead |
YahanYahan Optoelectronics Co., Ltd.tunnel lightseries
Virtual Reality
Product Details
product name | LED Tunnel Light |
power factor | 0.95 |
color temperature | 3500K/4000K/5000K |
Color rendering index | >70 |

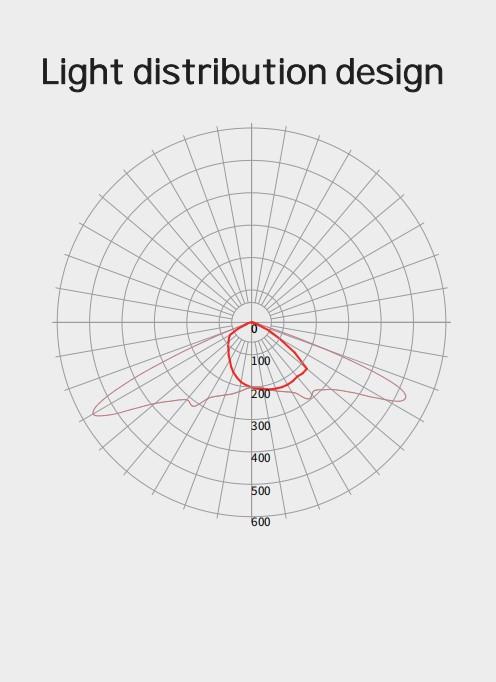

Beam angle | 80x150°/75x150° |
Input voltage | 120-277V |
input frequency | 47-63 Hz |
Operating temperature | -30℃-+55℃ |
Storage temperature | -30℃-+60℃ |
Material | Aluminum alloy, optical PC, stainless steel |
service life | ≥30,000 hours |
service life | ≥30,000 hours |
High light efficiency Anti-glare design Integrated and easy to install
Power (watts) | Working voltage (V) | power factor | Color temperature (K) | Color rendering index | Luminous flux (lm) | length width height |
50 | AC 120-277V | ≥0.95 | 3500/4000/5000 | ≥80 | 6200 | 95×290×195mm |
60 | AC 120-277V | ≥0.95 | 3500/4000/5000 | ≥80 | 7440 | 95×290×195mm |
80 | AC 120-277V | ≥0.95 | 3500/4000/5000 | ≥80 | 9920 | 250×290×195mm |
120 | AC 120-277V | ≥0.95 | 3500/4000/5000 | ≥80 | 14880 | 250×290×195 mm |
150 | AC 120-277V | ≥0.95 | 3500/4000/5000 | ≥80 | 18600 | 340×290×195mm |
180 | AC 120-277V | ≥0.95 | 3500/4000/5000 | ≥80 | 22320 | 340×290×195mm |
200 | AC 120-277V | ≥0.95 | 3500/4000/5000 | ≥80 | 24800 | 430×290×195mm |
Features

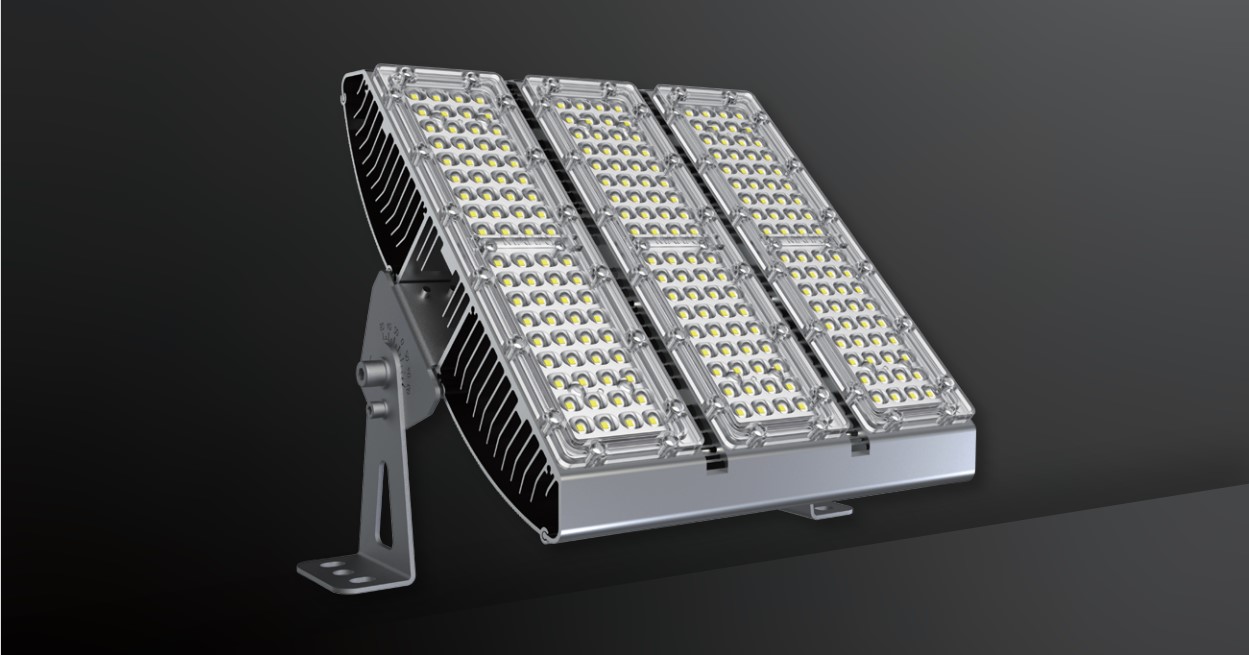

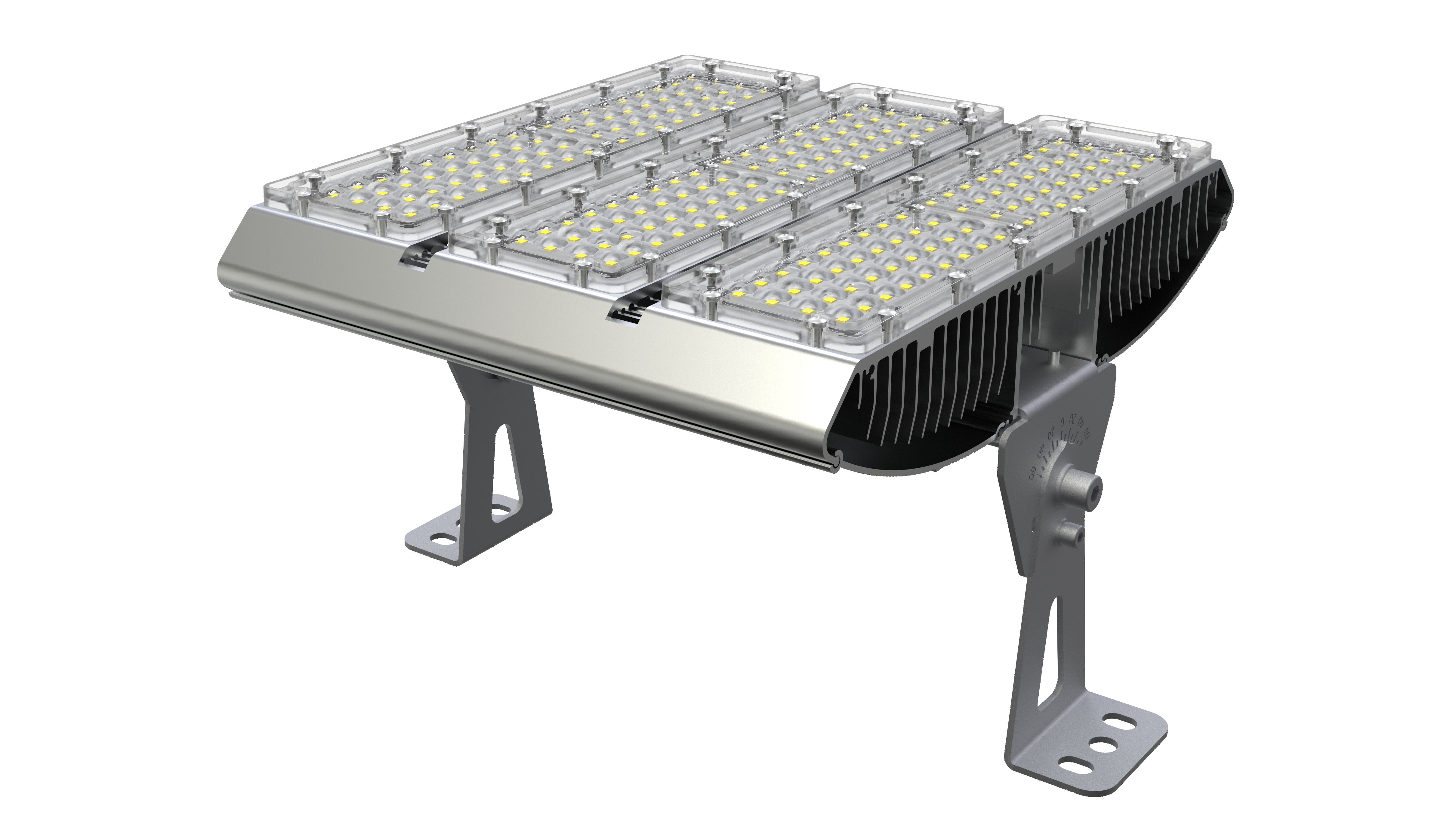

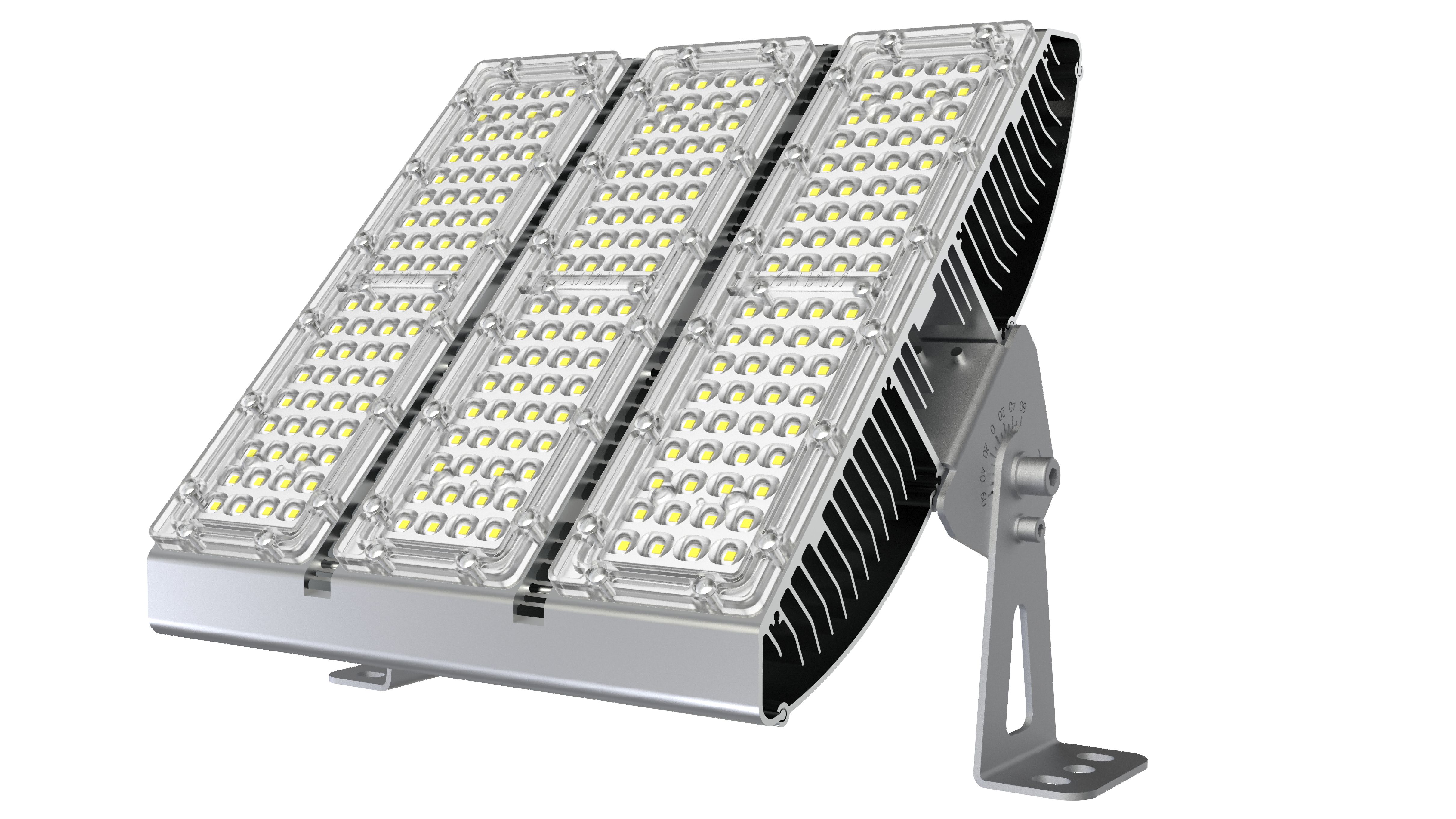

YAHAM LED floodlights
YAHAM series LED tunnel lights are made of high-quality aluminum alloy materials, one-piece lamp body structure, unique air duct heat dissipation design, uniform heat distribution of lamp body, fast heat conduction, compact structure, anti-corrosion, strong impact resistance, modular installation combination, according to Different tunnel lighting requirements can provide lamps with different power and color temperature to meet various road lighting needs.
Product advantages

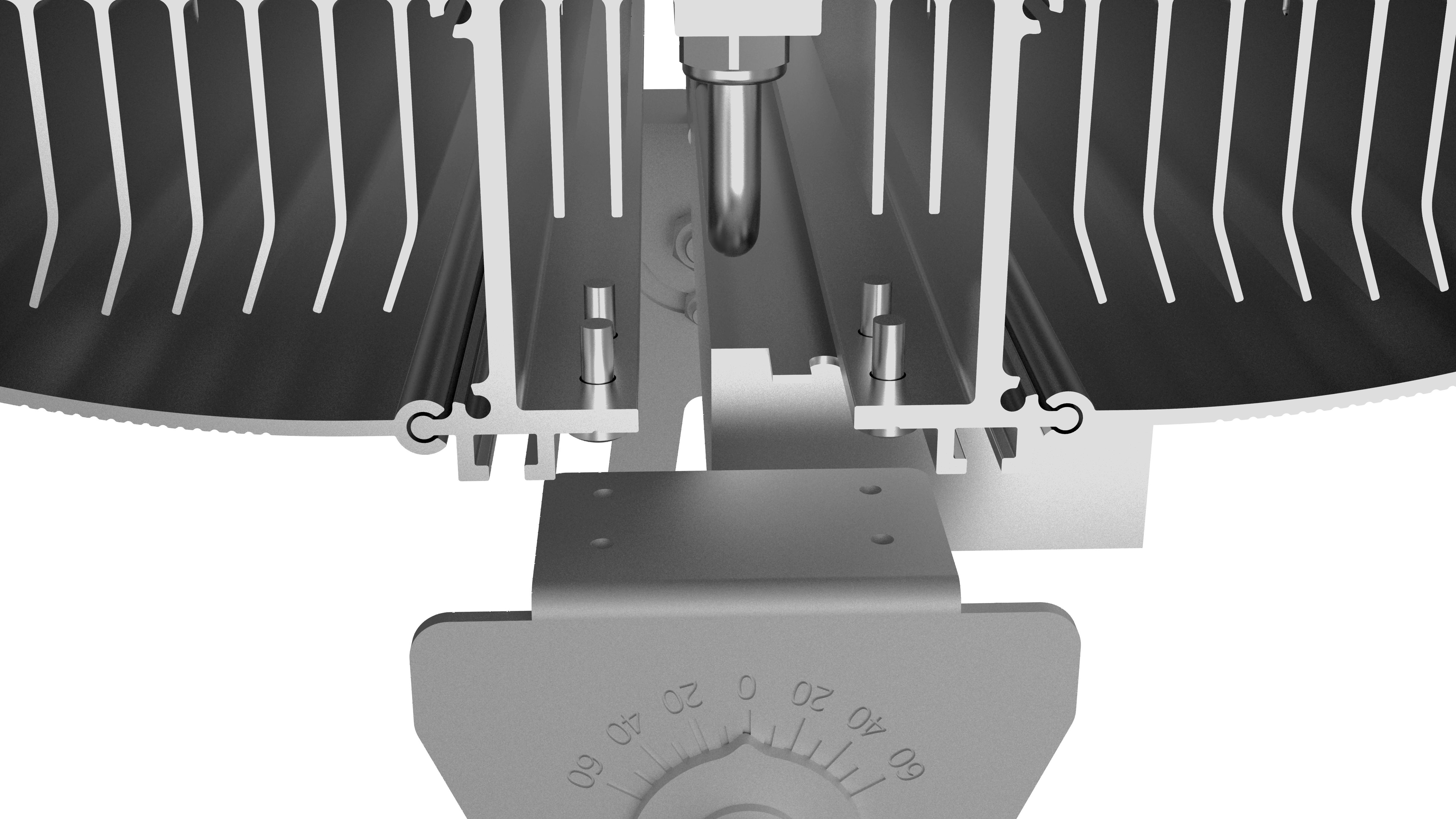

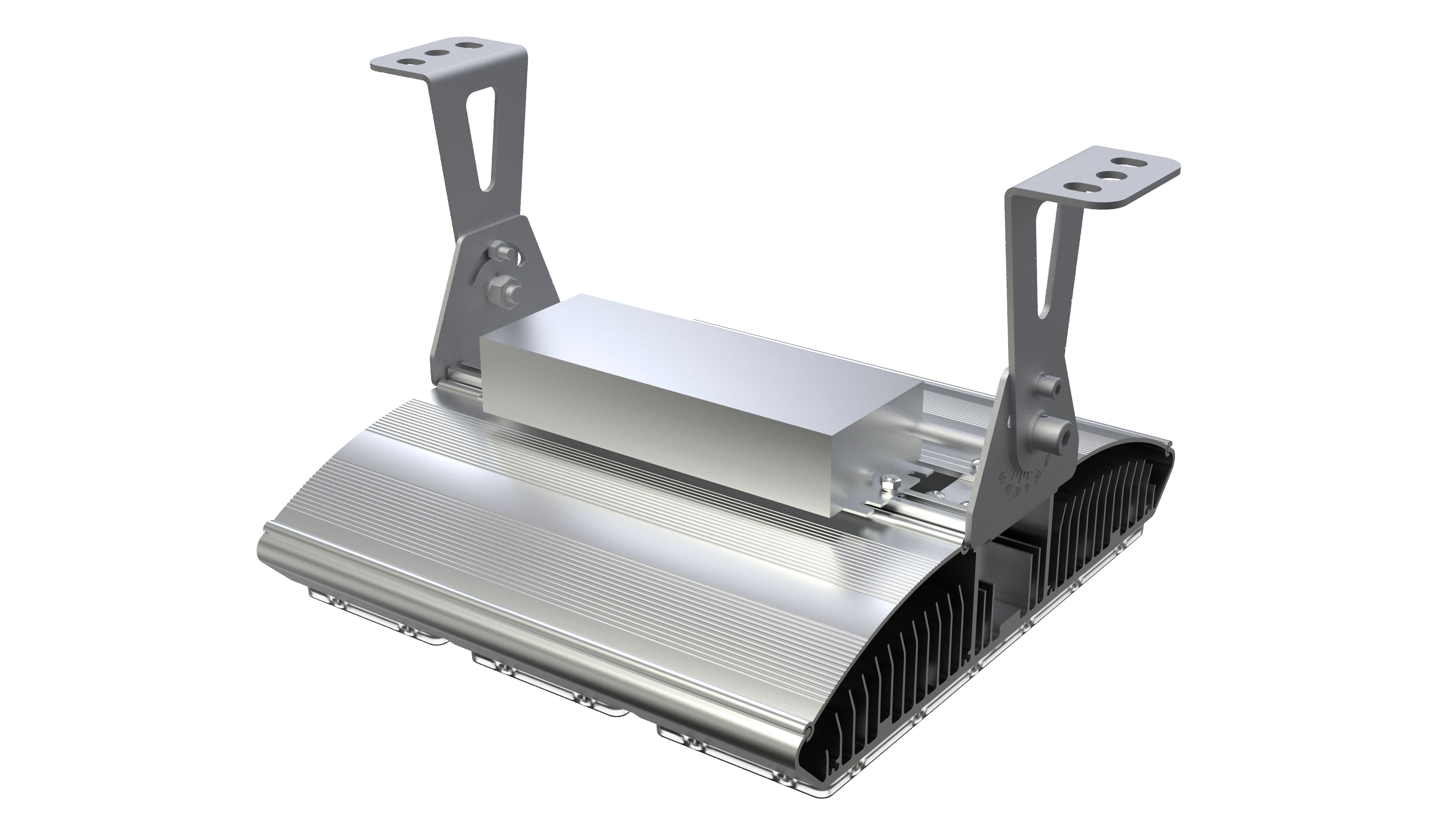

Integrated heat dissipation of the lamp body, good mechanical performance
Streamlined shape, low wind resistance, full convection heat dissipation.

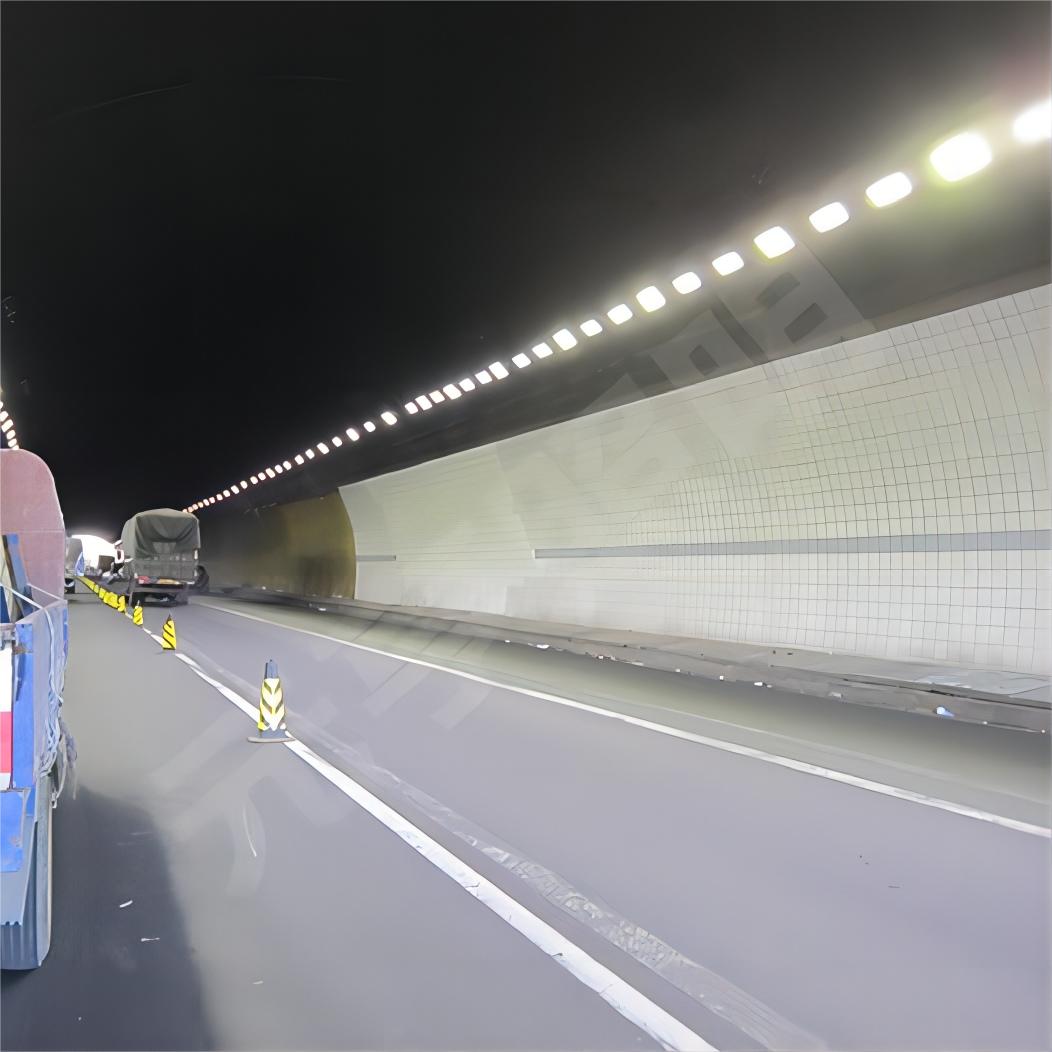

Application field

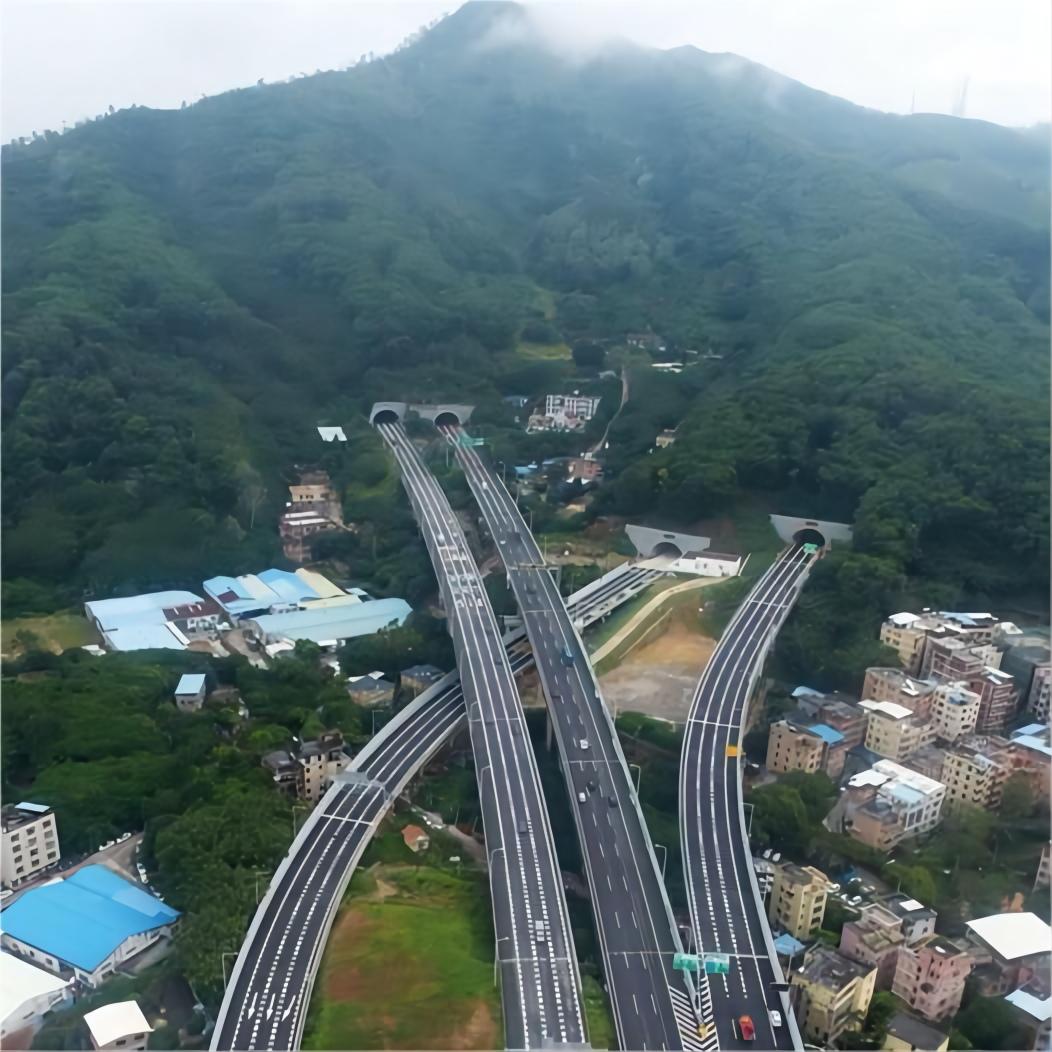

Tunnels, underpasses, 0verpass
