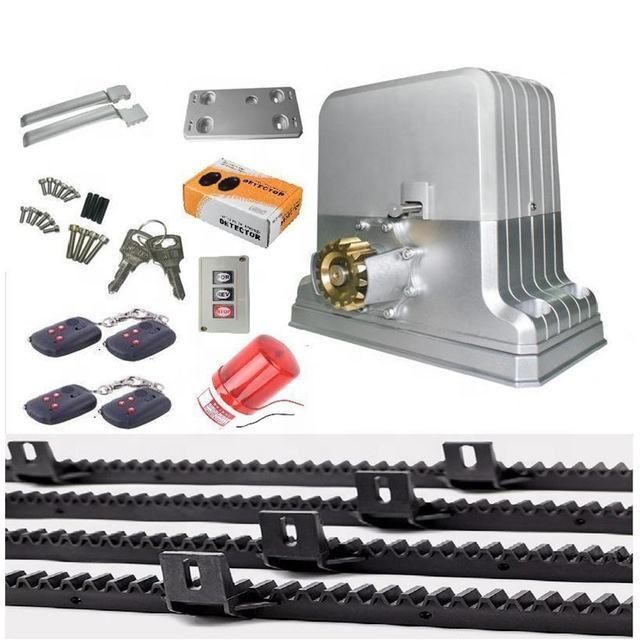

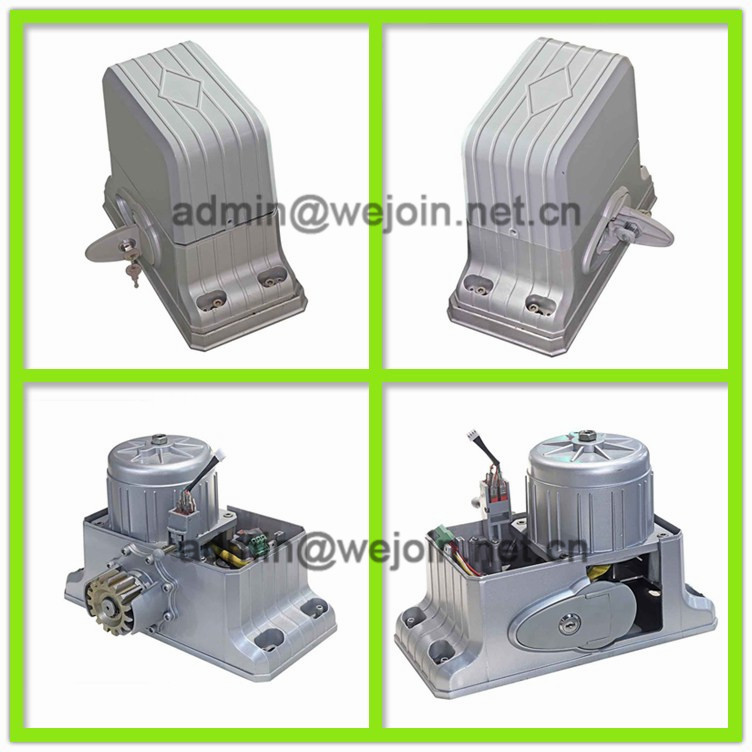

Heavy Duty AC Motor 220V Door Opener Automatic Door Operator/Sliding Door Motor

Heavy Duty AC Motor 220V Door Opener Automatic Door Operator/Sliding Door Motor

Specification



1) Mechatronics, one machine with multiple functions
2) Radio controller or line control on, off and stop functions
3) Magnetic limit switch, the door moves to the limit and stops
4) Accurate limit braking
5) Electronic soft start
6) DIP switch to adjust the two-way rotation of the motor
7) The opening and closing limit has a self-locking function
8) Intelligent operation - if it detects an obstacle when closing the door, it will reverse open, then try to close automatically after 10 seconds, unless you press the stop key.
9) Moving indication - the indicator light is on when the door is moving.
10) Optional wire control or remote control

Motor Data Contact Us to Save Money

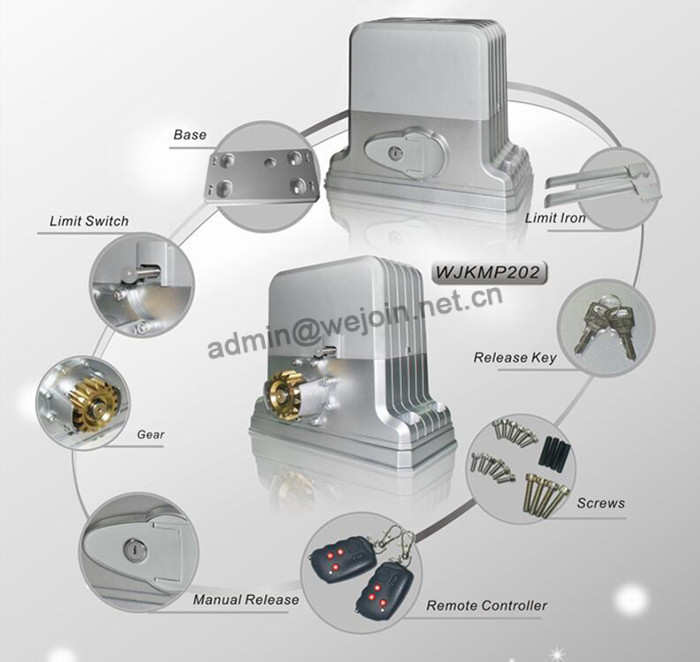

Model	WJKMP201		WJKMP202
Voltage	220V±10%	110V±10%	220V±10%	110V±10%
frequency	50 Hz	60 Hz	50 Hz	60 Hz
current	2A	4.5A	2.7A	5.8A
motor voltage	AC220V/110V
capacitor	18μf	60μf	20μf	60μf+14μf
Output Power	250W		350W
absorbed power	440W	495W	594W	638W
torque	22.5nm		35nm
model number	m=4
Motor speed	1350 rpm	1620 rpm	1350 rpm	1620 rpm
Reduction ratio	23:1
gear speed	58.5rpm	70.2rpm	58.5rpm	70.2rpm
Driving speed	11 m/min	13.2 m/min	11 m/min	13.2 m/min
Operating temperature	-40℃∼+55℃
Overload protection temperature	130°C
Motor Manufacturing Technology	Die-cast aluminum alloy
publish manually	yes
Product weight (approx.)	9.13 kg	9.18 kg	10.19 kg	10.25 kg
gate weight	1000 kg		1800 kg

digital data

Model	WJKMP201	WJKMP202
slow start	yes
stop on an obstacle (adjustable sensitivity)	yes
Automatic preheating (at freezing temperatures)	yes
remote control	418MHZ (50m, about)
wire control	usable
auto shut off	yes
Vehicle loop detector socket	yes
Photocell socket	yes
Police light socket	yes
