LED 150W flood light is suitable for parks, billboards, streets, tunnels, parking lots, gardens, factories and wall washers

Product Detail

Input voltage (V):110-277brand:Peony lighting
Chip brand:LED 3030smdCertification:BV,CCC,ce,CQC,C-tick,Energy Star,EMC,FCC,GS,GOST,LVD,PSE,RoHS,Reach,Saa,SASO,VDE
Working temperature(℃):-50 - 50light source:to lead
Lamp luminous flux (lm):18000Beam angle:15 /25 /45 /60 /90
Color temperature (CCT):2700-7500place of origin; place of origin:Guangdong, China
port:Shenzhen, ChinaColor rendering index (Ra>):80
model:PL-SD-027-150WLamp Luminous Efficiency (lm/w):120
Supply capacity:10000 pieces per monthapplication:Floodlight housing
Warranty (year):5Name:projector light tunnel
Working life (hours):50000strength:30-300W optional
payment terms:D/A, D/P, T/T, Western Union, MoneyGram, different payment terms for different countriesItem Type:tunnel light

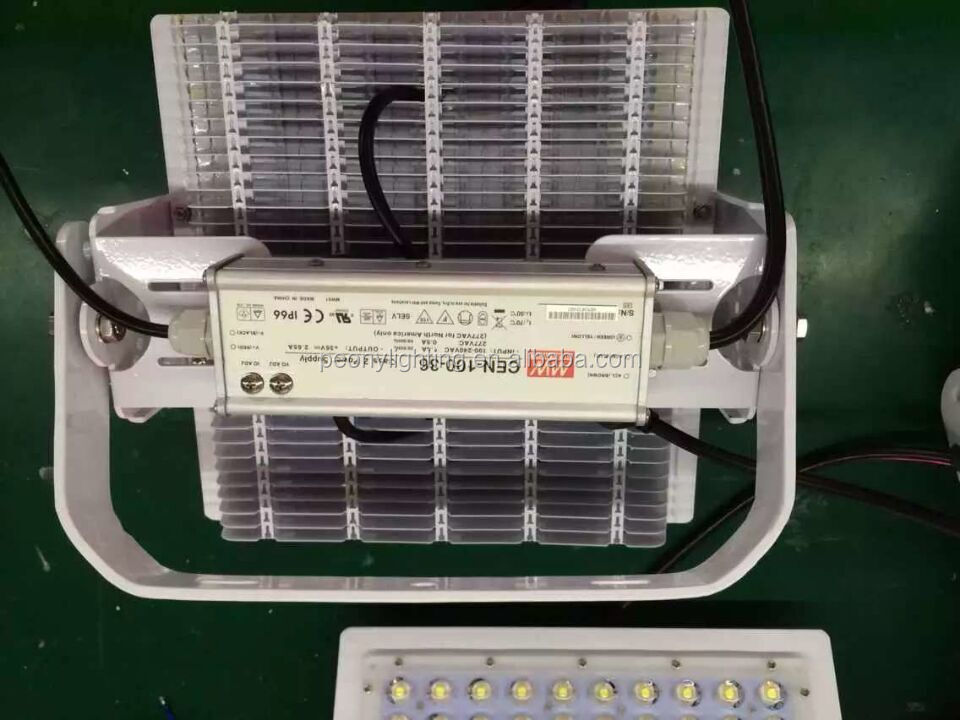

LED driver:MingweiBody material:Aluminum Die Casting
Lighting Solutions Services:Lighting and circuit design, DIALux evo layoutProtection class:IP67

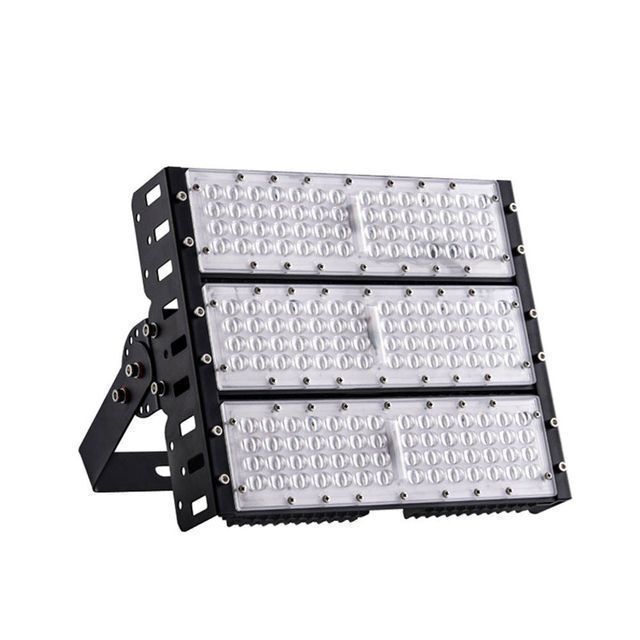

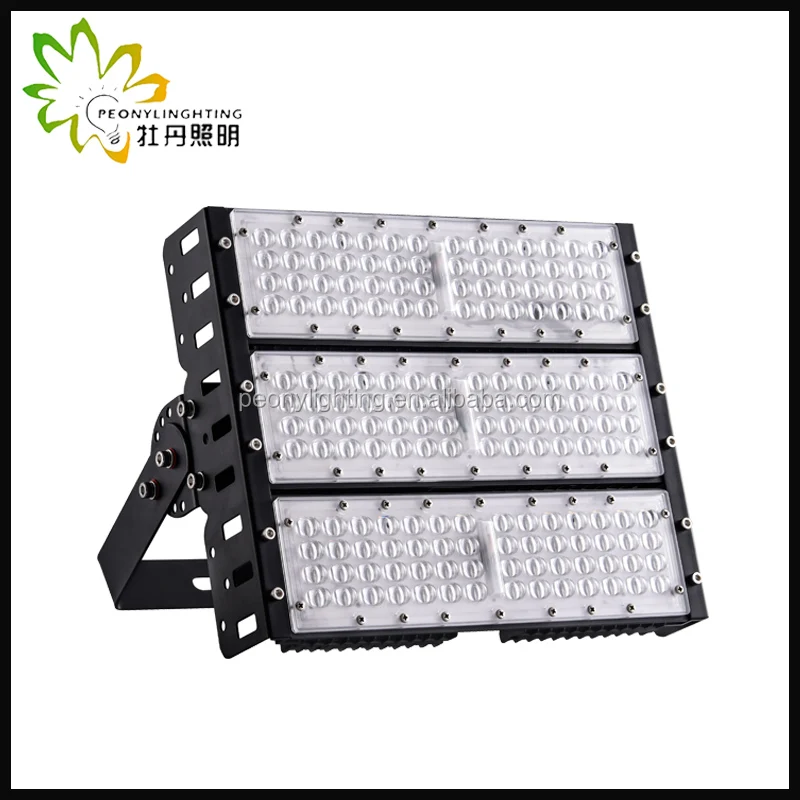

LED 150w flood light is suitable for parks, billboards, streets, tunnels, parking lots, gardens, factories and wall washers







1. Product overview
The high-brightness planar industrial lamp (tunnel lamp) developed by the latest LED lighting technology has a square shape, and the internal light source uses 3030SMD as the light source. Lens light distribution technology controls the light angle.





feature
1. Module standardization, pluggable technology, easy storage of spare parts, simple on-site maintenance tools;

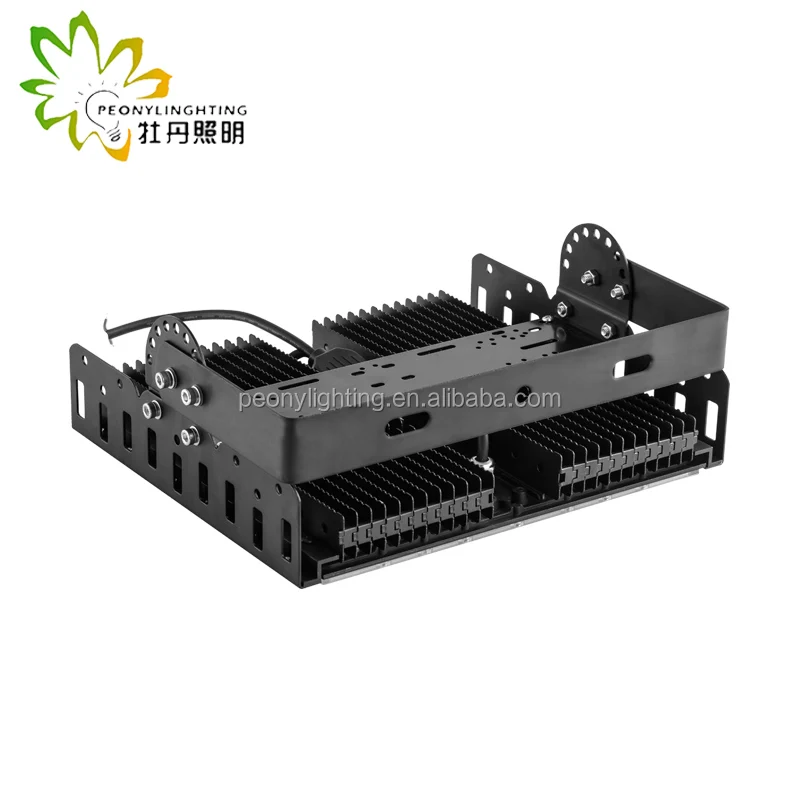

2. Professional heat dissipation structure, internal and external air duct design, to obtain efficient heat dissipation;
3. The shell is treated with baking paint, and the radiator is anodized, which has good corrosion resistance and is suitable for harsh outdoor environments;
4. The product adopts waterproof connector and silicone gasket sealing technology, and the protection level is as high as IP65, which is suitable for various harsh outdoor environments;

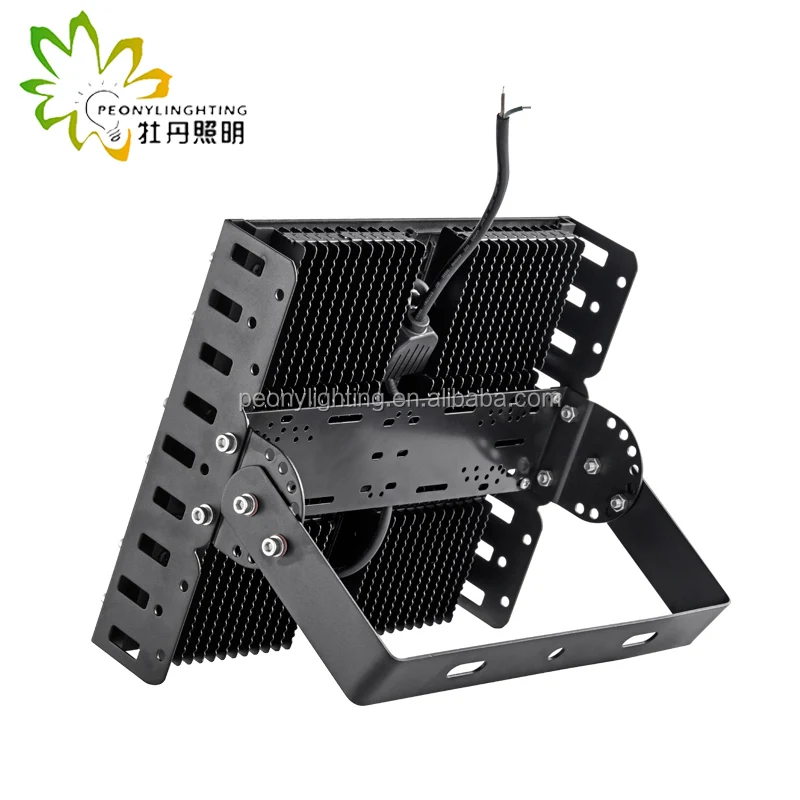

5. 180° adjustable bracket, easy to install, suitable for different installation places
6. The lens angle can be selected from 30° 60° 90° 80*150° 90*120°.



Application field

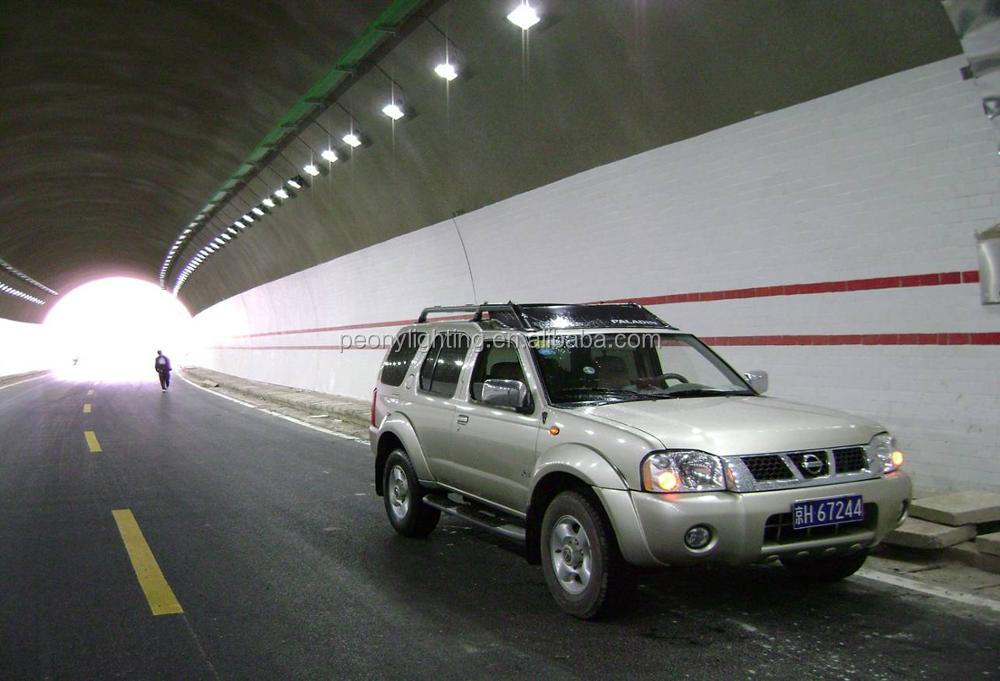

The products are used in the lighting of large factories, high-bay factories, billboards, highways, railways, subways, tunnels and other underground passages.





Technical Parameters

Power: 150W

to leadQuantity: 56pcs*3

Input voltage: AC90V-305V
Material: aluminum alloy + acrylic lens
Protection class: IP65

LED 3030smd

Beam angle: 60/90/75X140°
Light effect: 100-120lm/w

PF: >0.95
Color rendering index: Ra>70/80
Color temperature: 2700-6500K
Lifespan: 50000H

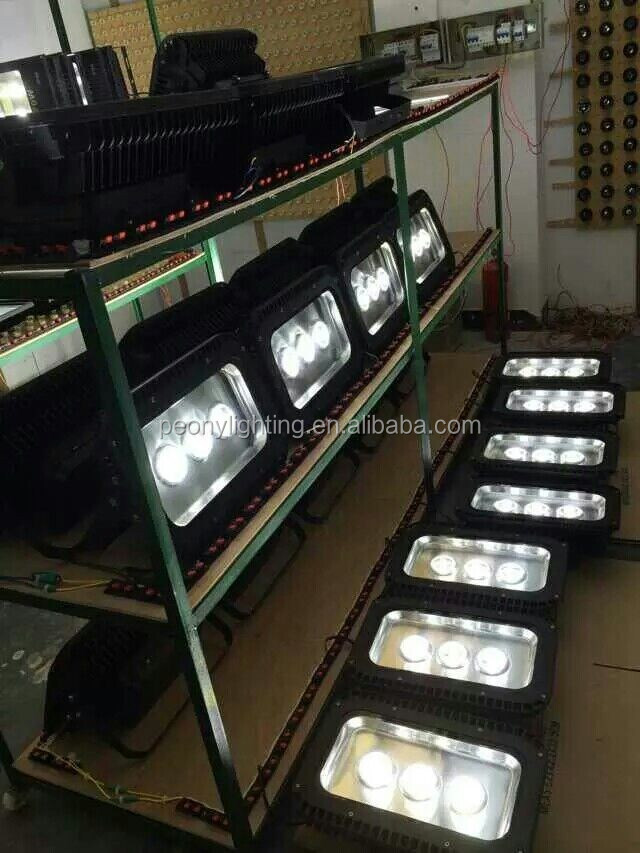

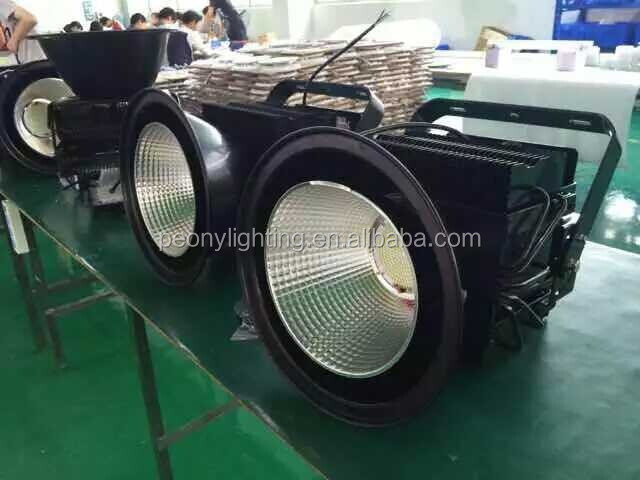

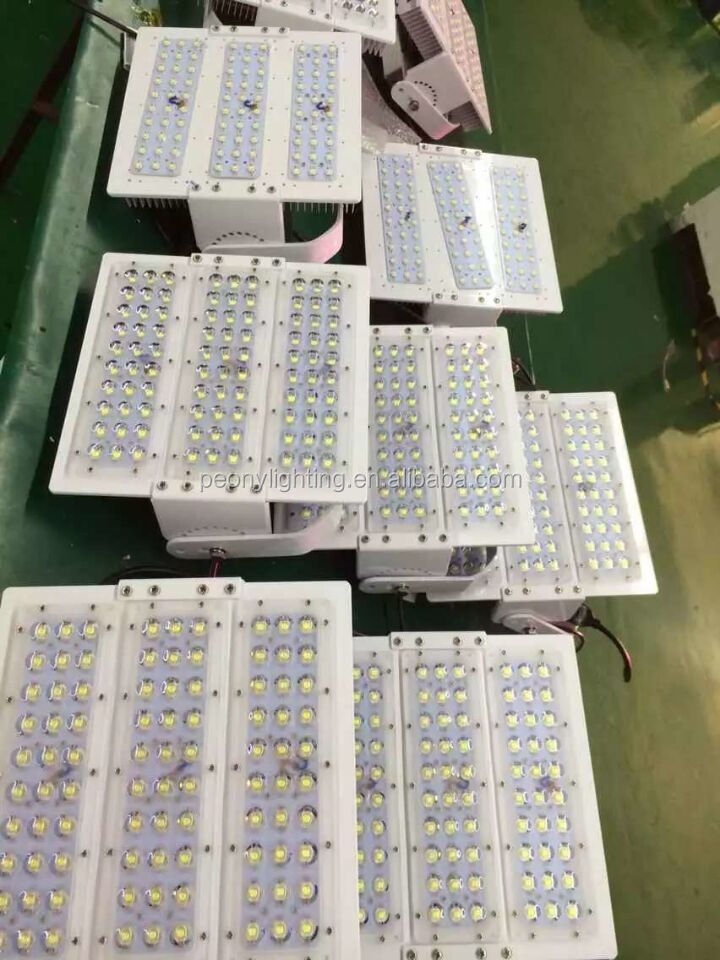

workshop:







 FAQ

1. Q: How about your delivery time? delivery conditions?

A: Sample 3-5 working days, order is subject to your quantity

The terms of delivery are as follows: FOB, CFR, CIF, EXW, FAS, etc.

2. Q: Can I get some samples?

A: We are honored to offer you samples.

3. Q: How does your company do regarding quality control?

A: We attach great importance to quality controlling from the very beginning to the very end

4. Q: Which transportation method do you use?

A: By sea, by air or by express

5. Q: Can you give me the safest payment terms?

A: T/T, PAYPAL, ESCOW, WESTERN UNION are available, you can choose the best way
